Description

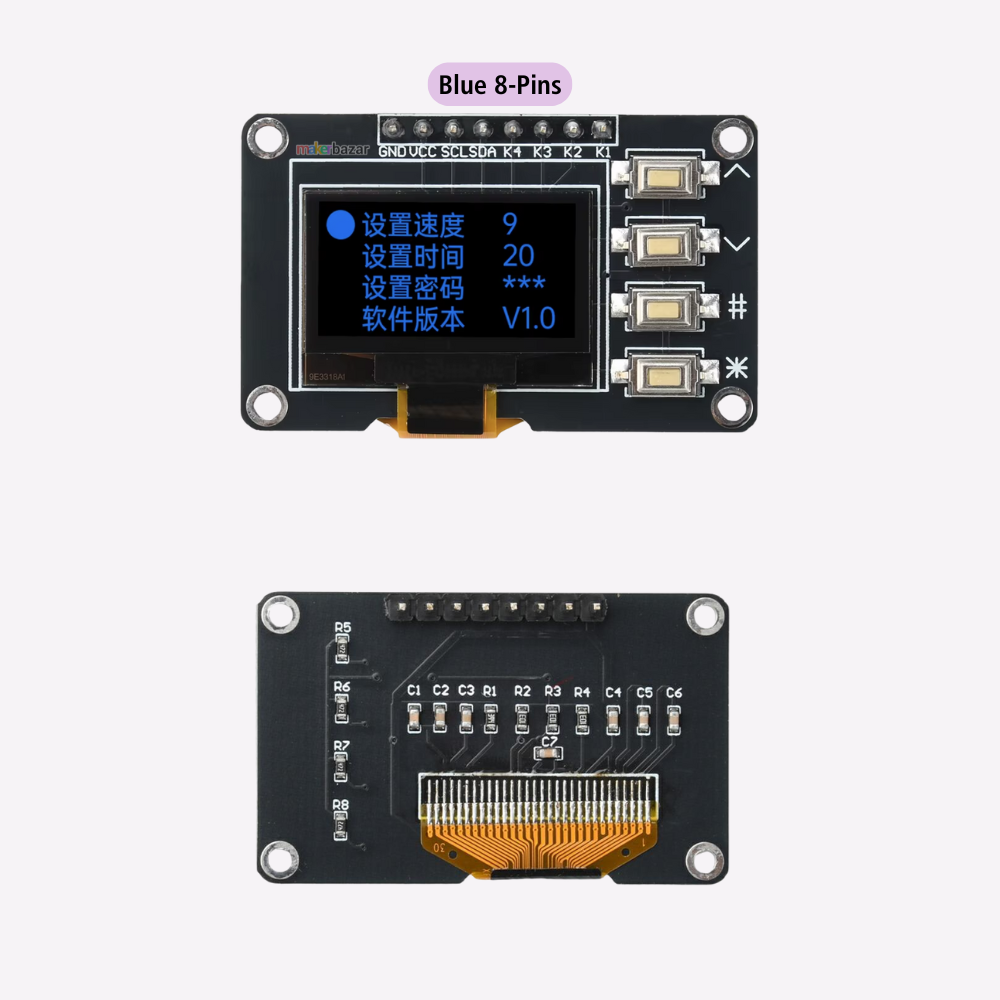

128×64 0.96” OLED IIC Display Module with Keypad – White/Blue, SSD1306/SSD1315
This 0.96-inch OLED display module combines a high-resolution 128×64 OLED screen with an integrated 4-button keypad, making it ideal for compact and interactive embedded projects. With a full viewing angle, fast refresh rate, and simple I2C (IIC) interface, it is perfectly suited for Arduino, ESP32, ESP8266, STM32, and other microcontroller platforms.
Key Features:
-
0.96-inch high-resolution OLED display (128×64 pixels)
-

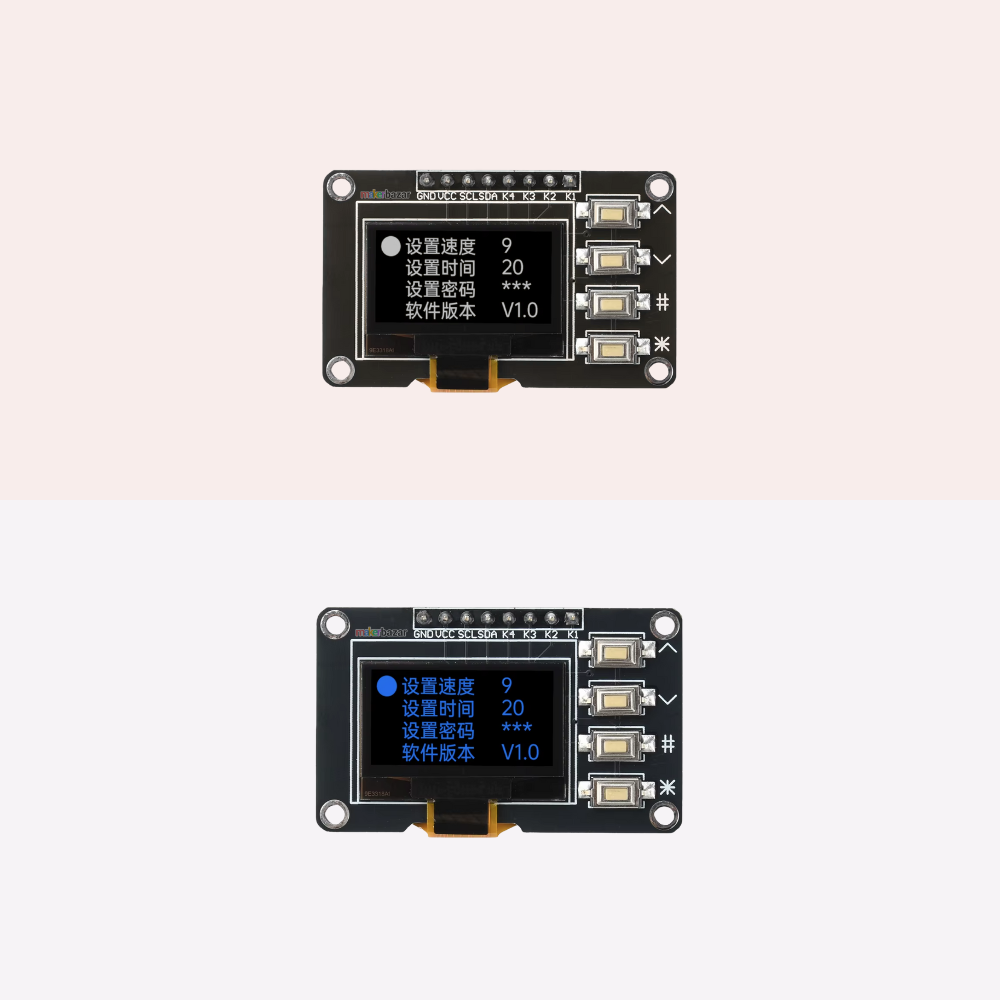

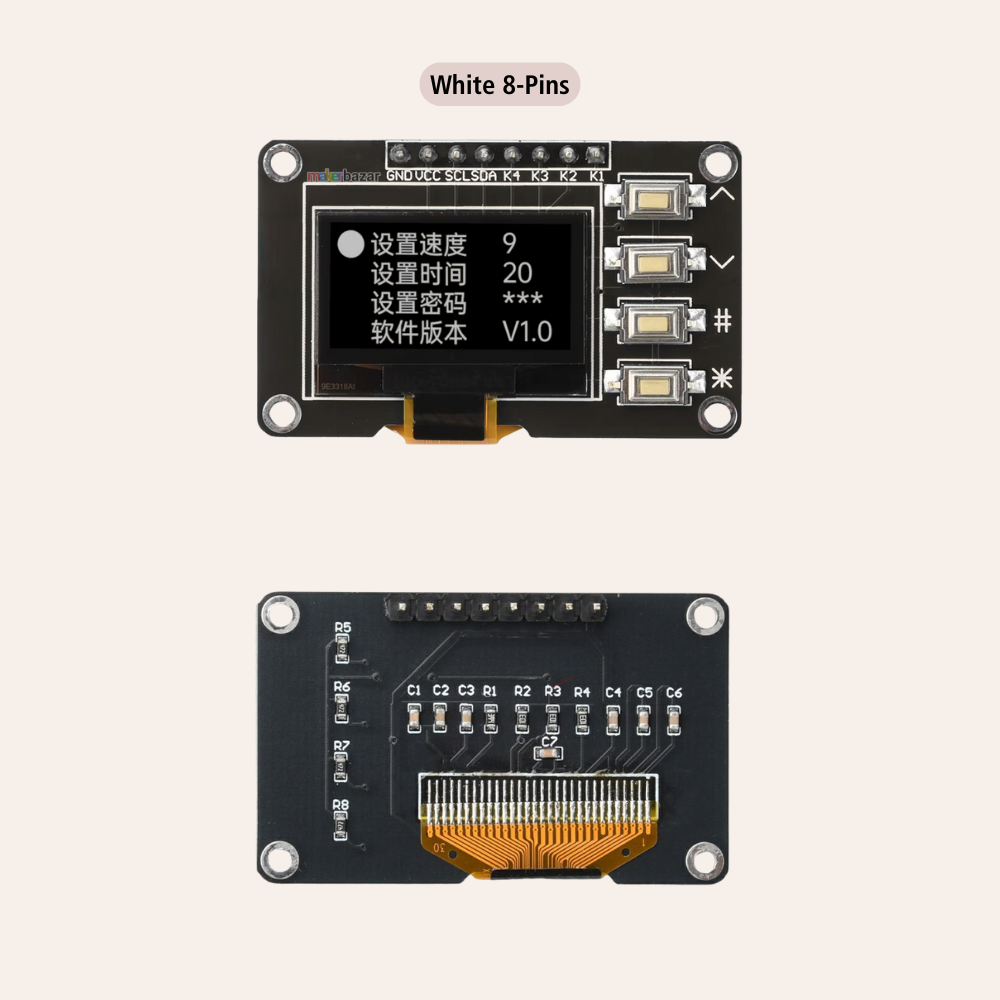

Supports White and Blue display colors
-

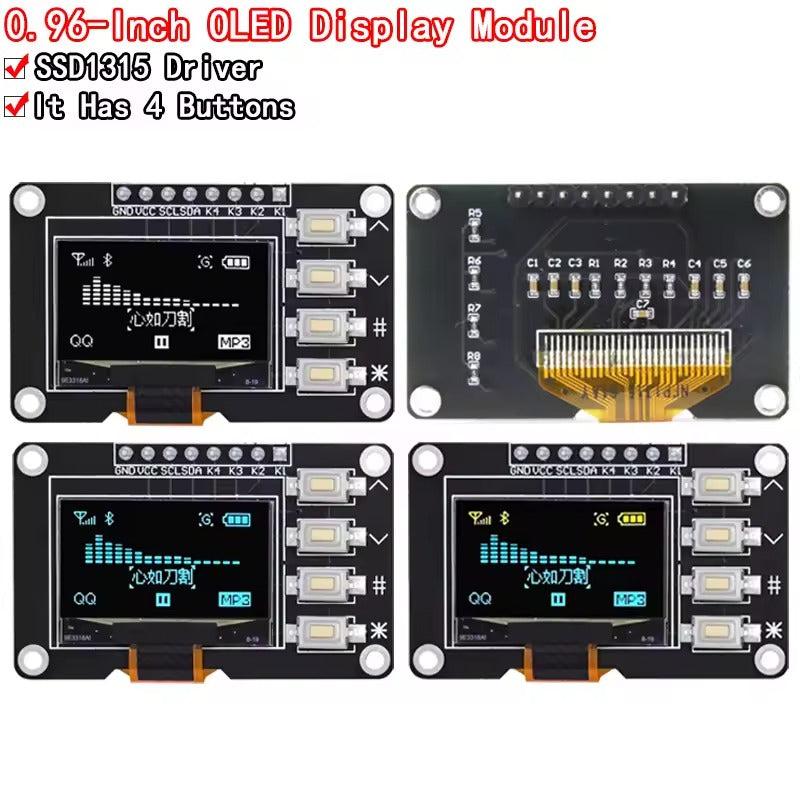

Integrated 4 independent push buttons for user input
-
IIC (I2C) interface for easy wiring and reduced pin usage
-
Full viewing angle IPS-like visibility
-
High refresh rate up to 100 frames per second
-
Compatible with SSD1306 and SSD1315 driver ICs
-
Compact, lightweight, and low power consumption
Technical Specifications:
| Parameter | Details |
|---|---|
| Display Size | 0.96 inch |
| Resolution | 128 × 64 pixels |
| Interface | IIC (I2C) |
| Driver IC | SSD1306 / SSD1315 |
| Display Color | White / Blue |
| Operating Voltage | DC 3.3V |

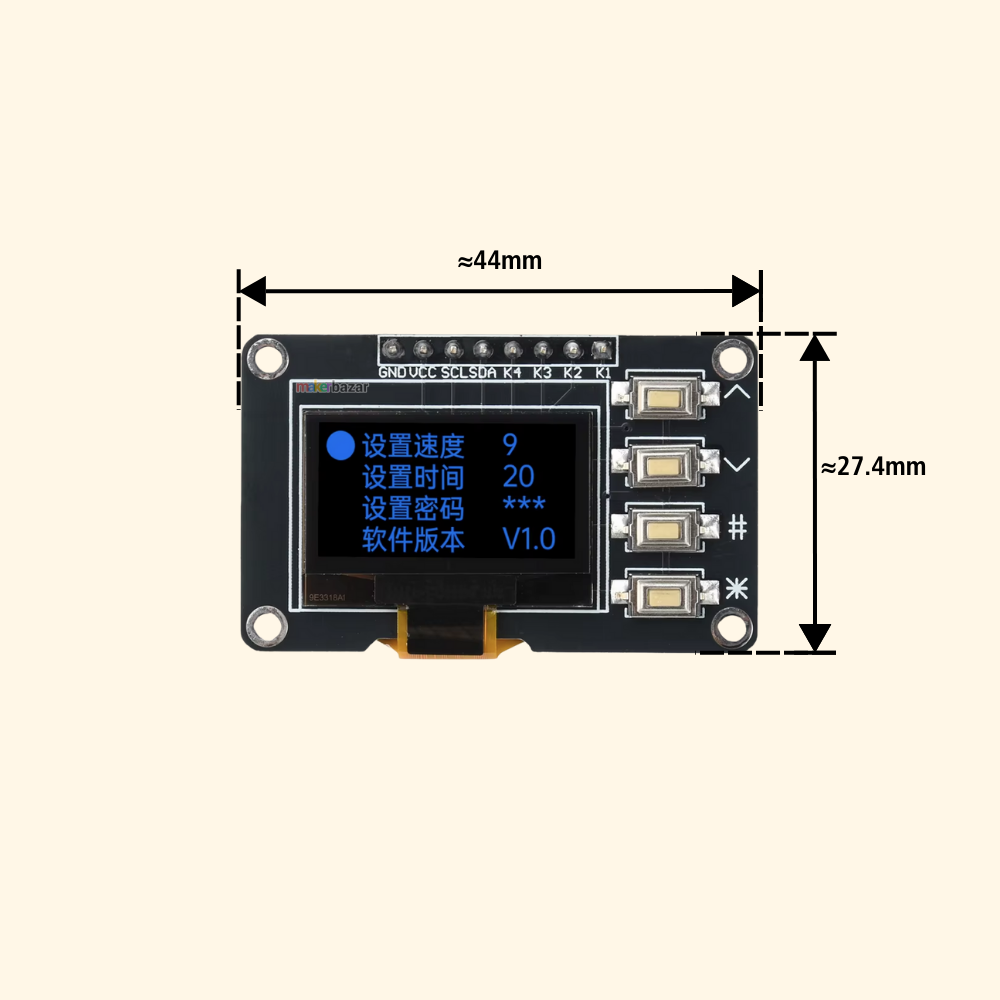

| Active Display Area | 21.74 × 10.86 mm |
| Pixel Pitch | 0.17 × 0.17 mm |
| Number of Pins | 4-Pin (2.54 mm pitch) |
| Viewing Angle | Full viewing angle |
| Refresh Rate | Up to 100 FPS |
| Operating Temperature | −40°C to +70°C |
Applications:
-
Arduino and ESP-based projects
-
Wearable electronics
-
IoT devices and dashboards
-
Interactive menus and user interfaces
-
DIY electronics and learning kits
-
Portable instruments and smart controllers
Precautions:
-
Operate strictly at 3.3V to avoid display damage
-
Verify driver compatibility (SSD1306 or SSD1315) before coding
-
Avoid physical stress on the OLED panel
-
Use proper pull-up resistors for I2C lines if required
-
Store and operate within specified temperature limits
