Description

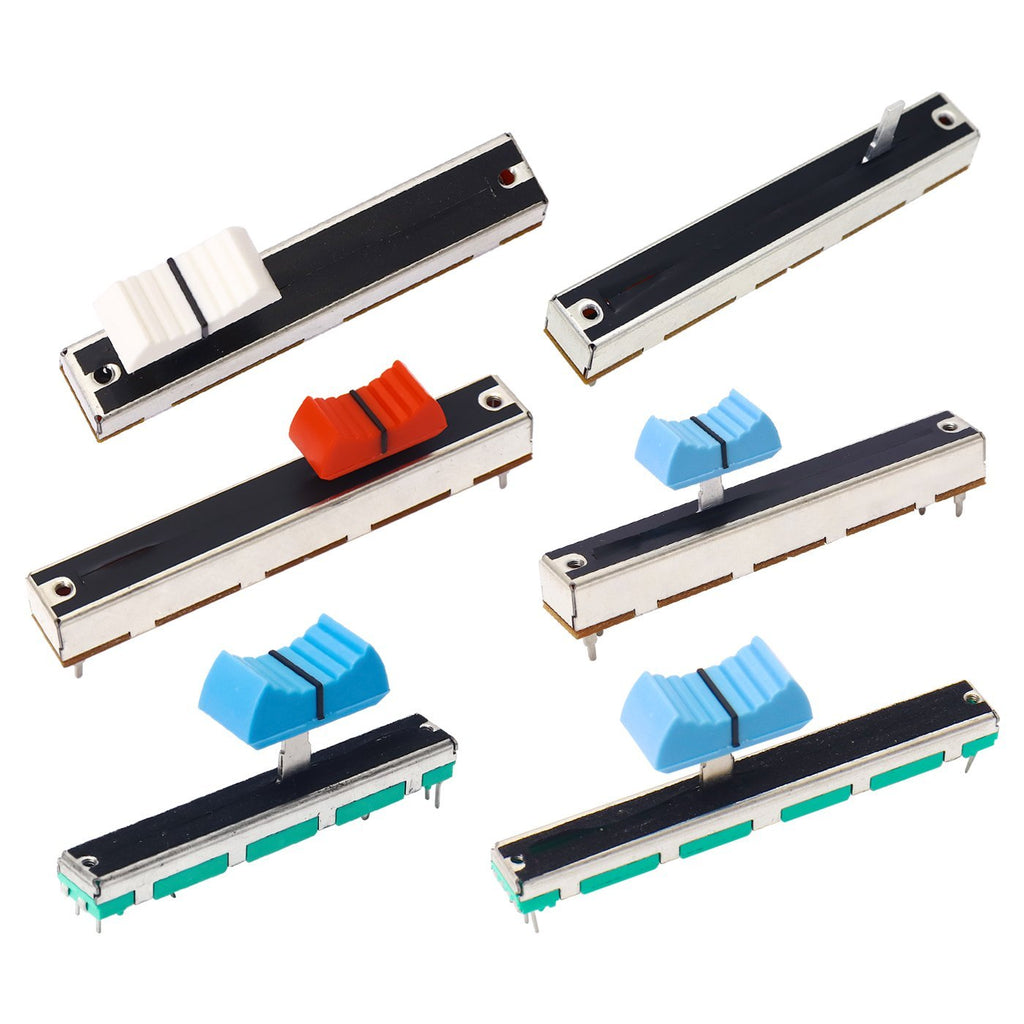

Slider Potentiometer Single Linear Taper Slide Pot for Audio and Control Applications [Without Knob]
The Slider Potentiometer Single Linear Taper Slide Pot is a variable resistor designed to provide smooth and precise linear control in electronic circuits. Commonly used in audio mixers, amplifiers, equalizers, control panels, and DIY electronics, this slide-type potentiometer allows intuitive adjustment through a linear sliding motion.
These potentiometers are available in multiple resistance values and taper types, making them suitable for both signal-level control and general-purpose voltage adjustment. Their compact PCB-mount design ensures easy integration into audio equipment, instrumentation panels, and custom electronics projects.
Note: Knobs are sold separately—browse our fader knob collection to complete your setup.
Key Features
-
Single-gang slider potentiometer
-
Smooth linear sliding operation
-
Available in multiple resistance values
-
Consistent and stable electrical performance
-
Suitable for PCB mounting
-
Commonly used in audio and control circuits
Common Variants and Codes
Understanding Potentiometer Codes
-
A: Audio (logarithmic) taper
-
B: Linear taper
-
D: Reverse logarithmic taper
-
103: 10kΩ
-
104: 100kΩ
Available Variants
| Variant Code | Taper Type | Resistance Value |
|---|---|---|
| A103 | Audio (Log) | 10kΩ |
| B103 | Linear | 10kΩ |

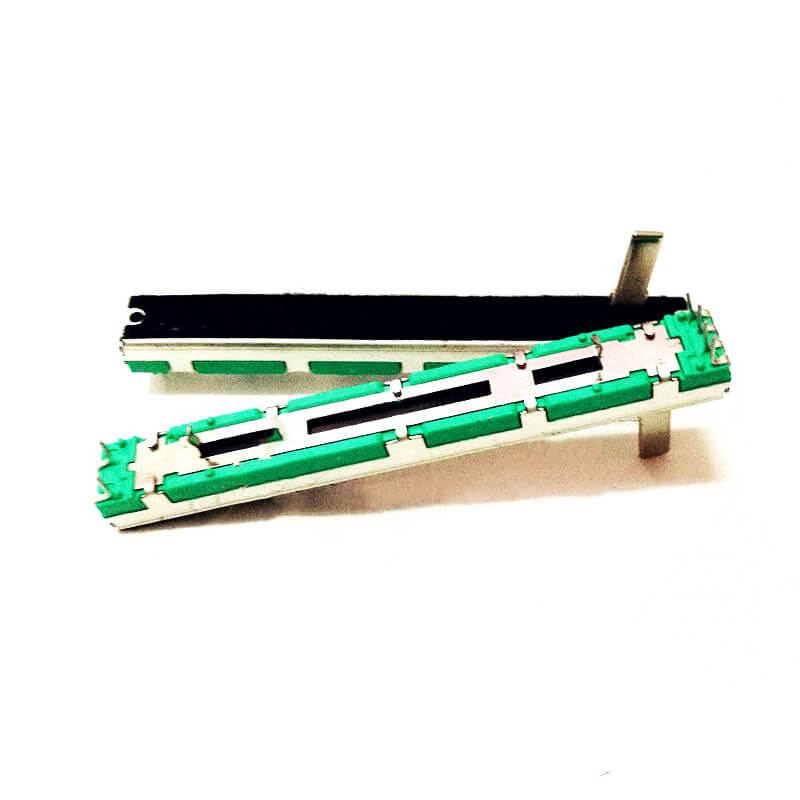

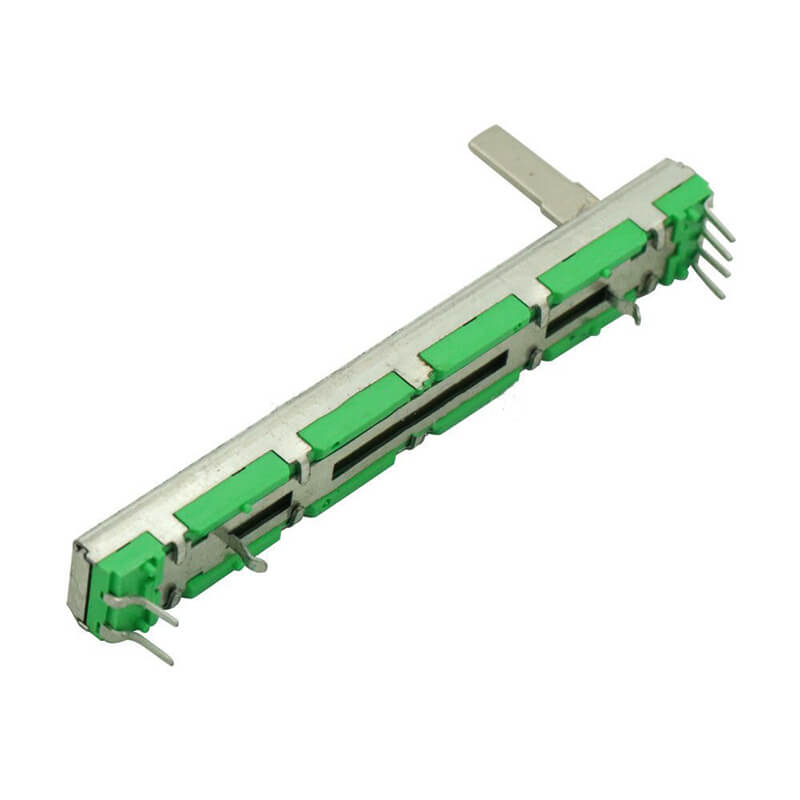

| D103 | Reverse Log | 10kΩ |
| A104 | Audio (Log) | 100kΩ |
| B104 | Linear | 100kΩ |
| D104 | Reverse Log | 100kΩ |
| A102 | Audio (Log) | 1kΩ |
| B102 | Linear | 1kΩ |
| A105 | Audio (Log) | 1MΩ |
| B105 | Linear | 1MΩ |
Variant Comparison Table
| Code | Taper | Typical Use Case |
|---|---|---|
| A (Log) | Audio taper | Volume control in audio circuits |
| B (Linear) | Linear | General voltage or signal control |
| D (Reverse Log) | Reverse audio | Specialized audio control applications |
Applications
-
Audio mixers and equalizers
-
Amplifier volume and tone control
-
DIY audio equipment
-
Control panels and sliders
-
Educational electronics projects
-
Instrumentation and signal adjustment
Specifications
| Parameter | Details |
|---|---|
| Potentiometer Type | Slider / Slide Pot |
| Gang | Single |
| Taper | Audio (A), Linear (B), Reverse Log (D) |
| Resistance Range | 1kΩ to 1MΩ (variant dependent) |
| Mounting | PCB mount |
| Adjustment Style | Linear sliding |
| Body Material | Plastic with metal contacts |
