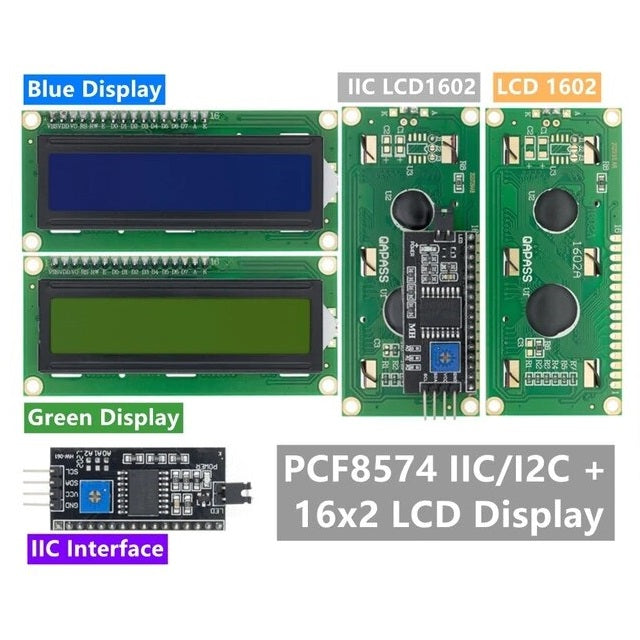

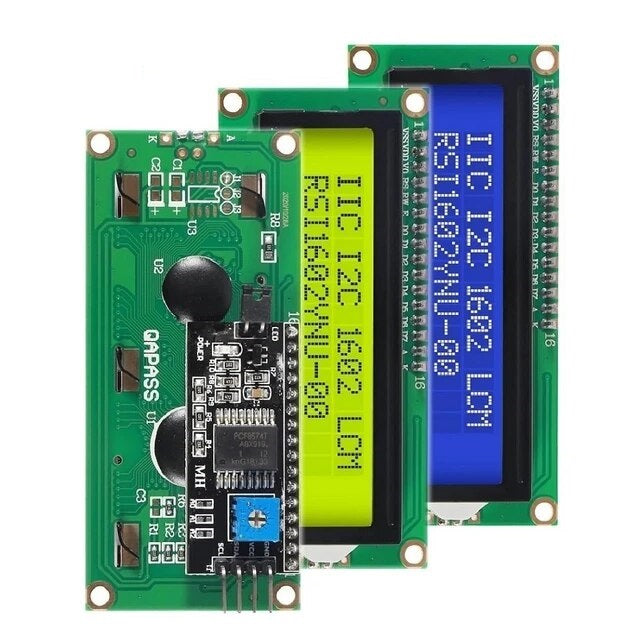

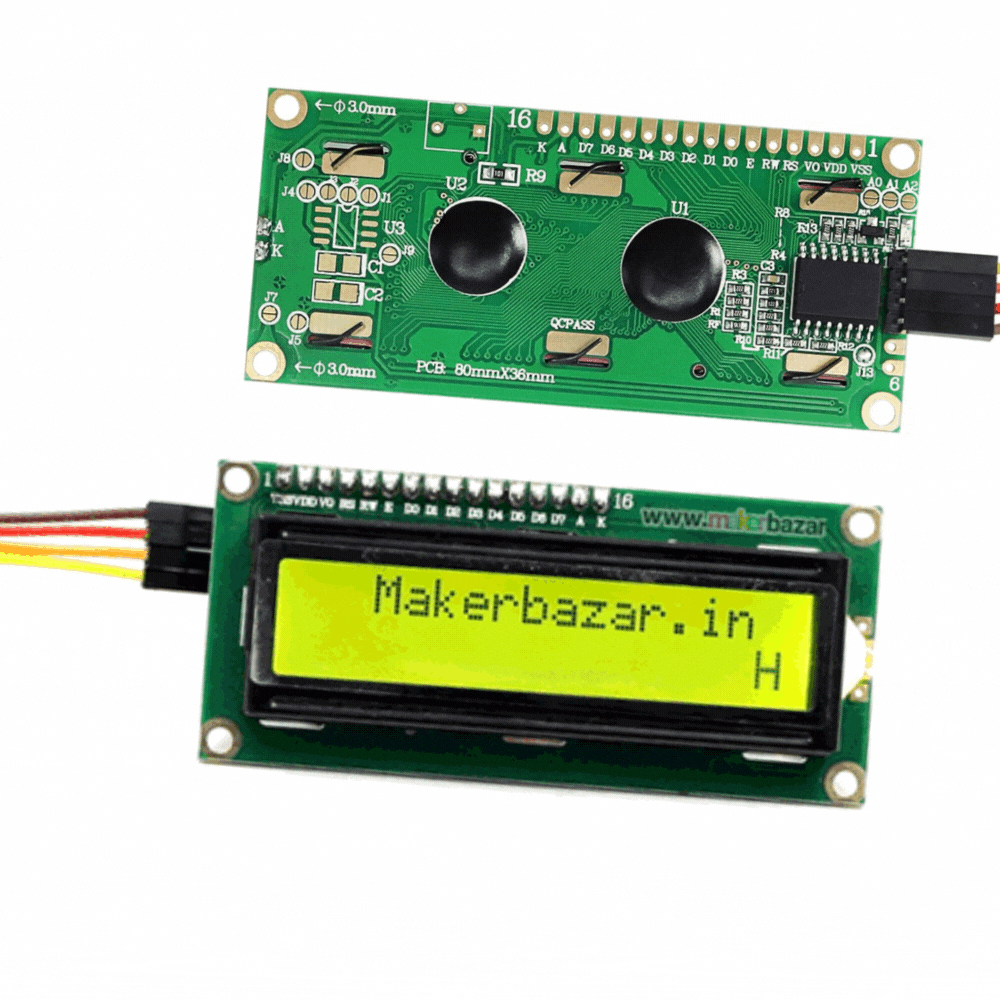

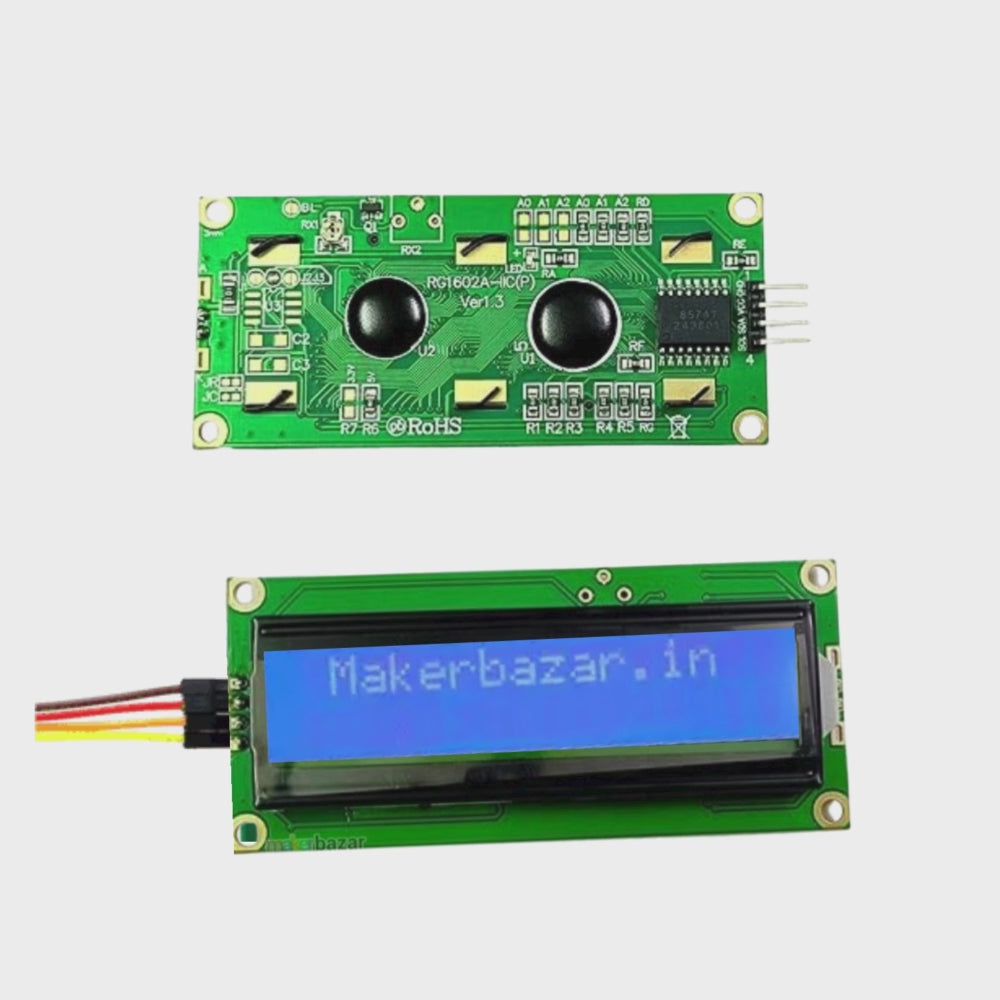

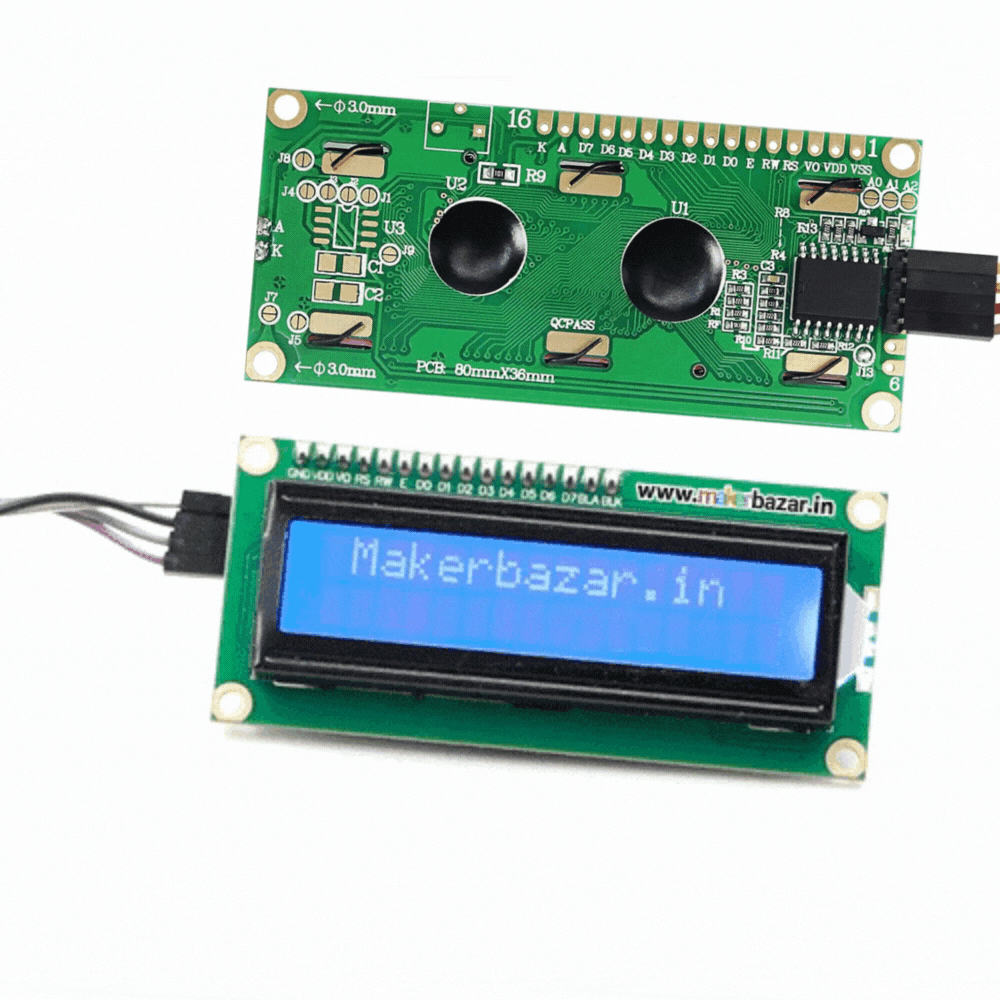

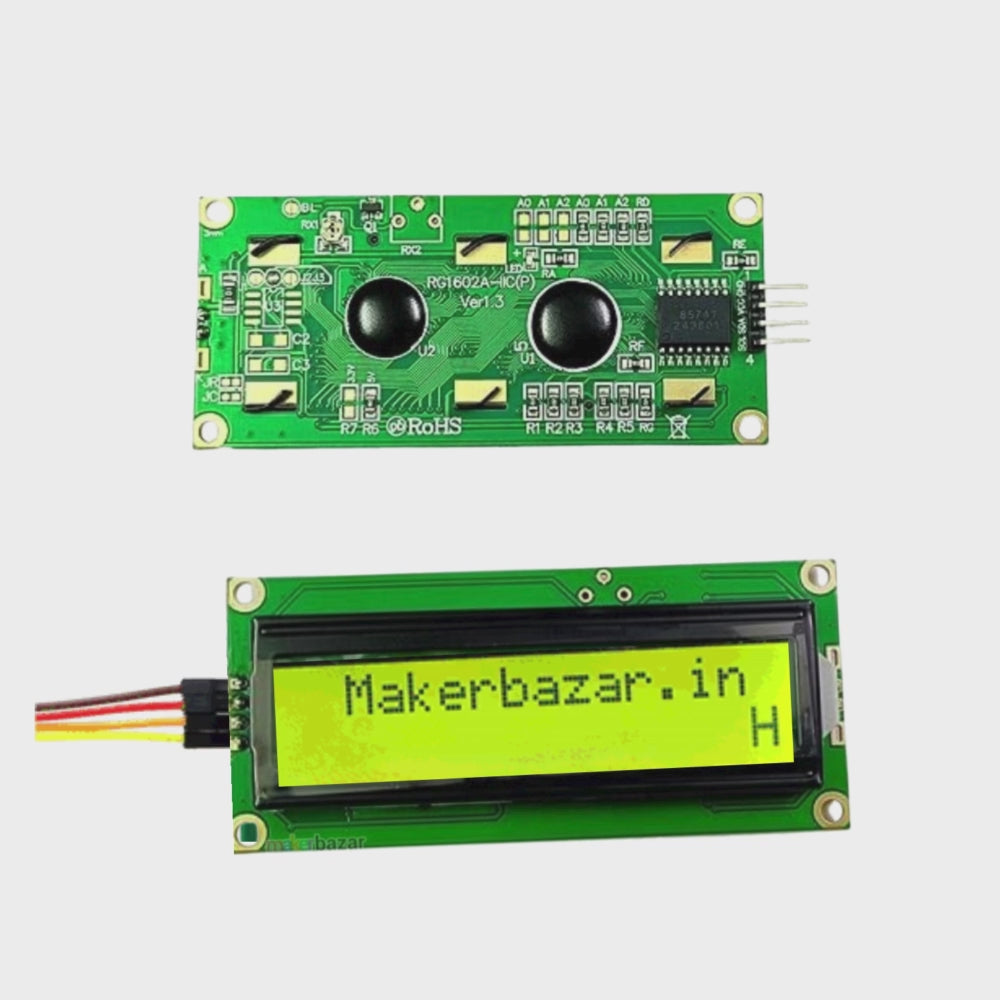

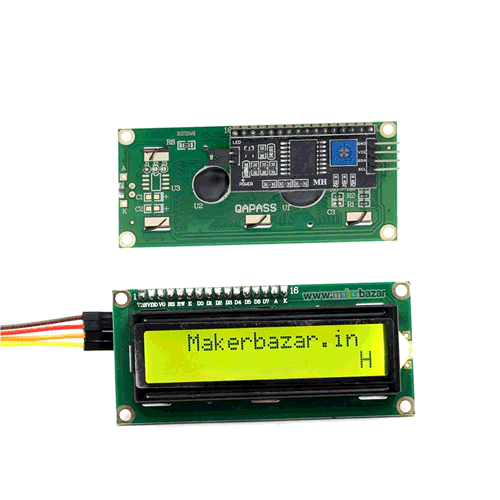

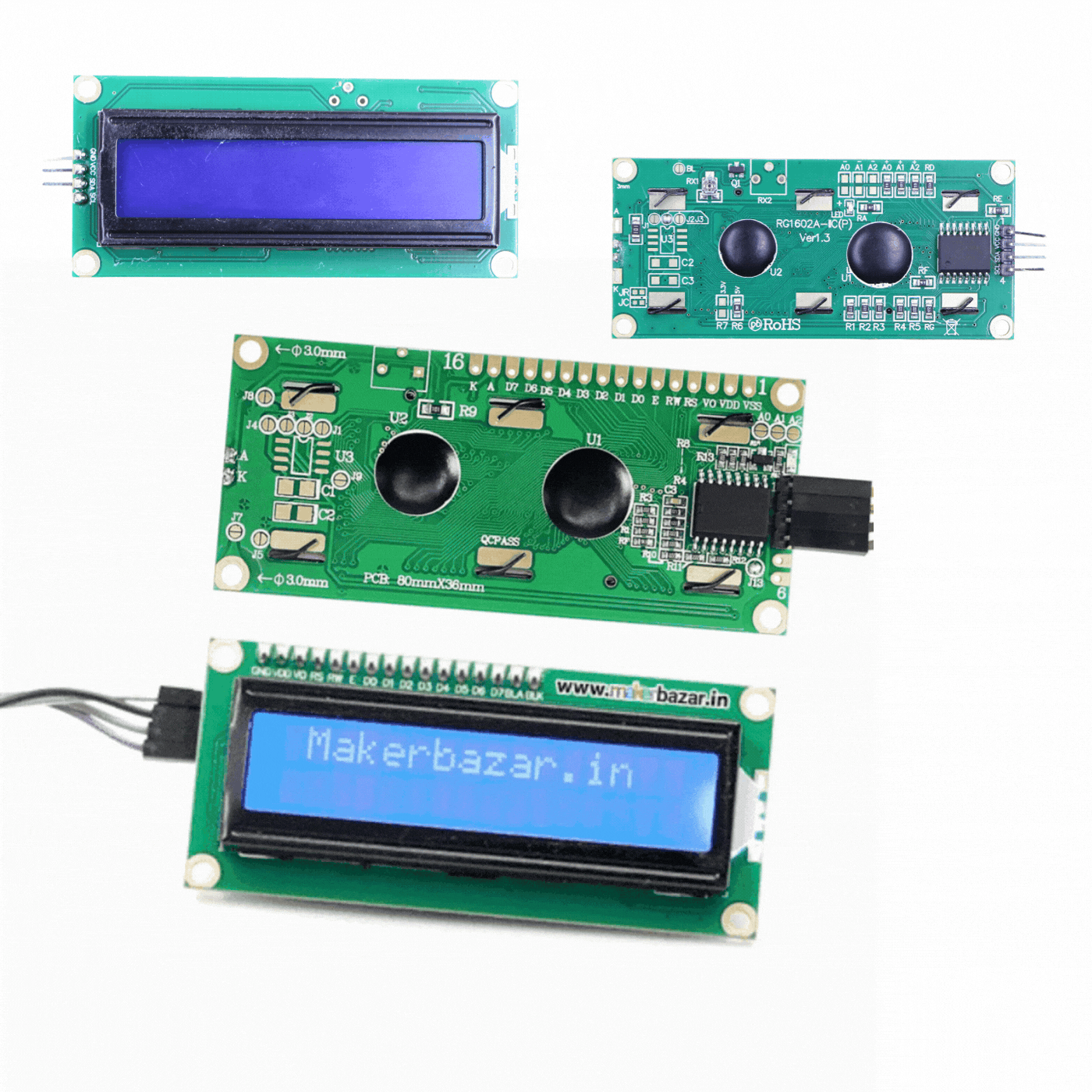

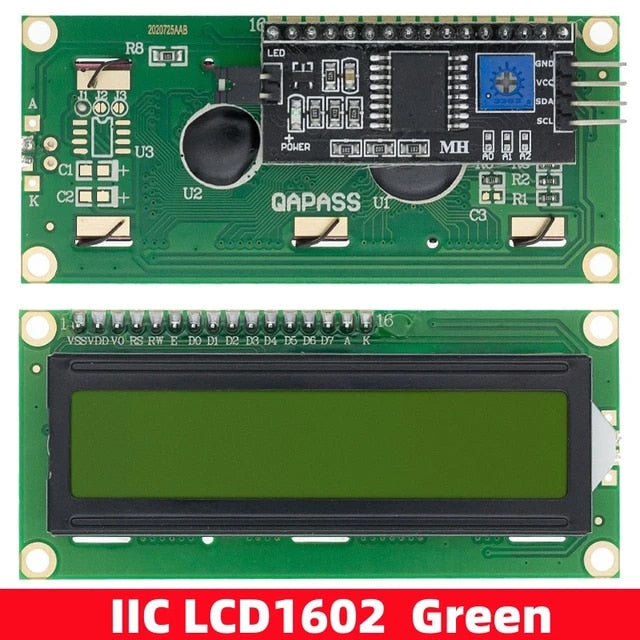

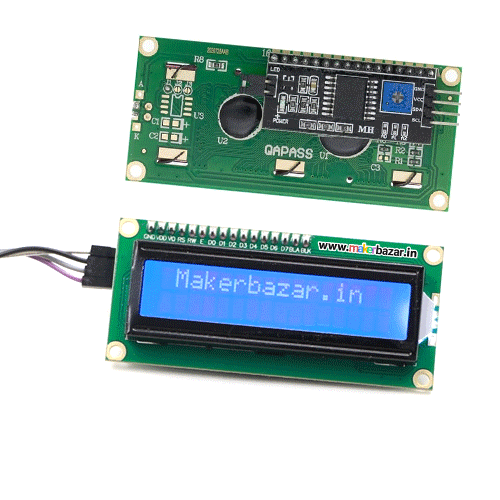

1602 Display Screen LCD Board 16x2 with I2C

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only a little to display, the LCD1602 Parallel LCD Display with IIC/I2C interface is a quite good solution.

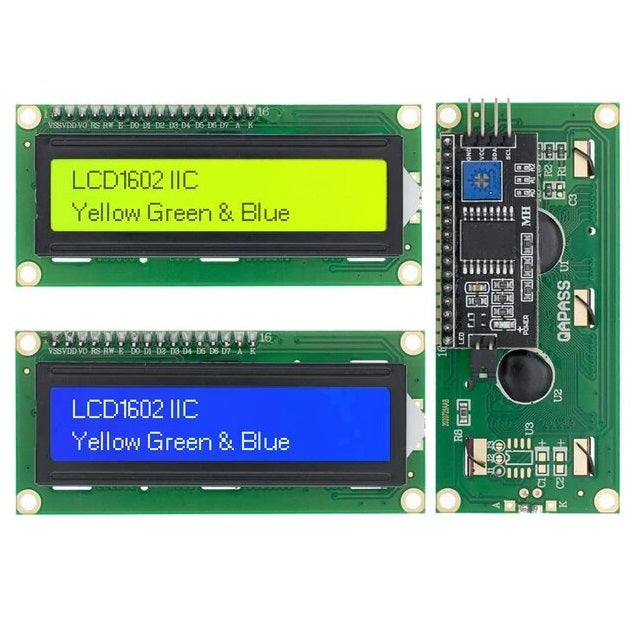

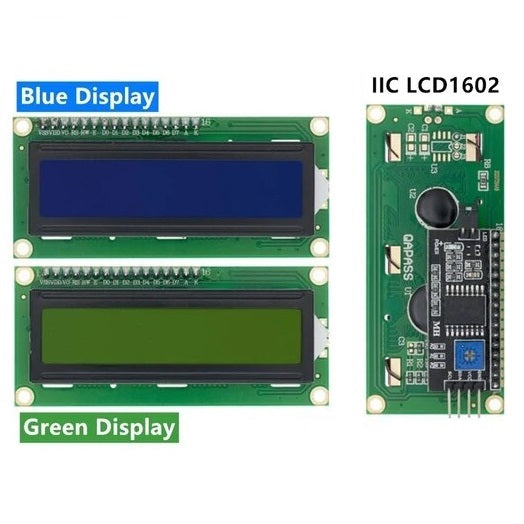

This is LCD1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display that has a very clear and high contrast white text upon a blue background/backlight.

This is the great blue backlight LCD display. It is fantastic for Arduino-based projects. This LCD1602 Parallel LCD Display with Yellow Backlight is very easy to interface with Arduino or Other Microcontrollers.

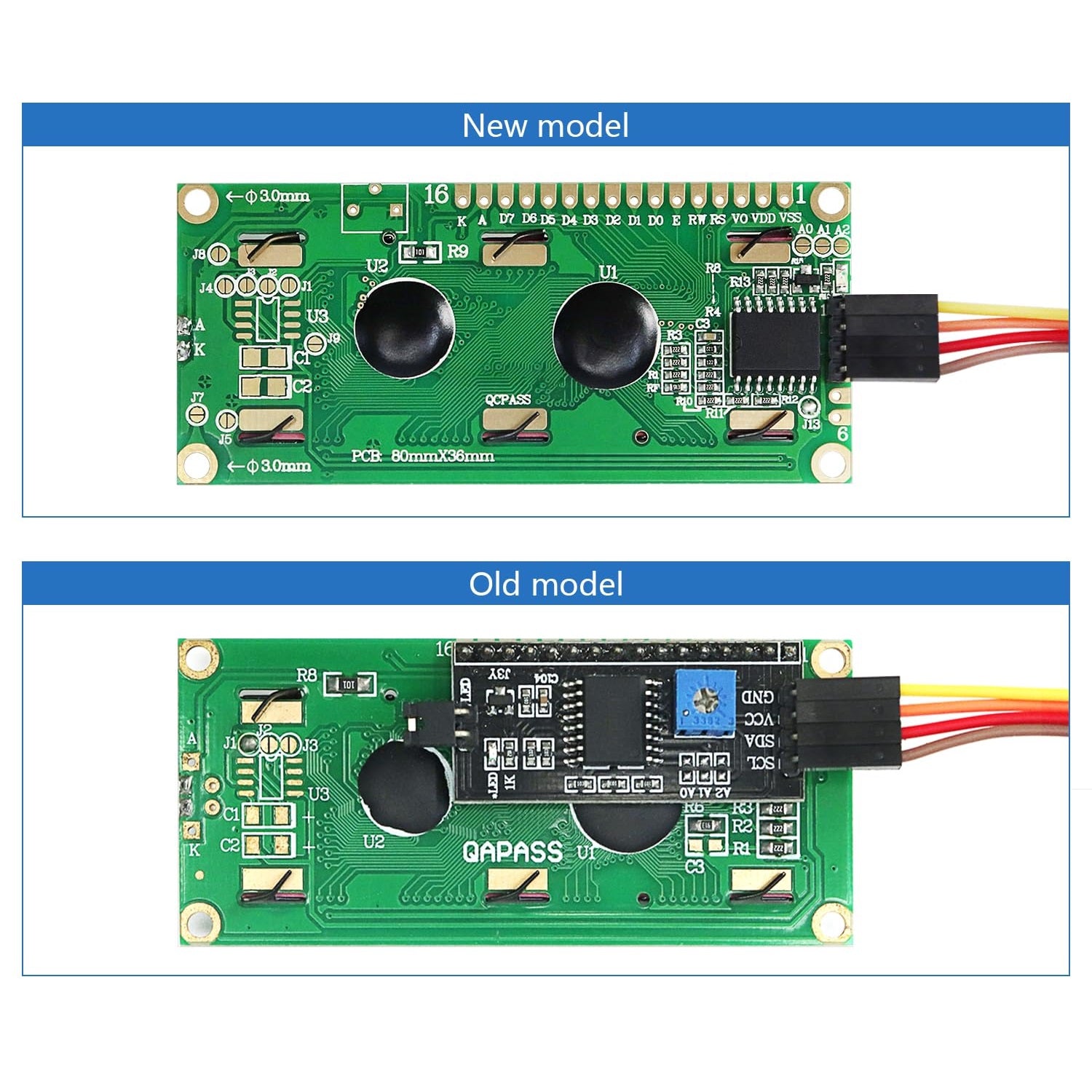

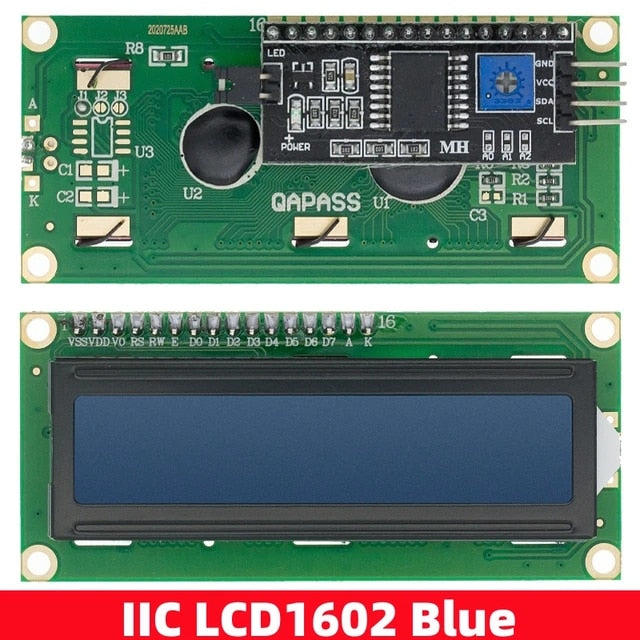

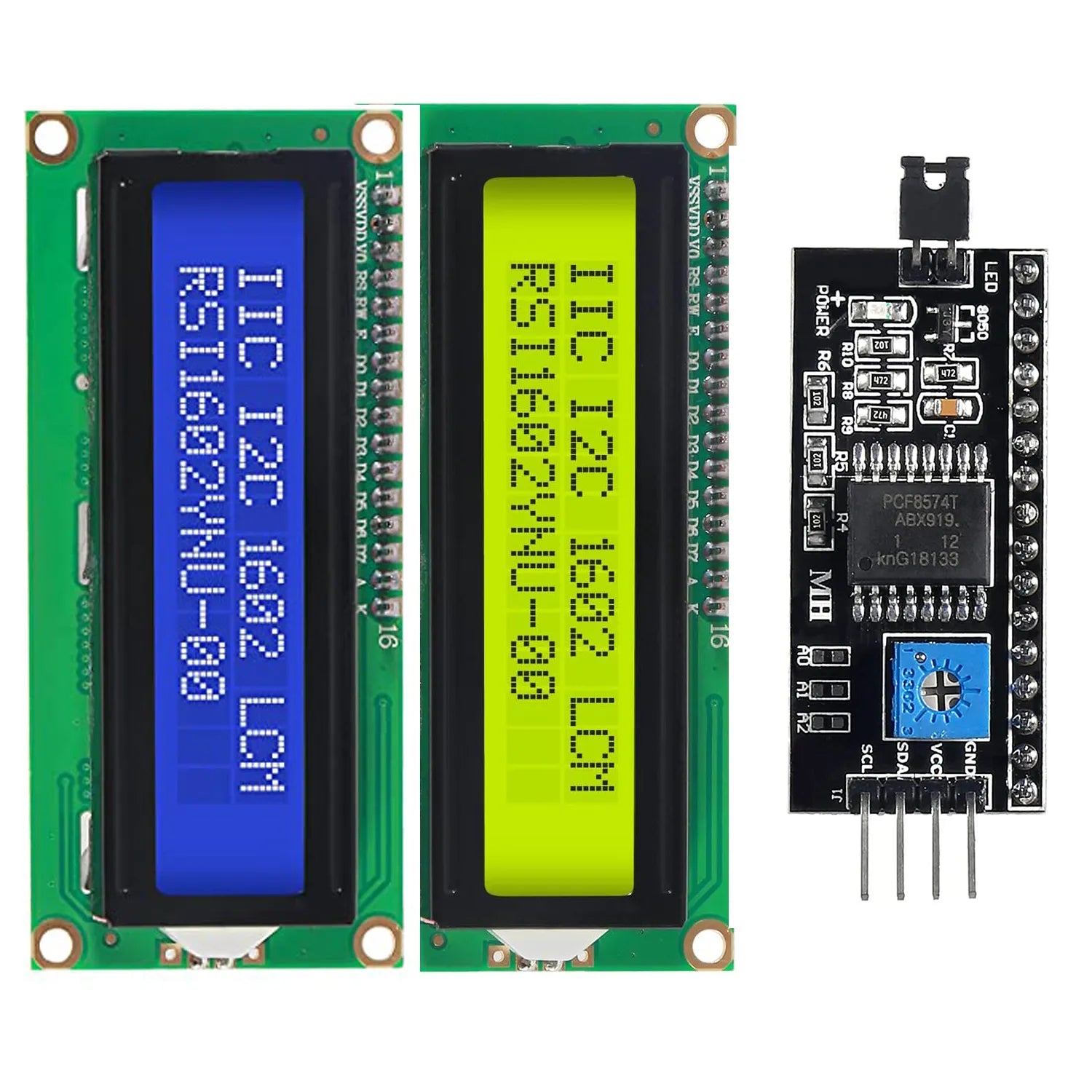

This display overcomes the drawback of LCD1602 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which show a good library and little coding.

The I2C is a type of serial bus developed by Philips, which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The Liquid Crystal Display works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

If you are having an I2C adapter and only want to buy a display then click below,

LCD1602 Parallel LCD Display

Features :

1. I2C Reduces the overall wirings.
2. 16 characters wide, 2 rows
3. I2C adapter allows flexibility in connections
4. White text on the Blue background
5. Single LED backlight included can be dimmed easily with a resistor or PWM.
6. Arduino IIC/I2C interface was developed to reduce the IO port usage on the Arduino board
