Description

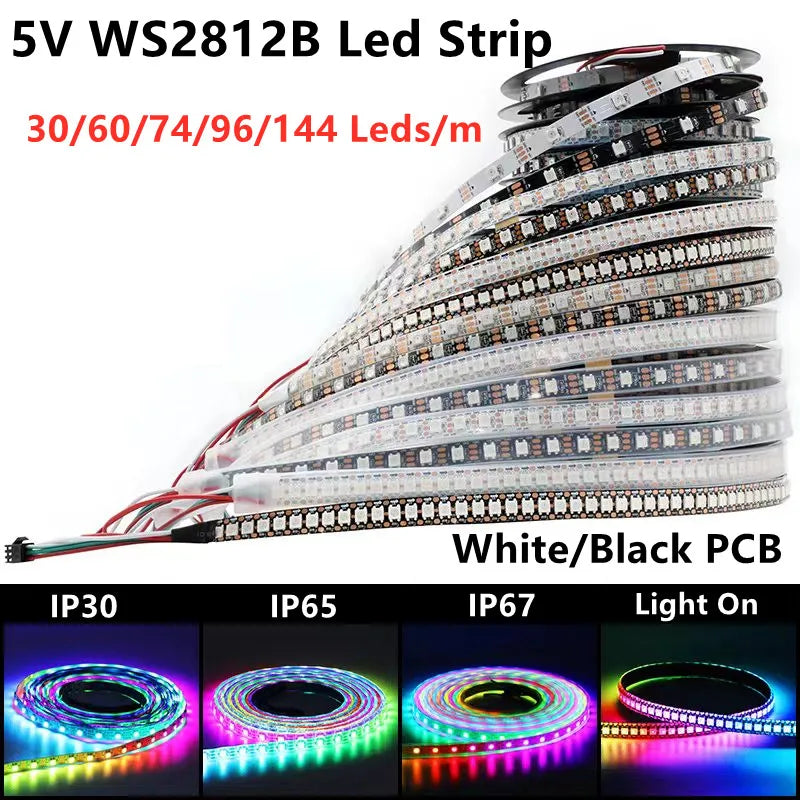

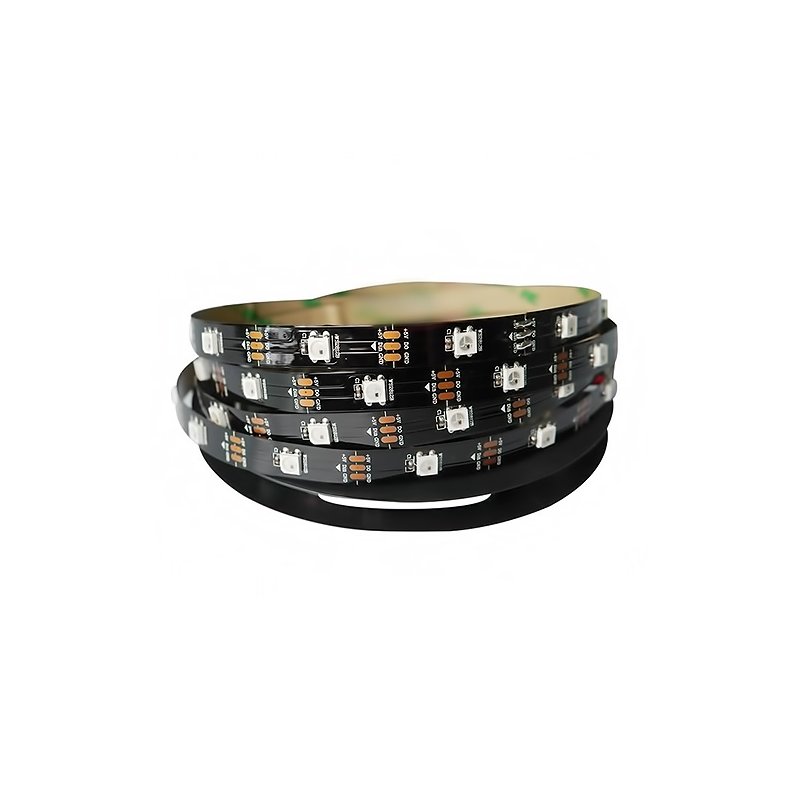

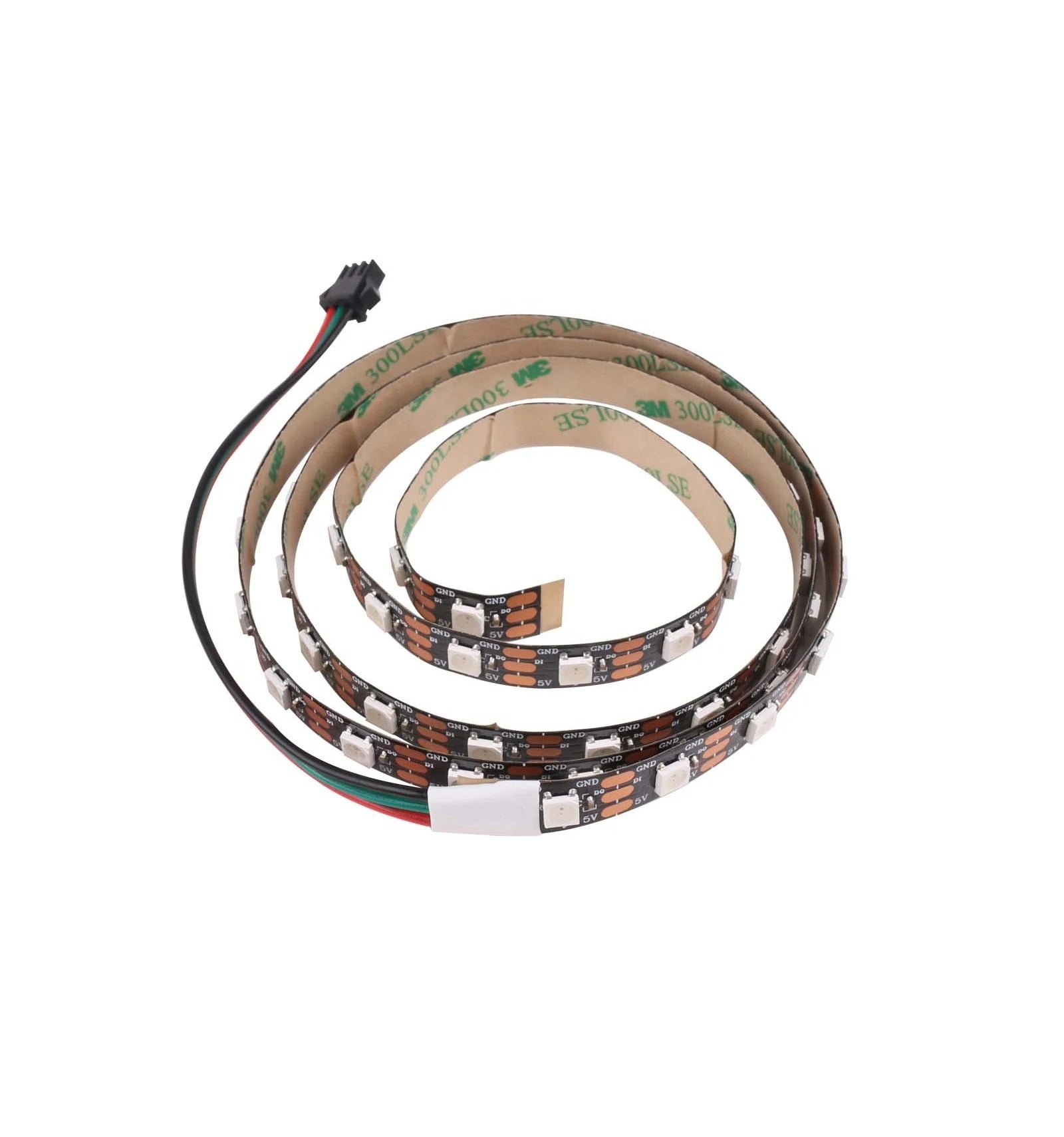

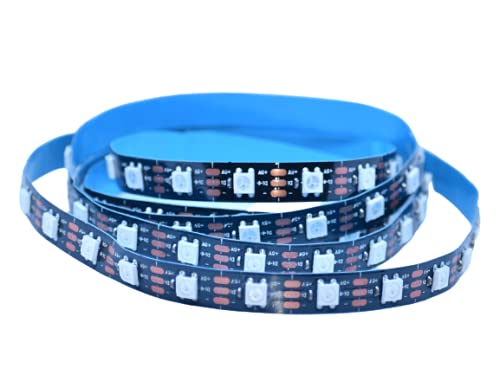

5-Volt RGB Addressable Pixel Strip for Arduino
- Input voltage: DC 5V
- Power:
- 30Leds/m ---- 6Watt/meter
- 60Leds/m ---- 12Watt/meter
- 74Leds/m ---- 14.8 Watts/meter
- 96Leds/m ---- 19.2 Watts/meter
- 144Leds/m ---- 28.8 Watts/meter
- LED Source: WS2812B Led(5050 SMD RGB LED with built-in upgraded version of WS2811 IC)
- LED: Each LED is controlled individually
- IC type: upgraded version WS2812 IC (built in the 5050SMD RGB LED)
- Of IC: 1 IC Drives 1 LED Chip
- Pixels: 30/60/74/96/144/meter
- Pitch: 16.6mm(1000/64)
- Gray Scale: 256
- Bits/Color: 8 bits/Color
- FPC Width:
- 30Leds/m --- 10mm
- 60Leds/m ---- 10mm
- 74Led/m --- 10mm
- 96Led/m --- 10mm
- 144Leds/m ---- 12mm
- FPC color: Black/White (Random)

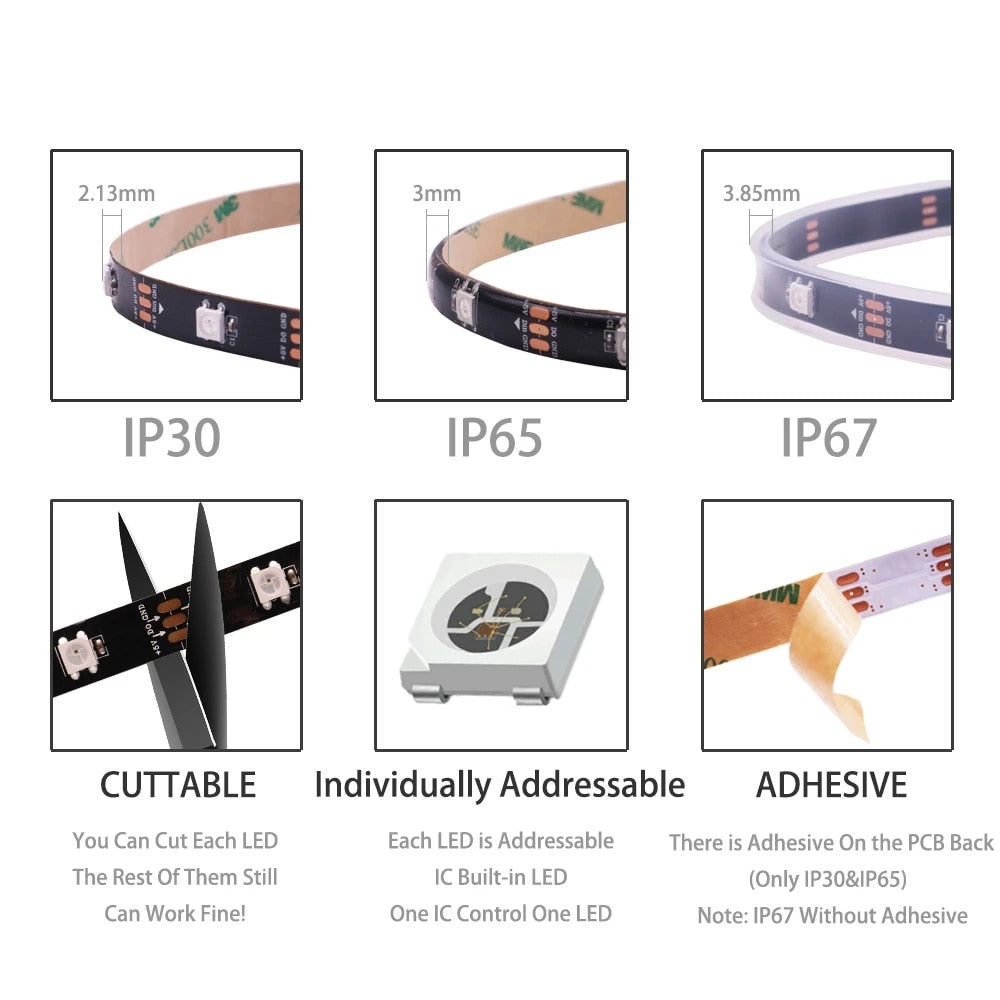

- Protection rate: IP30/ IP65 /IP67
- Colors: Full Color RGB, Dream Color Changing

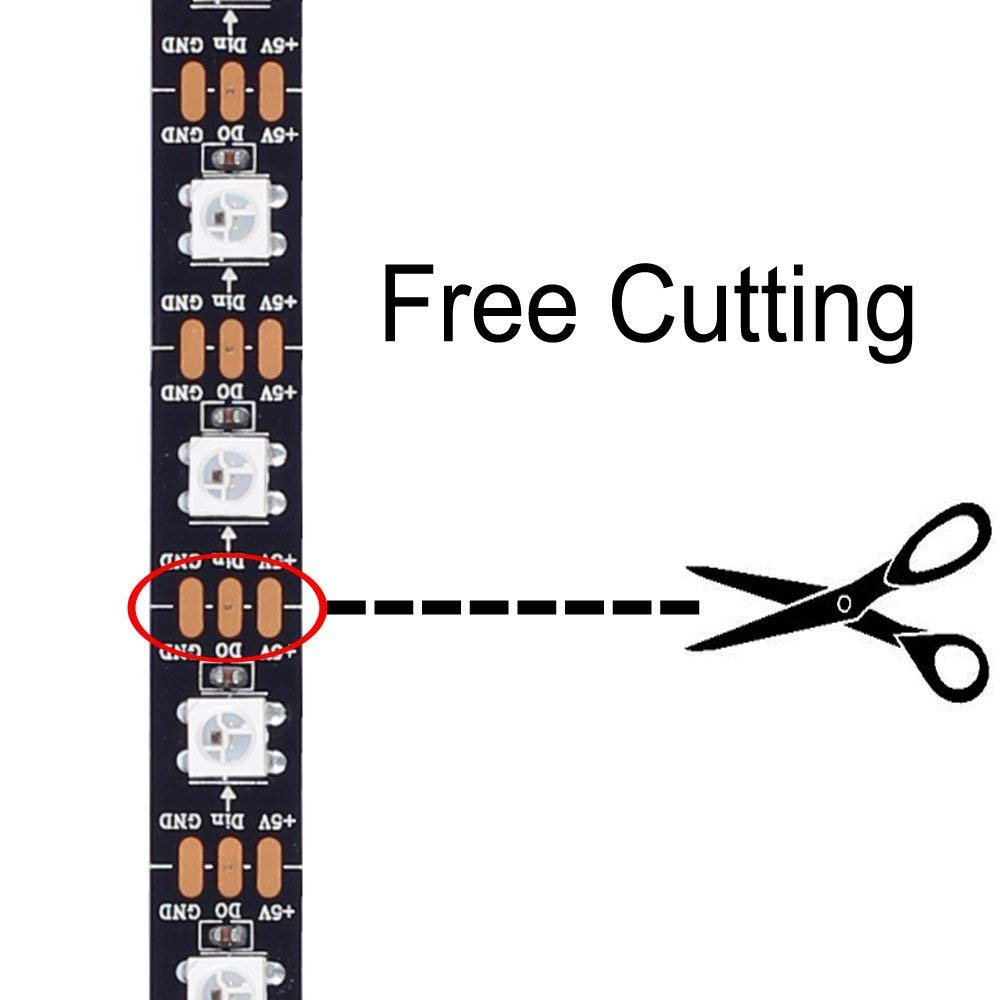

- Cuttable: Each LED is Cuttable
