Description

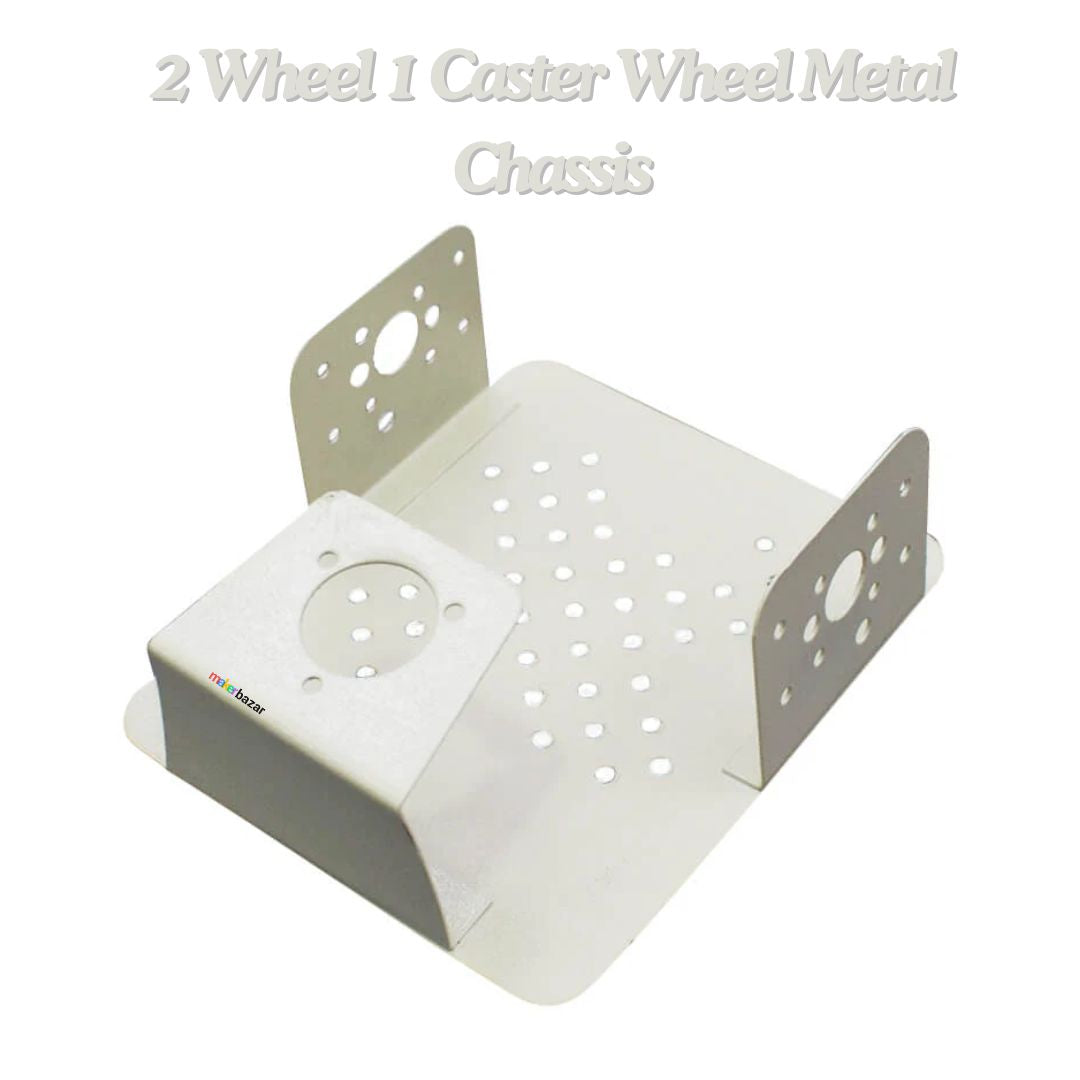

Metal Chasis for 2 Wheel 1 Castor
2 Wheel Metal Chassis is powder-coated Metal chassis for robots. Easy to mount the motors on the place by using a normal motor mount nut. It is compatible with a center Shaft Gear motor and BO Motor. This Chassis board is widely used as a mechanical frame structure of mobile robots. It is the backbone of the robot, where we arrange and connect everything like BO Motors, sensors, and BO Wheels.
- Dimensions: 115mm x 105mm x 45mm
- Material: Metal sheet
- Color: Grey.
- Sheet Thickness: 1.5 mm.
- Motor Fitting Hole Diameter: 13.75 mm.
- Many perforated holes have been given for easy attachment of development board and sensors.
