24v 6S 12A 18650 Lithium Battery Protection Board

Save ₹ 51.00
SKU: 136602172
No reviews

Price:
Sale price₹ 199.00 Regular price₹ 250.00
( ₹ 168.64 without 18% GST.)

Tax included Shipping calculated at checkout

Description

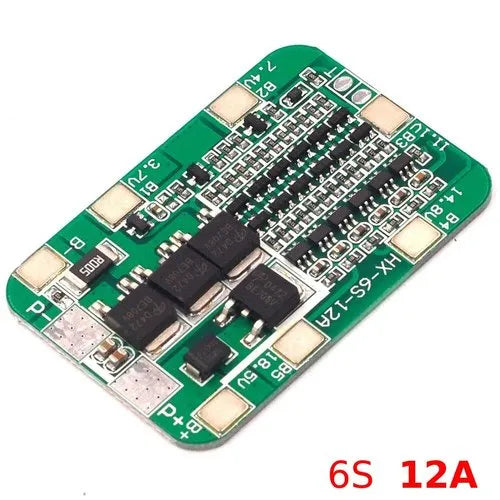

HX-6S-12A 6S 12A 22.2V BMS 18650 Lithium Battery Charger PCB

BMS (Battery Management System) – a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery, etc.

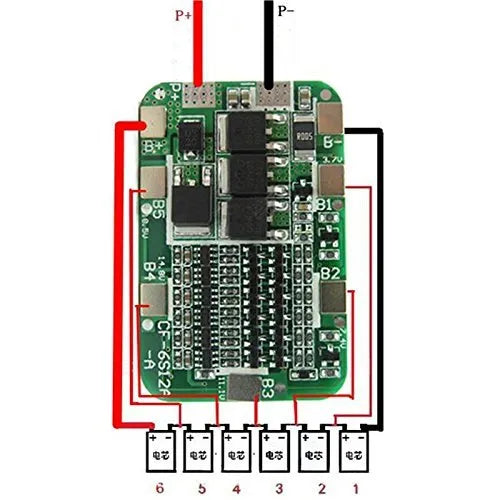

Six batteries (18650) can be connected simultaneously to this charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 12 A.

If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection.


Features:

  1. Small size designed for a four-cell battery pack.
  2. Simple and  convenient circuit for easy connections
  3. Over-charge/Over-discharge Protection.
SPECIFICATIONS
Parameter Values
Model 6S BMS 12A
Charging Voltage 22 V
Charging Current 12 A (Max)
Operating Temperature -40°C - 85°C
Maximum lampshift discharge current 12 A
Overcharge detection voltage 4.25 V ± 0.05 V
Over-discharge detection voltage 2.50 V ± 0.08V
Overcurrent Protection 50 A
