Description

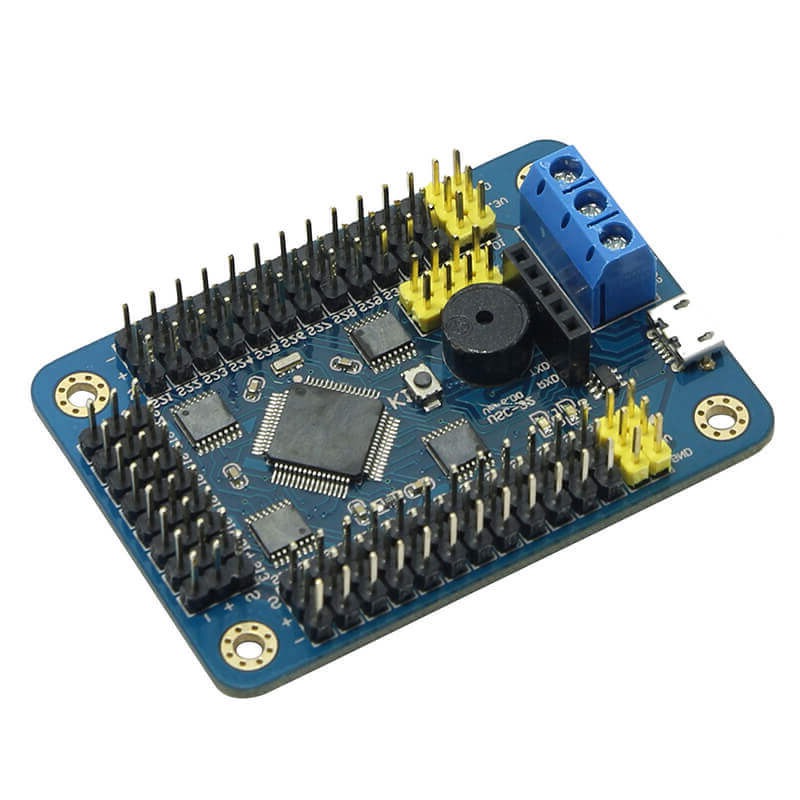

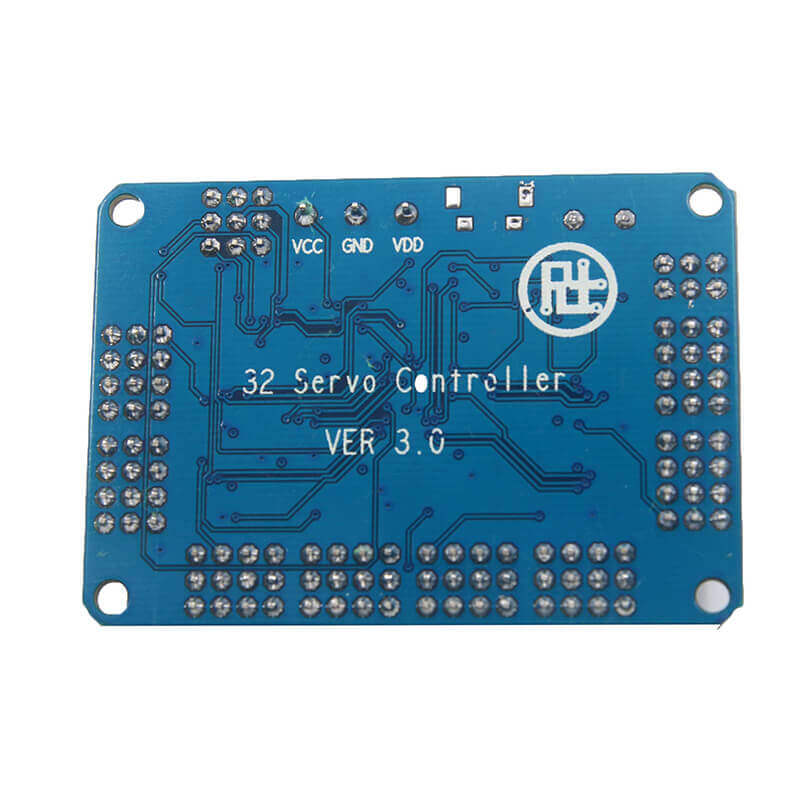

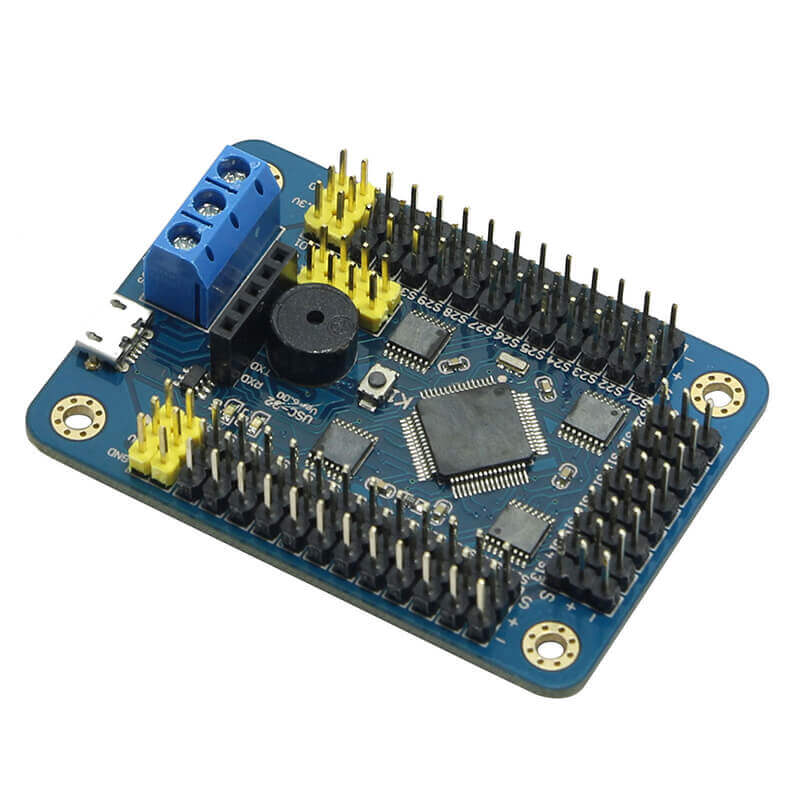

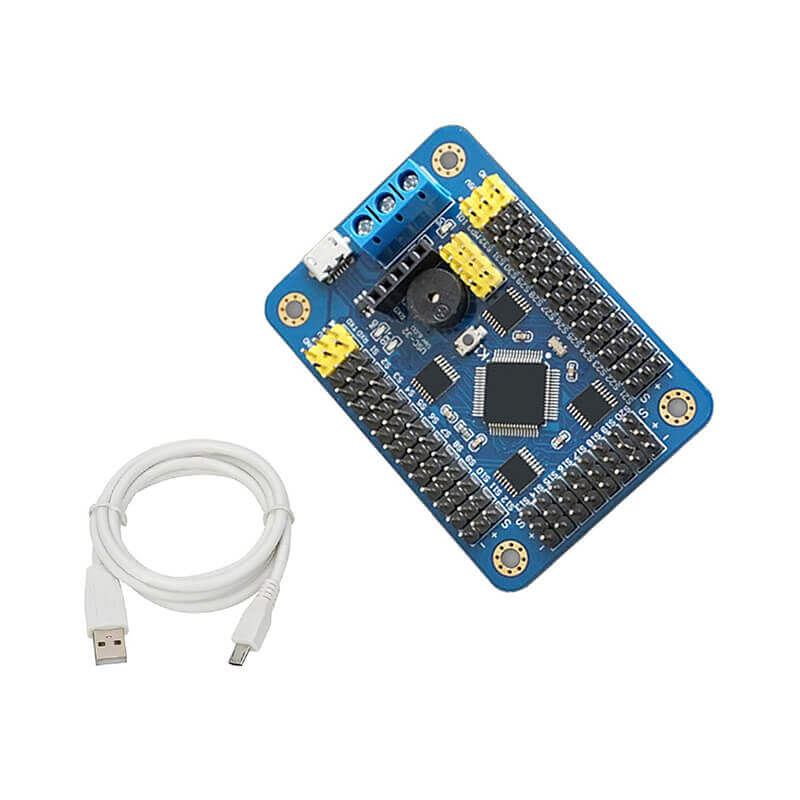

32 Channel Servo Controller Board With Micro Cable
- Baud rate : 115200 (via USB)
- Baud rate : 9600 (via bluetooth, UART)
- Storage Flash capacity: 16M
- Mode to choose: 4 types
- Simultaneous controlling servo number: 32 channel
- Max action groups: 256 groups
- Communication agreement: UART
- Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux,FreeBsd, MAC OS, Android
This USB 32 Channel Servo Motor Controller Board, supports PS2 controller WIFI v7.2 support online upgrade firmware perfectly now, it means that in the future if there is a new function, the user can upgrade easily, so as to ensure the user has the latest firmware.
This controller board can support up to 32 servo motors at the same time, either by using a software on a PC, or UART communication ( TTL serial port) of MCU (Arduino, 51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. You can also download instructions to the servo motor controller for offline operation.
