Description
15000-mAh High-Capacity Lithium Iron Phosphet Rechargeable Battery for Electric Vehicles, Energy Storage Systems

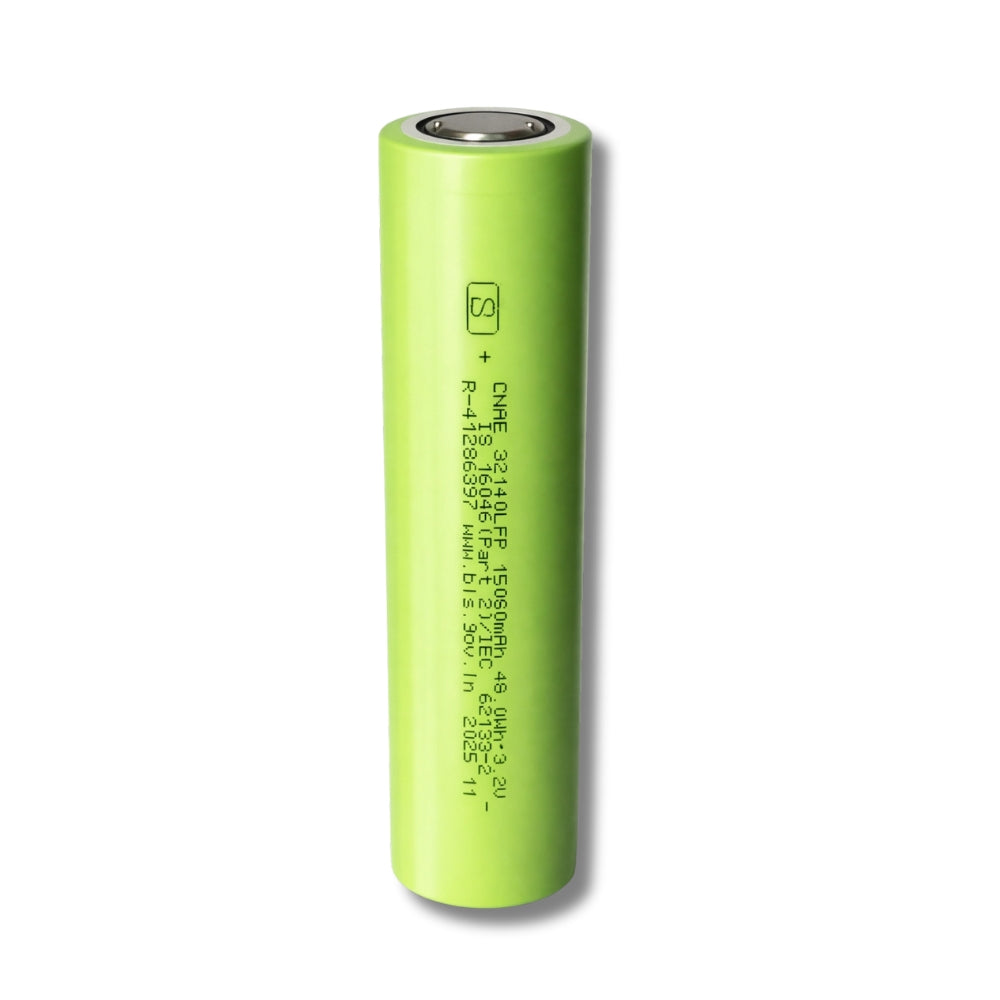

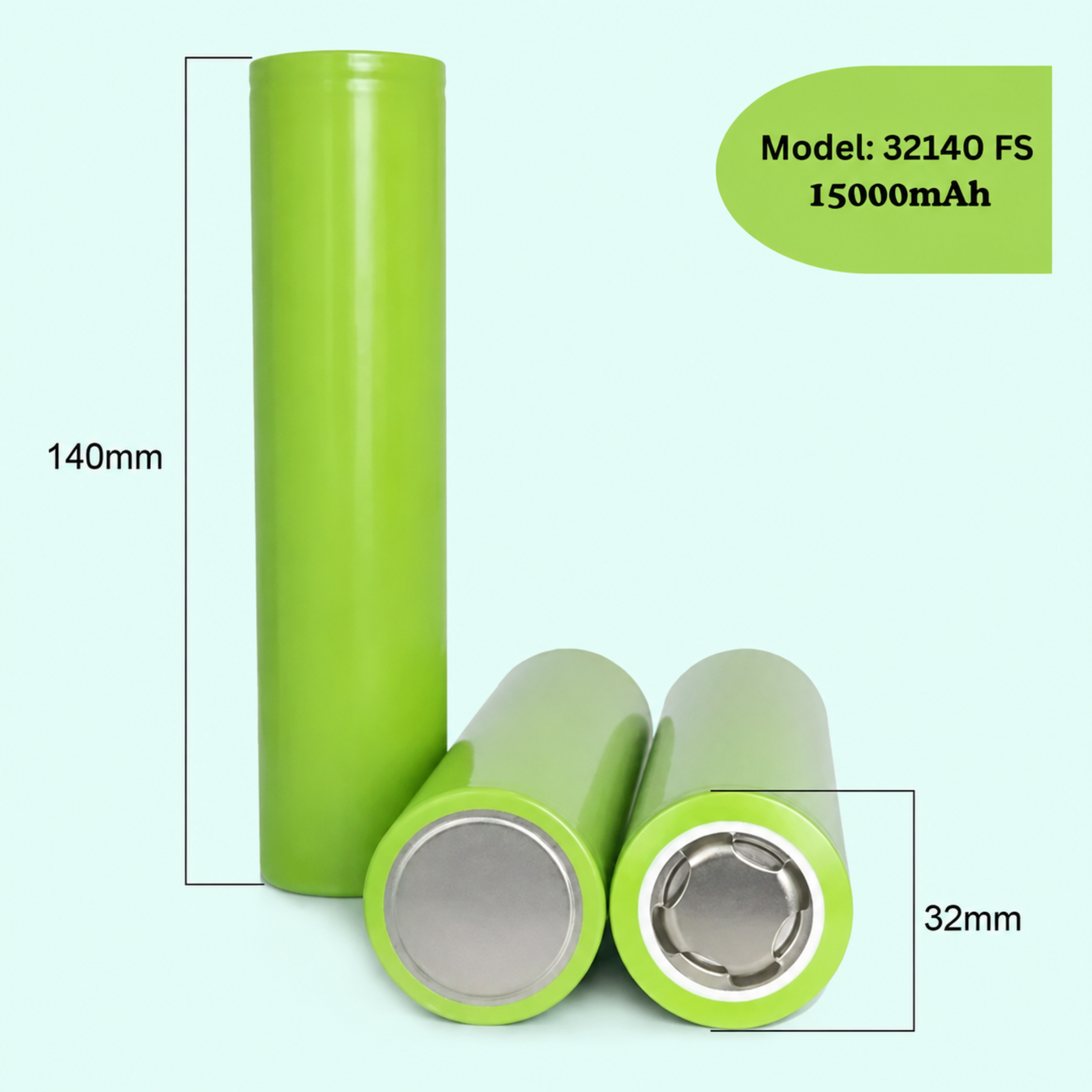

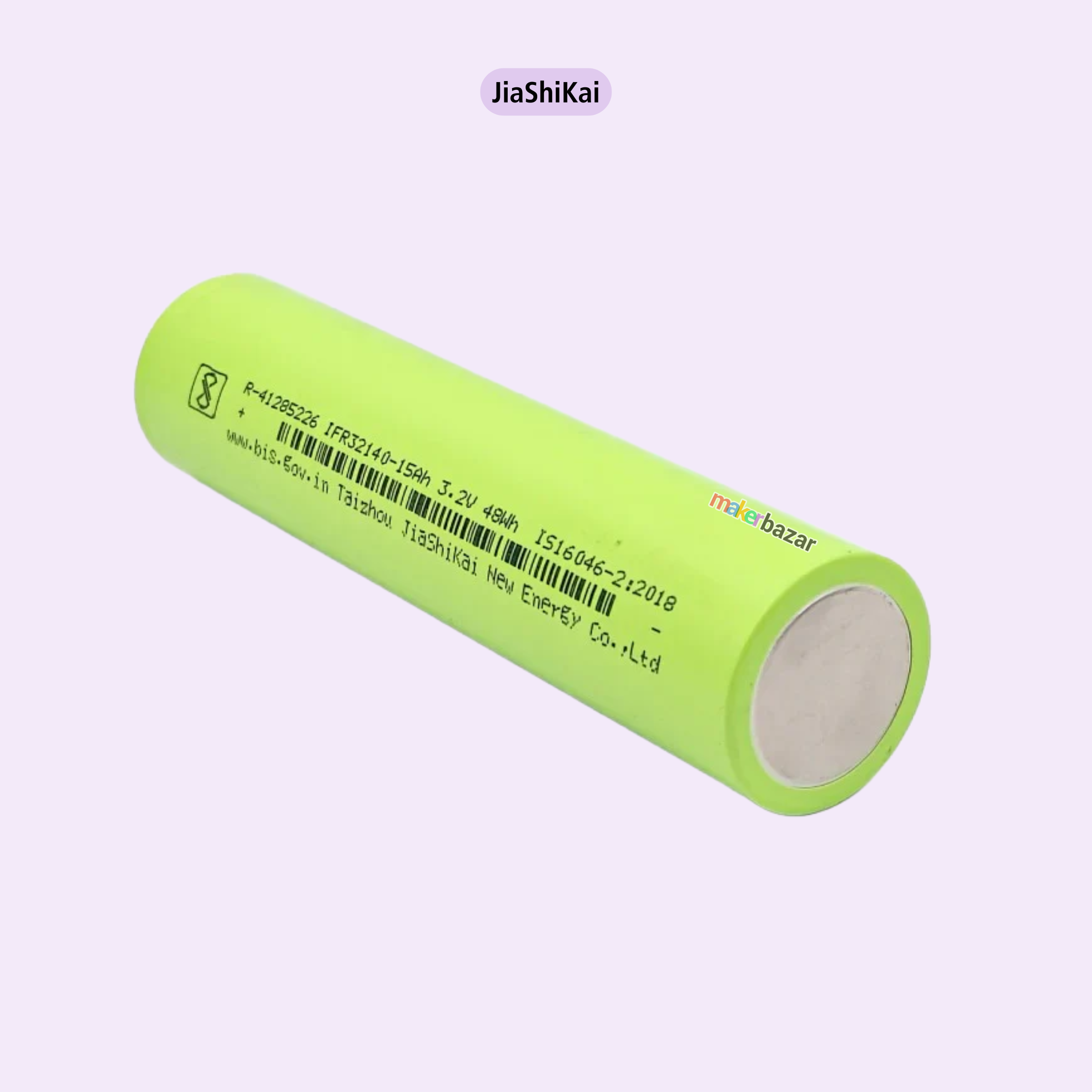

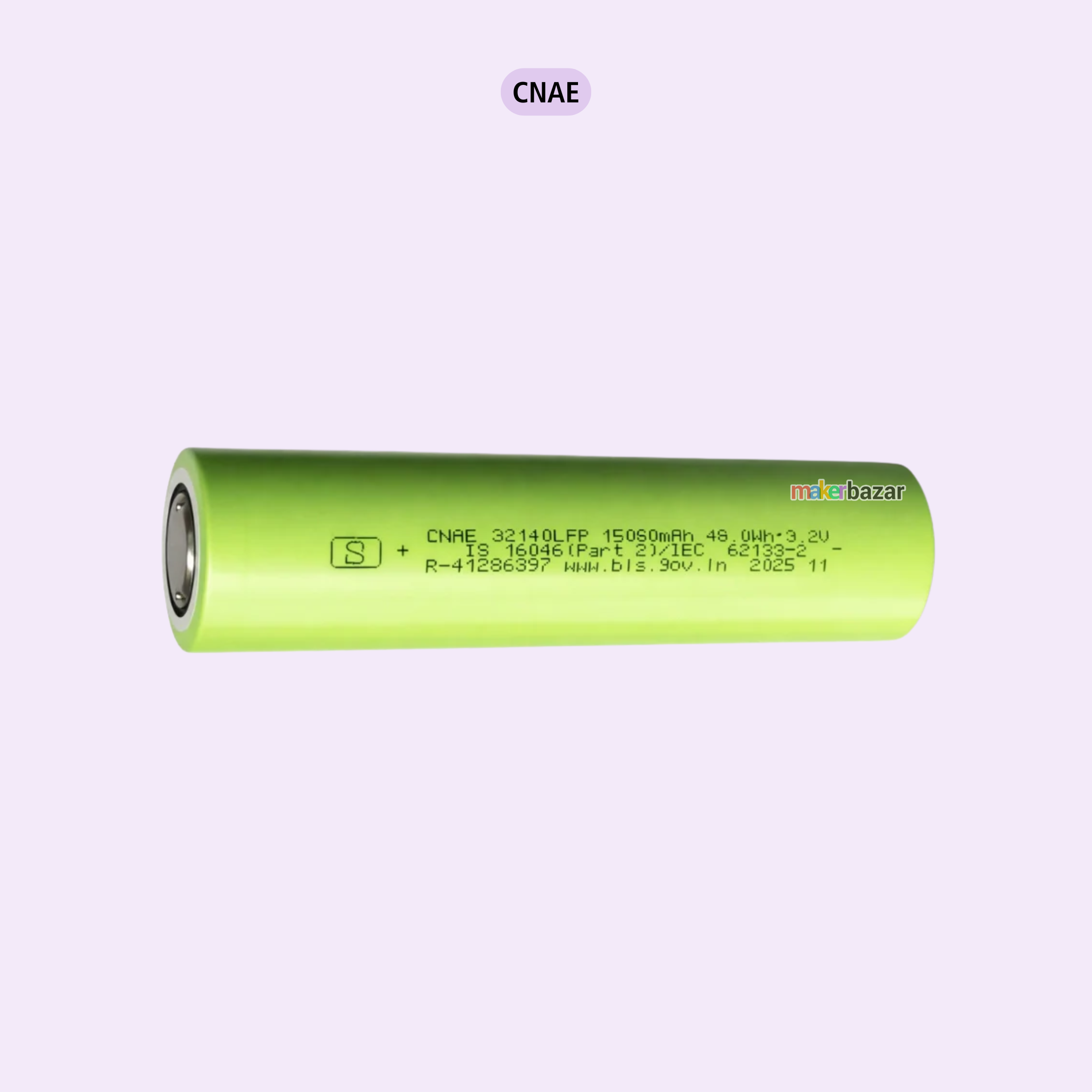

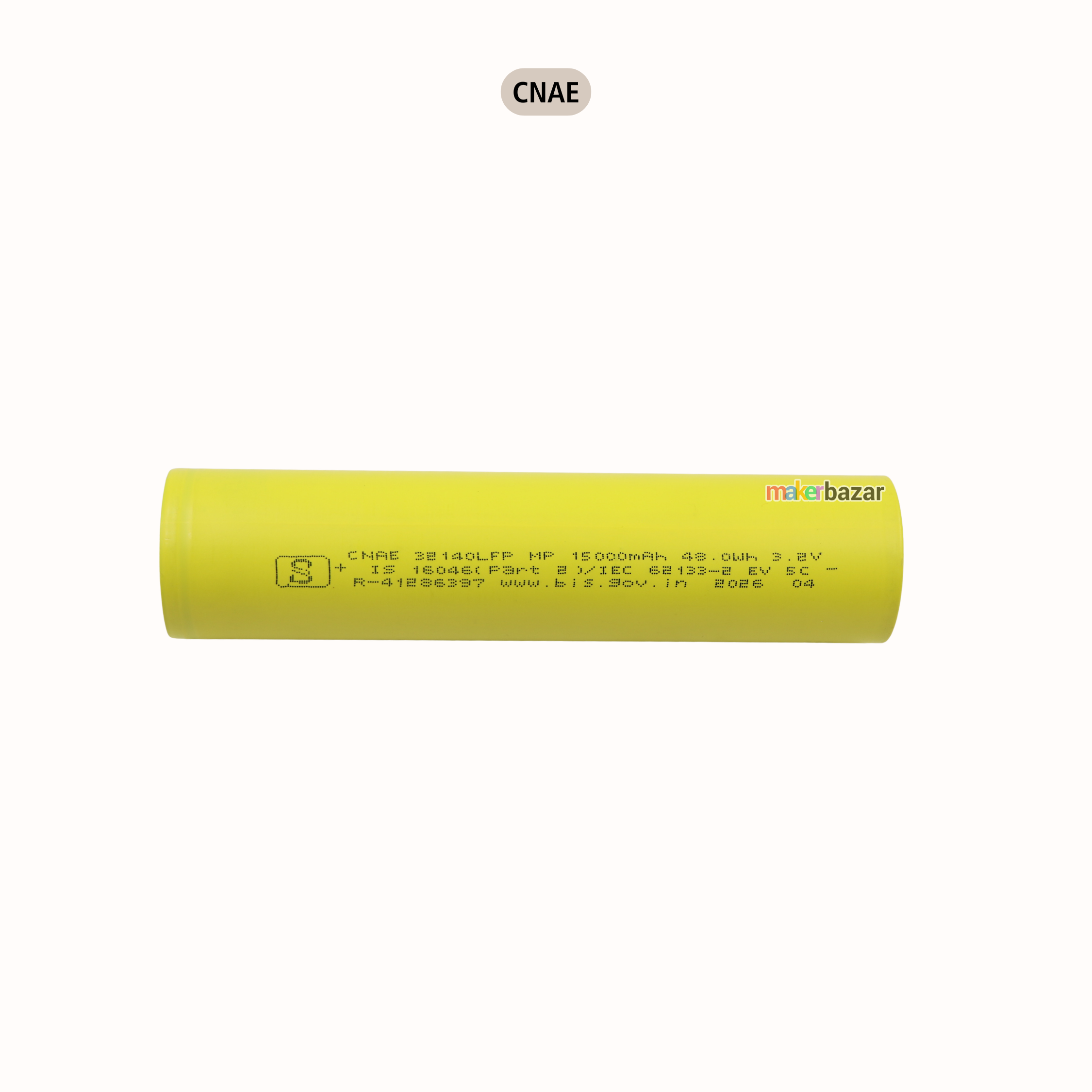

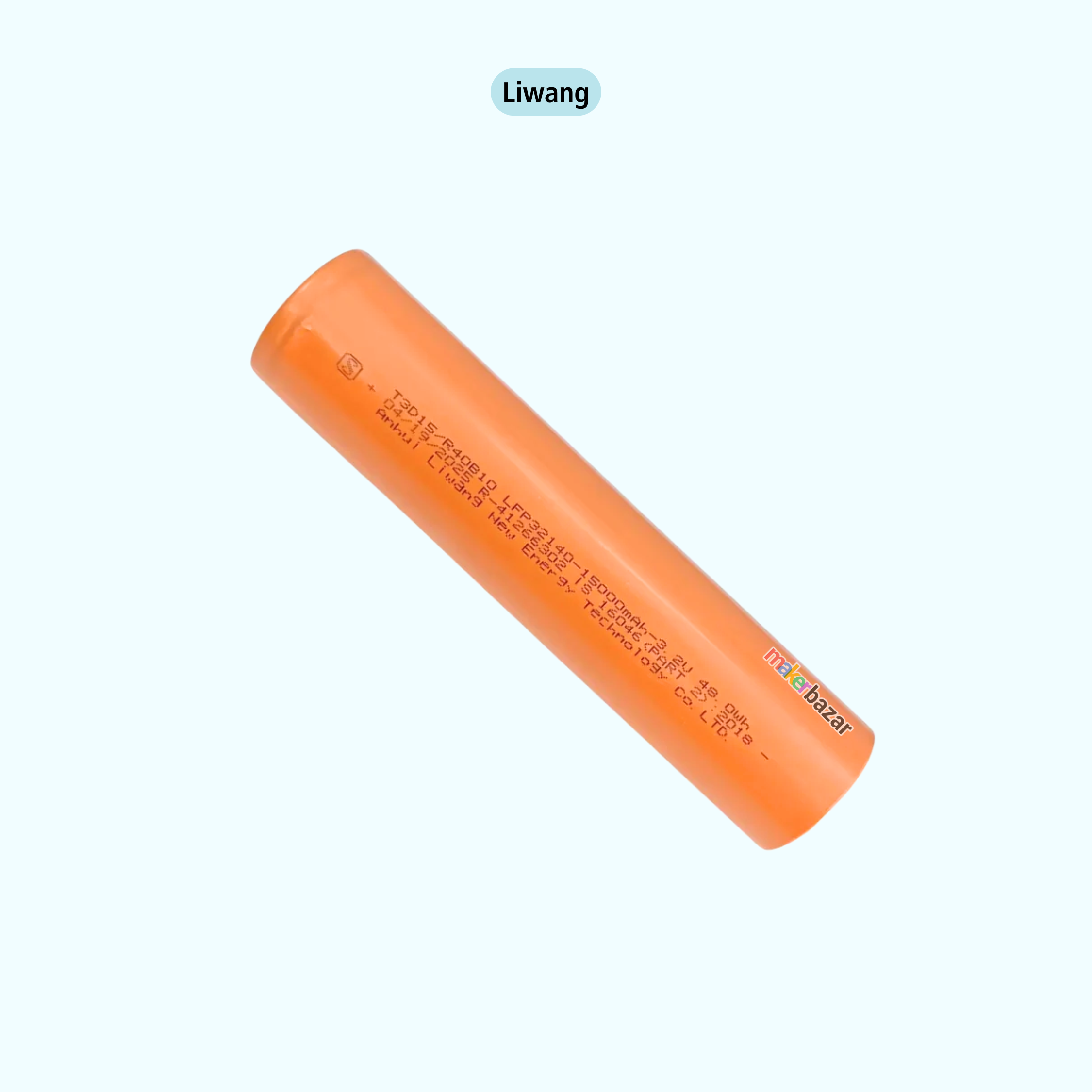

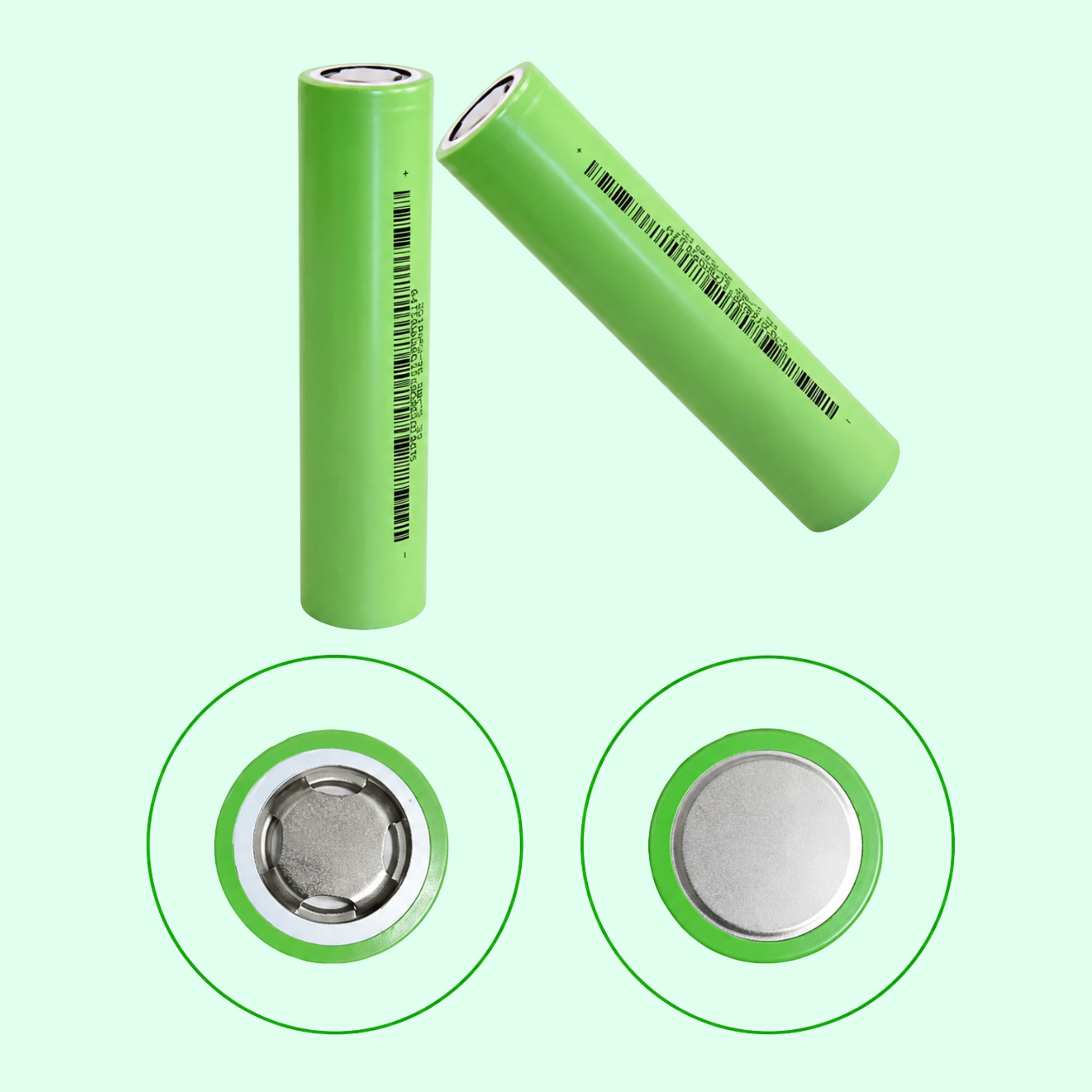

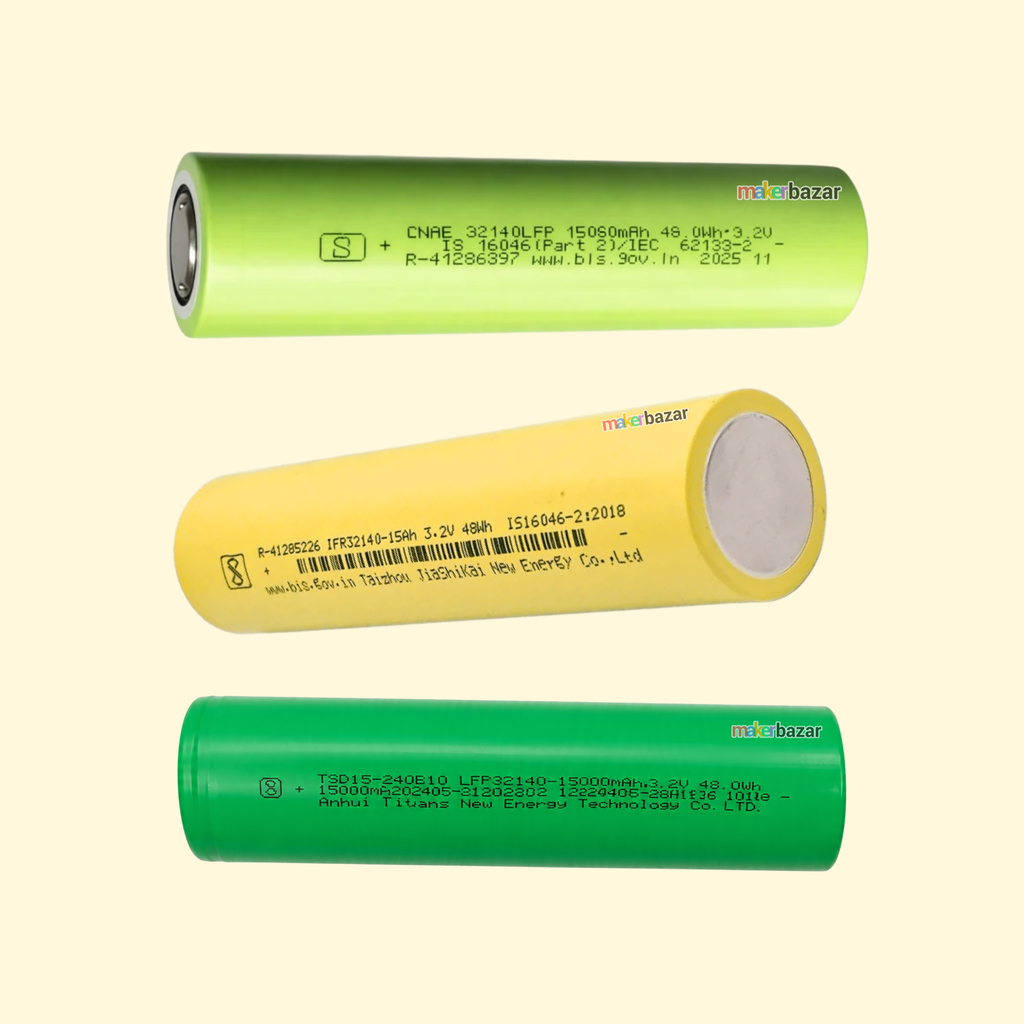

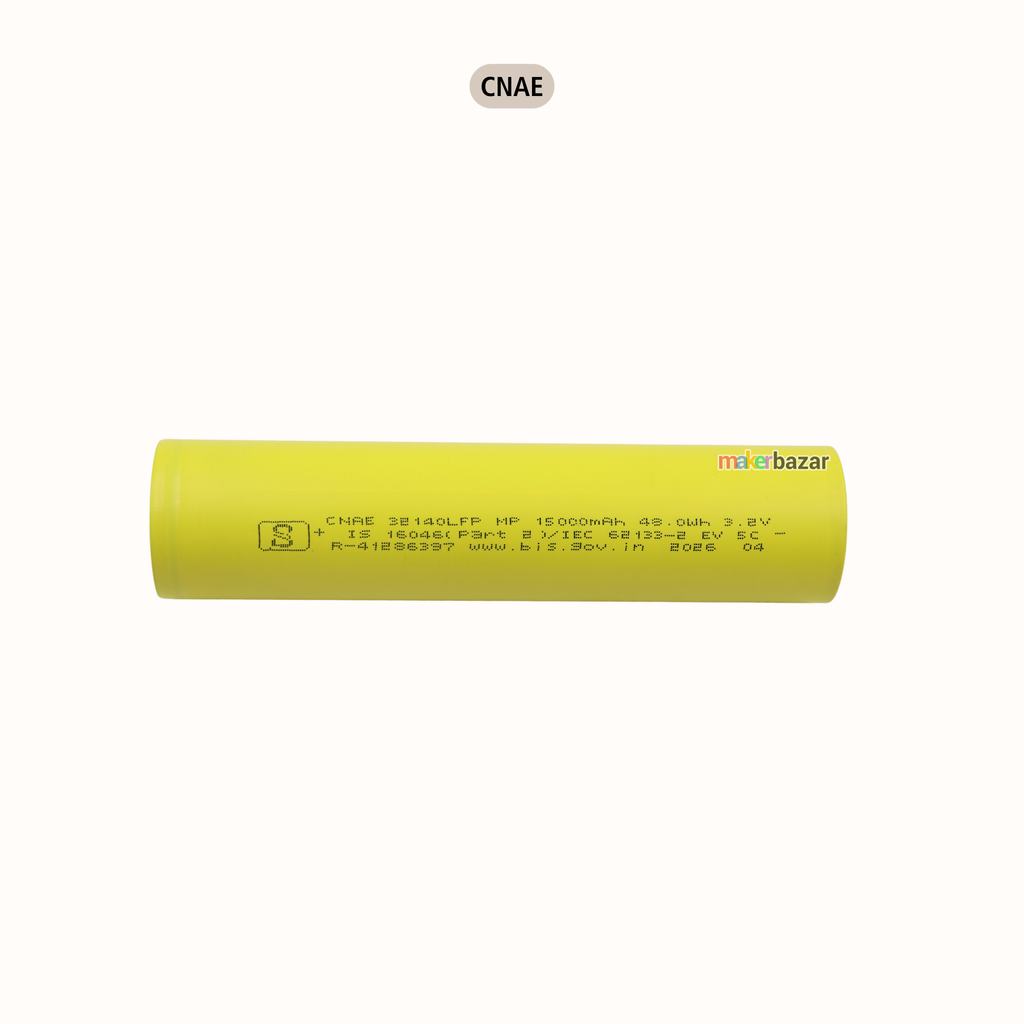

The CB 32140 FS is a high-capacity lithium iron phosphate (LiFePO4) rechargeable battery, specifically designed for applications that demand consistent and reliable power. This model, also known as the CBAK IFR 32140FS, features a 15Ah capacity and a nominal voltage of 3.2V. It is widely used in electric vehicles, energy storage systems, and various industrial equipment due to its durability, safety, and efficiency.
Click here for 33mm Battery cell Holder
Key Features
- High-capacity 15000mAh (15Ah) LiFePO4 battery cell.
- Stable 3.2V nominal voltage output.
- Long cycle life of over 2000 charge-discharge cycles.
- Continuous discharge current up to 30A (2C).
- Pulse discharge capability up to 5C.
- Excellent thermal and chemical stability.
- Fast charging capability.
- High energy density with reliable performance.
- Enhanced safety compared to conventional lithium-ion batteries.
- Suitable for energy storage, EVs, robotics, and industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Rechargeable Battery Cell |
| Model | 32140 FS / IFR32140FS |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 3.2V |
| Capacity | 15000mAh (15Ah) |
| Continuous Discharge Rate | 2C (30A) |
| Pulse Discharge Rate | Up to 5C |
| Cycle Life | 2000+ Cycles |
| Operating Temperature | -20°C to 60°C |
| Cell Type | Cylindrical |
| Rechargeable | Yes |
| Energy Density | High |
| Safety Features | Excellent Thermal Stability & Low Risk of Overheating |

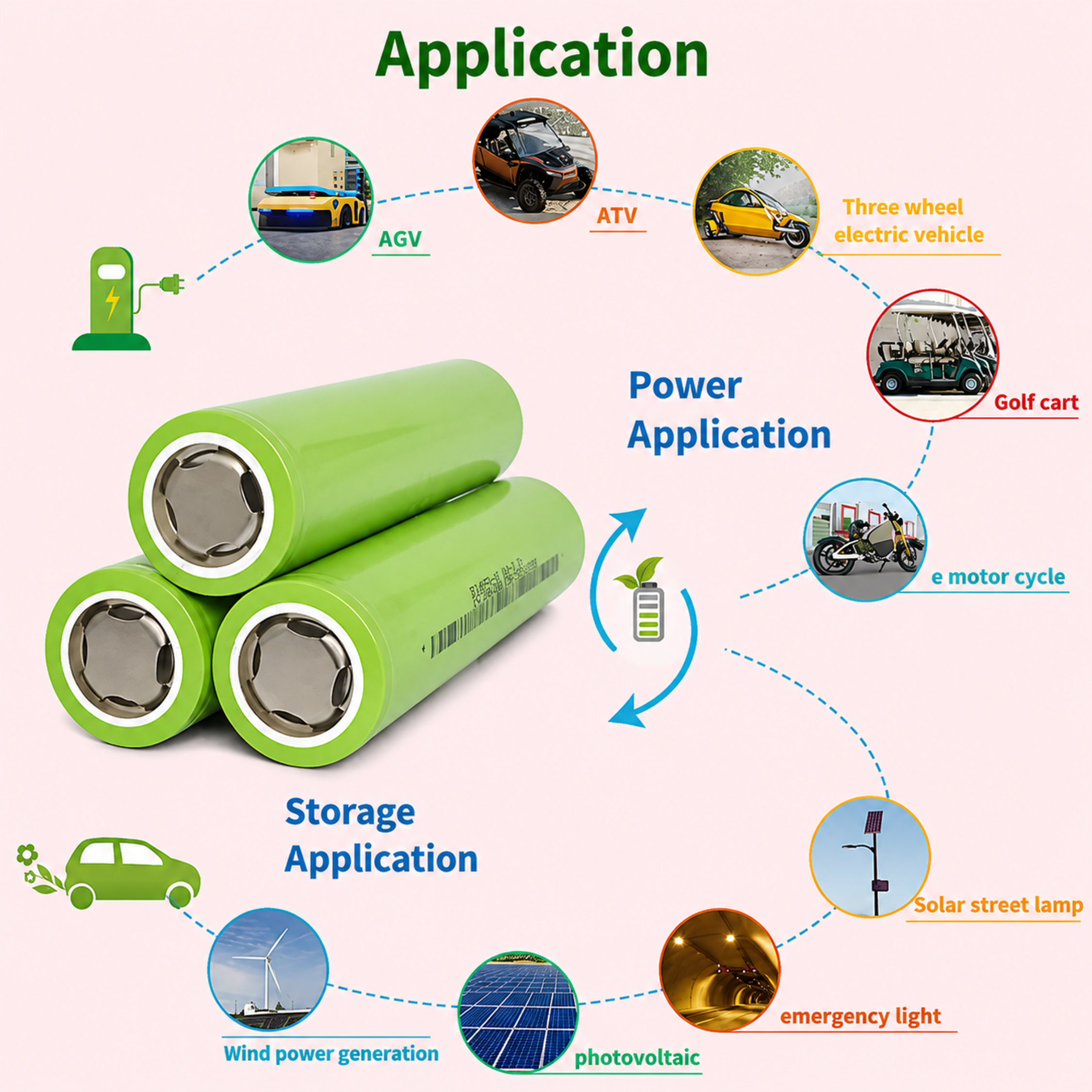

Applications
- Electric Vehicles (EVs).
- E-Bikes and E-Rickshaws.
- Solar Energy Storage Systems.
- UPS Backup Systems.
- DIY Battery Pack Projects.
- Robotics and Automation Systems.
- Portable Power Stations.
- Industrial Equipment.
- Energy Storage Solutions.
- Emergency Power Backup Systems.
- Marine and Off-Grid Applications.
Precautions
- Use only a compatible LiFePO4 battery charger.
- Do not short-circuit the battery terminals.
- Avoid puncturing, crushing, or deforming the battery.
- Do not expose the battery to fire, excessive heat, or water.
- Ensure proper polarity when connecting the battery.
- Use an appropriate Battery Management System (BMS) for battery packs.
- Store in a cool, dry environment when not in use.
- Do not overcharge or over-discharge the battery.
- Keep away from children and unauthorized users.
- Inspect the battery regularly for physical damage before use.
