5-36v Switch Drive High-power MOSFET Trigger Module

Save ₹ 40.00
SKU: 26121095
No reviews

Sale price₹ 99.00 Regular price₹ 139.00
( ₹ 83.90 without 18% GST.)

Tax included Shipping calculated at checkout


15A 400W DC 5V-36V Dual Large Power Mosfet

The 5-36V SWITCH DRIVE HIGH-POWER MOSFET TRIGGER MODULE is of high power MOS trigger switch driver module and control board with a field-effect tube to adjust the electronic switch. It has double MOS parallel active output to show lower internal resistance, greater electric current, and power.

Besides it works at 15A, 400W under a common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way. What’s more, it can be connected to power devices like electric motors and light bulbs to control the speed of the motor and the brightness of the bulbs.

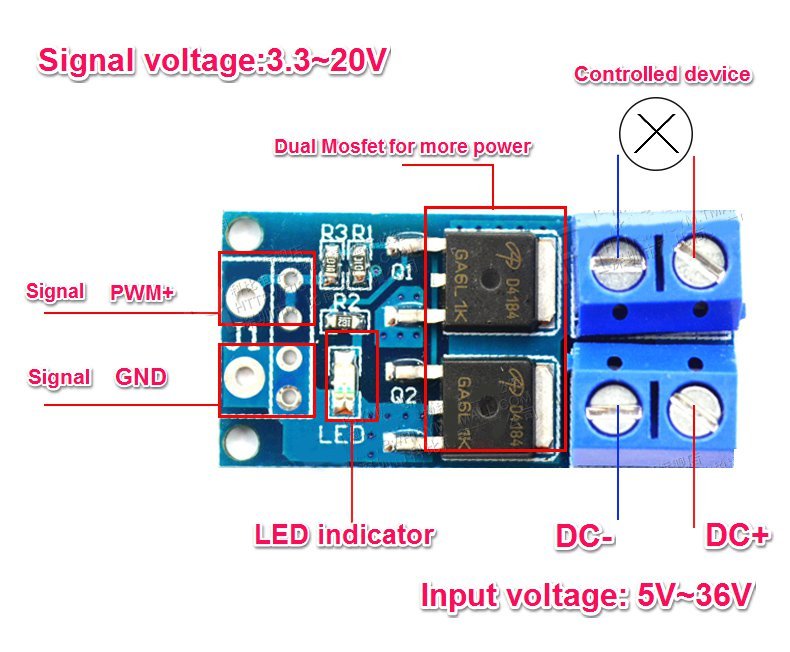

Connection Diagram:

Features :

  1. The trigger source: digital high-low (DC3.3V – 20V), can be connected to microcontroller IO port, PLC interfaces,  DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
  2. Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
  3. Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps,  solenoid valves, PWM, motor speed control, and lamp brightness. etc.

Package Includes :

1 x 5-36v Switch Drive High-power MOSFET Trigger Module
