Description
GXJA0707 - 6Port GABA0026 - 4Port Charging Modules

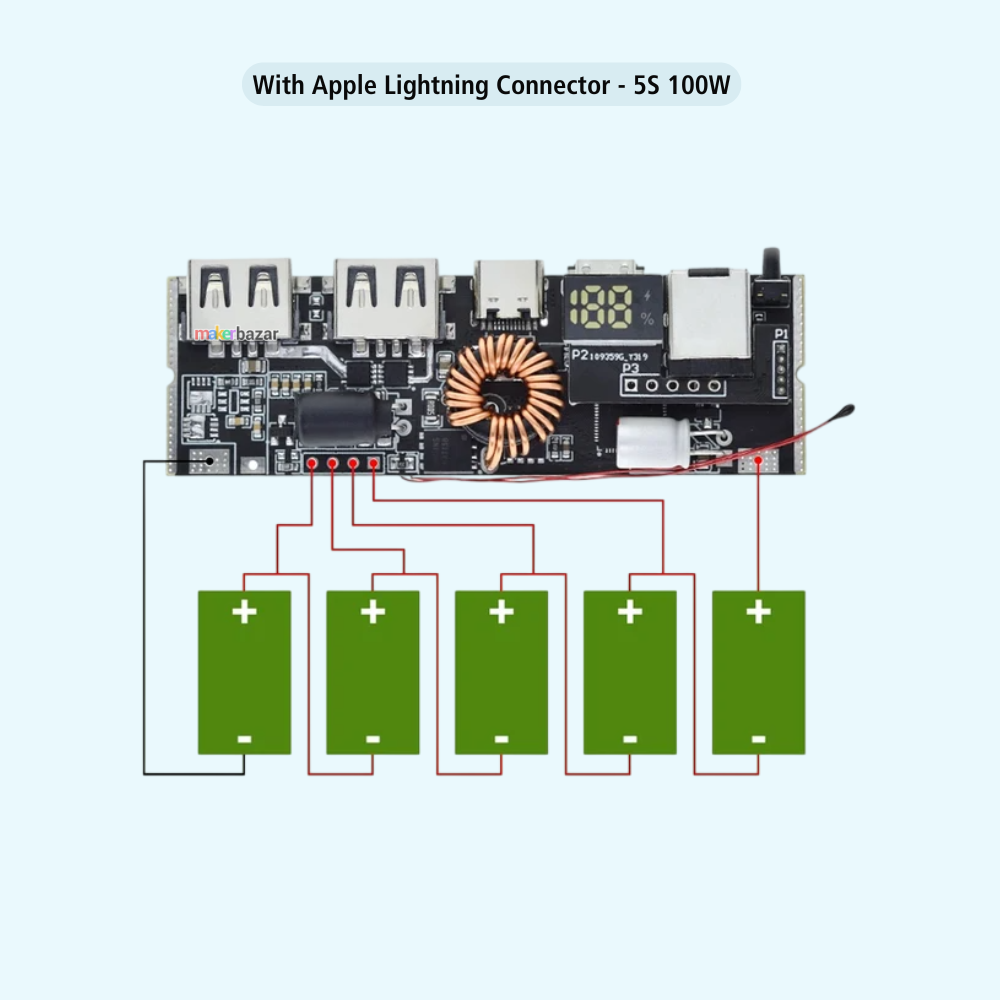

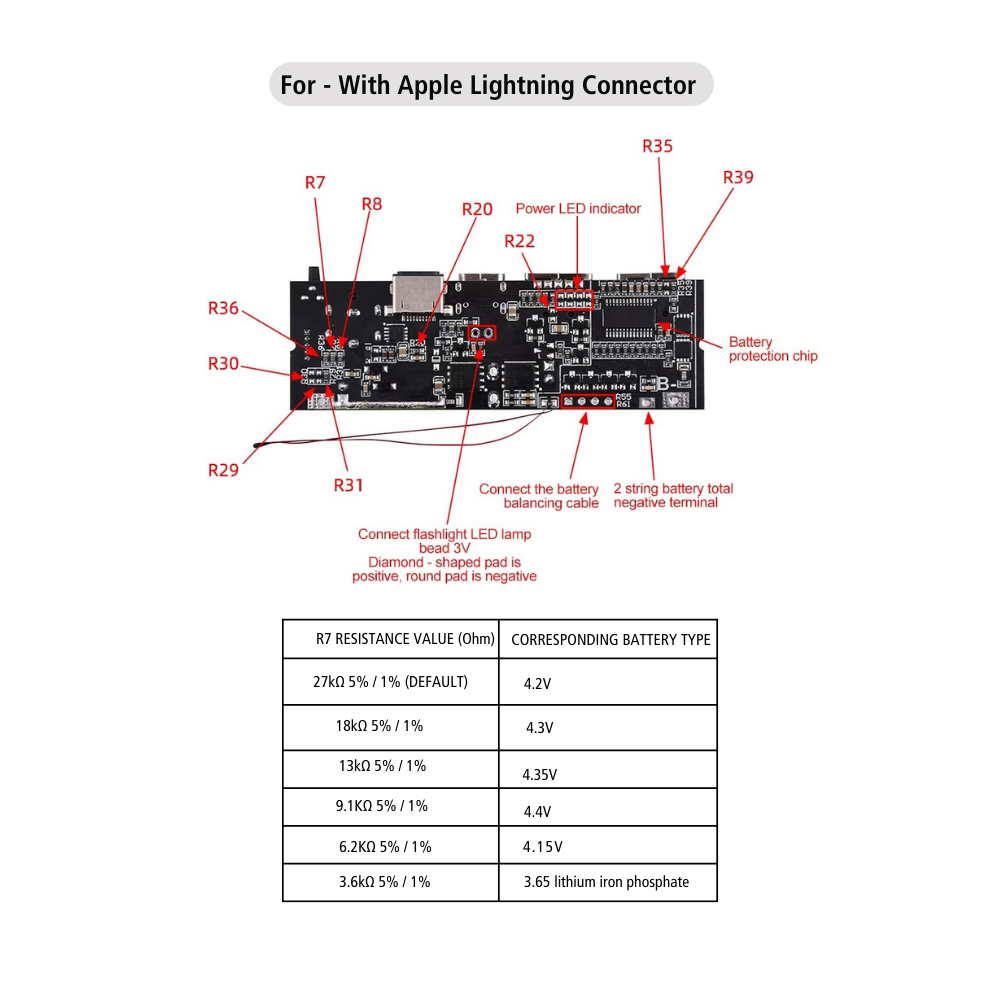

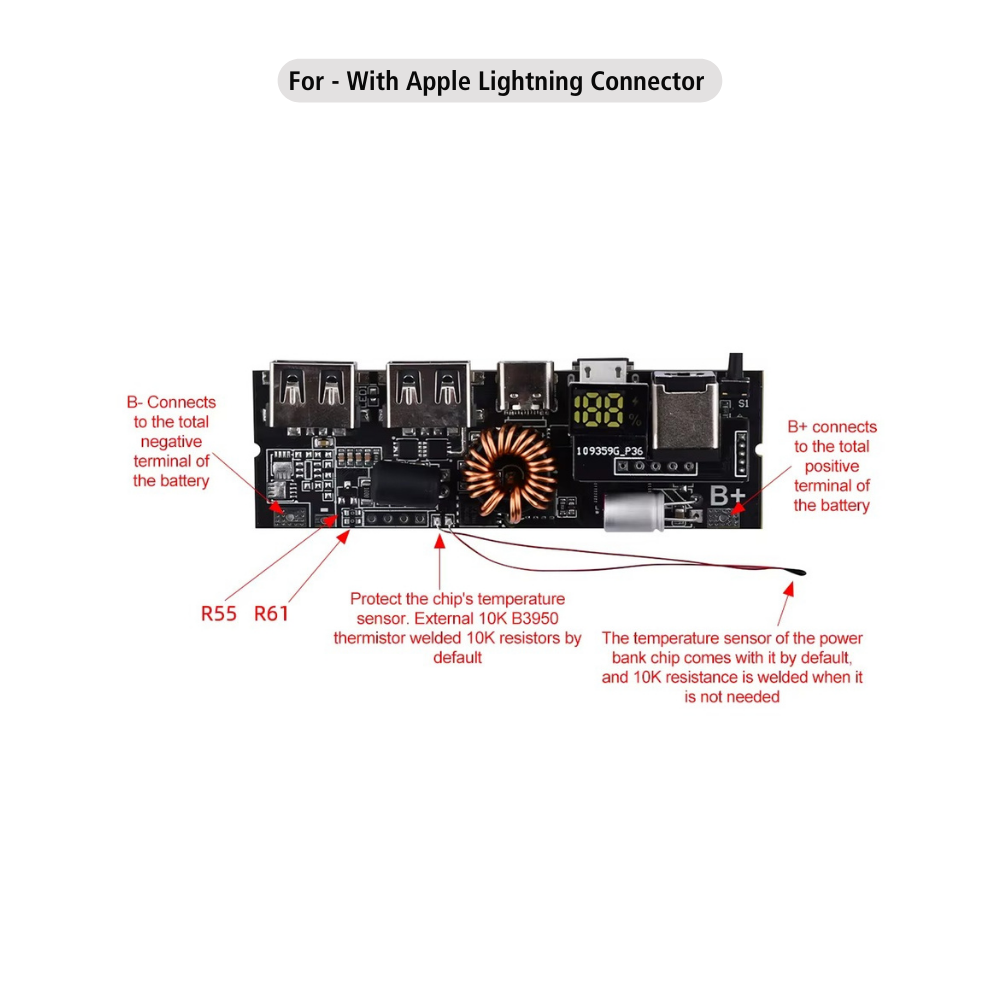

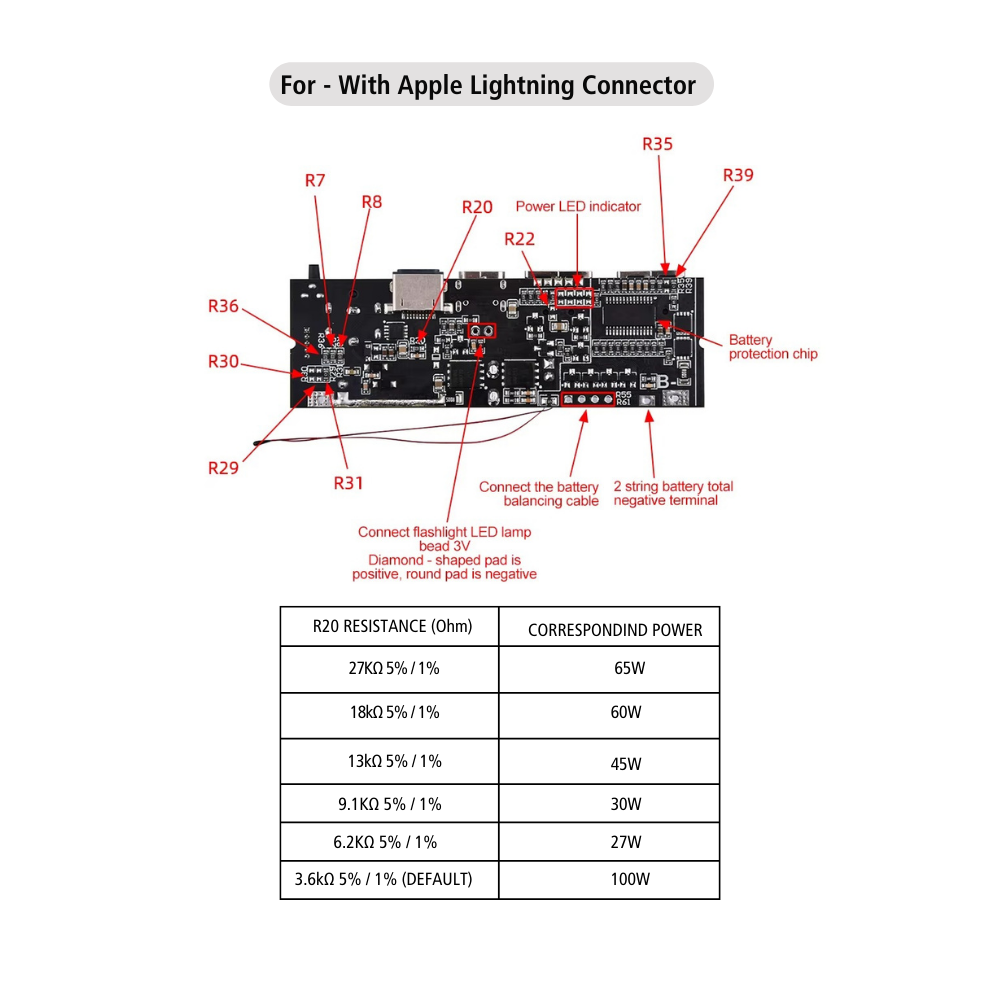

GXJA0707 - With Apple Lightning Connector
Upgrade your power setup with this versatile and efficient power bank module. Featuring a multi-interface design with 6 ports, it caters to a wide range of devices with high precision and reliability. Its digital screen display allows for easy monitoring of power usage.

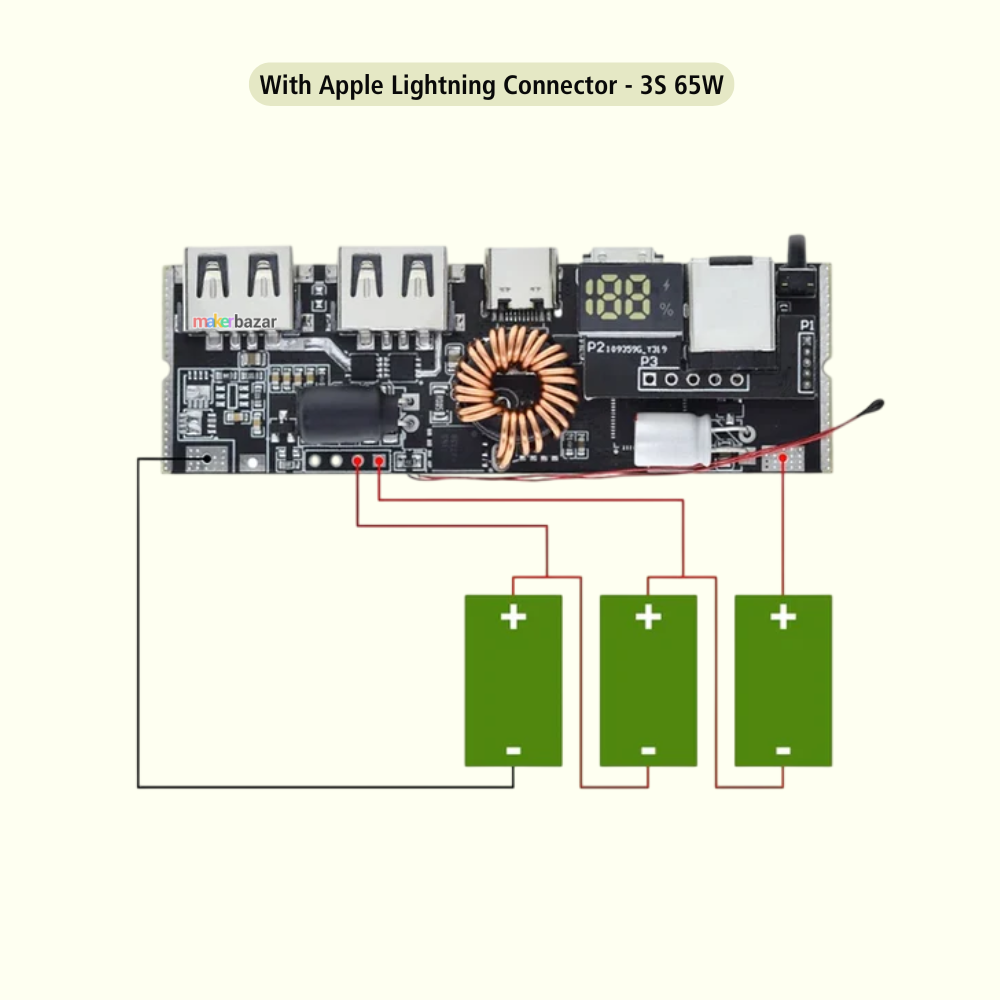

- 3S 65W GXJA0707-001

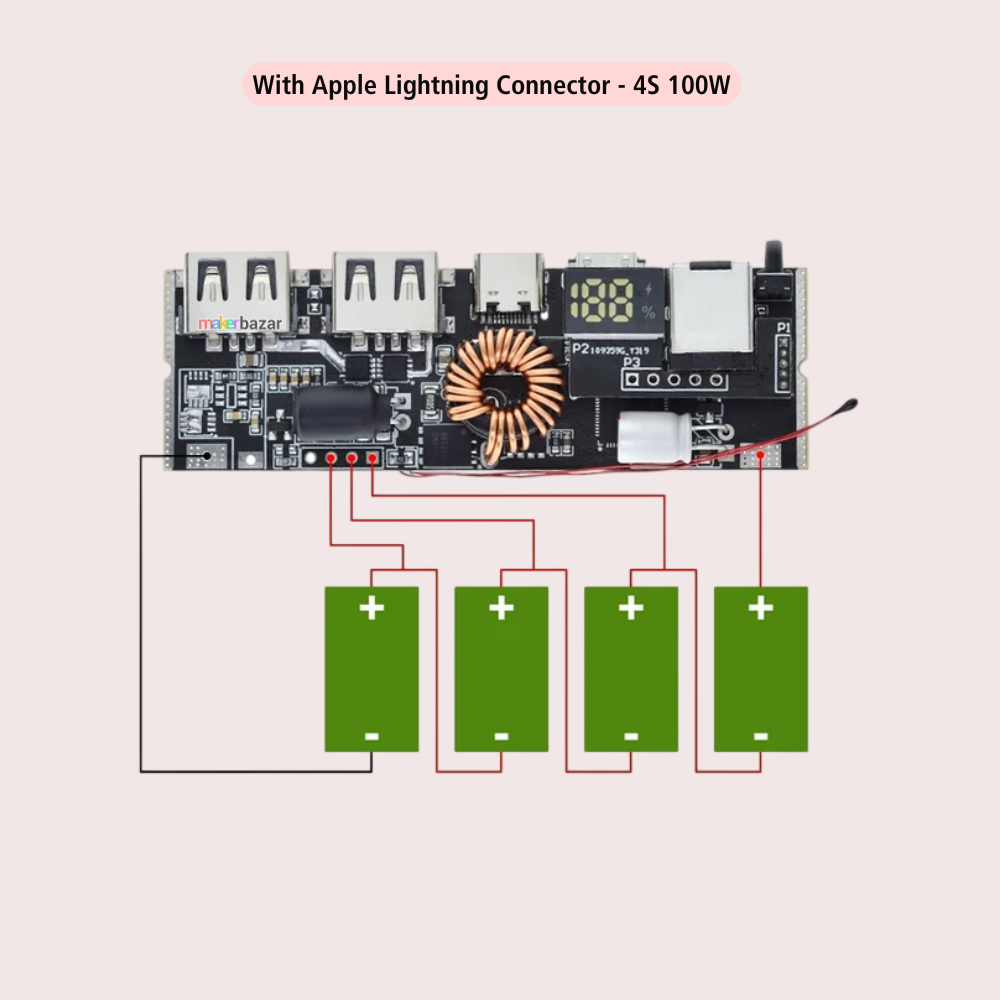

- 4S 100W GXJA0707-002
- 5S 100W GXJA0707-003
Product Information:
- High Efficiency & Precision: Ensures reliable performance with a maximum output power of 65W/100W.
- Versatile Ports: Includes 2 Type-C ports and 2 Type-A ports supporting multiple fast-charging protocols.
- Wide Compatibility: Supports various input and output voltages and fast-charging standards, including PPS, PD3.0, QC3.0, AFC, and more.
- Portable Design: Compact size (72x27x6mm) makes it easy to integrate into various setups.
- Digital Display: Real-time power display for convenience.
Technical Specifications:
- Battery Type: Lithium polymer
- Output Power: 65W/100W (Type-C2 supports up to 60W)
- Ports: Type-C1, Type-C2 (fast charging input/output), Type-A1, Type-A2 (fast charging output)
- Input Support: 5V/9V/12V/15V/20V
- PPS Output: 3.3V-21V/3A
- PD3.0 Output: 5V3A/9V3A/12V3A/15V3A/20V5A
- QC2.0/3.0 Output: Various voltages and currents
- AFC/FCP/VOOC/SCP Support: Different output settings as specified

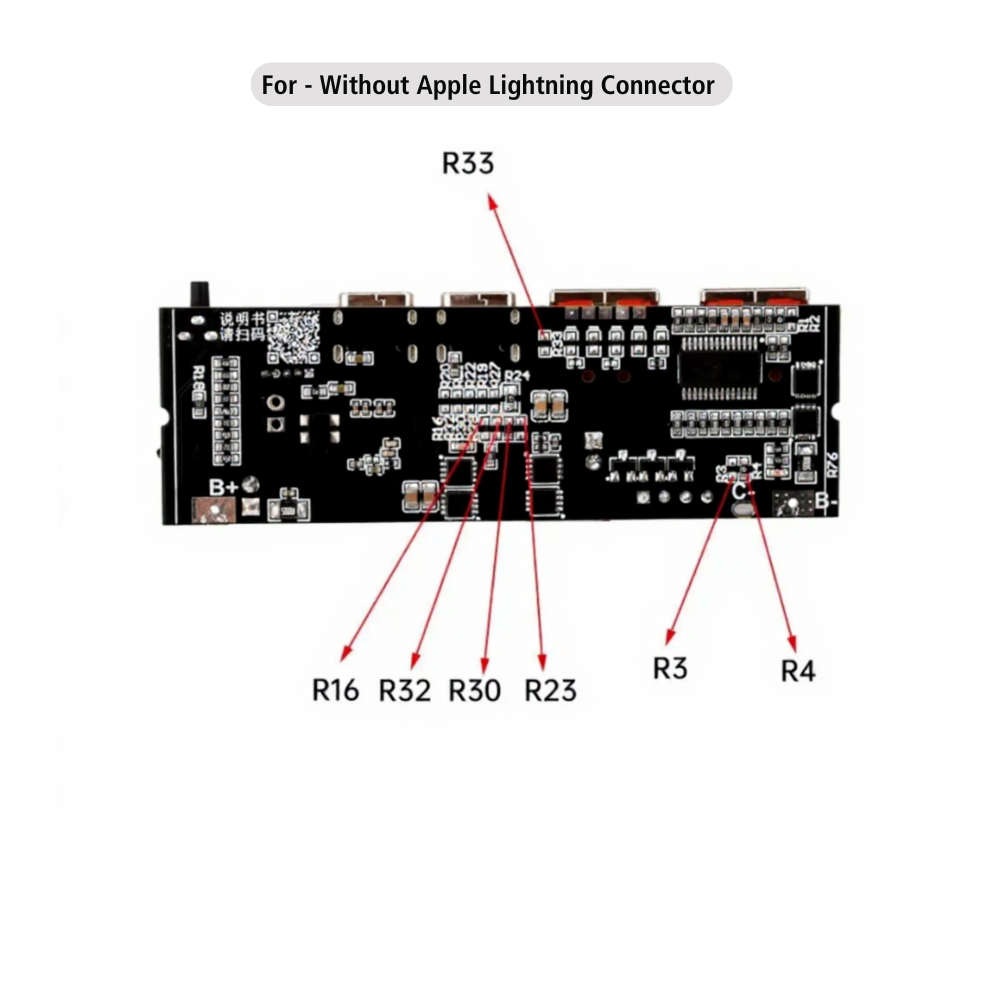

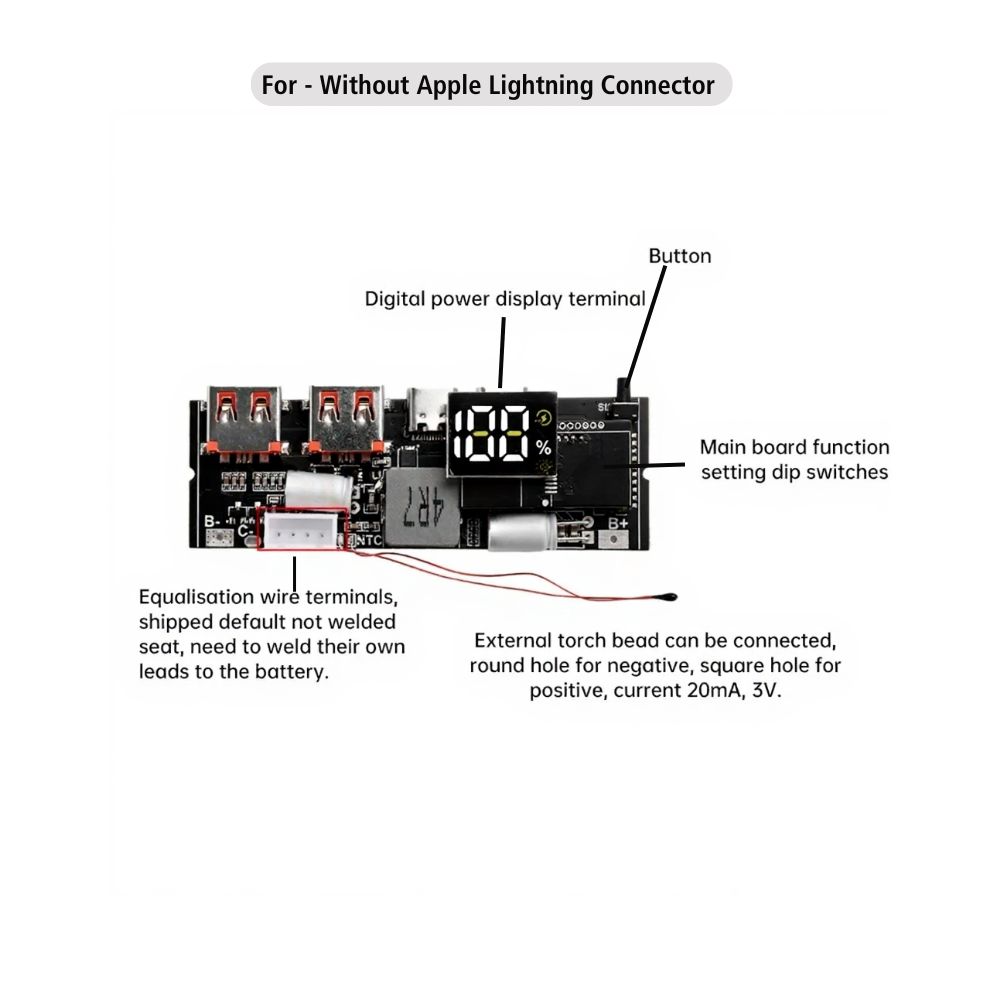

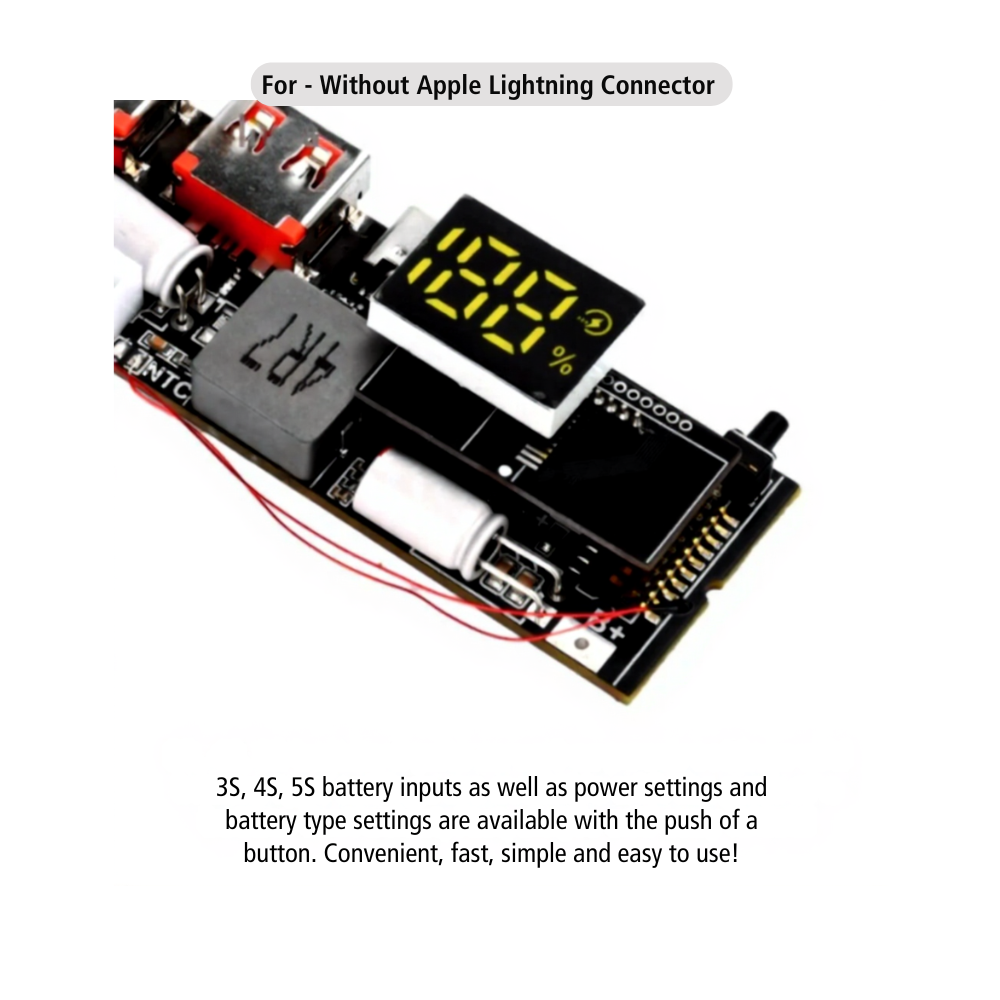

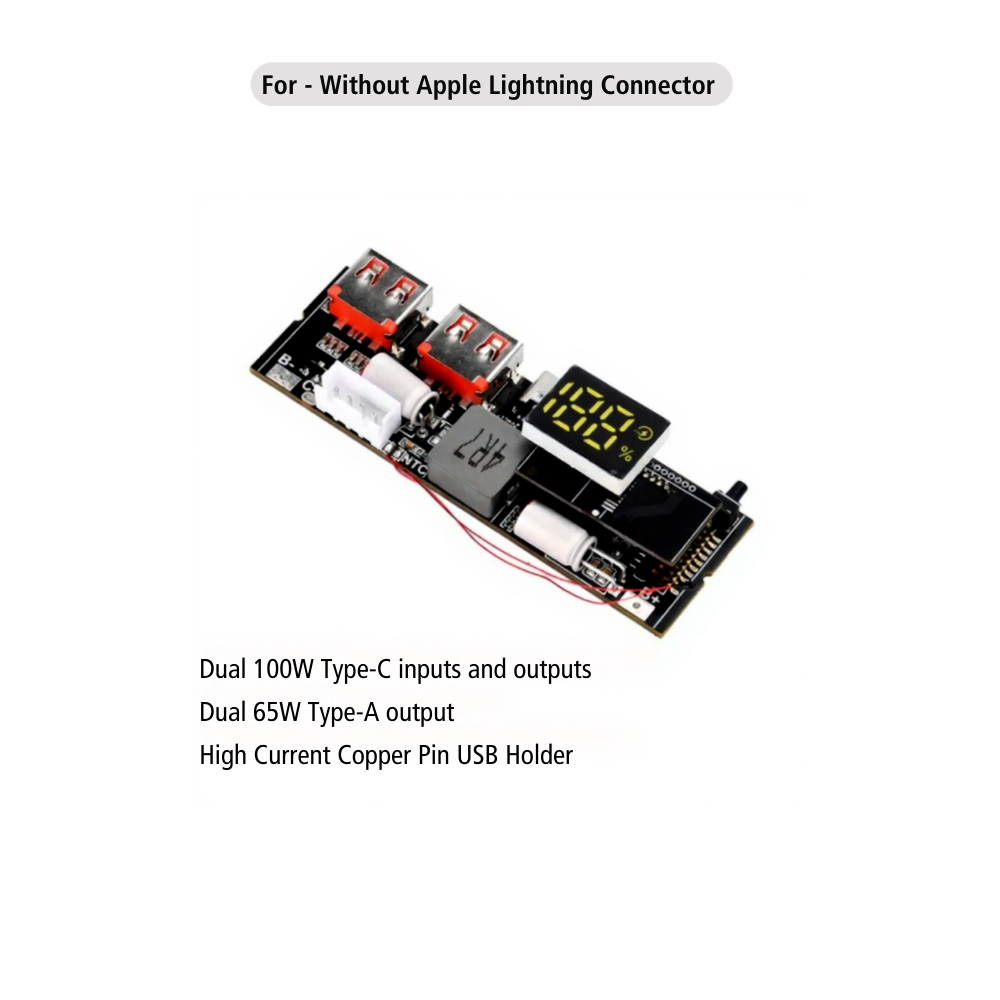

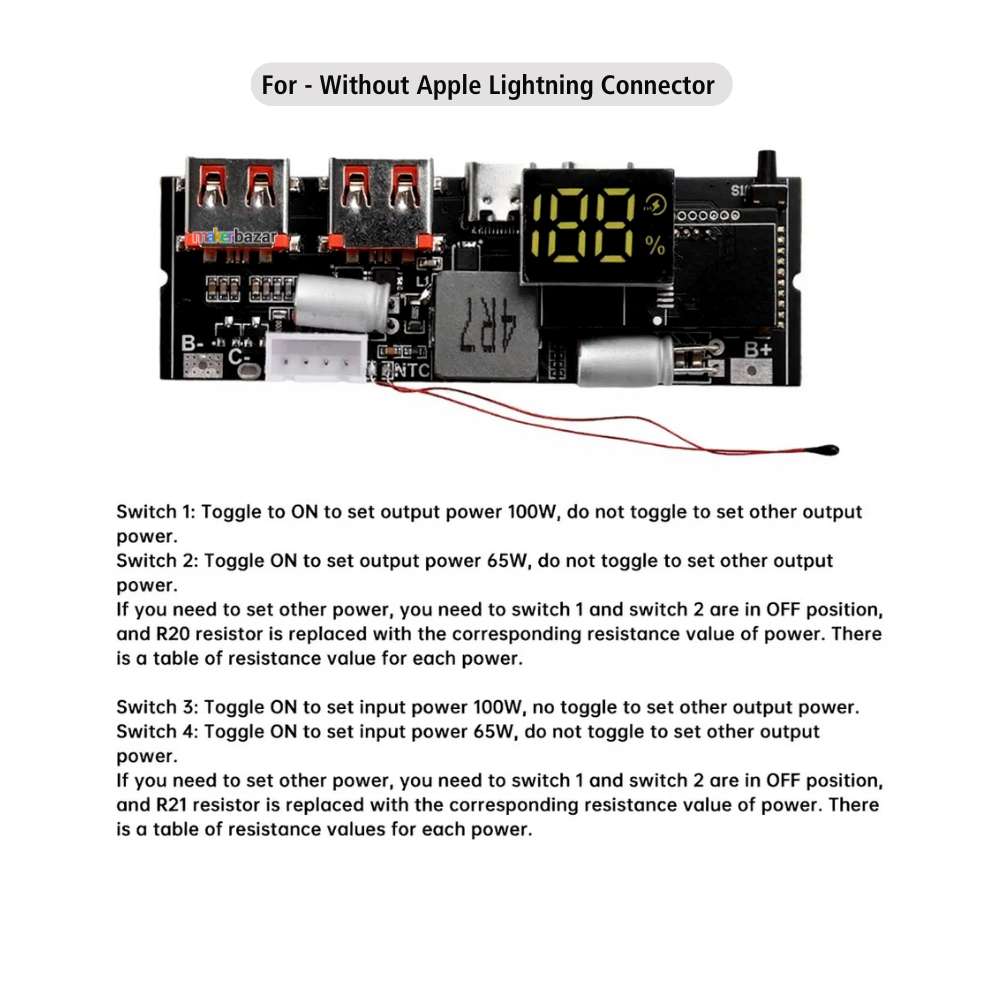

GABA0026 - Without Apple Lightning Connector
Upgrade your power setup with this versatile and efficient power bank module. Featuring a multi-interface design with 4 ports, it caters to a wide range of devices with high precision and reliability. Its digital screen display allows for easy monitoring of power usage.

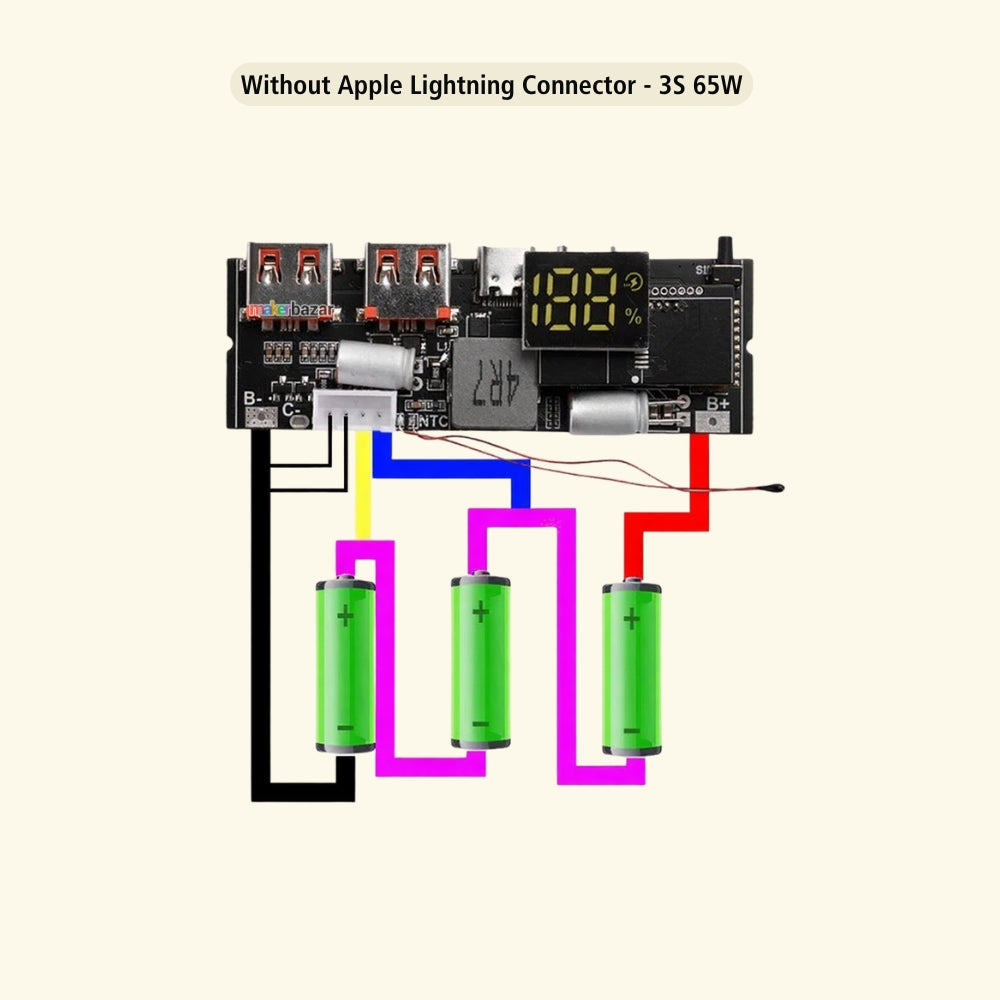

- 3S 65W GABA0026-001

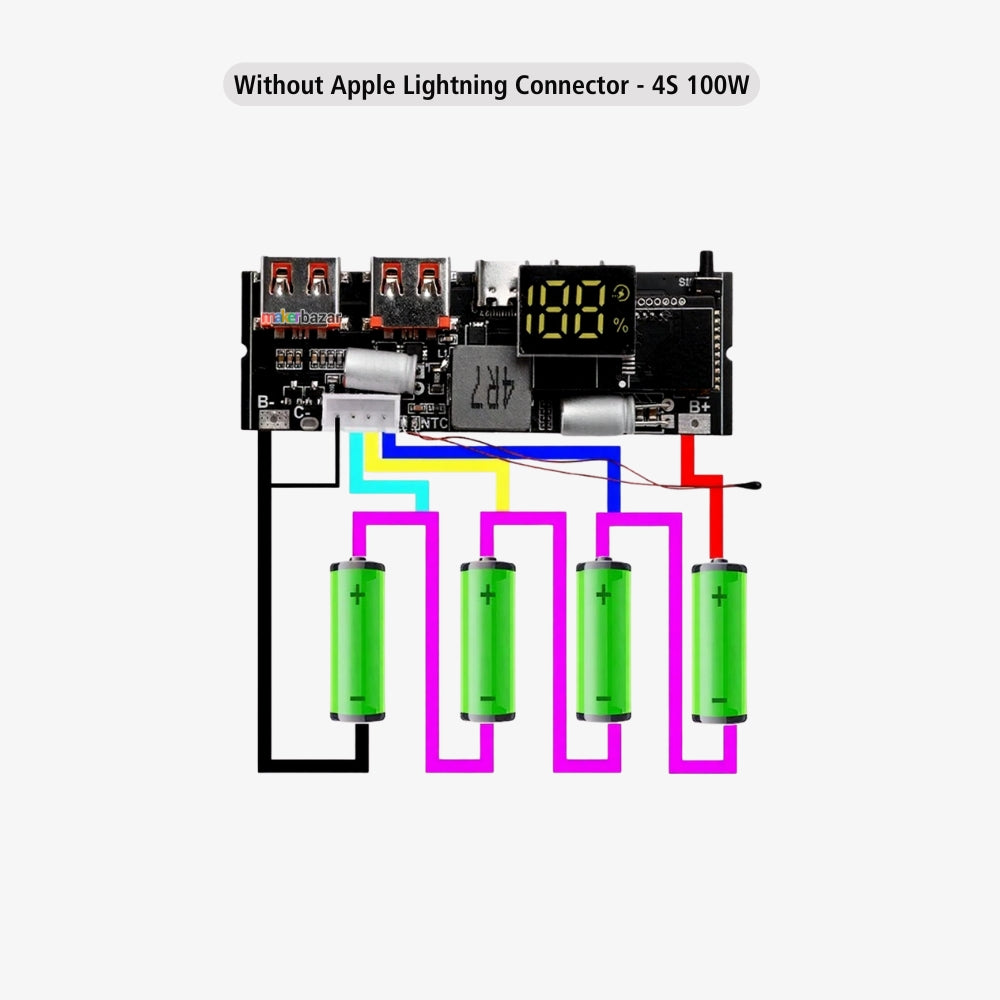

- 4S 100W GABA0026-002

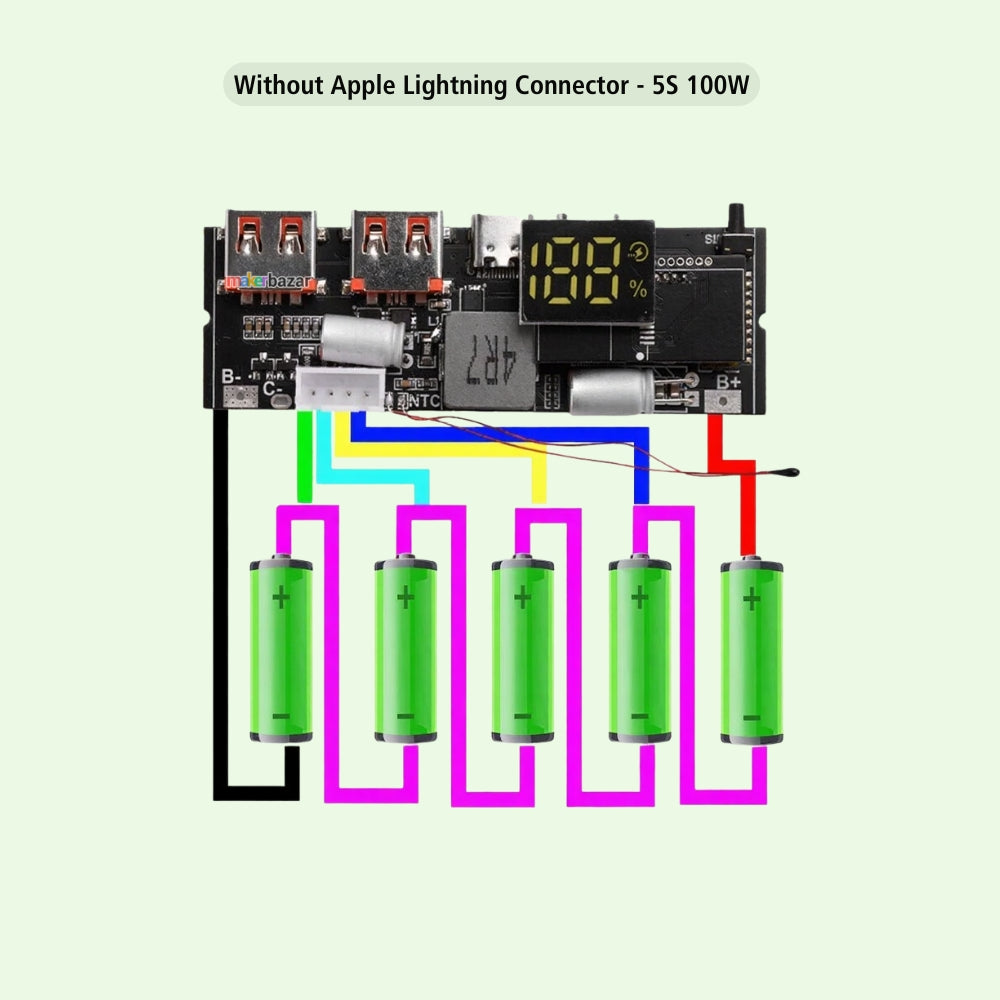

- 5S 100W GABA0026-003
Key Features
- Wide Fast-Charging Protocol Support
Fully compatible with PD3.1, PPS, QC2.0/QC3.0, UFCS, AFC, FCP, SCP, VOOC, and more—charge most smartphones, tablets, and laptops effortlessly. - PD Two-Way Fast Charging
Supports bidirectional PD fast charging, enabling both ultra-fast output and rapid self-charging of the battery. - MPPT Solar Charging Support
Built-in MPPT function allows direct connection to solar panels for efficient renewable charging. - Intelligent Voltage Boosting
Automatic PWM & PSM mode switching ensures efficient voltage boosting without damaging connected devices. - Multiple Protection Mechanisms
Integrated over-current, over-voltage, short-circuit, and over-temperature protection for safe and stable operation. - Ultra-Low Ripple Output
Large solid capacitors provide clean power output with Type-C ripple as low as 6–9mV, protecting sensitive electronics. - DIY-Friendly Design

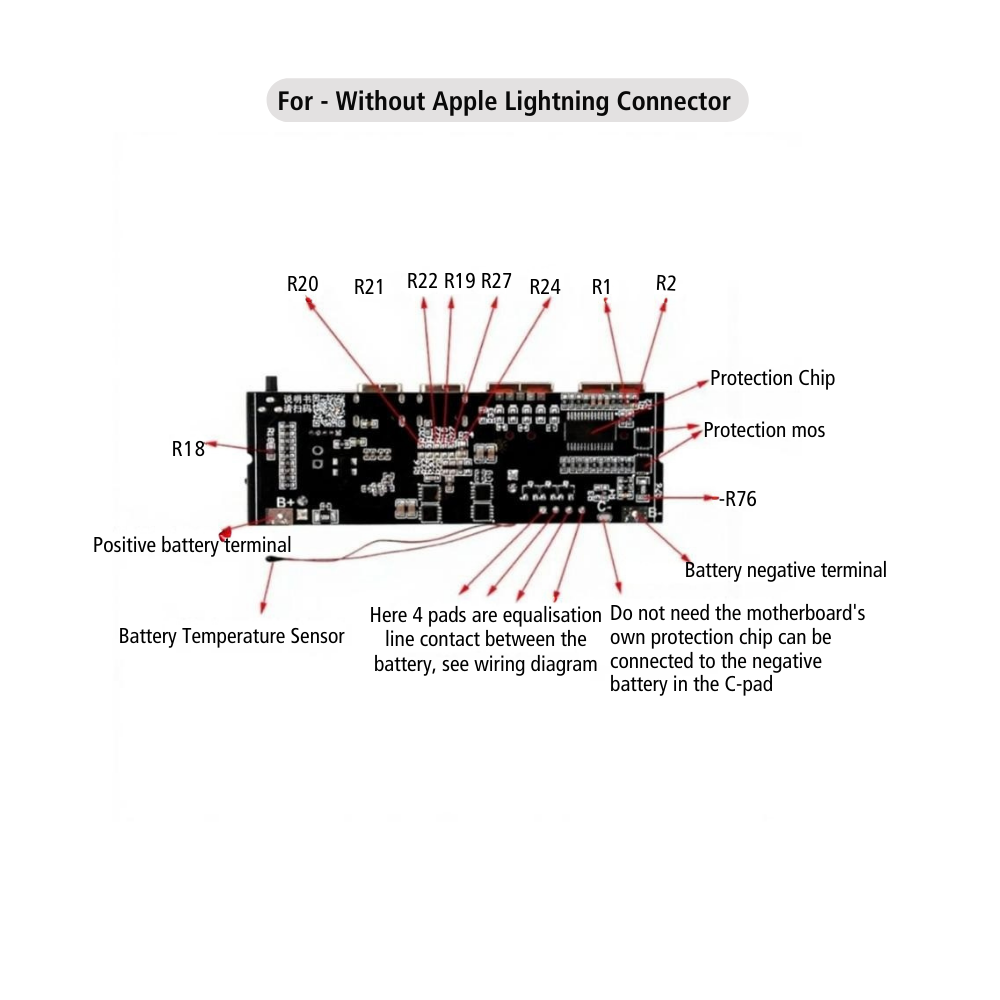

Clear silkscreen labeling and circuit layout make it easy to assemble, debug, and customize your own power bank projects.

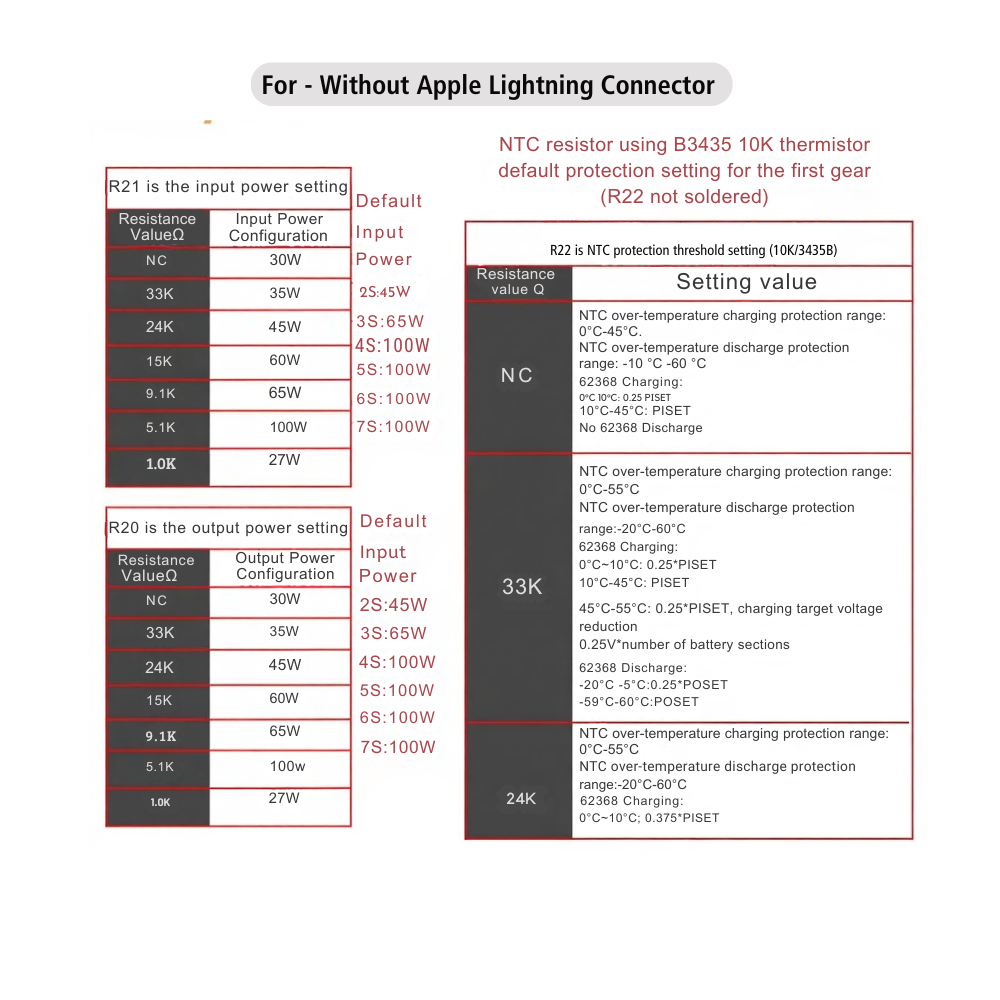

Technical Specifications
- Parameter Specification
- USB Ports 4 (Type-C1, Type-C2, Type-A1, Type-A2)
- Input Ports Type-C1, Type-C2
- Input Protocols PD3.1, AFC, FCP, SCP
- Output Protocols (Type-C) PPS, PD3.1, UFCS, QC3.0/QC2.0, AFC, FCP, SCP, SFCP
- Output Protocols (Type-A) UFCS, QC3.0/QC2.0, AFC, FCP, SCP, SFCP
- PD / PPS Power 3.3–21V @ 5A
- Maximum Input Power 100W
- Maximum Output Power 60W
- QC2.0 Output 5V/3A, 9V/3A, 12V/2.8A, 20V/1.5A
- QC3.0 Output 3.6–20V (200mV steps)
- SCP Support Up to 10V @ 4A
- Solar Charging MPPT Supported

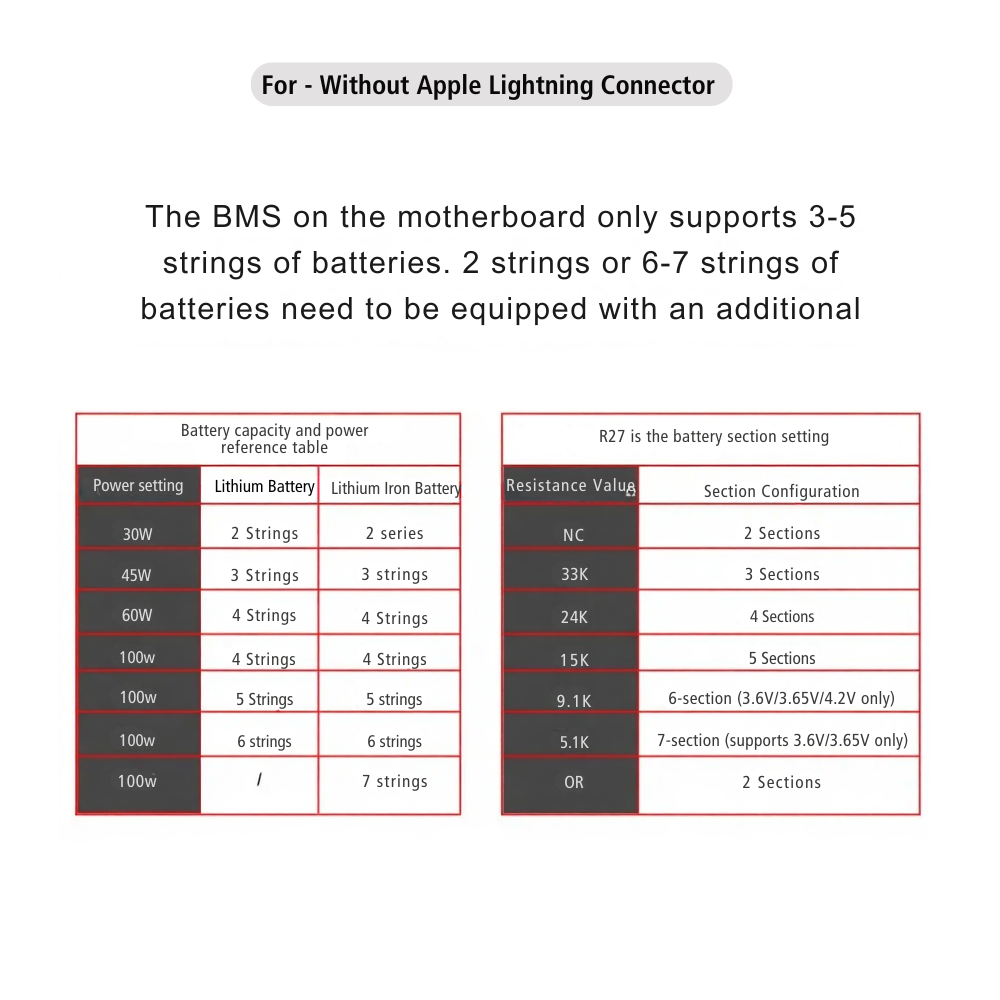

- Battery Support 2S–5S (6S–7S requires external BMS)
_______________________________________________________________________________________________
Notes:
- Use a wire that can handle 10A current; 16AWG is recommended.

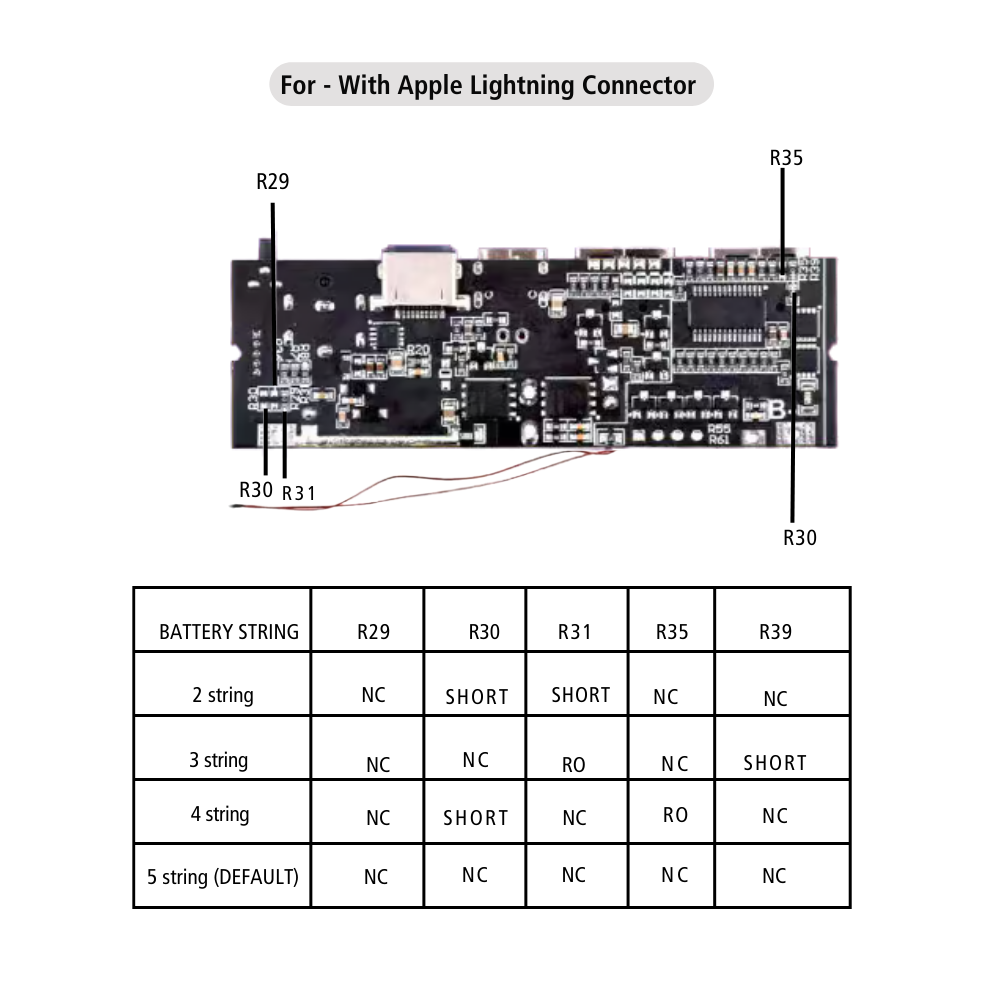

- Compatible with 2-5 battery strings; ensure batteries have their own protection board.
- Avoid using alligator clips for testing; use proper thick wires.
- Suitable batteries include 18650, polymer, ternary lithium, with a capacity up to 25,000mAh; excludes dry, nickel-metal hydride, and lead-acid batteries.

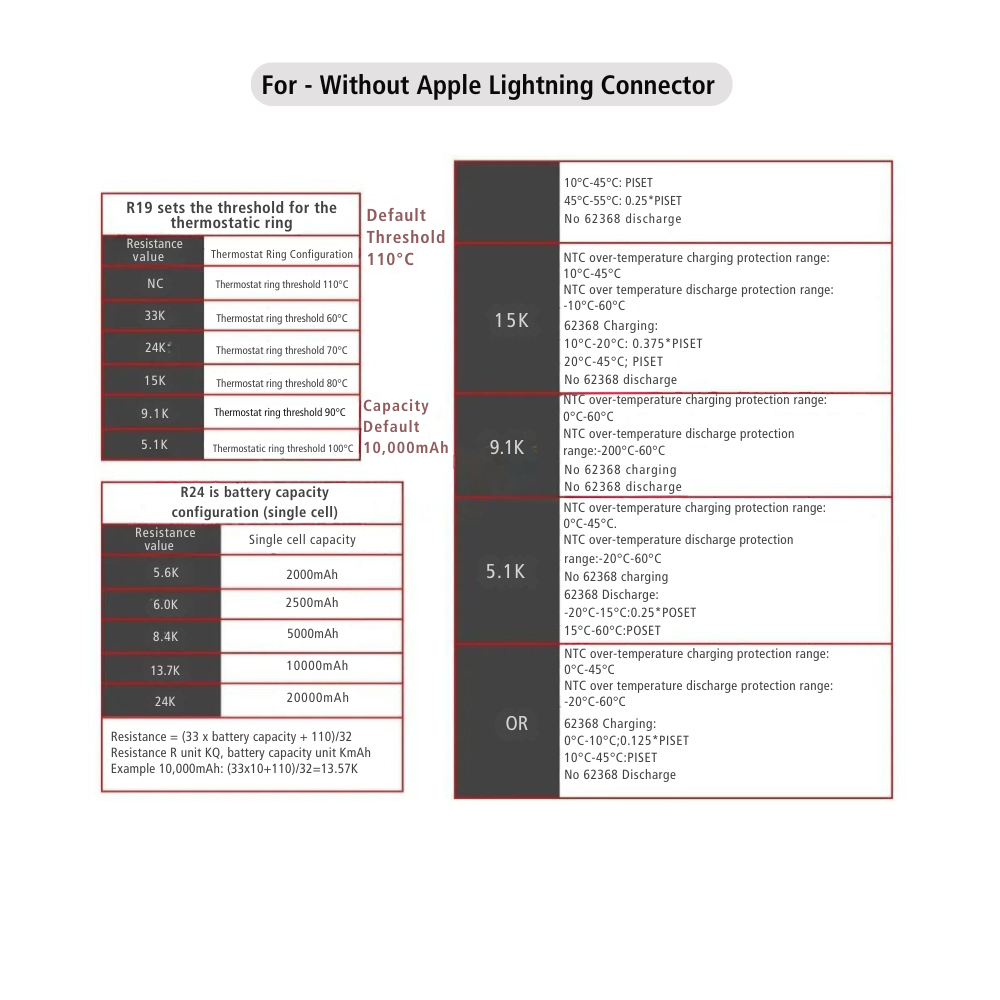

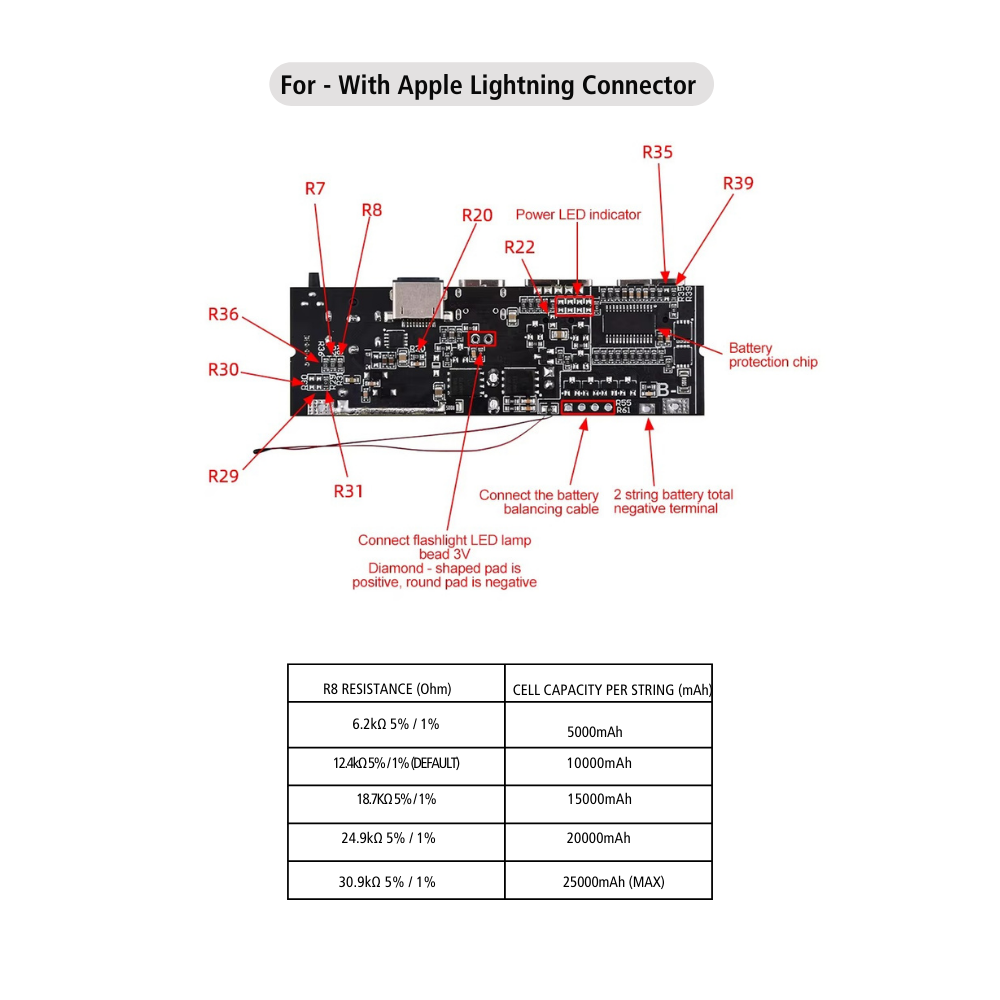

- Battery capacity must be preset.
- Check compatibility with fast-charging protocols before purchase; returns not accepted for incompatible devices.
- For small current batteries, refer to other models.
This power bank module provides high-performance power delivery and is perfect for both personal and professional use.
