Description
Arduino Pro High-Speed Edge AI Board – Portenta H7 Series with Wireless
Unleash advanced development with the Arduino Portenta H7, a high-performance board engineered for edge AI, industrial automation, and real-time IoT projects. Powered by a dual-core STM32H747XI (Cortex-M7 & Cortex-M4), the H7 runs Arduino, MicroPython, or Mbed OS in parallel — ideal for makers, engineers, or businesses seeking robust, scalable solutions.
Main Features:
-
Dual-core processor: ARM Cortex-M7 @480MHz + Cortex-M4 @240MHz
-
2MB Flash, 1MB RAM, WiFi, and Bluetooth 5.1
-
Loads of I/O: UART, SPI, I2C, CAN, USB-C, 80-pin high-density connectors, micro SD, and camera/interface support
-
Secure element for cryptographic hardware security
-
Add-on support: Vision Shield (camera, microphones, & Ethernet)
-
Compatible with advanced ML/AI workflows (supports TensorFlow Lite)
-
Industrial temperature range: –40°C to +85°C
-
3.3V logic, Li-Po battery charging, compact MKR footprint

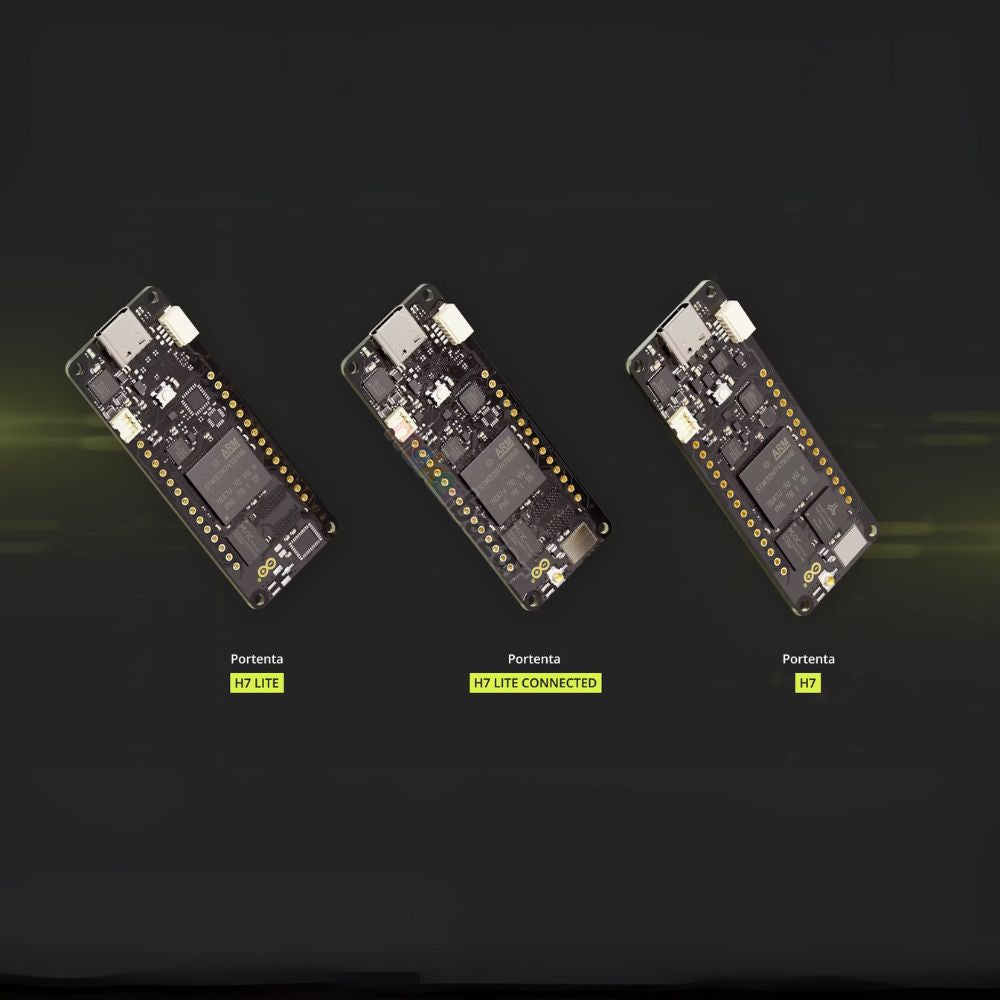

Variants:
-
Portenta H7 Lite: Essential computing, no wireless module
-

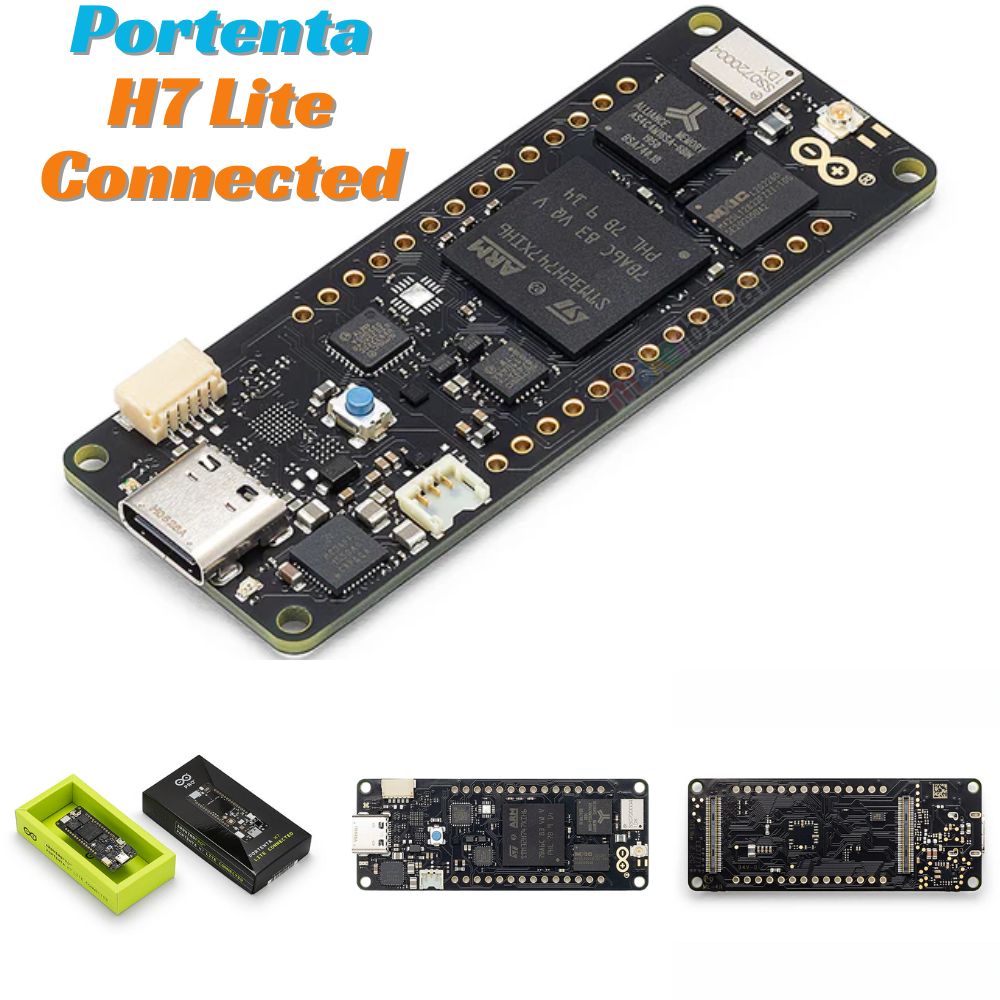

Portenta H7 Lite Connected: Lite with WiFi/Bluetooth
-

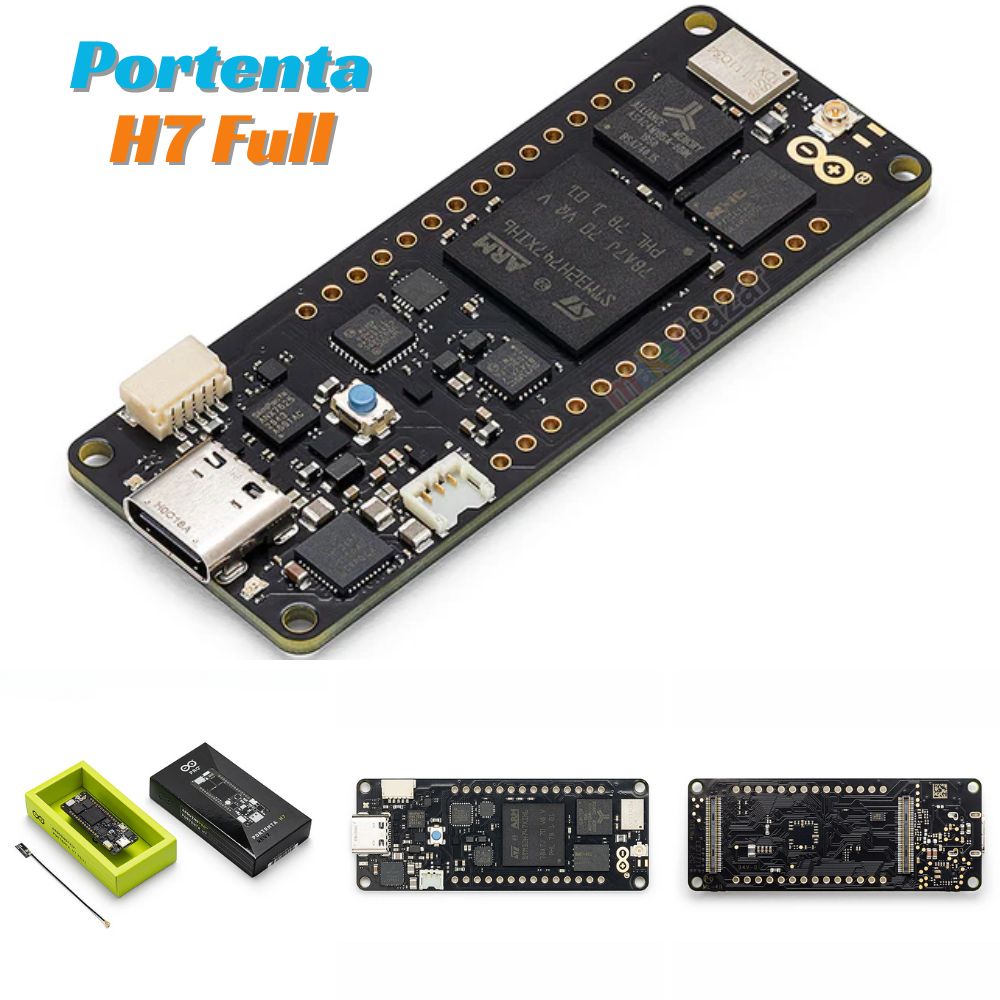

Portenta H7 (Full): All features + secure element
Applications:
-
Edge AI and Machine Learning
-
Smart IoT Gateways and Industrial Controllers
-
Secure Device Prototyping (Cryptography/Authentication)
-
Machine Vision and Real-Time Monitoring
Why Portenta H7?
Balance industrial reliability and cutting-edge power with the versatility of Arduino’s software ecosystem and open-source hardware design. Ship your prototypes or full-scale products with confidence.
| Model | Microcontroller | Wireless | Security Element | RAM / Flash | Battery Support | Display/Camera Support | Key Interfaces | Temperature Range |
|---|---|---|---|---|---|---|---|---|
| Portenta H7 Full | STM32H747XI Dual-Core | WiFi/Bluetooth 5.1 | NXP SE050C2 | 8MB SDRAM/16MB QSPI | Li-Po 3.7V 700mAh min | MIPI DSI, 8-bit camera | HD conn, UART, CAN, SD | –40°C to +85°C |
| Portenta H7 Lite | STM32H747XI Dual-Core | No wireless | ATECC608 | 8MB SDRAM/16MB QSPI | Li-Po 3.7V 700mAh min | MIPI DSI, 8-bit camera | HD conn, UART, CAN, SD | –40°C to +85°C |
| Portenta H7 Lite Connected | STM32H747XI Dual-Core | WiFi/Bluetooth 5.1 | ATECC608 | 8MB SDRAM/16MB QSPI | Li-Po 3.7V 700mAh min | MIPI DSI, 8-bit camera | HD conn, UART, CAN, SD | –40°C to +85°C |
-
HD conn = Two 80-pin High Density Connectors (Ethernet, UART, CAN, etc.)
-
All models: USB-C Host/Device, Power Delivery, DisplayPort out.
All variants support parallel execution of Arduino/Mbed code. The Full (non-lite) version features a more advanced security module
