BeagleBone Black REV C

Save ₹ 1,000.00
SKU: 33472977
No reviews

Sale price₹ 5,999.00 Regular price₹ 6,999.00
( ₹ 5,083.90 without 18% GST.)

Tax included Shipping calculated at checkout

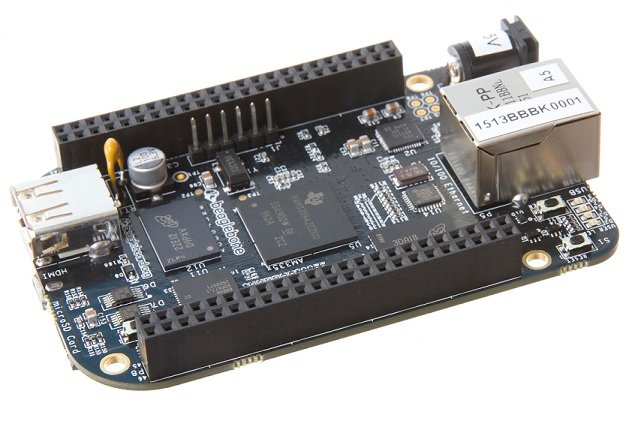

Beagle Bone Black Rev C (4GB eMMC)

BeagleBone Black is the newest member of the BeagleBoard family and is a lower-cost, high-expansion focused BeagleBone, featuring the Sitara AM3358BZCZ100 ARM Cortex-A8 32-Bit RISC microprocessor from Texas Instruments. It is similar to the BeagleBone but with some previous features removed to make way for the excellent new features.

The platform has a proven track record of facilitating innovation from concept to market and BeagleBone Black’s enhanced feature set enables developers to turn ideas into prototypes more easily than ever. Whether operating standalone or in conjunction with another computer, this new BeagleBone will provide developers easy access to industry standard interfaces and a well-developed ecosystem of software and tools.

If you liked the BeagleBone Black Rev B, you will love the Rev C! The Rev C still has a blistering 1GHz processor and 512MB onboard DDR3 RAM and like the old one, it has an AM3359 microprocessor, two 46-pin headers, micro HDMI for audio/video output, USB ports, 10/100 Ethernet and other I/O features. The Rev C is an ultra-powered embedded computer that can fit in a mint tin.

This model includes 4GB of eMMC built-in storage instead of the Rev B’s 2GB. With the doubled storage and faster eMMC, the developers were able to make the Rev C’s most significant change: shipping the BeagleBone Black with Debian Linux pre-loaded on the board’s flash instead of Angstrom Linux. Debian Linux is a more user-friendly operating system than Angstrom and the switch to Debian is partly the result of consumer demand (especially from Adafruit users, thanks!)

Of course, the BeagleBone Black Rev C is an open board so if you want to load it back up with Angstrom or other Linux-based distributions like Ubuntu or Android, you can.

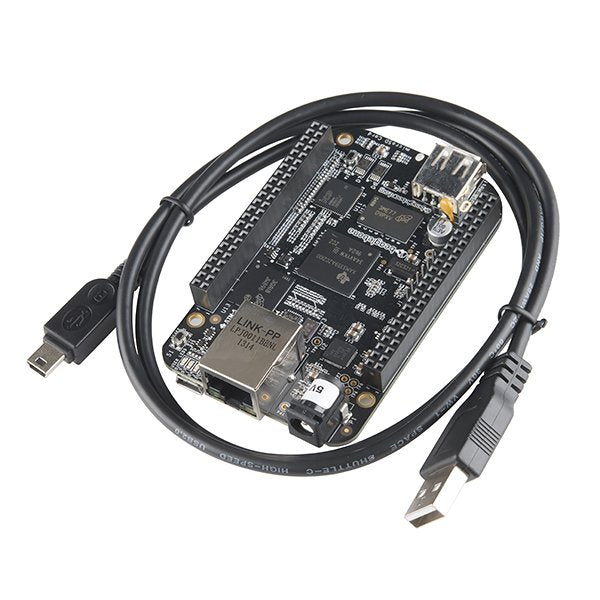

Out of the box, the board rev C comes with a mini-B cable for powering it up ASAP. No MicroSD card is included as the BBB has onboard flash storage – and no SD card loading is required to get started.

The original BeagleBone’s cape plug-in boards are also compatible with the BeagleBone Black, making easy integration with previous projects yet another advantage.


USB client for power & communications
USB host
2x 46 pin headers


Features :

  1. Sitara AM3358BZCZ100 ARM Cortex-A8 32-Bit RISC microprocessor, up to 1GHz
  2. Onboard HDMI to connect directly to TVs and monitors
  3. More and faster memory now with 512MB DDR3L 400MHz SDRAM, 4GB eMMC Memory
  4. Onboard storage frees up the microSD card slot for greater expansion
  5. Support for existing Cape plug-in boards
  6. TPS65217C PMIC regulator and one additional LDO
  7. Debug support: Optional onboard 20-pin CTI JTAG
  8. HS USB 2.0 Client and Host ports
  9. Serial port: UART0 access via 6-pin 3.3V TTL header
  10. 10/100 RJ45 Ethernet
  11. Linux Debian Distribution flashed to the eMMC (no longer Angstrom)
