Description

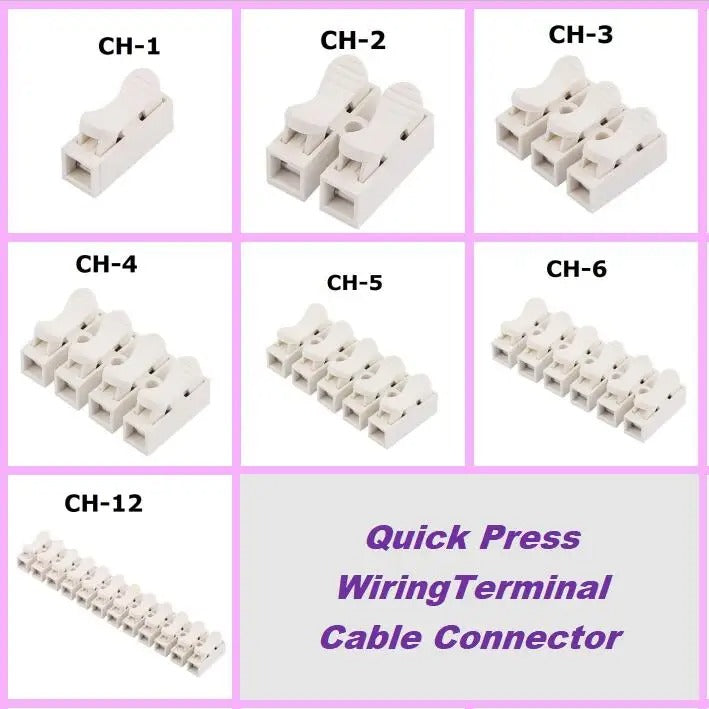

CH1 CH2 CH3 CH4 CH5 CH6 CH12 Quick Connector Cable Clamp Terminal Block Spring Connector

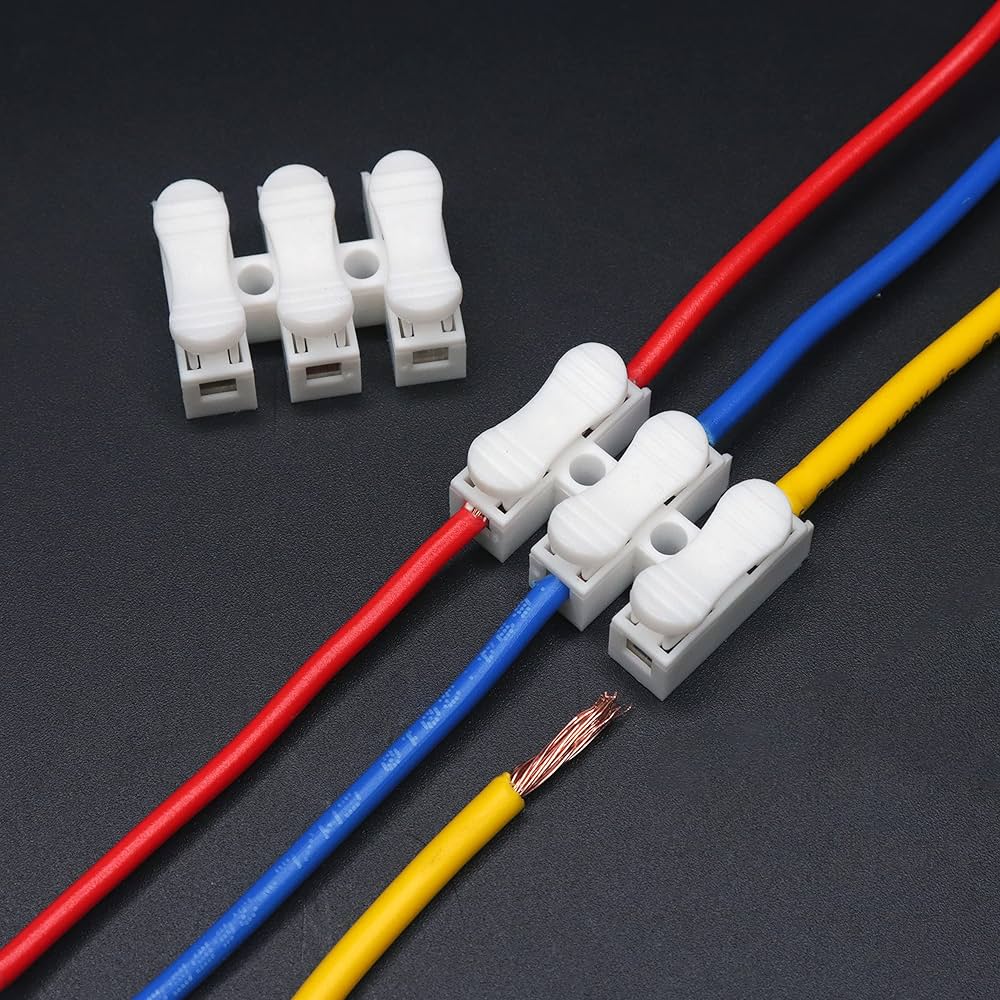

This CH Quick connector does not need any tool to connect the wire. It is a self-locking type connector. This has a natural spring-loaded wire clamp. This quick connector is a strong, durable, versatile, Modern, and time-saving design.
- Material: ABS Plastic
- Colour: White
- Wiring Capacity: Wiring capacity from 0.5-2.5 square wire
- Temperature: -40 to 150 °C
- Push Release, Pressure Opening Type Compression Lock, 2 Way Dual Direction Entry Level Connection Pins Inserts.
- This CH2 Spring Quick Wire Connector is widely used in lighting, power, and automotive wiring. Suitable for motor, electrical control, power, household appliances, lighting, machinery, and wire joints.

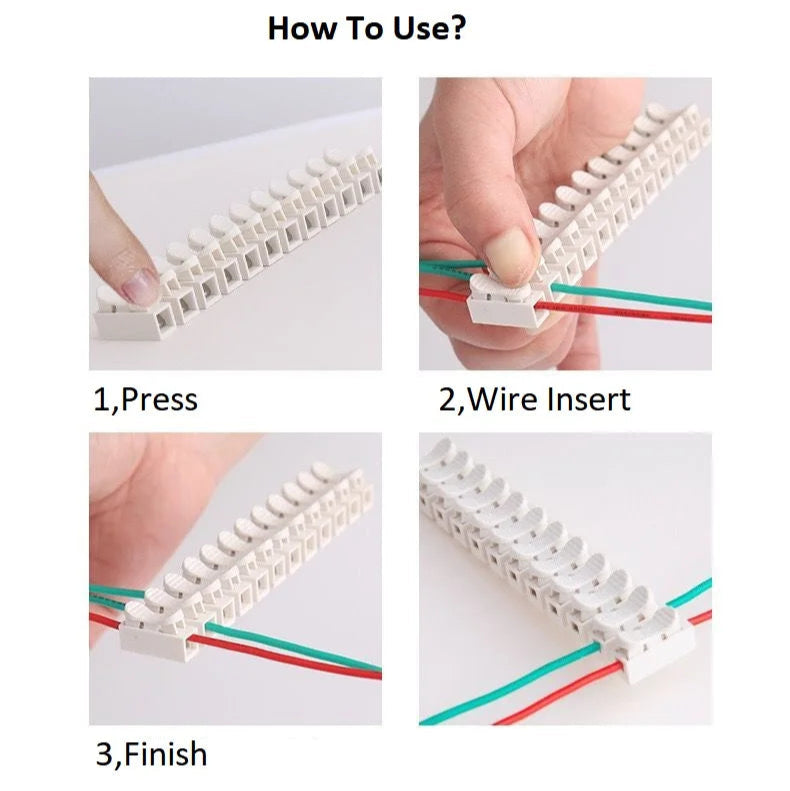

- Three steps to finish wire connecting without screws and soldering: 1. Press the spring clip 2. Insert wires (please correctly connect + and -) 3. Release the clip
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm
