Description

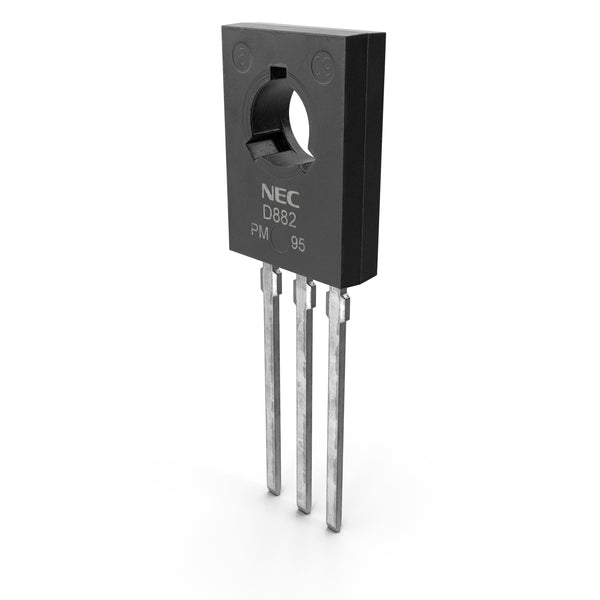

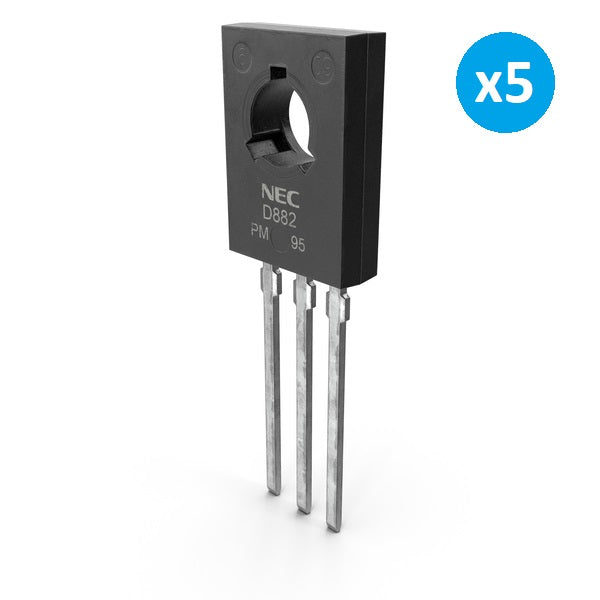

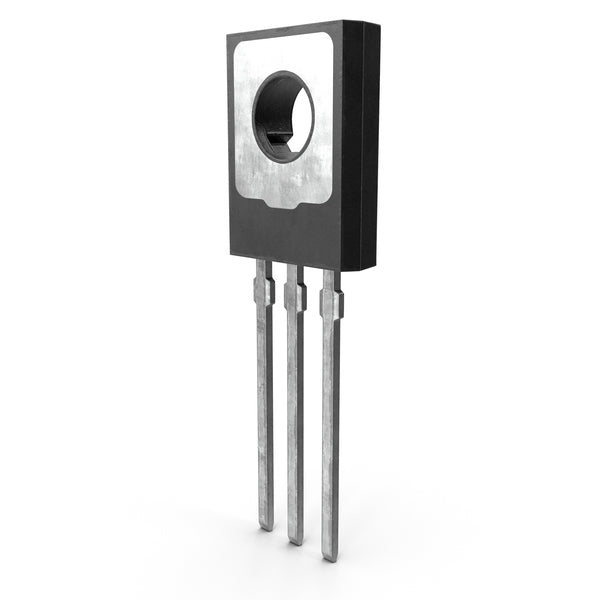

D 882 NPN SILICON TRANSISTOR
2SD882 or D882 is a TO-126 package general purpose transistor, in this post, you will find D882 transistor pinout, equivalent, uses, features, alternative replacements, and other details about this transistor.
2SD882 is a general-purpose transistor and it is a quite high performance device, according to its features, this transistor is ideal to use in a wide variety of educational, commercial, and hobbyist electronic projects. D882 can be used for a wide variety of switching and amplification purposes. It is packed with some very interesting features, the max collector current is 3A which is enough to drive many relays, LEDs, Bulbs, motors, some part of an electronic circuit, etc. the minimum collector saturation voltage is only 0.3V.
Moreover, with its 10-watt output feature, it can be used in the output stage of an audio amplifier or it can also be used separately as an amplifier.
Features / technical specifications:
- Package Type: TO-126
- Transistor Type: NPN
- Max Collector Current(IC): 3A
- Max Collector-Emitter Voltage (VCE): 30V
- Max Collector-Base Voltage (VCB): 40V
- Max Emitter-Base Voltage (VEBO): 5V
- Max Collector Dissipation (Pc): 10 Watts
- Max Transition Frequency (fT): 90 MHz
- Minimum & Maximum DC Current Gain (hFE): 60 – 400
- Max Storage & Operating temperature Should Be: -55 to +150 Centigrade
Where We Can Use it & How to Use:
2SD882 can be used in a variety of different applications. For example, It can be used in power supply circuits, voltage regulator circuits, battery charger circuits, driving motors, switching any load under 3A, etc. Apart from the above applications, it will also perform when used to amplify audio signals and it can be used in small audio amplifiers, the output stage of receiver circuits, bell circuits, audio-related circuits, etc.
Applications:
Relay Driver
Audio Amplifier
Switching Loads under 3A
Darlington Pairs
