Description

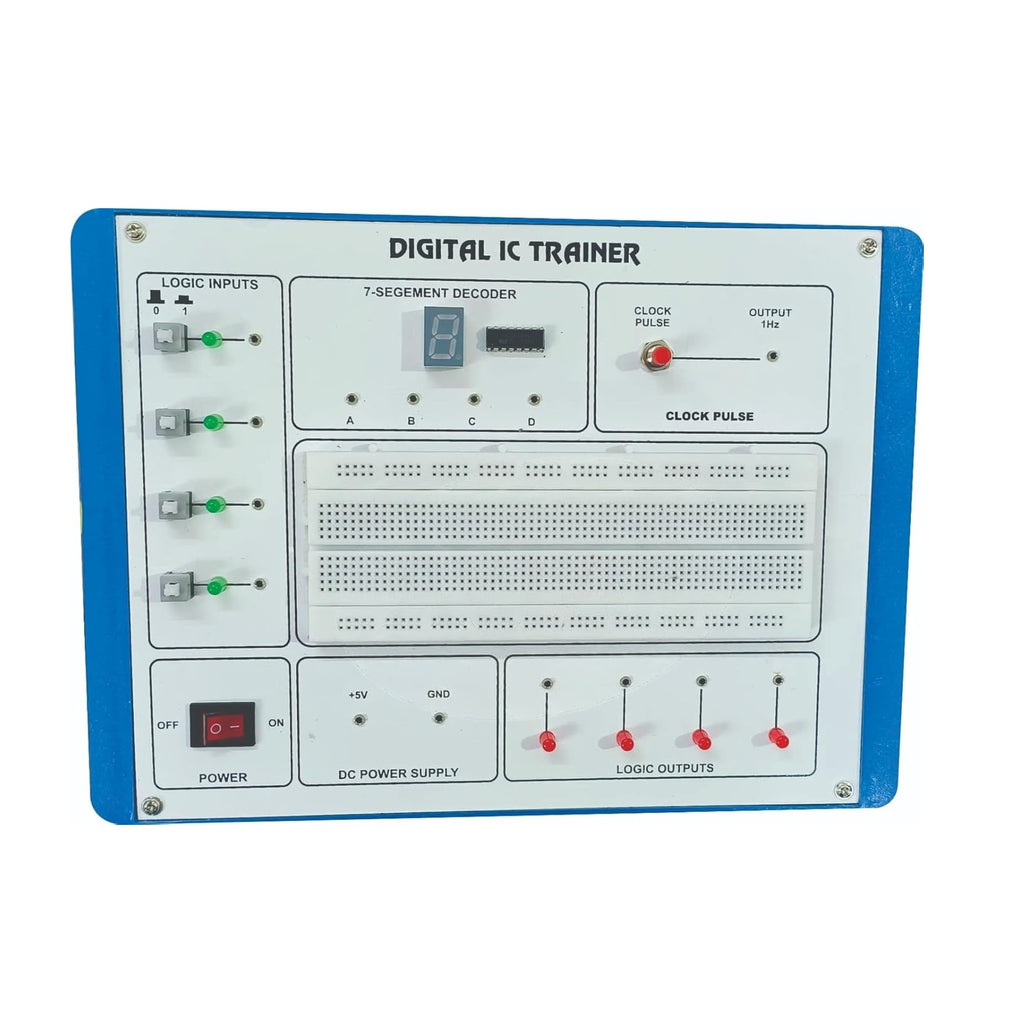

Digital Electronics Trainer Kit with Logic Inputs, Outputs & 7-Segment Display
The Digital IC Trainer Kit is an educational development platform designed for learning, testing, and experimenting with digital electronics circuits. It provides a complete setup for building and analyzing logic circuits using basic ICs, switches, LEDs, and breadboard connections.
This trainer kit enables students and engineers to design, test, and troubleshoot digital circuits, making it ideal for academic labs, training institutes, and DIY learning. It typically includes features like logic input switches, LED output indicators, clock pulse generator, and 7-segment display interface for real-time circuit visualization.
With an integrated breadboard section, users can easily plug in ICs (like 7400 series), connect components, and perform experiments such as logic gates, flip-flops, counters, and decoders.
Key Features
- Built-in breadboard for circuit prototyping
- Multiple logic input switches (0/1)
- LED-based logic output indicators
- Integrated 7-segment display interface
- Clock pulse generator for sequential circuits
- Onboard DC power supply (+5V, GND)
- Ideal for 7400 series IC experiments
Specifications (typical)
- Type: Digital Electronics Trainer Kit
- Power Supply: 5V DC (inbuilt or external adapter)
- Input Controls: Manual logic switches
- Output Indicators: LED indicators
- Display: 7-segment display module
- Breadboard: Integrated prototyping area
- Clock Source: Manual/auto pulse generator (~1Hz typical)
- Mounting: Desktop panel
Applications
- Learning digital logic gates (AND, OR, NOT, NAND, NOR, XOR)
- Flip-flop and counter experiments
- Decoder and encoder circuits
- Boolean algebra verification
- Engineering lab experiments
- DIY electronics education
