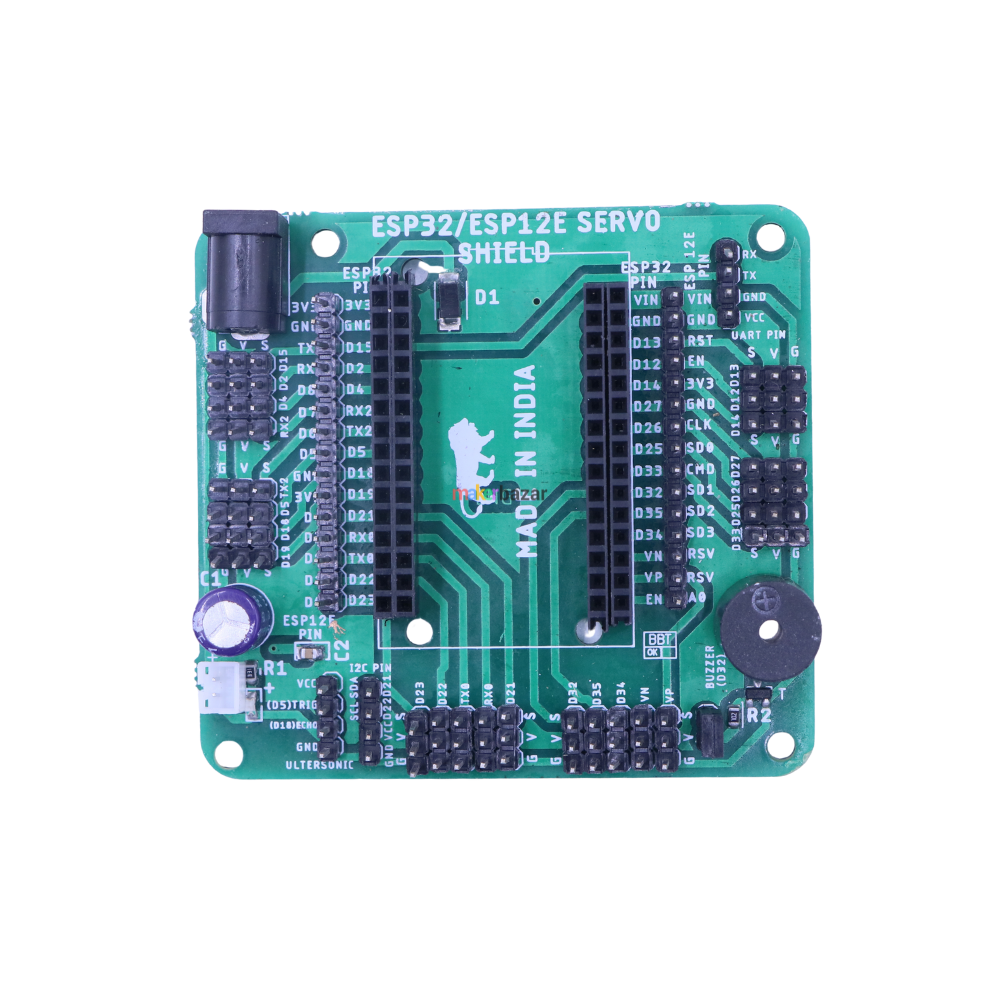

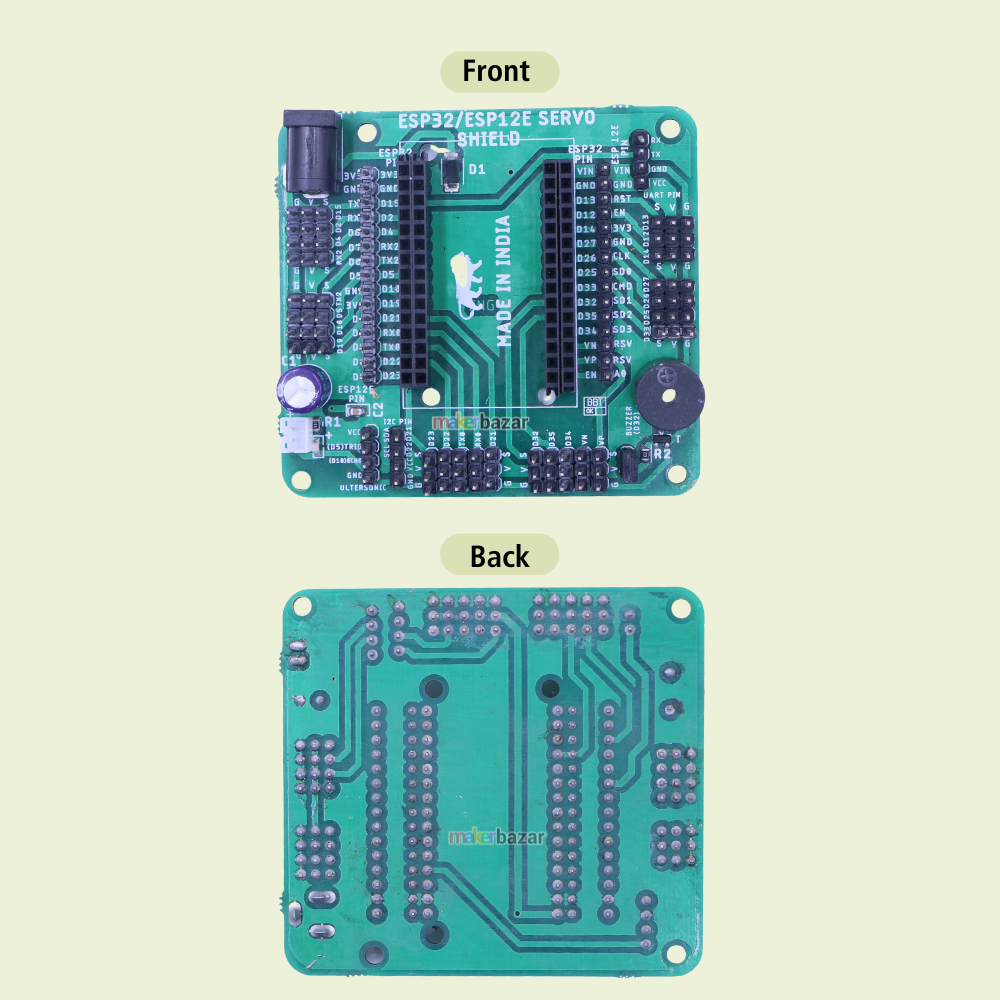

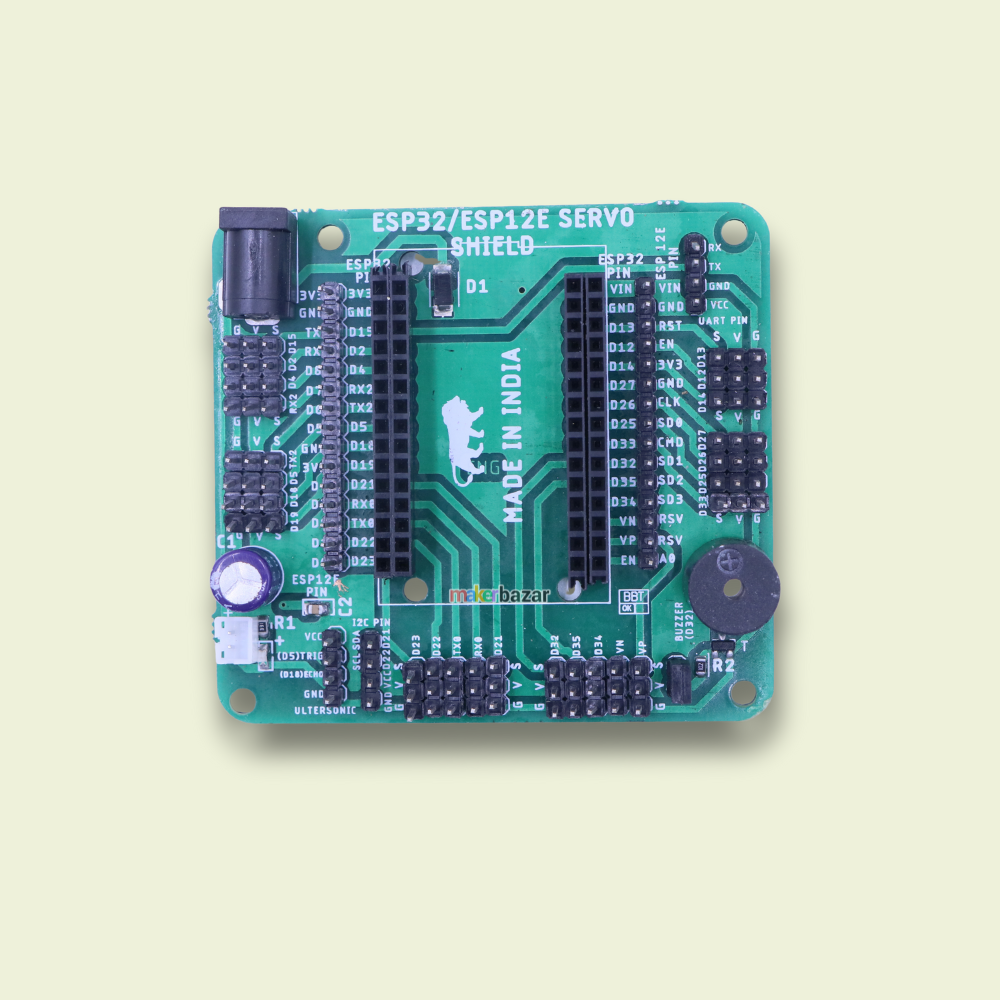

ESP32/ESP12E Compatible Servo Development Board for Robotics & Automation
The ESP32 Servo Development Board is a powerful shield designed to control multiple servo motors with ease, making it perfect for robotics, IoT, and automation projects. Compatible with ESP32, ESP32-S2, and ESP32-S3 modules, it provides stable power regulation, dedicated servo headers, and onboard peripherals like a buzzer. Ideal for building robotic arms, smart automation systems, and IoT-enabled devices, this board offers both flexibility and reliability.

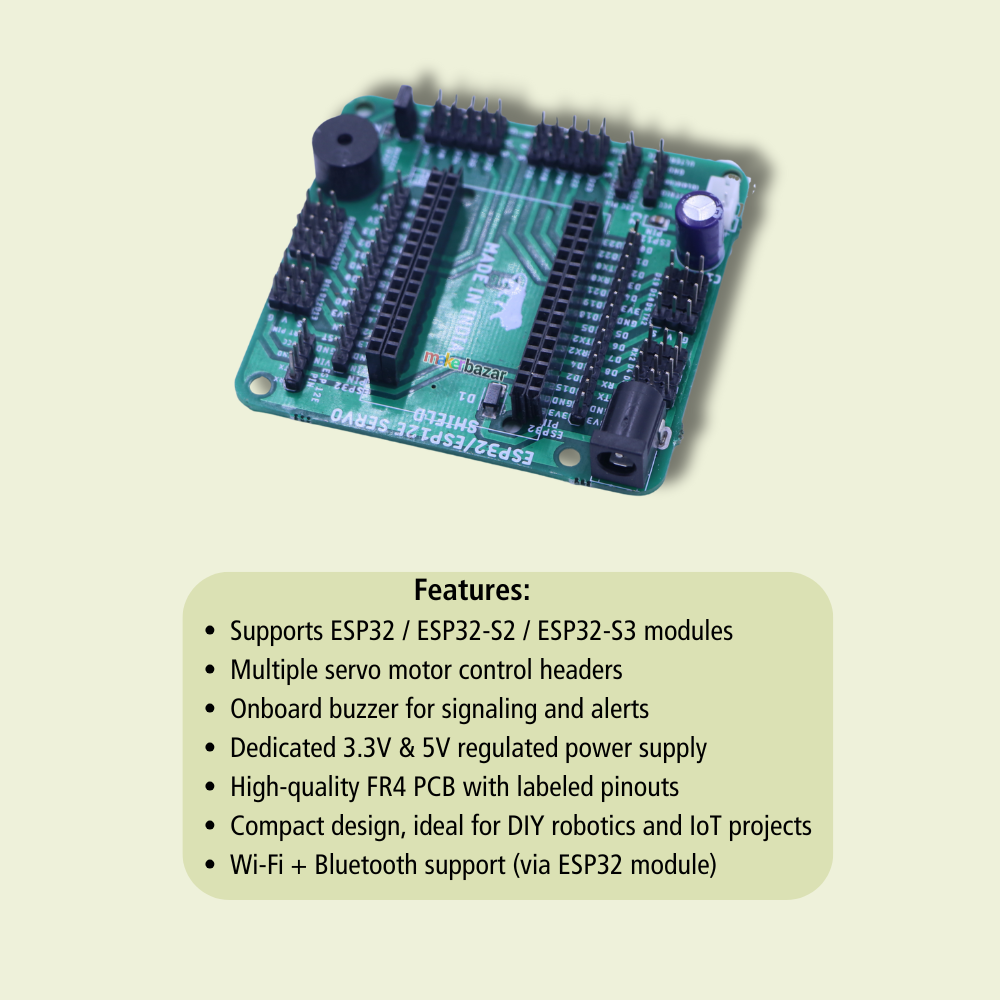

⭐ Key Features
-
Supports ESP32 / ESP32-S2 / ESP32-S3 modules
-
Multiple servo motor control headers
-
Onboard buzzer for signaling and alerts
-
Dedicated 3.3V & 5V regulated power supply
-
High-quality FR4 PCB with labeled pinouts
-
Compact design, ideal for DIY robotics and IoT projects
-
Wi-Fi + Bluetooth support (via ESP32 module)

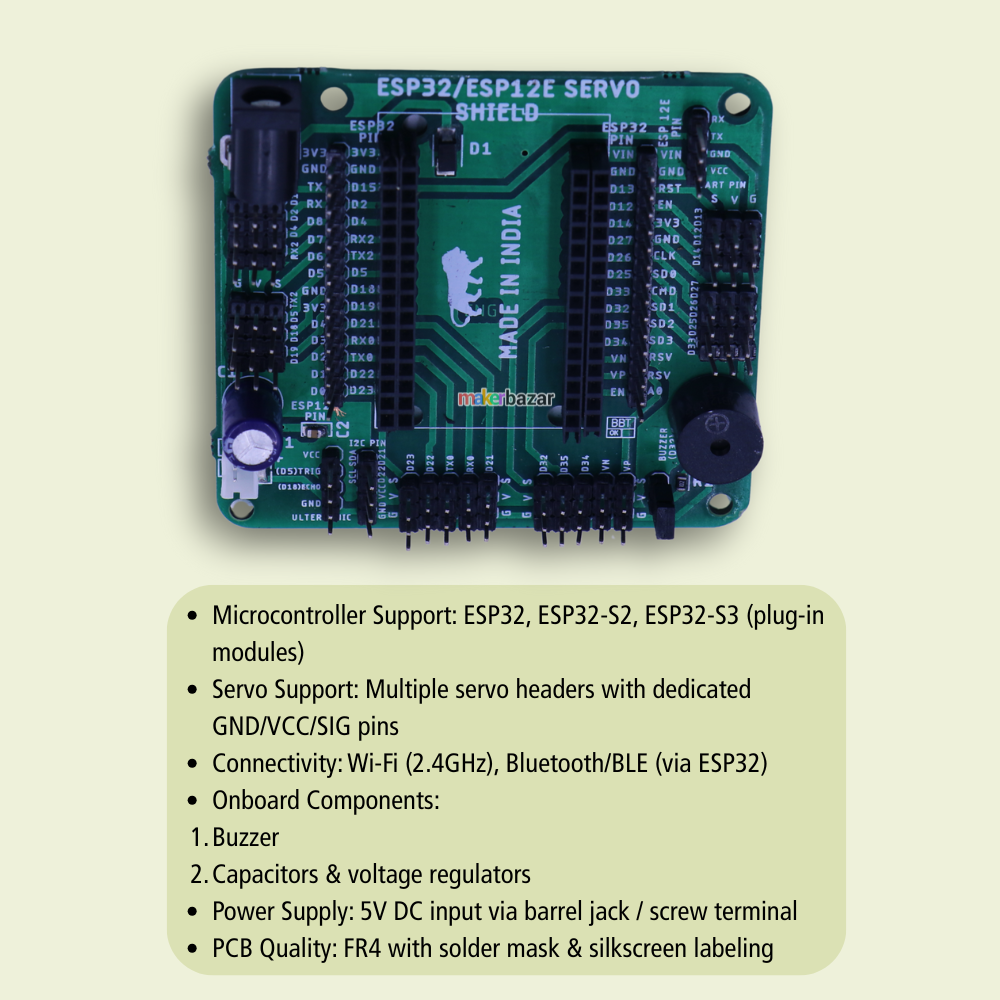

🔧 Technical Specifications
-
Microcontroller Support: ESP32, ESP32-S2, ESP32-S3 (plug-in modules)
-
Servo Support: Multiple servo headers with dedicated GND/VCC/SIG pins
-
Connectivity: Wi-Fi (2.4GHz), Bluetooth/BLE (via ESP32)
-
Onboard Components:
-
Buzzer
-
Capacitors & voltage regulators
-
-
Power Supply: 5V DC input via barrel jack / screw terminal
-
PCB Quality: FR4 with solder mask & silkscreen labeling
-

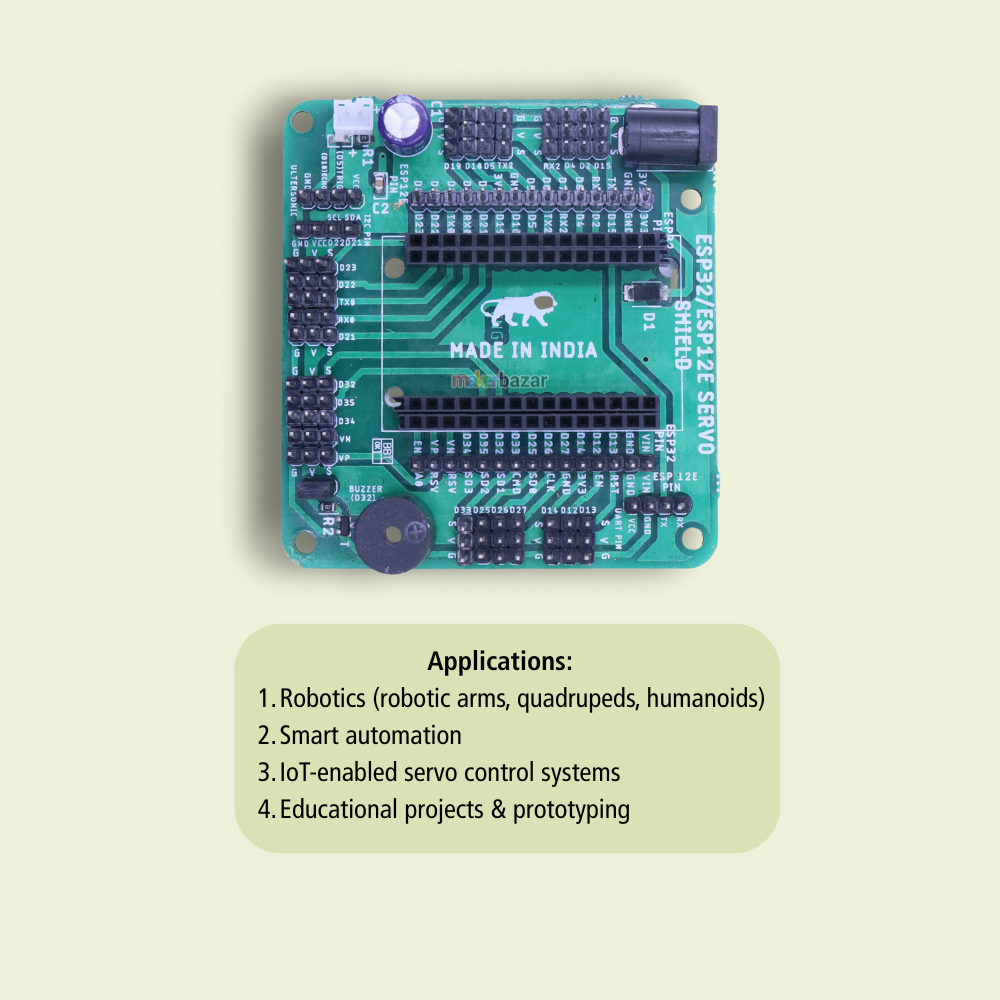

Applications:
-
Robotics (robotic arms, quadrupeds, humanoids)
-
Smart automation
-
IoT-enabled servo control systems
-
Educational projects & prototyping
-
