Description

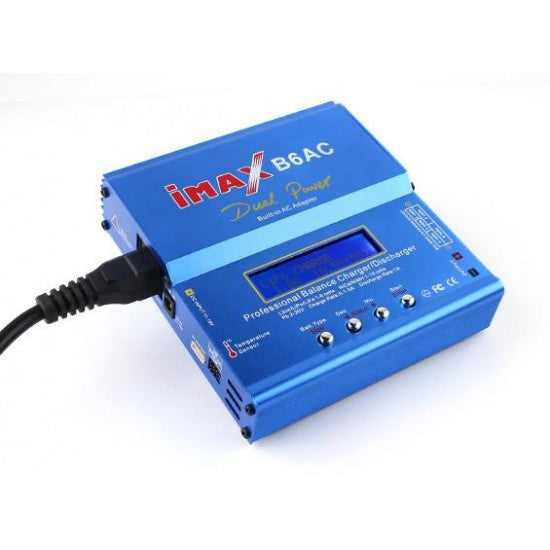

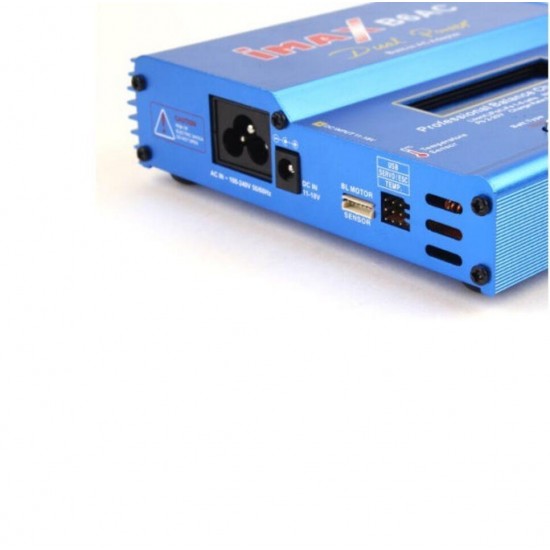

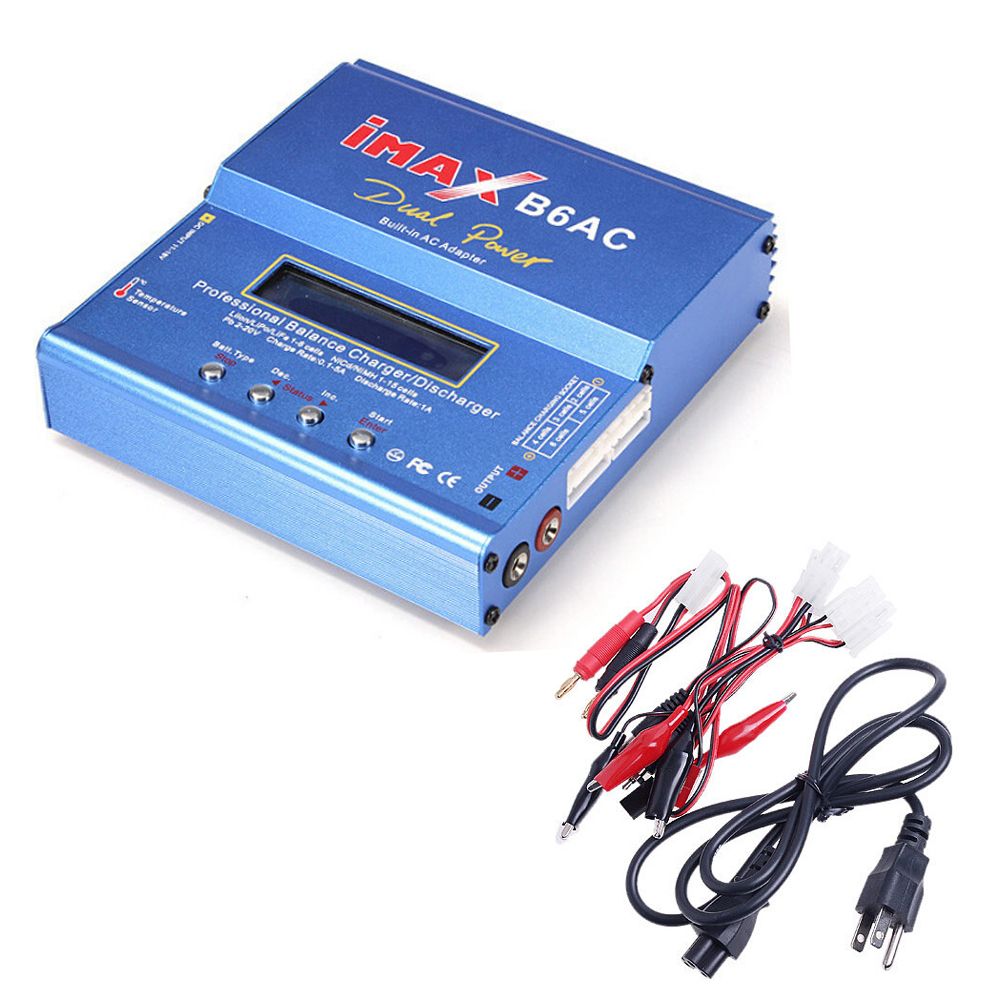

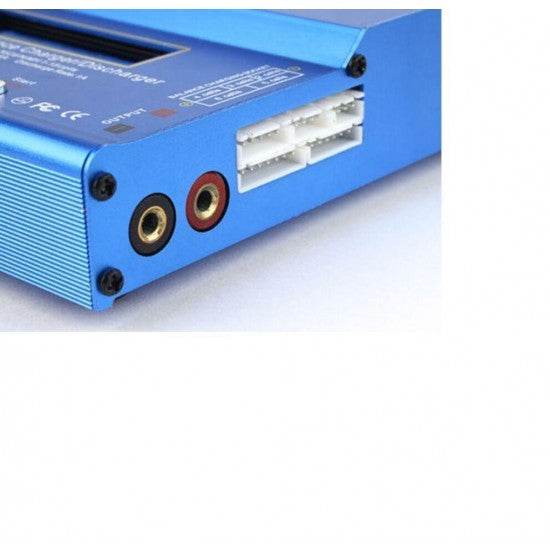

IMAX B6 AC Charger/Discharger
The iMAX-B6AC can charge and discharge NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries with individual cell balancing for up to 6 lithium cells. It features a built-in adapter that can be powered from 100–240 VAC, or it can alternatively be powered via an 11–18 VDC input. With its versatile charging capabilities and advanced features like input power monitoring, delta-peak sensitivity, cyclic charging and discharging, and more, the iMAX-B6AC is a great addition to the workbench of any RC, DIY, or robot enthusiast.
-
Operating voltage range: AC 250Volt / DC adaptor(DC11.0-18.0V/5A)
-
Circuit power: Max.charge power 80W / Max.discharge power 5W Charge
-
Current Range: .1~5.0A
-
Discharge current range: 0.1-1.0A
-
Current drain for balancing Li-po: 300mAH/cell
-
LiIon/LiPo/LiFe cells : 1-6
-
NiCd/NiMH cells : 1-15
-
Pb battery voltage: 2~20v
-
Unit Package Gross Weight: 624g
-
Dimensions: 133x87x33mm Compare to iMAX B5:
-
Can charge 6 cells LiPo battery (B5 can charge maximum 5 cells)
-
With Discharge Function
-
123 Life Charging
