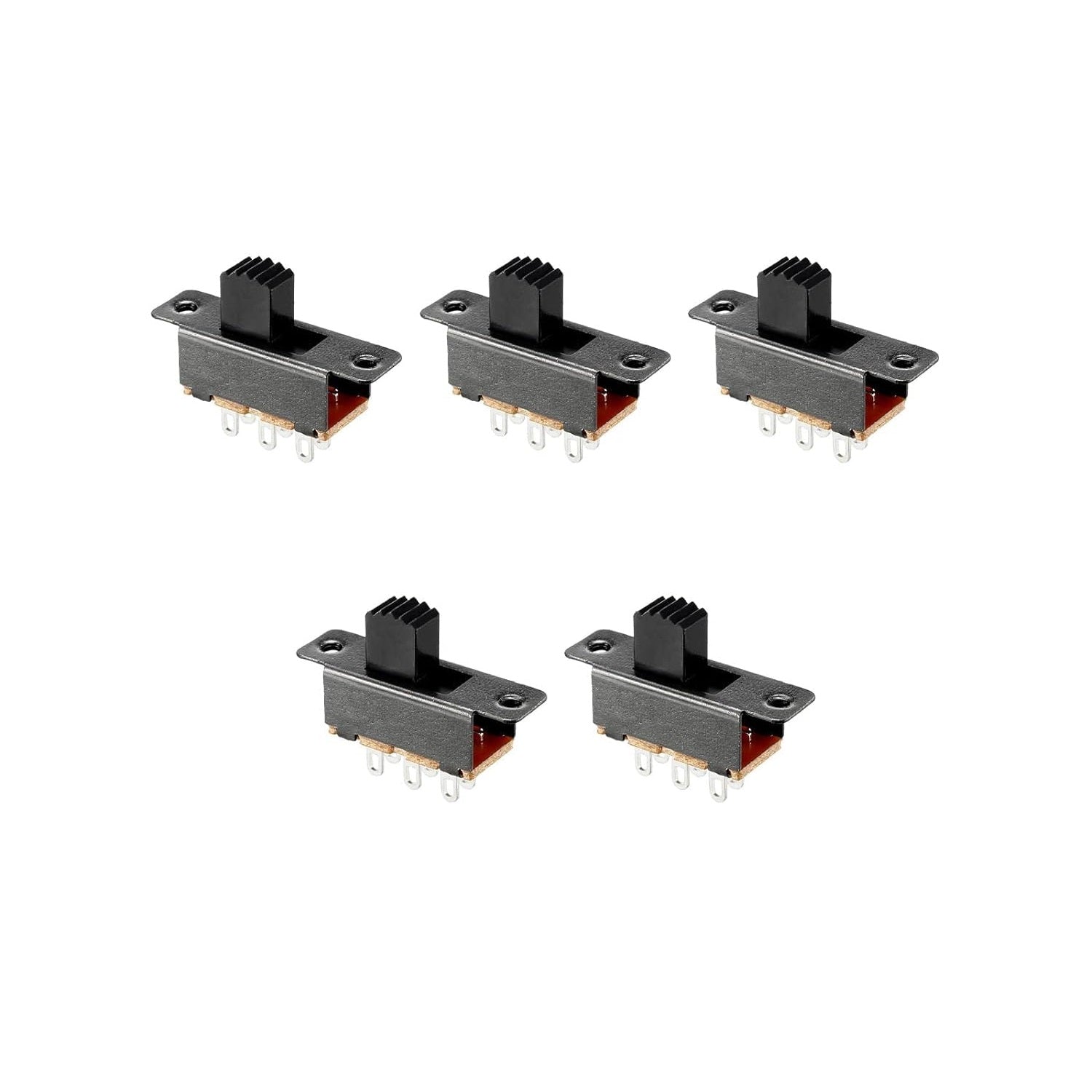

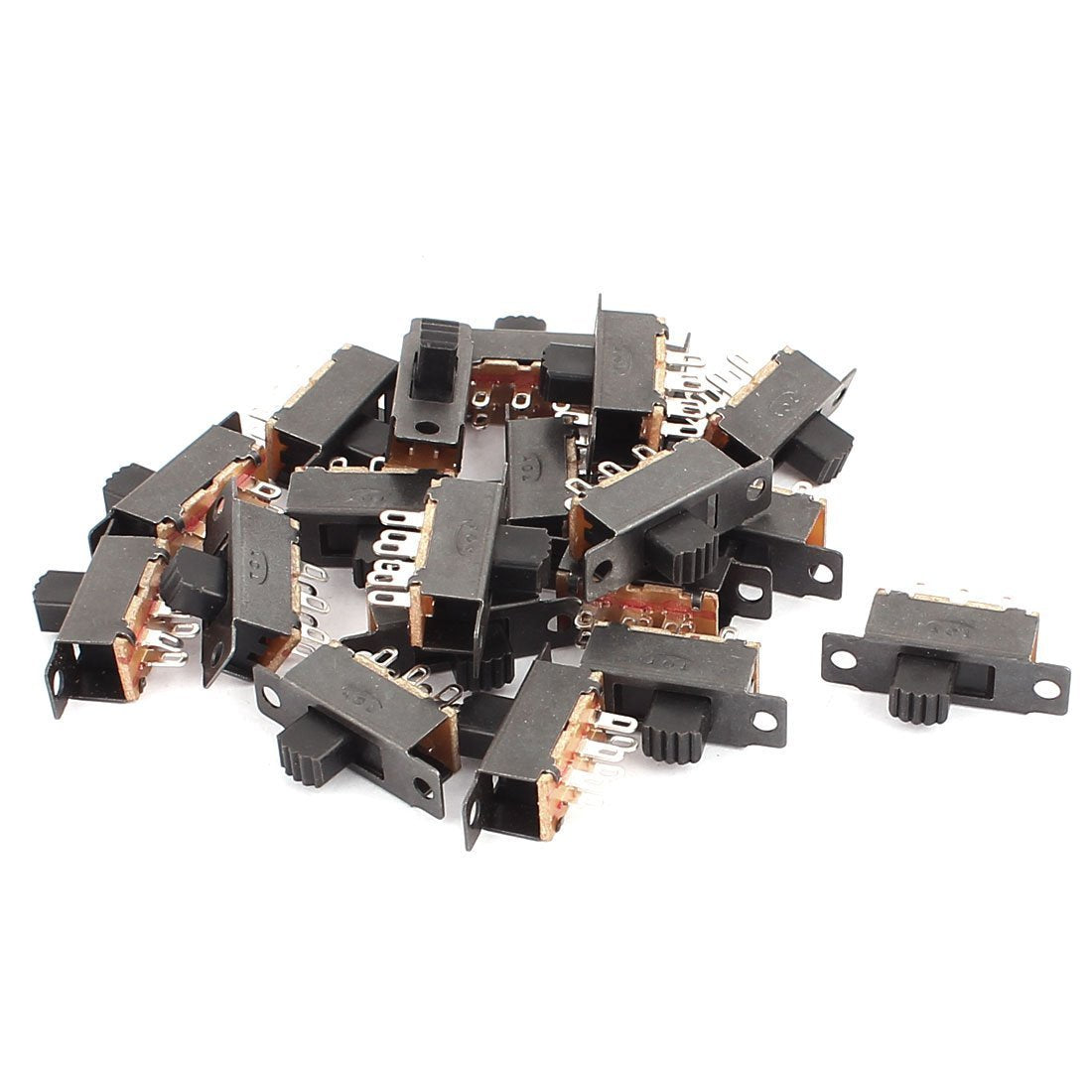

Mini DPDT Slide Switch On-On 6 Pin Panel Mount Toggle Switch
The Mini DPDT Slide Switch On-On 6 Pin is a versatile double-pole double-throw switch that allows simultaneous switching of two independent circuits. Featuring six terminals and an On-On configuration, the switch provides reliable changeover functionality in a compact form factor.
Its panel-mount design with mounting ears ensures secure installation in control panels, electronic enclosures, instruments, and DIY projects. The switch is widely used for power selection, signal switching, polarity reversal, mode selection, and control applications.
Built with durable contacts and smooth slide operation, it delivers dependable performance for both hobbyist and professional electronic designs.
Key Features
- DPDT (Double Pole Double Throw) configuration
- On-On switching operation
- 6-pin terminal design
- Compact miniature size
- Smooth slide action
- Durable contact mechanism
- Easy panel mounting
- Suitable for low-voltage electronic circuits
- Reliable switching performance
- Ideal for DIY and industrial applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Switch Type | Slide Switch |
| Contact Configuration | DPDT |
| Switching Function | On-On |
| Number of Pins | 6 |
| Mounting Type | Panel Mount |
| Actuator Type | Slide Lever |
| Terminal Type | Solder Lug |
| Body Material | Plastic & Metal |
| Contact Material | Copper Alloy |
| Operating Temperature | -20°C to +85°C |
