Description
DIY 3D Printer CNC Compatible for 3D Printer

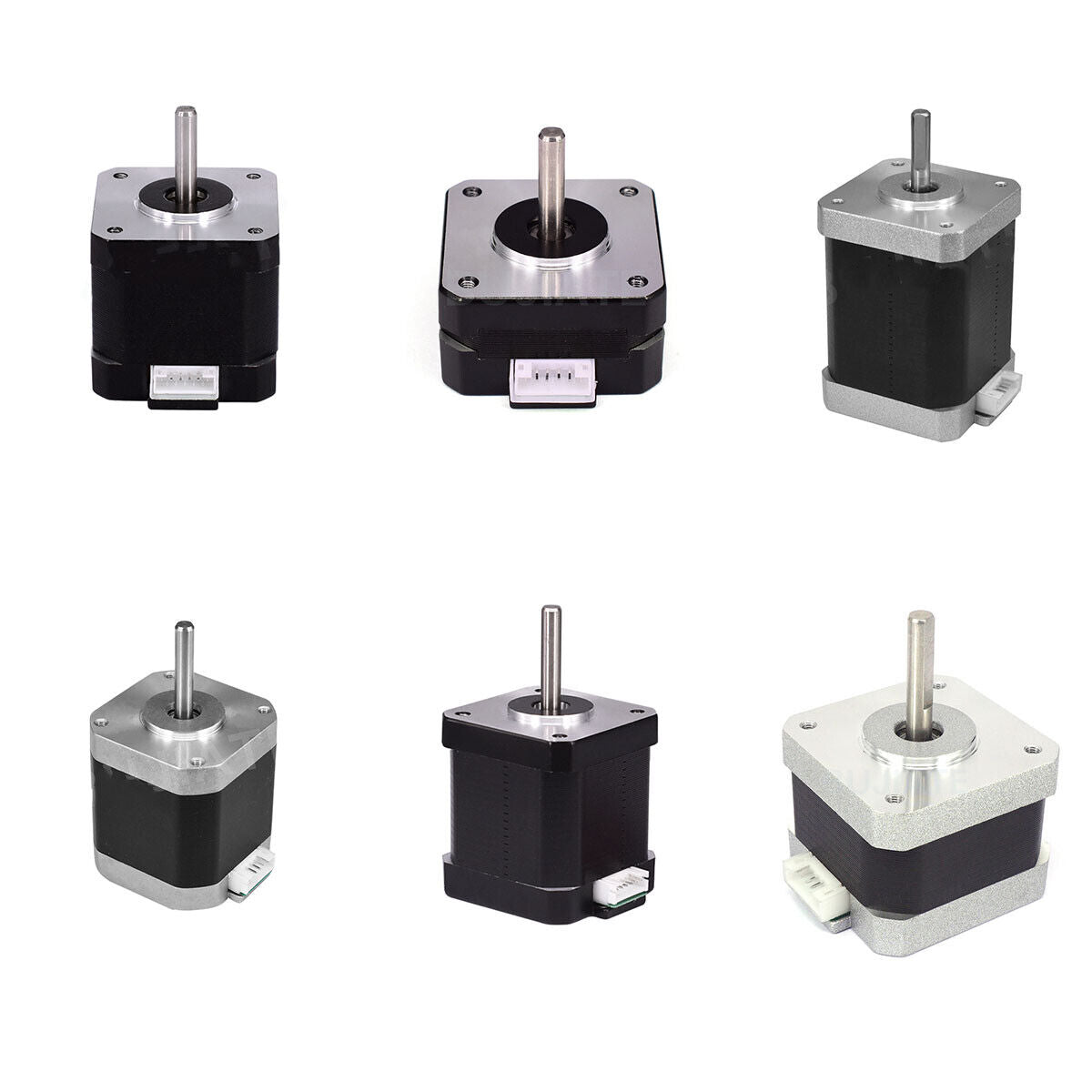

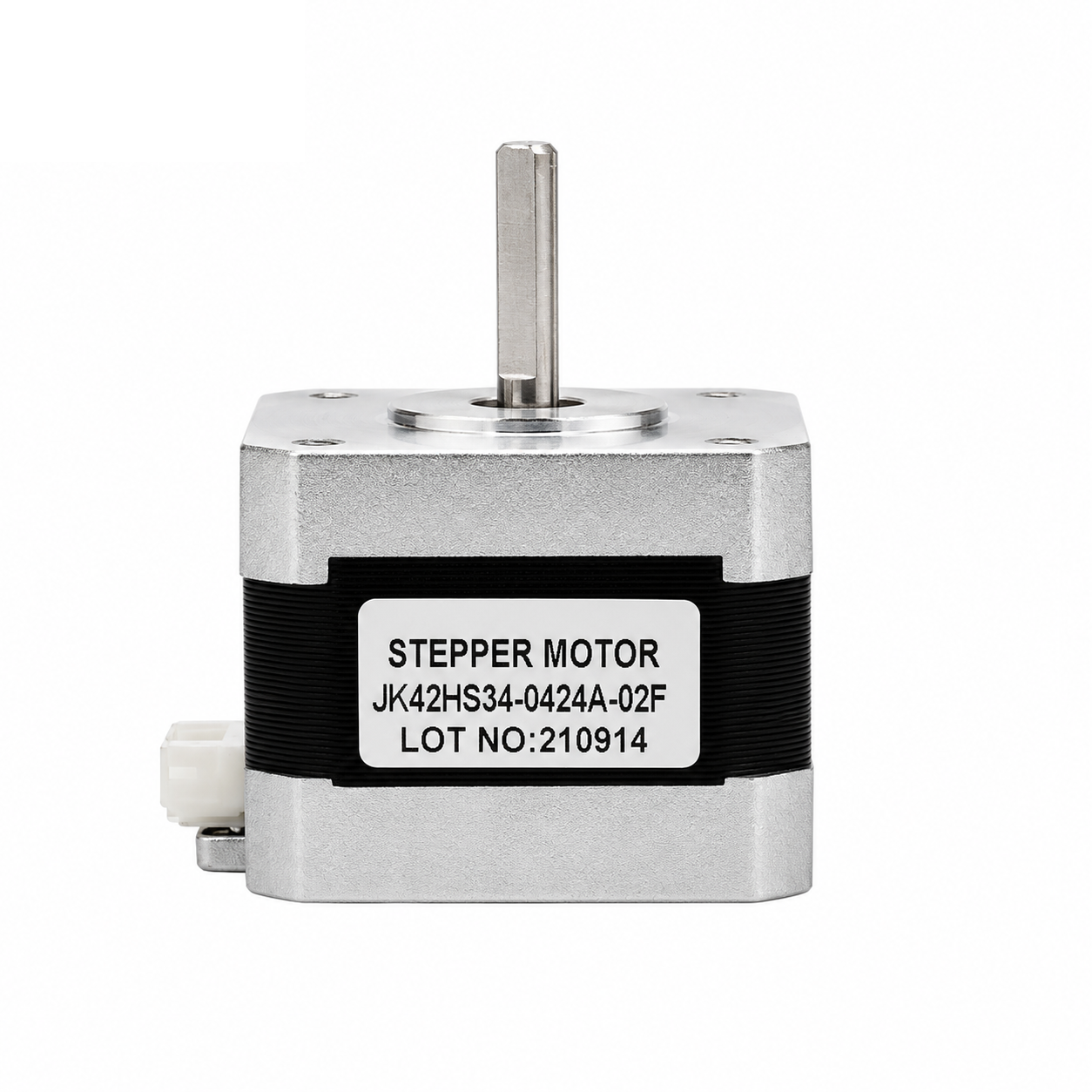

The Nema 17 stepper motor is a popular type of stepper motor used in various applications such as 3D printers, CNC machines, and robotics. It features a 1.7-inch (43.5 mm) square faceplate and typically has a step angle of 1.8 degrees, allowing for precise control with 200 steps per revolution. It commonly comes in 4-wire configurations, suitable for driving with standard stepper motor drivers. With a range of torque ratings and current specifications, it is known for its reliability and versatility in delivering accurate motion control.

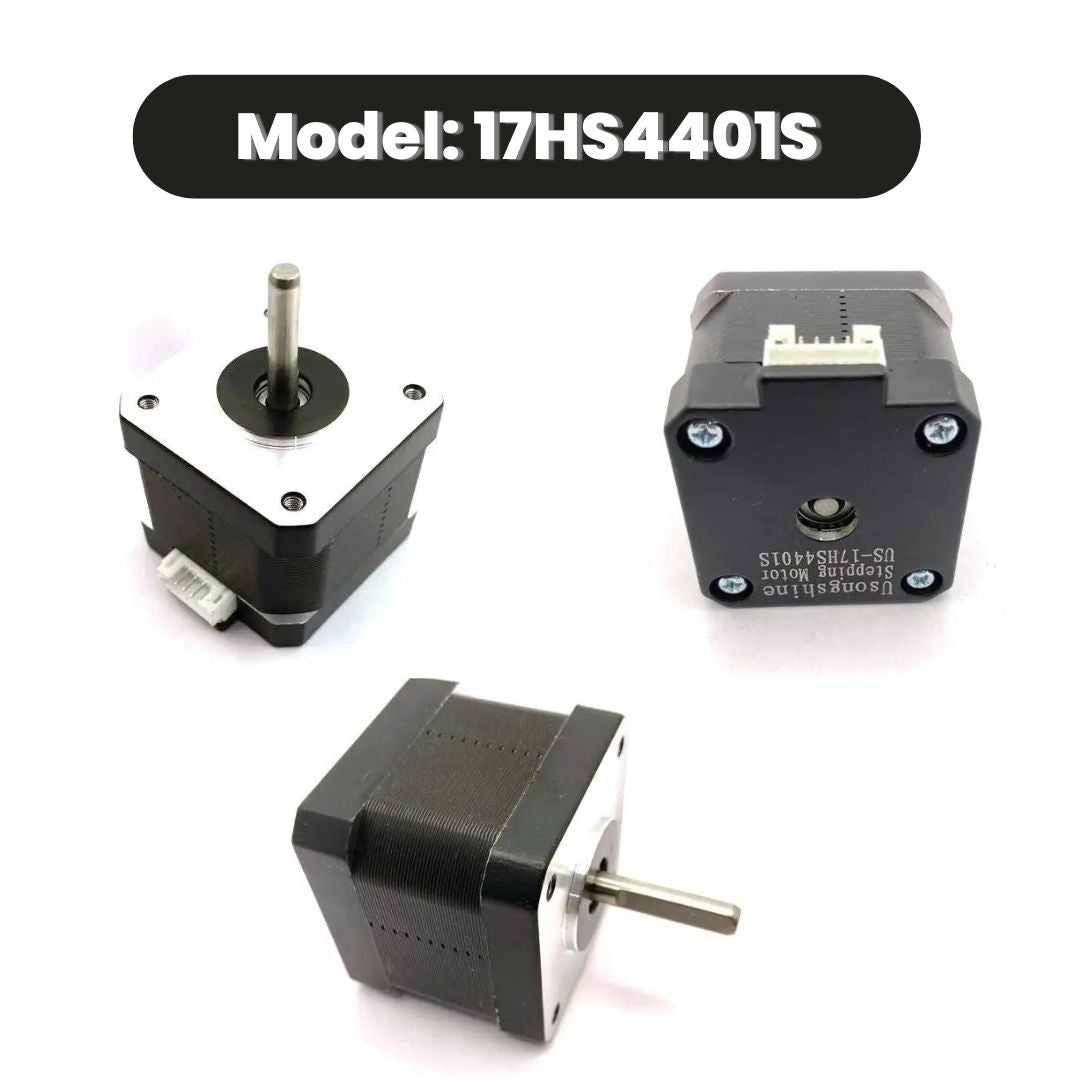

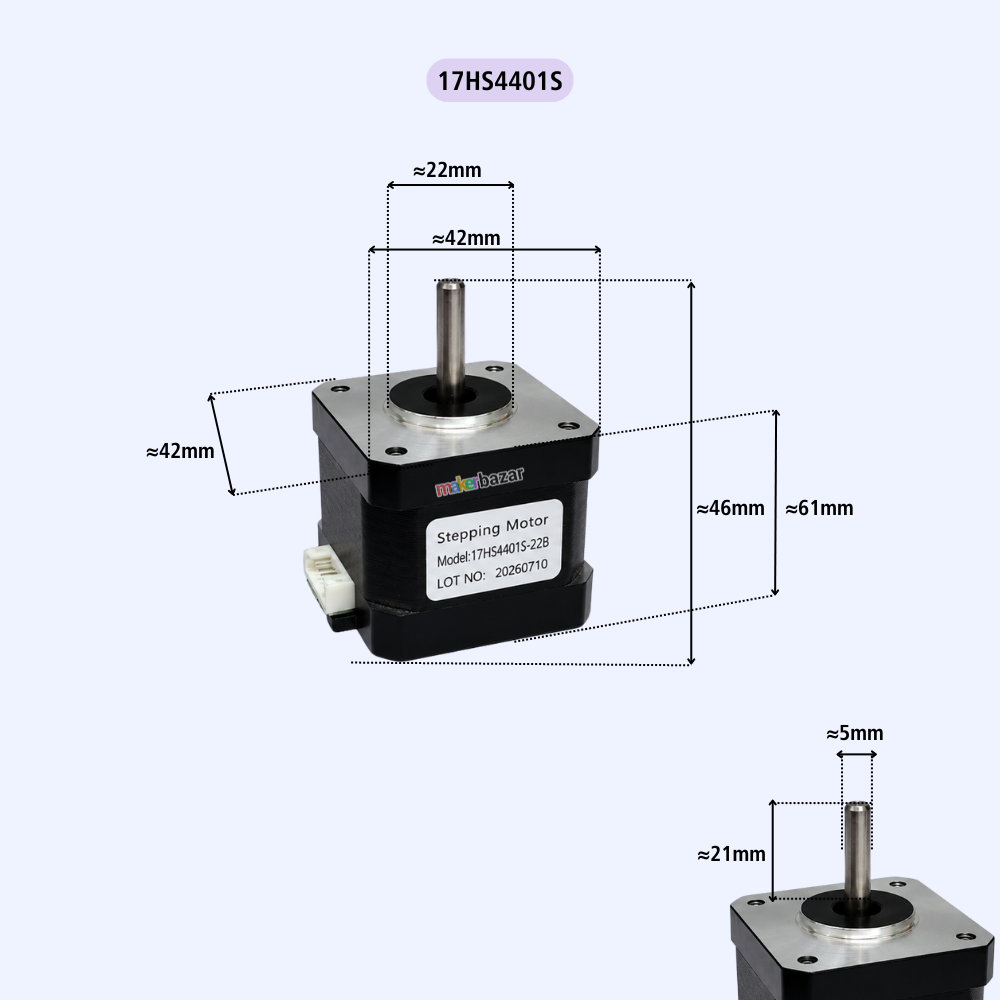

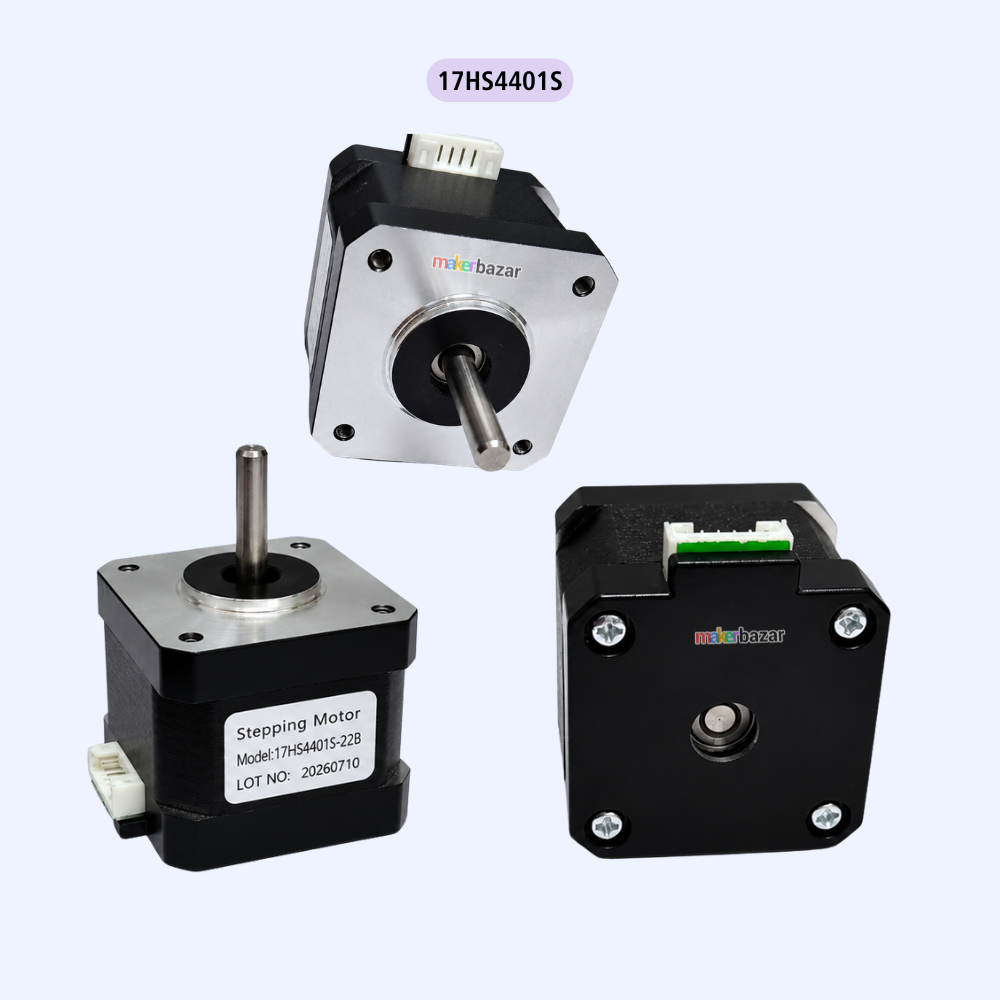

Model: 17HS4401S
- Stepper Motor Height: 40mm
- Shaft size: 5mm
- Rated Voltage: 12V DC
- Current: 1.2A at 4V
- Step Angle: 1.8 deg.
- Steps per revolution: 200
- Operating Temperature: -10 to 40 °C
- Unipolar Holding Torque: 22.2 oz-in

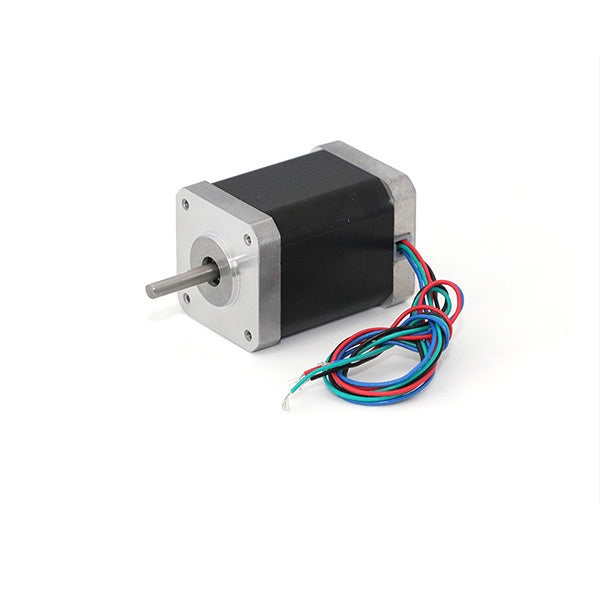

Model: 42HS60-1684
