Description

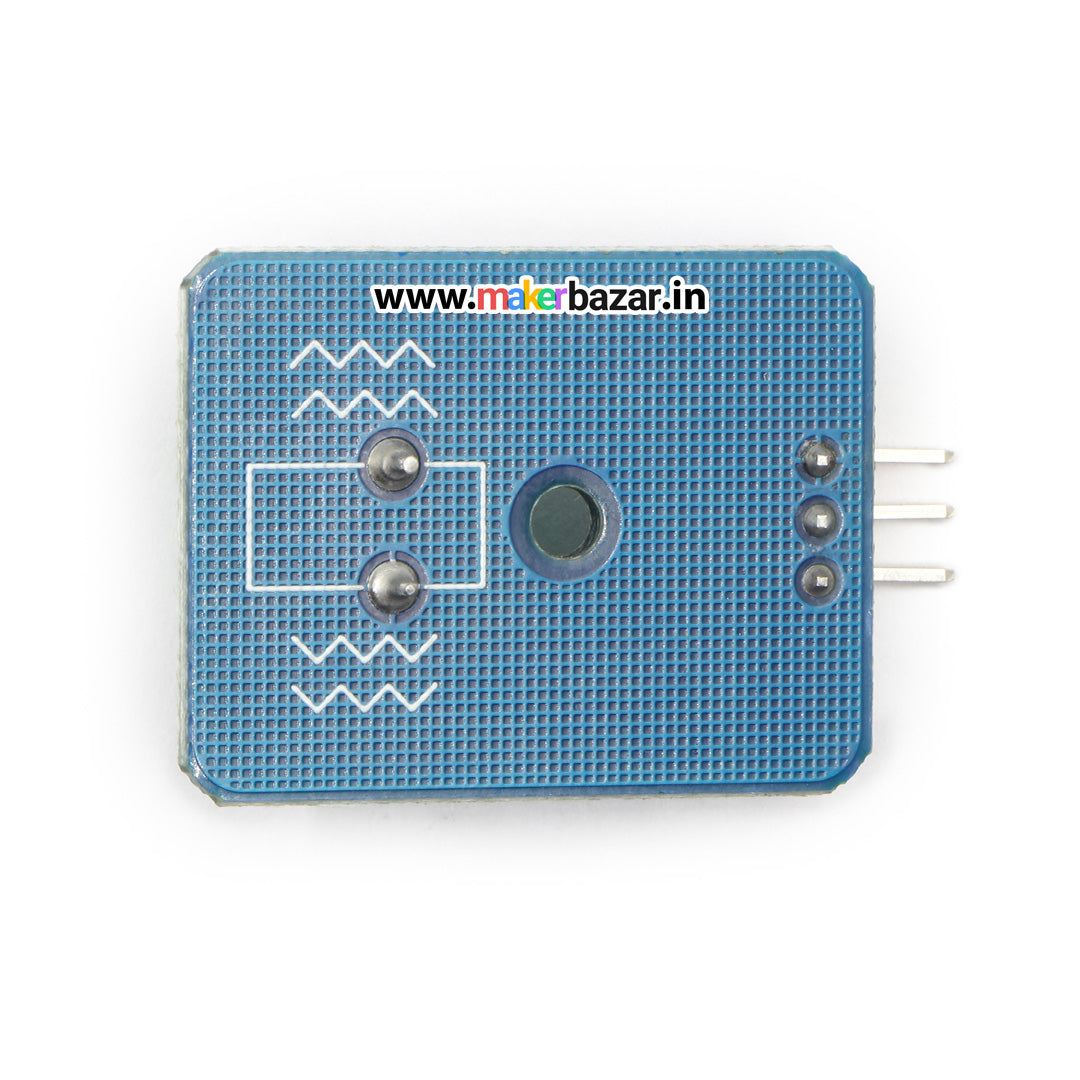

Piezo electric Ceramic Vibration Module
This Analog Piezoelectric Ceramic Vibration Module buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is proportional to the strength of vibration also known as the ‘piezoelectric effect’ So you can know the extent of vibration. Different from digital vibration sensor that only accounts for times, this analog one can tell the extent of vibration.
- Working Voltage: 3.3V or 5V
- Working Current: 1mA
- Operating Temperature Range: -10 ~ + 70

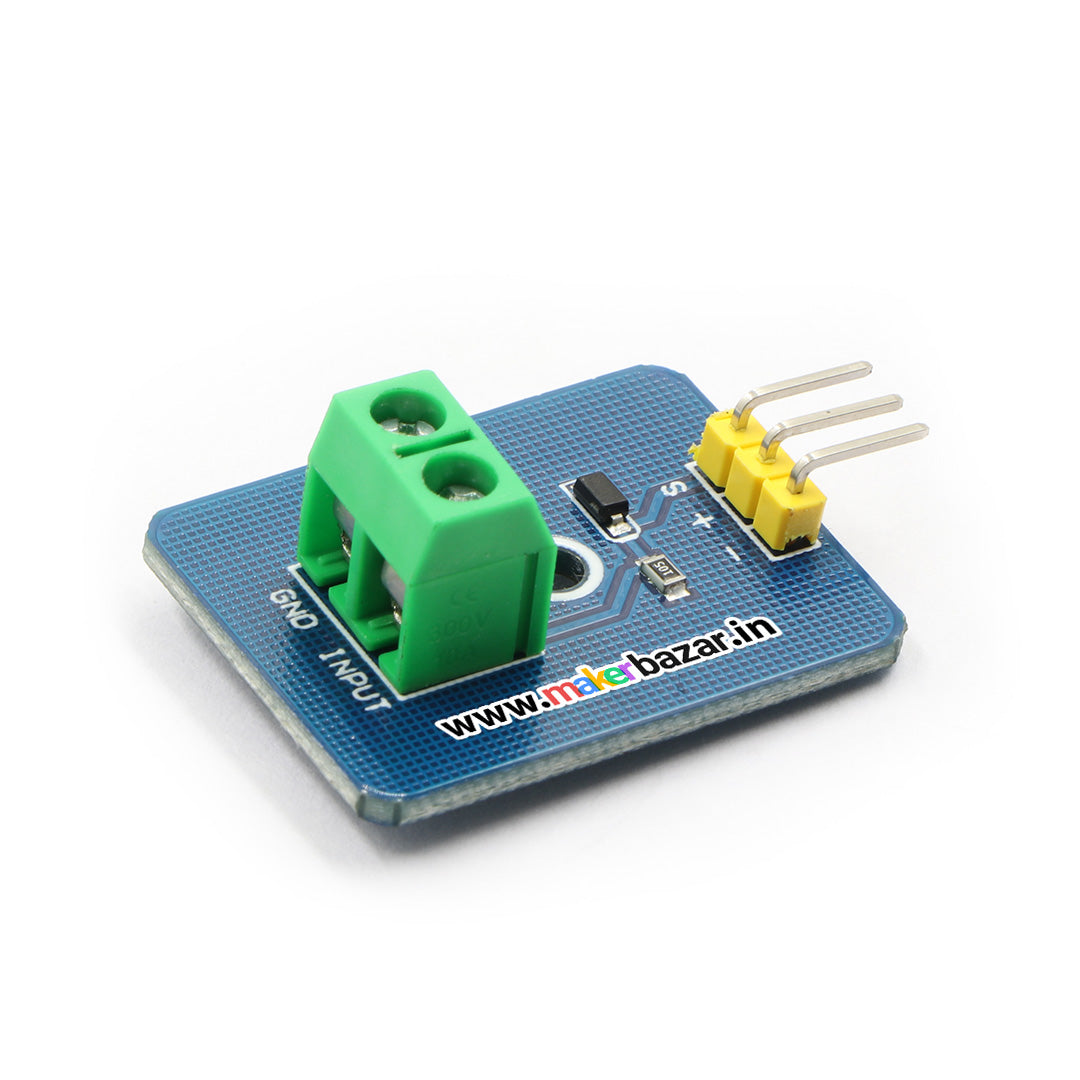

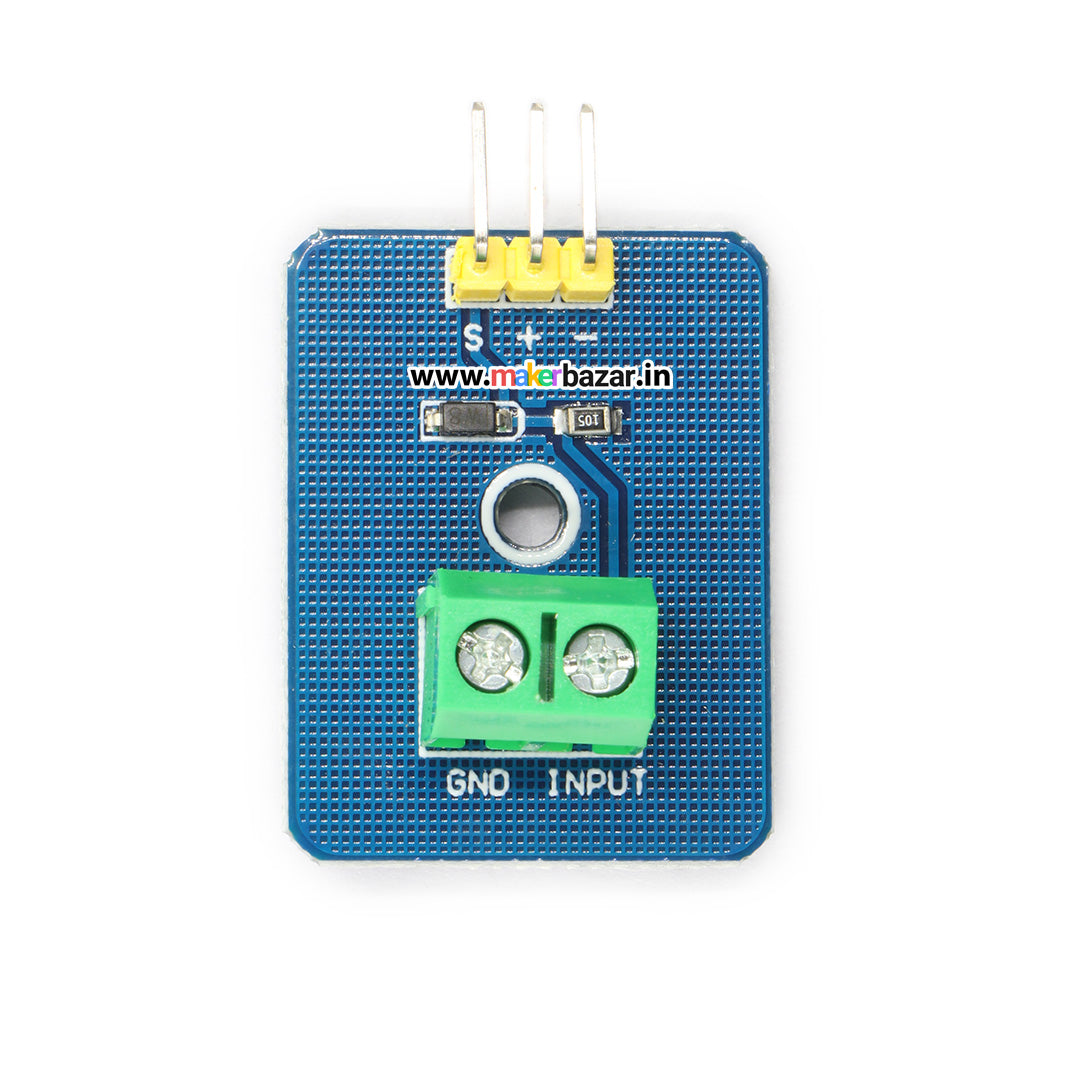

- S-port is connected to the controller\'s analog input pin
- 5V and GND have respectively connected to the power supply of + 5V and GND

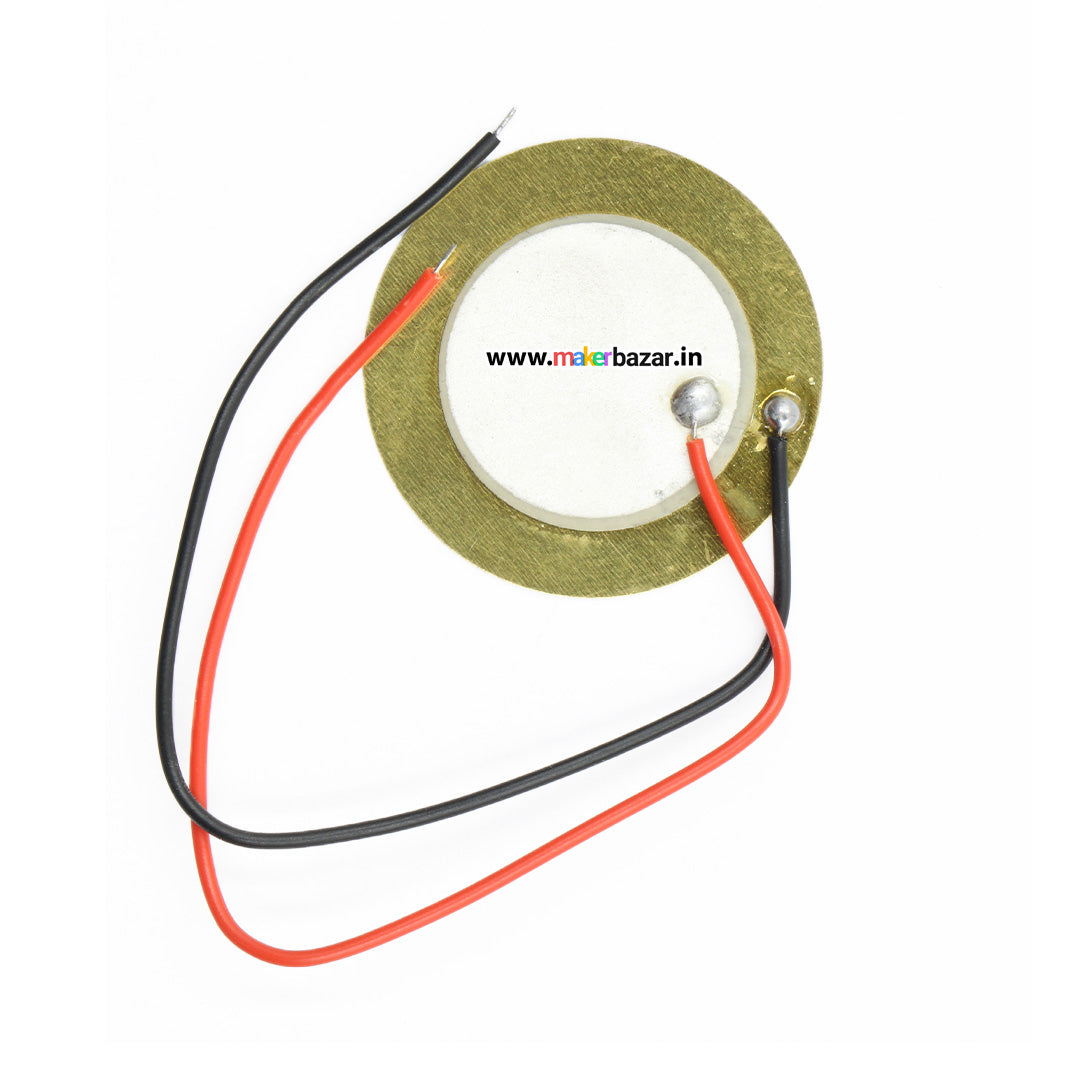

- Input: Positive electrode of the piezoelectric ceramic
- Gnd: Negative electrode of the piezoelectric ceramic

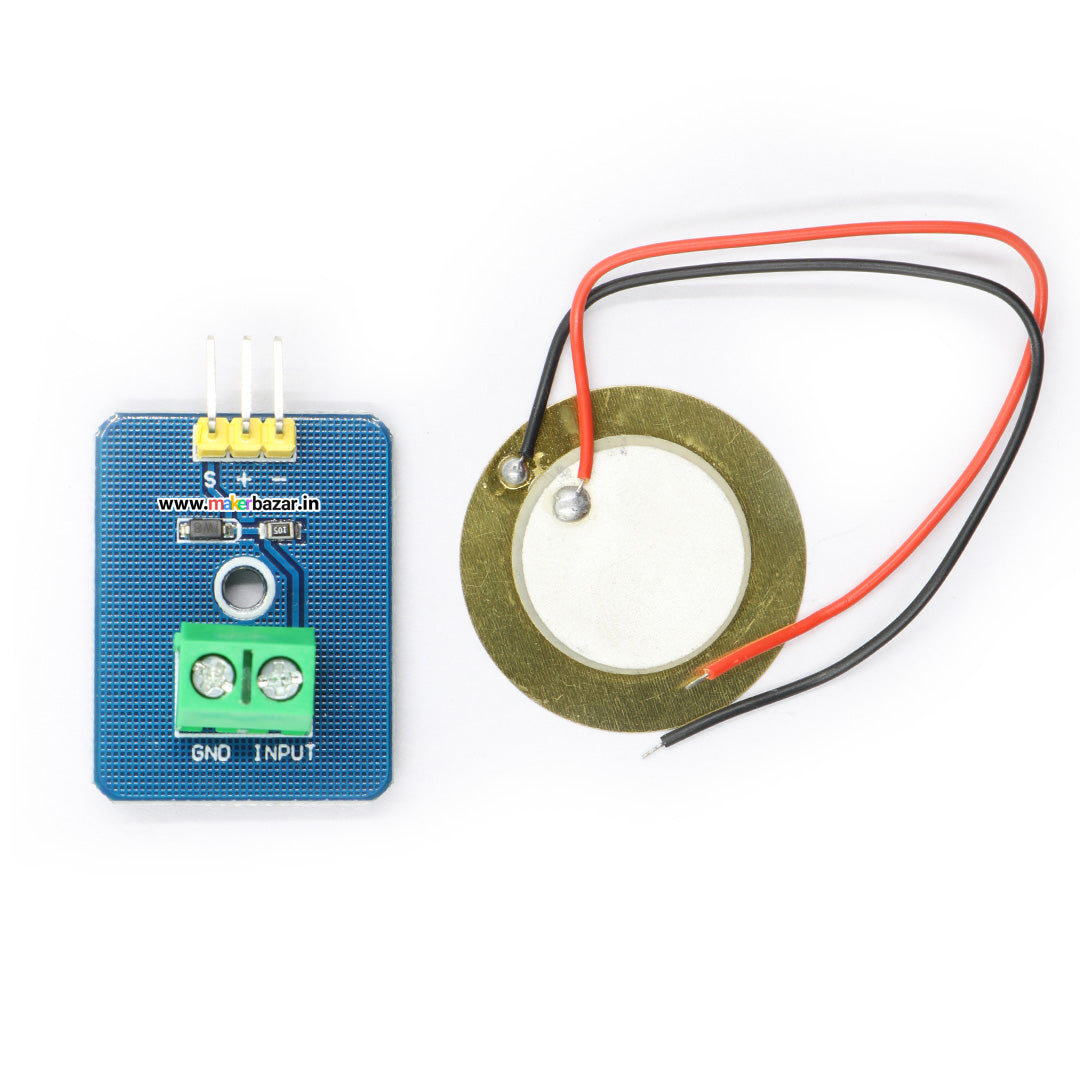

- Input and Gnd are already connected with the piezoelectric ceramics' positive and negative
Wiring / Connection:
Vcc: Input Voltage Supply
GND: Ground
Output: Analog Output
