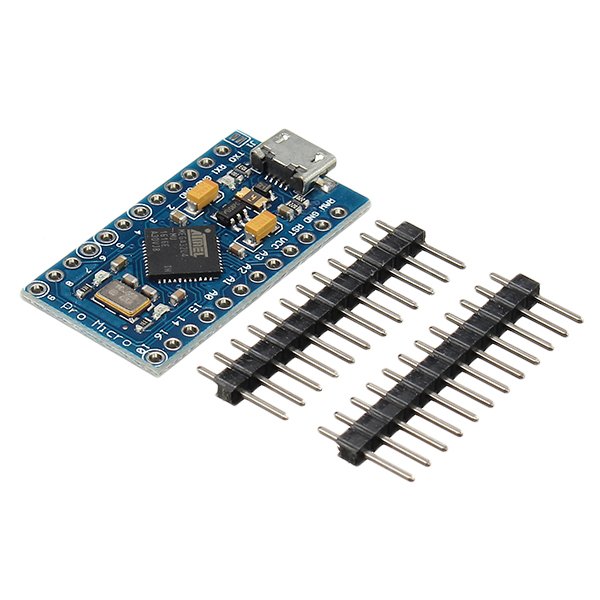

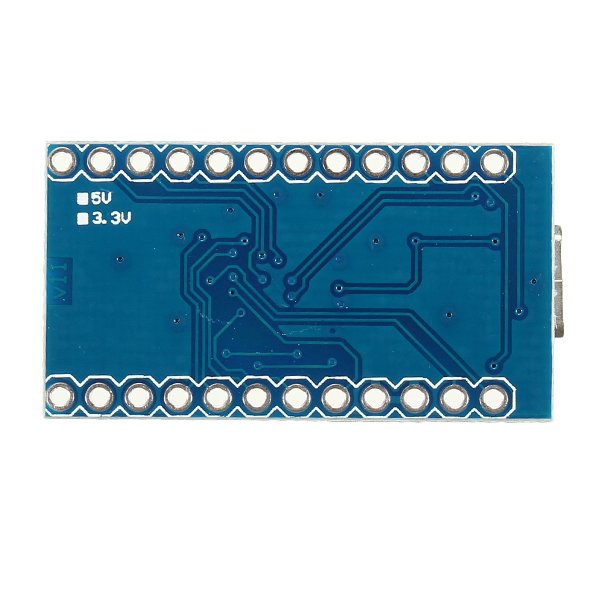

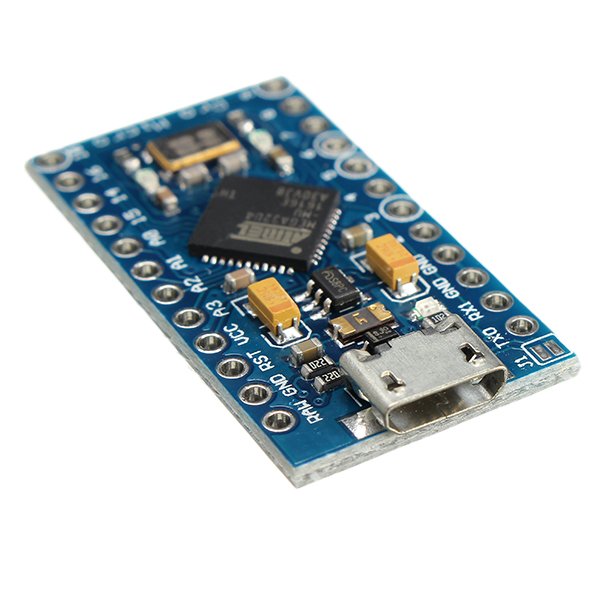

Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino

Save ₹ 100.00
SKU: 30681923
1 review

Price:
Sale price₹ 749.00 Regular price₹ 849.00
( ₹ 634.75 without 18% GST.)

Tax included Shipping calculated at checkout

For Bulk, Call us on +91 97175 83225

Description

Arduino Pro Micro 5V 16M Mini Leonardo Micro Controller Development Module

This Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino development board has 4 channel 10 bit ADC, 5 PWM pins, 12 DIO, and a hardware serial connection Rx and Tx you are familiar with Running on 16MHz and 5V, this board will remind you a lot of other Arduino compatible boards that you like.

There is a voltage regulator on board, so it can accept up to 12V DC.

The Micro is a microcontroller board based on the ATmega32U4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

If you supply an unstable power supply board, be sure to connect to the “RAW”, not on the VCC pin. It has also added a PTC fuse and diode protection to the power circuit and corrected the RX and LED TX circuits.


Features :

  1. ATMEGA32U4 running in 5V / 16MHz
  2. Support Arduino IDE V1.0.1
  3. Micro USB interface programming on the board
  4. Four 10-bit ADC pin
  5. 12 digital I / O (5 PWM capability)
  6. Rx and Tx hardware serial connection.

Pin Diagram:

5V/16Mhz Pro Micro ATmega 32U4 Board Bootloader for Arduino Leonardo


Specifications:

Microcontroller

ATmega32U4

Input Voltage(Recommended)

7-12V

Operating Voltage (VDC)

5

Input Voltage (limits)

6-20V

Analog I/O Pins

12

Digital I/O Pins

20

DC Current per I/O Pin (mA)

20

DC Current for 3.3V Pin (mA)

50

PWM Pins

7

Flash Memory

32 KB

EEPROM

2.5KB

SRAM

1

Clock Speed

16 MHz

Dimensions (mm) LxWxH

48x18x8

Package Includes :

1 x Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino
