Description

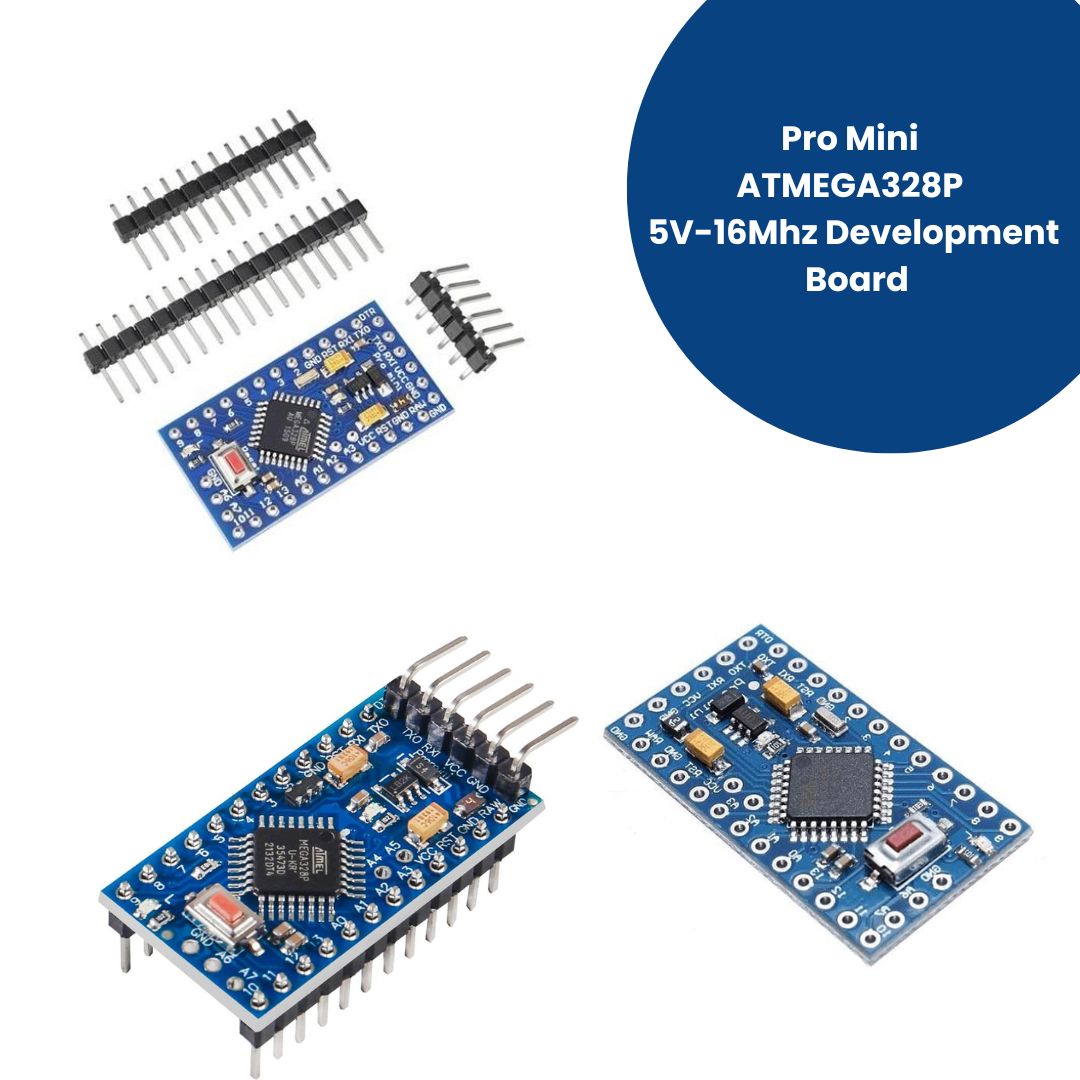

Pro Mini ATMEGA328P 5V-16Mhz Development Board By Atmega328 (Compatible with Arduino)
Pro Mini is a microcontroller board based on the ATmega328 Chip.Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Mini.
| Microcontroller | ATmega328 |
| Circuit Operating Voltage | 5V |
| Clock frequency | 16MHz |
| Digital I/O Pins | 14 |
| 8 analog input port | A0 ~ A7 |
| A pair of TTL level serial port transceiver | RX / TX |
| 6 PWM port | D3, D5, D6, D9, D10, D11 |
Pro Mini can be powered with an FTDI cable or breakout board connected to its six pin header, or with a regulated 5V supply on the Vcc pin.
