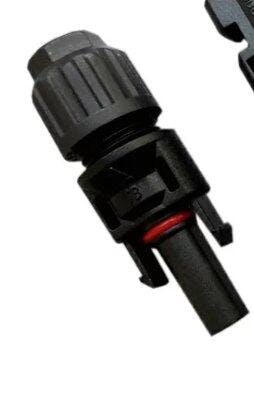

PV Solar Panel MC4 Connector

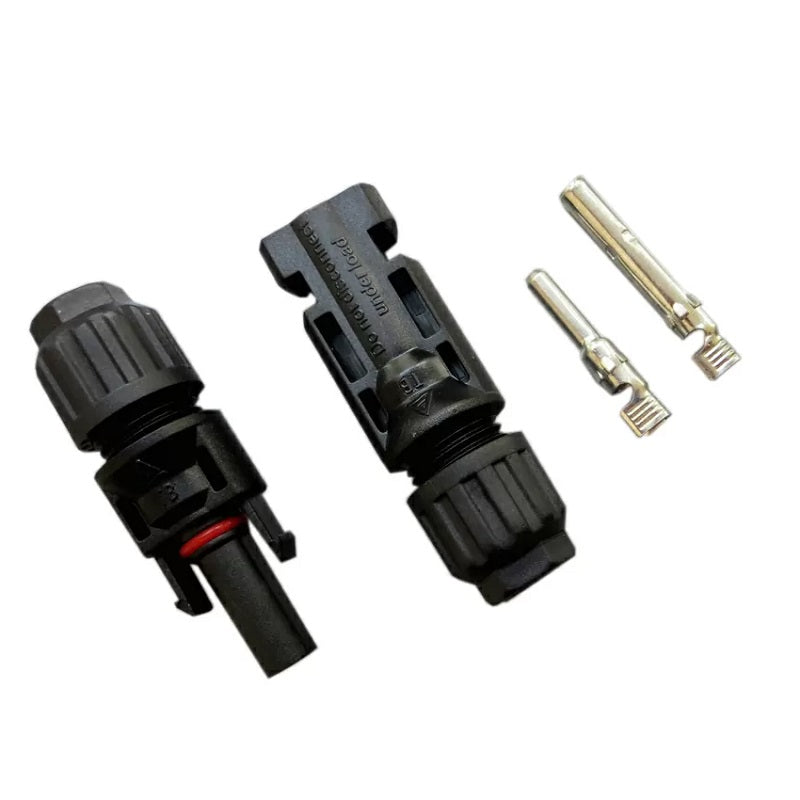

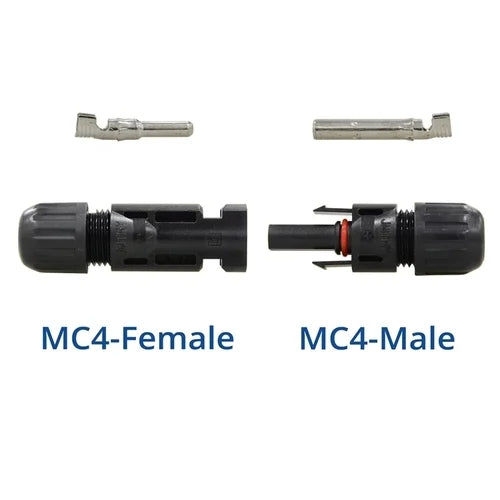

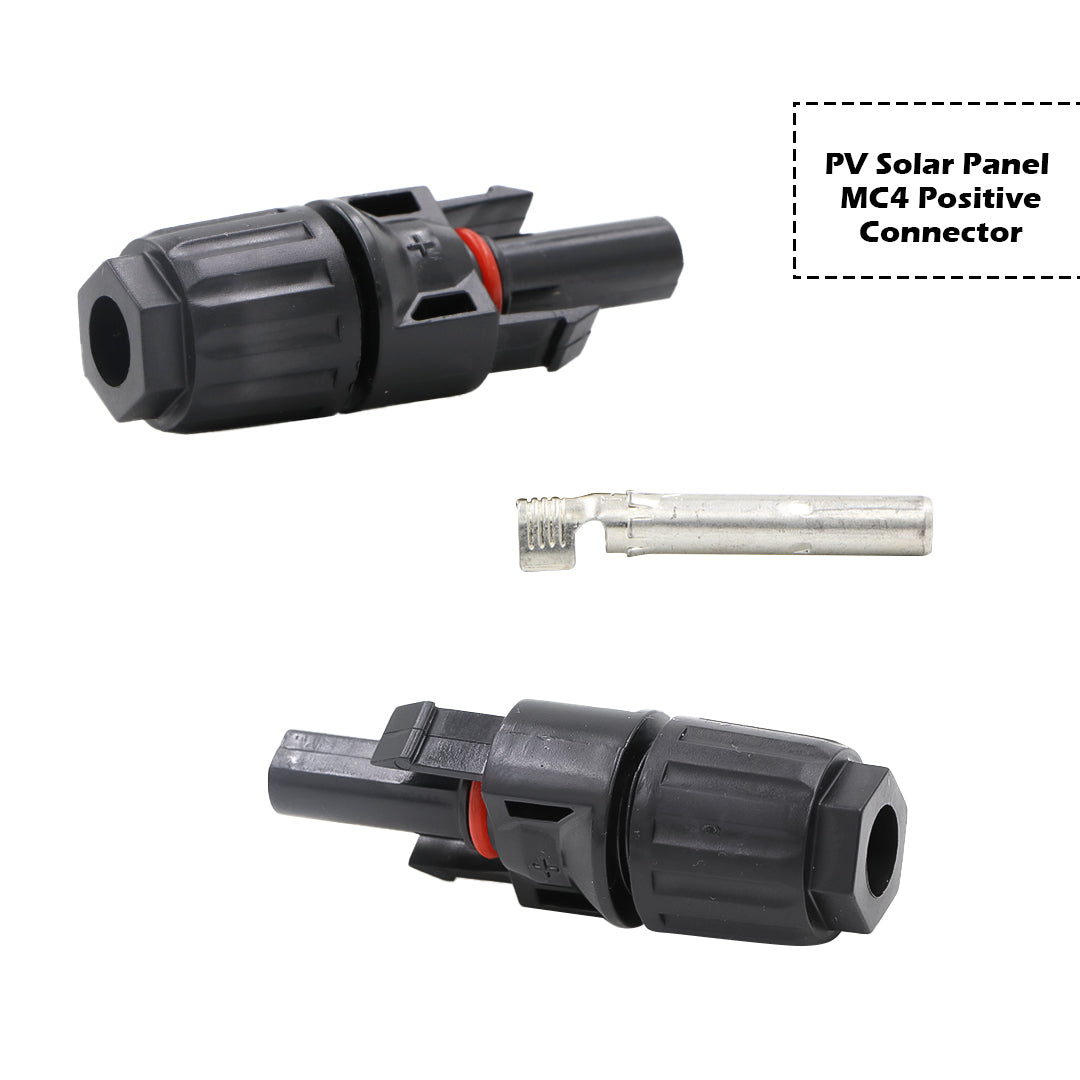

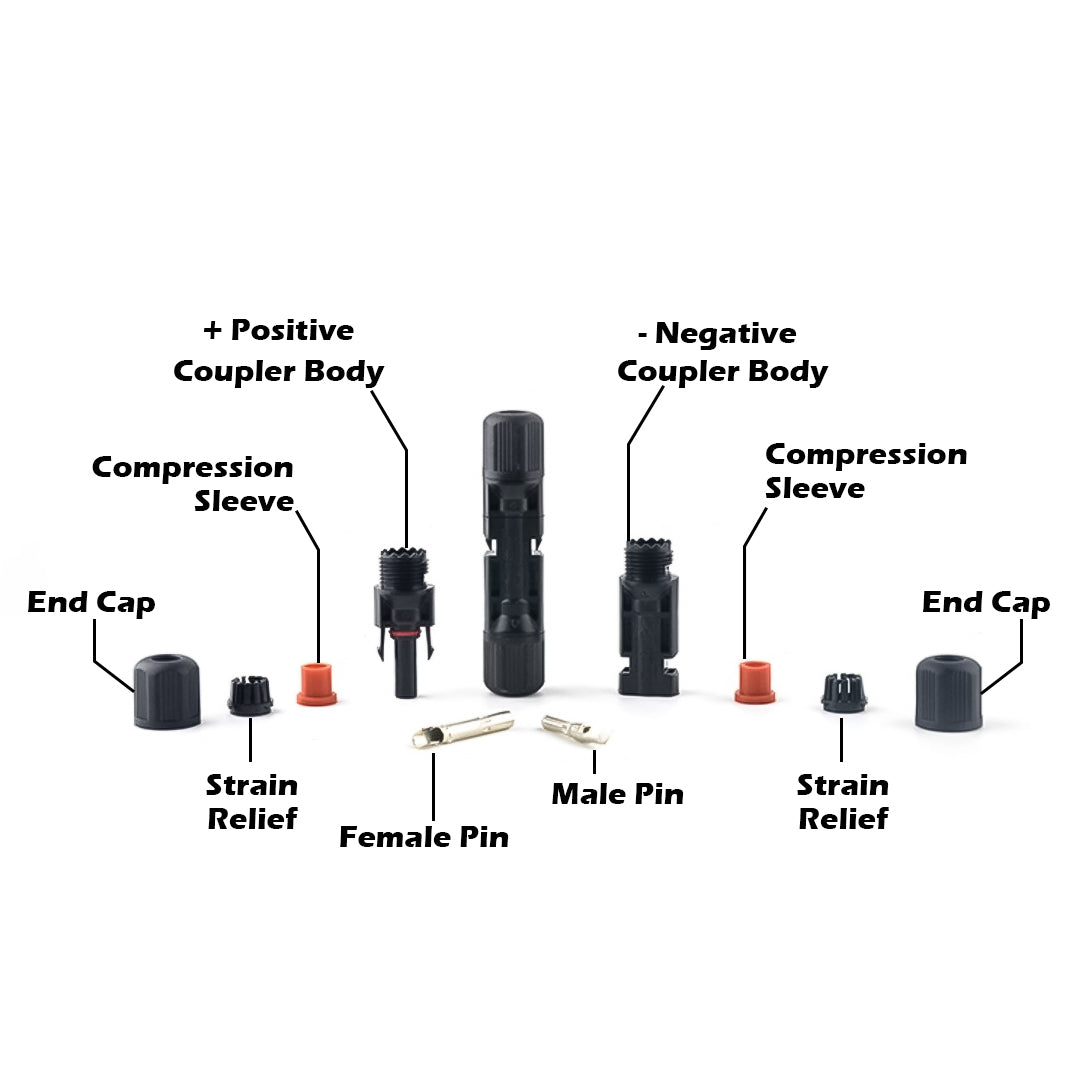

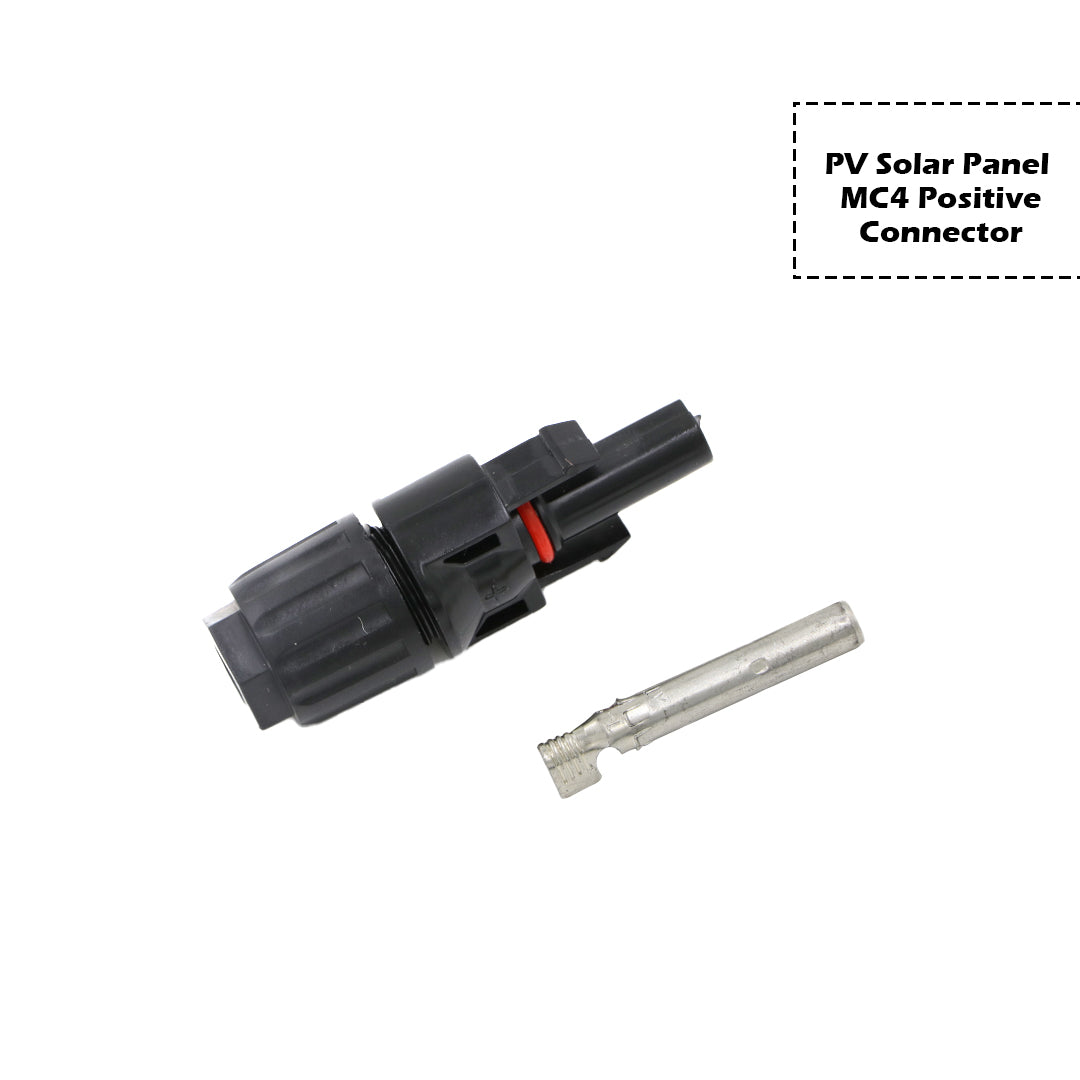

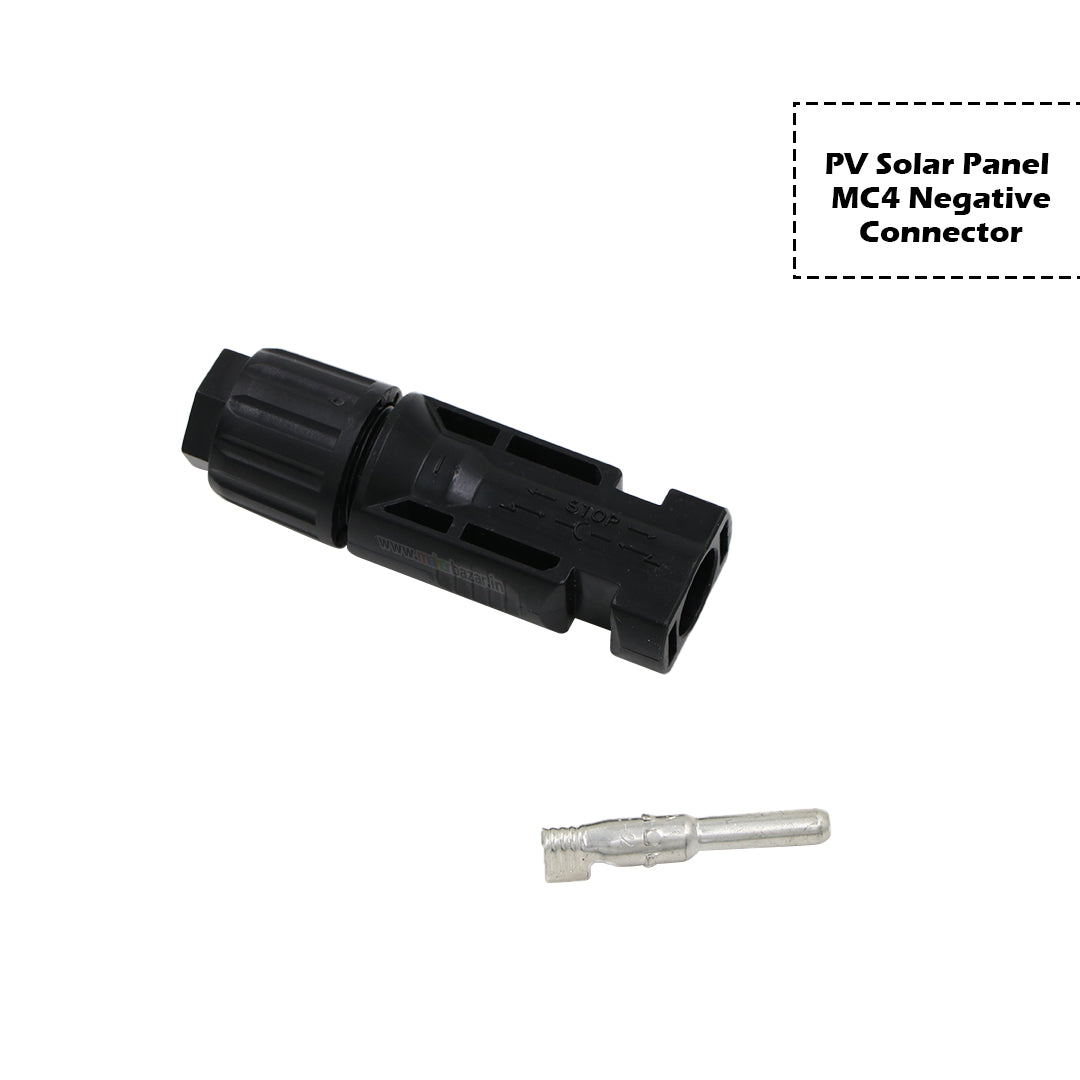

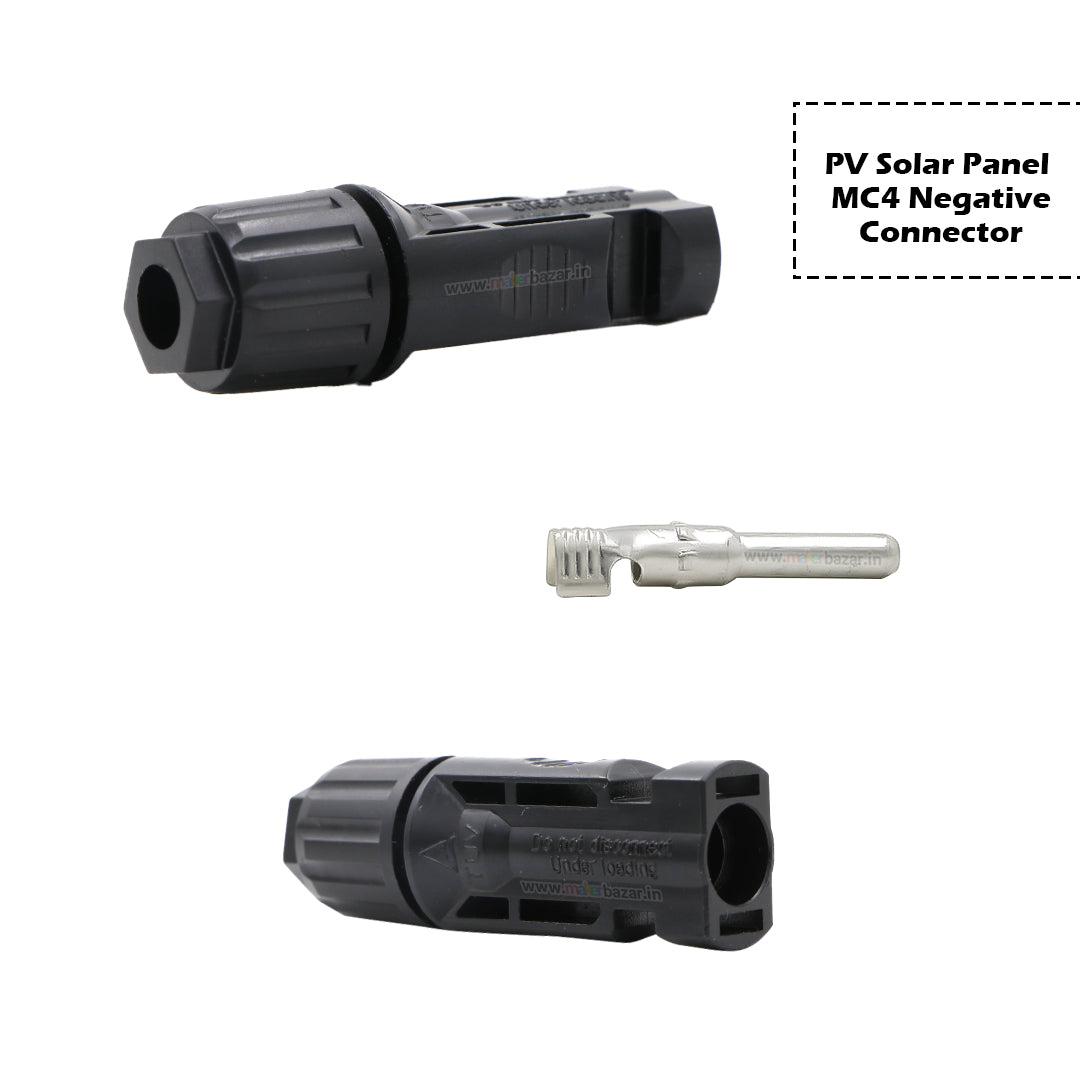

Female and Male Pin with Positive(+) and Negative(-) Coupler MC4 Cable Connectors

The MC4 connector is a type of electrical connector that is commonly used for connecting photovoltaic (PV) solar panels. It is designed specifically for outdoor use and is capable of withstanding harsh weather conditions.

Features:-

1. Weatherproof: The MC4 connector is designed to withstand exposure to sunlight, rain, snow, and other outdoor elements, ensuring reliable performance in all weather conditions.

2. Easy Installation: The connector features a simple plug-and-play design, making it easy to install without the need for special tools or expertise. This makes it ideal for both professional installers and DIY enthusiasts.

3. Secure Connection: The MC4 connector provides a secure and reliable connection between solar panels, ensuring maximum conductivity and minimizing power losses.

4. Compatibility: The connector is compatible with most PV solar panels and is widely used in residential, commercial, and industrial solar power systems.

5. Safety: The MC4 connector is designed to meet stringent safety standards, providing protection against electric shock and other hazards associated with solar panel installations.

Specification:-

1. Current Rating: They have a maximum current rating, typically ranging from 20A to 30A, which indicates the maximum continuous current that the connector can handle safely.

2. Temperature Rating: MC4 connectors are designed to operate within a specific temperature range, usually from -40°C to +85°C, ensuring reliable performance in various environmental conditions.

3. IP Rating: They have an Ingress Protection (IP) rating, indicating their level of protection against dust and water ingress. Common IP ratings for MC4 connectors include IP65 and IP67, indicating resistance to dust and water immersion, respectively.

4. Contact Material: The contacts inside the MC4 connector are typically made of copper or another conductive material to ensure low electrical resistance and efficient power transmission.

5. Insulation Material: The housing and insulation material of MC4 connectors are usually made of durable and UV-resistant materials such as polycarbonate or polyamide, ensuring long-term outdoor use without degradation.

6. Compatibility: MC4 connectors are designed to be compatible with standard PV solar panels and cables, ensuring easy and reliable connections in solar power systems.
