RF Modules Tx & Rx 315 MHz ASK

Save ₹ 10.00
SKU: 43074
1 review

Price:
Sale price₹ 79.00 Regular price₹ 89.00
( ₹ 66.95 without 18% GST.)

Tax included Shipping calculated at checkout

Description

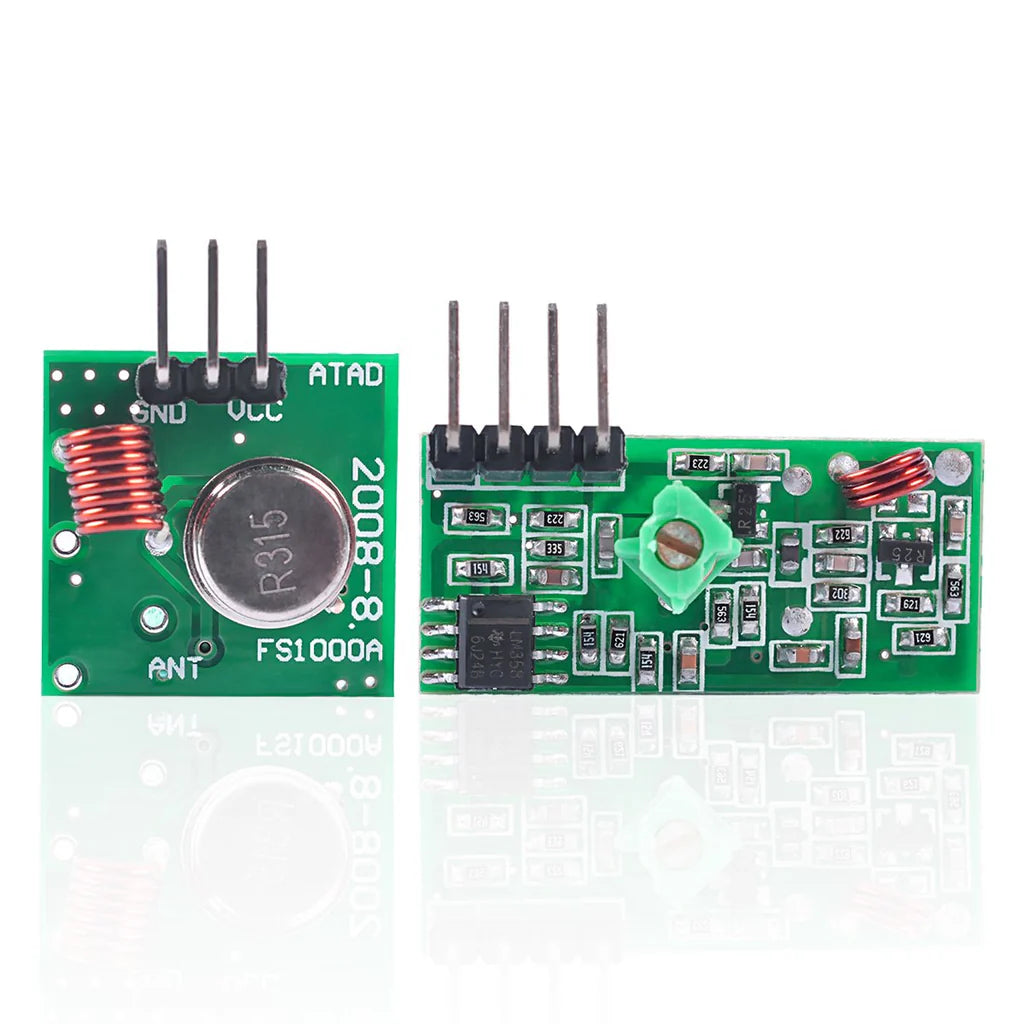

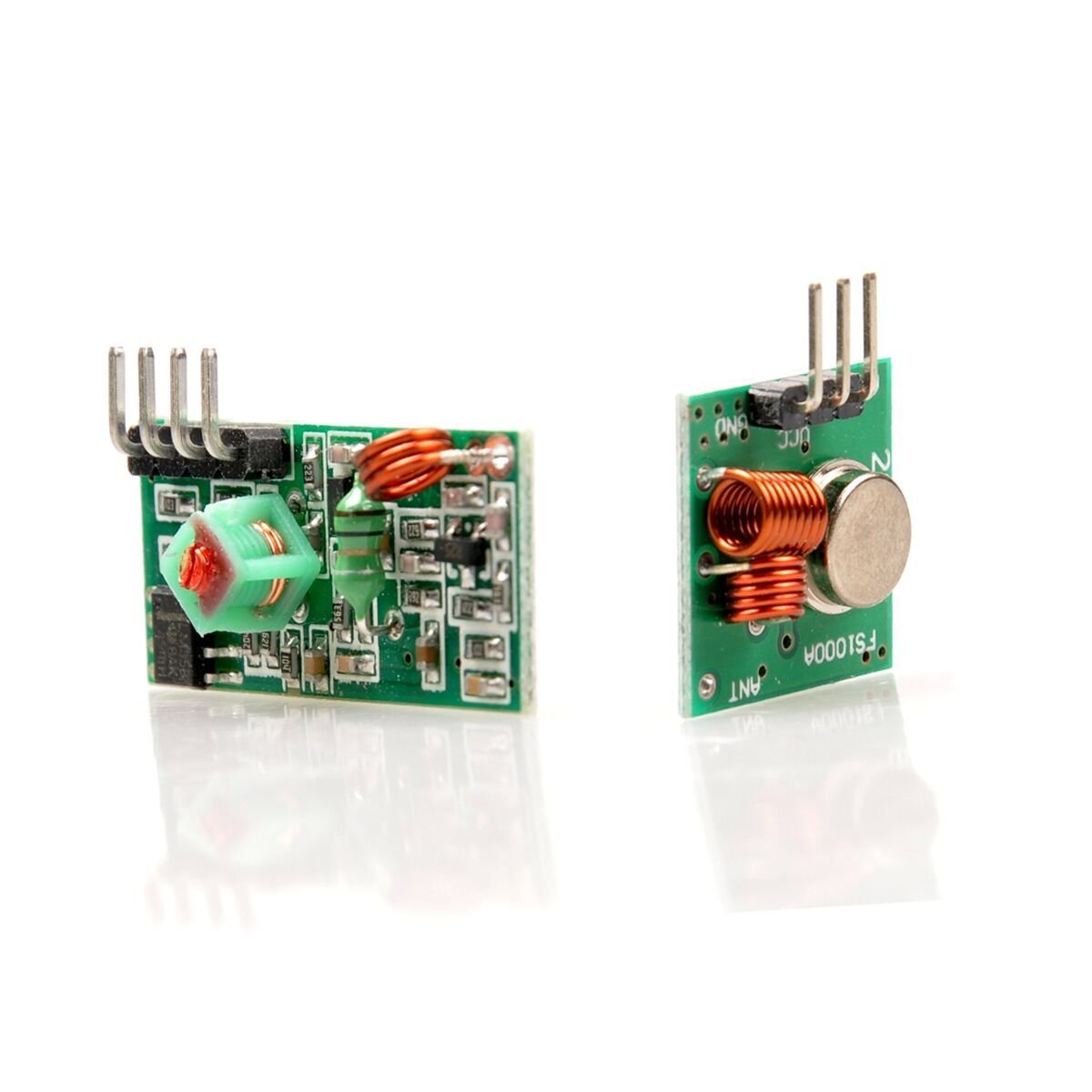

RF Transmitter Receiver Module 315MHz Wireless Link Kit For Arduino

This wireless transmitter and receiver pair operate at 315Mhz. They can easily fit into a breadboard and work well with microcontrollers to create a very simple wireleReceiving frequency (MHz)ss data link. Since these are only transmitters, they will only work communicating data one way, you would need two pairs (of different frequencies) to act as a transmitter/receiver pair.

This Radio Transmitter & Receiver pair is perfectly matched to allow you to control items from a distance up to 500 feet wirelessly! Connect the transmitter to your Arduino, Raspberry Pi, or other microcontroller and the receiver to whatever you’d like to control.

Both the transmitter and receiver are in tune with the same Radio Frequency so that when the transmitter emits a signal, the receiver will hear it wirelessly. Great for easy and simple wireless control! Arduino & Raspberry Pi 2 / B / B+ / A+ Compatible!


Features :

Receiver module parameters
  1. Product Model: XY-MK-5V.
  2. Operating voltage: DC5V.
  3. Quiescent Current: 4mA.
  4. Receiving frequency: 315MHz.
  5. Receiver sensitivity: -105 dB.
  6. Size: 30 x 14 x 7 mm.
Transmitter module parameters
  1. Launch Distance: 20-200 meters (different voltage, different results).
  2. Operating voltage: 3.5-12V.
  3. Dimensions: 19 x 19 mm.
  4. Operating mode: AM.
  5. Transfer rate: 4KB/S.
  6. Transmitting power: 10mW.
  7. Transmitting frequency: 315Mhz.
  8. An external antenna: 25cm ordinary multi-core or single-core line.
  9. Pinout from left a+ right: (DATA; VCC; GND).
