Description

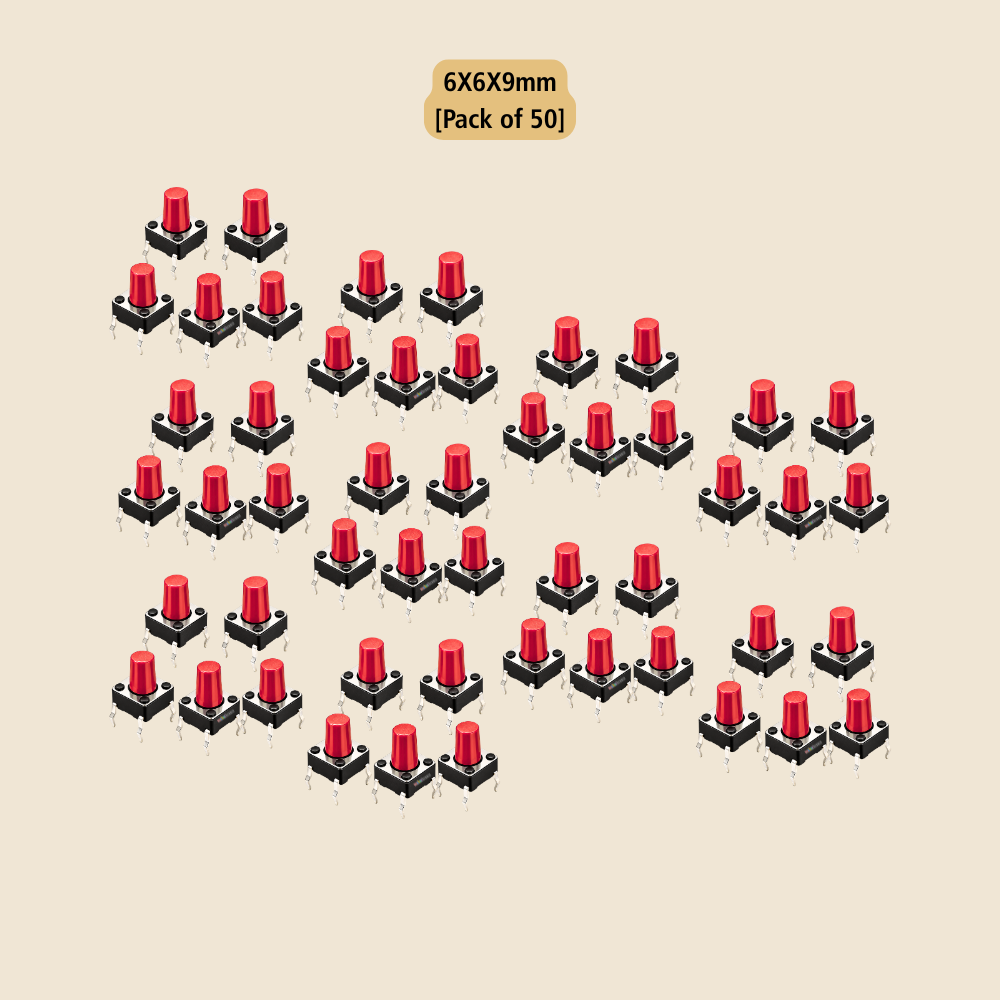

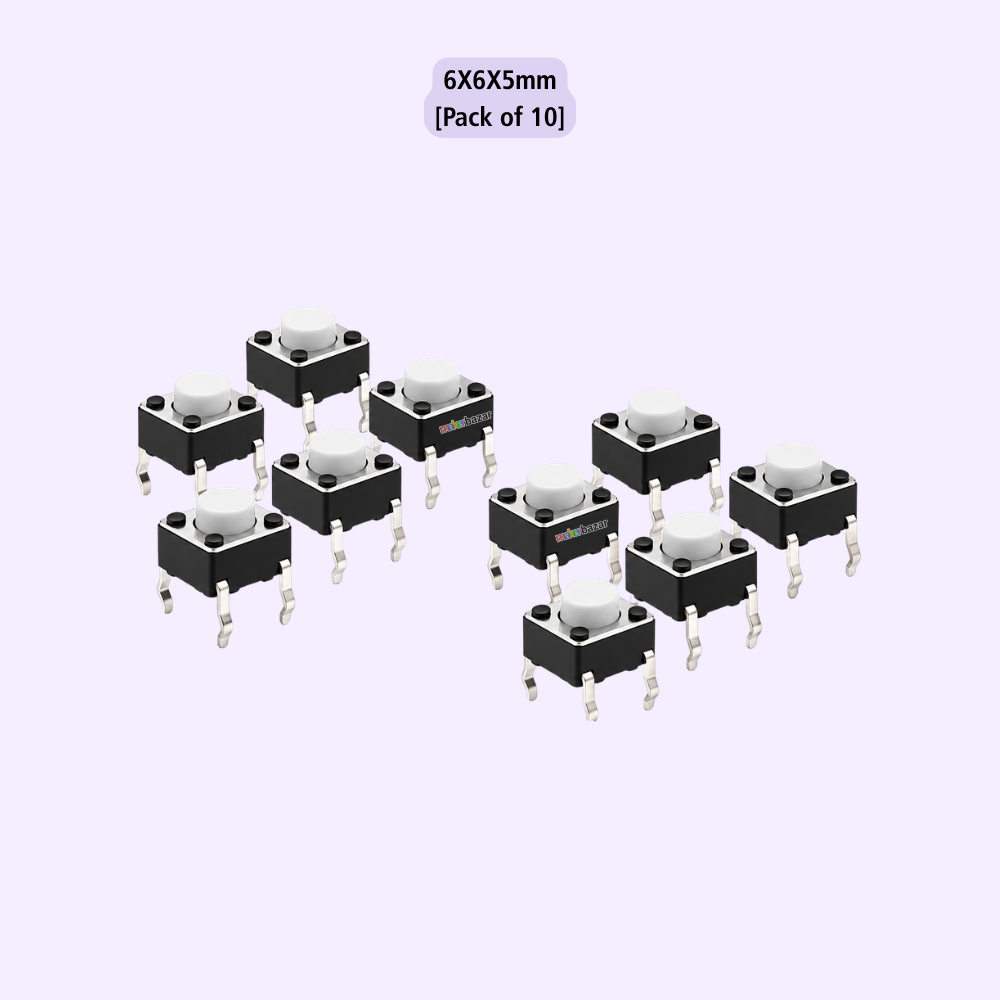

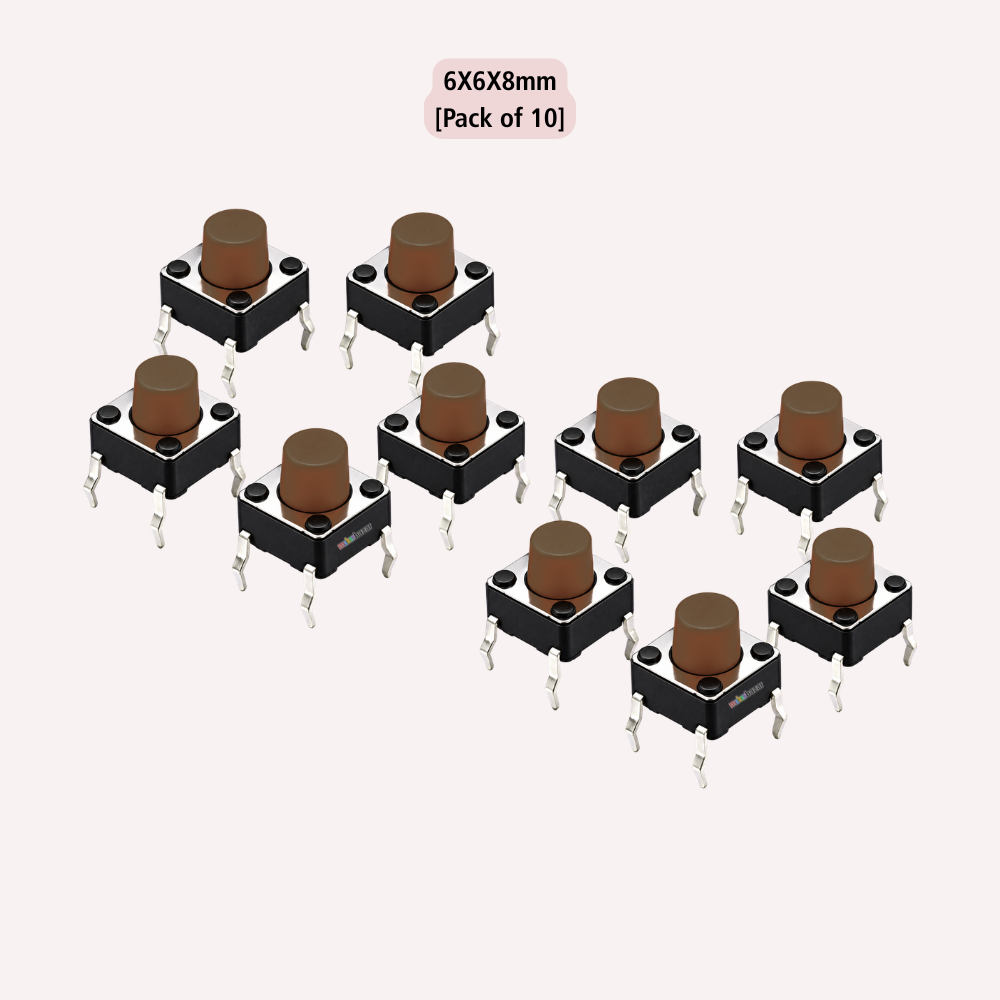

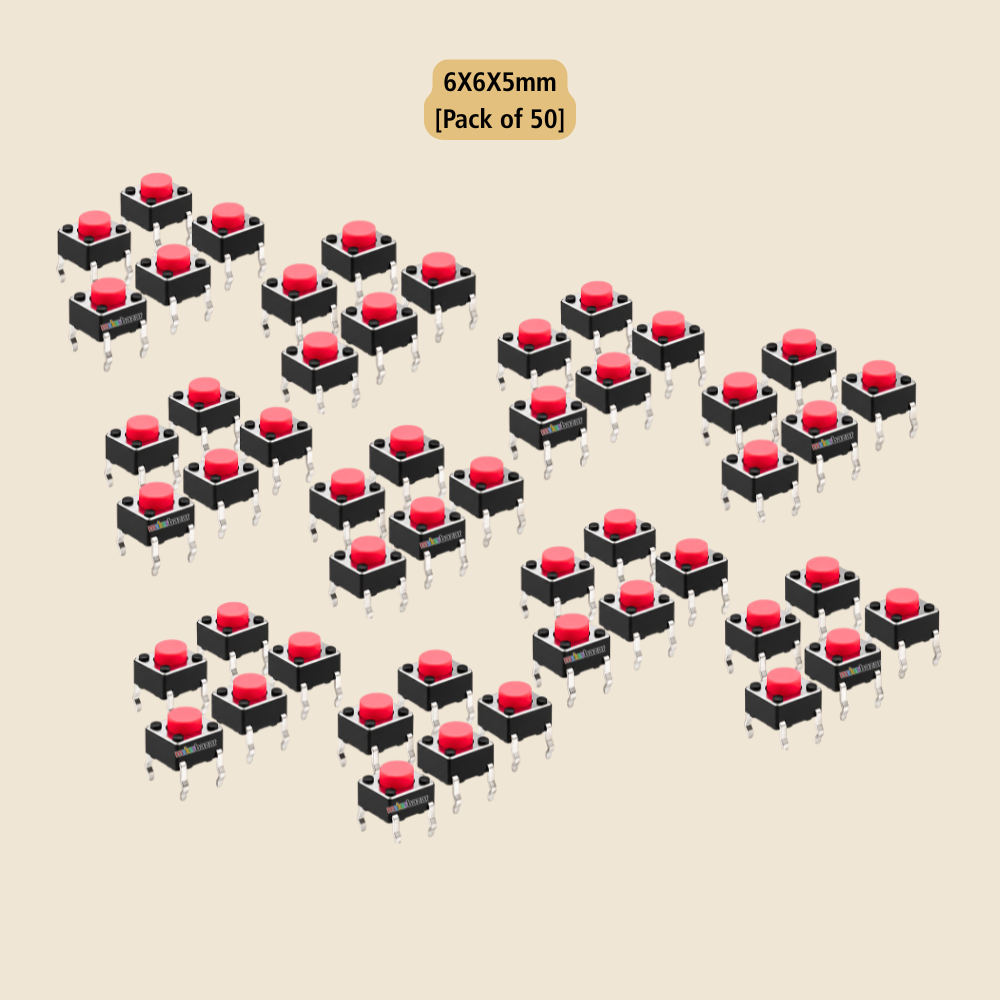

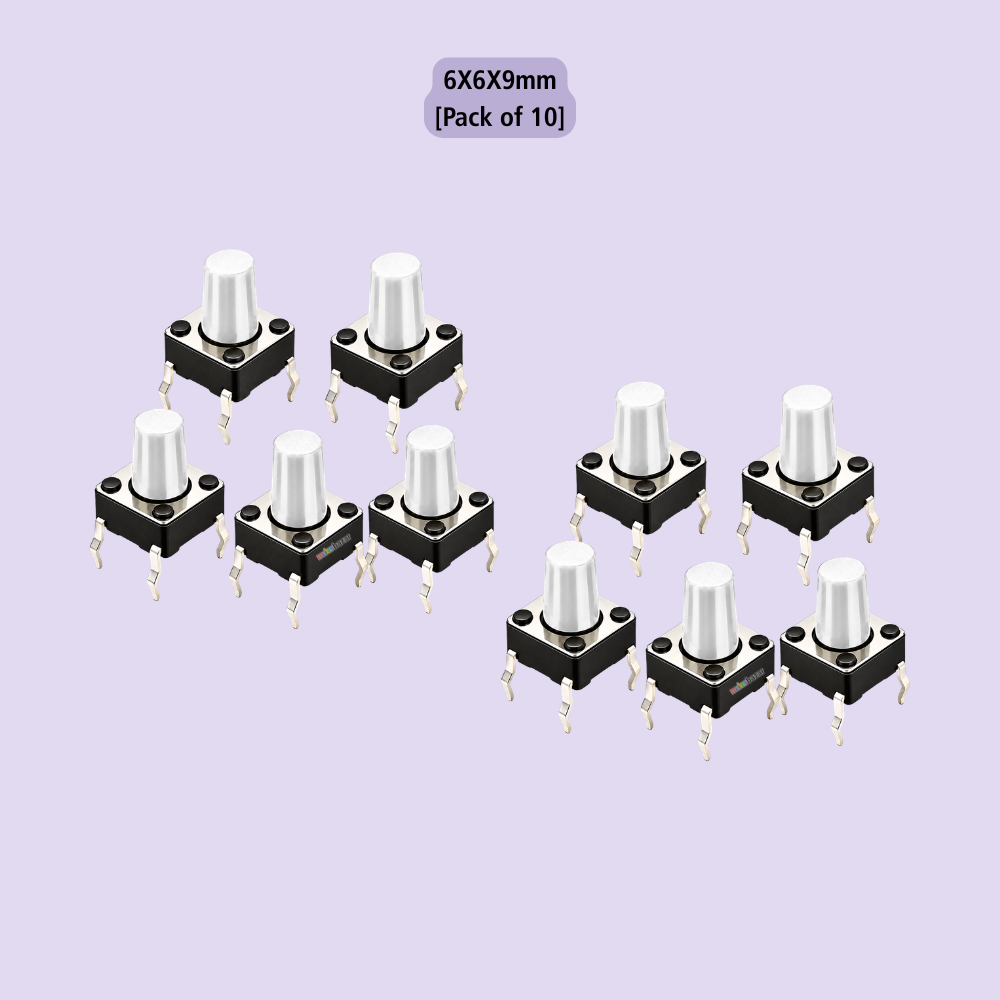

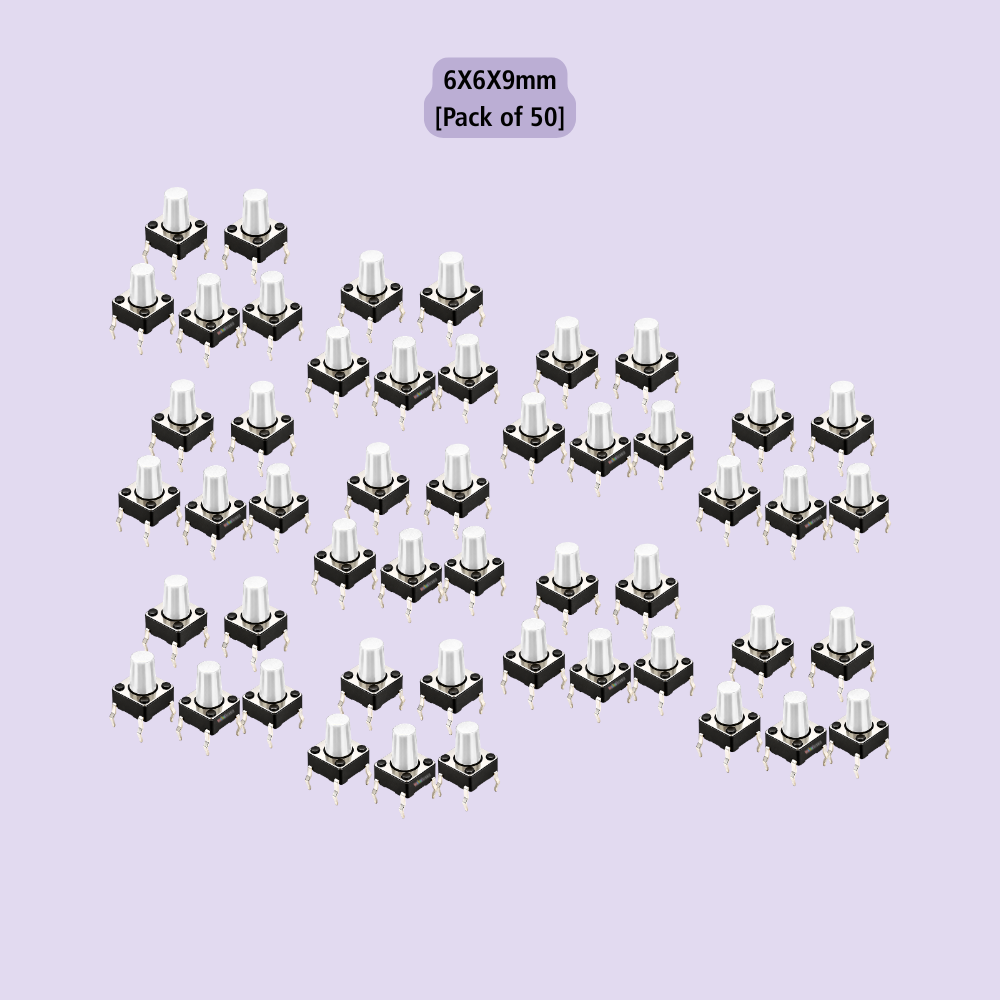

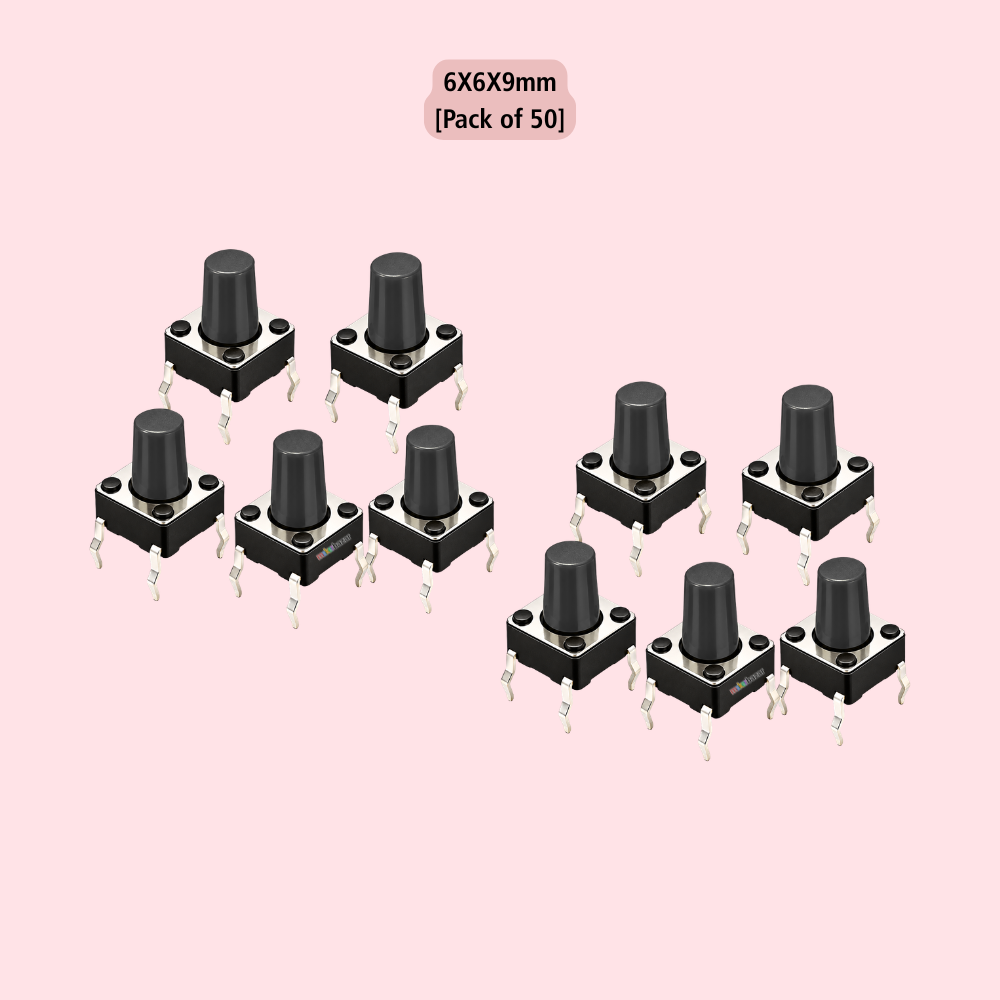

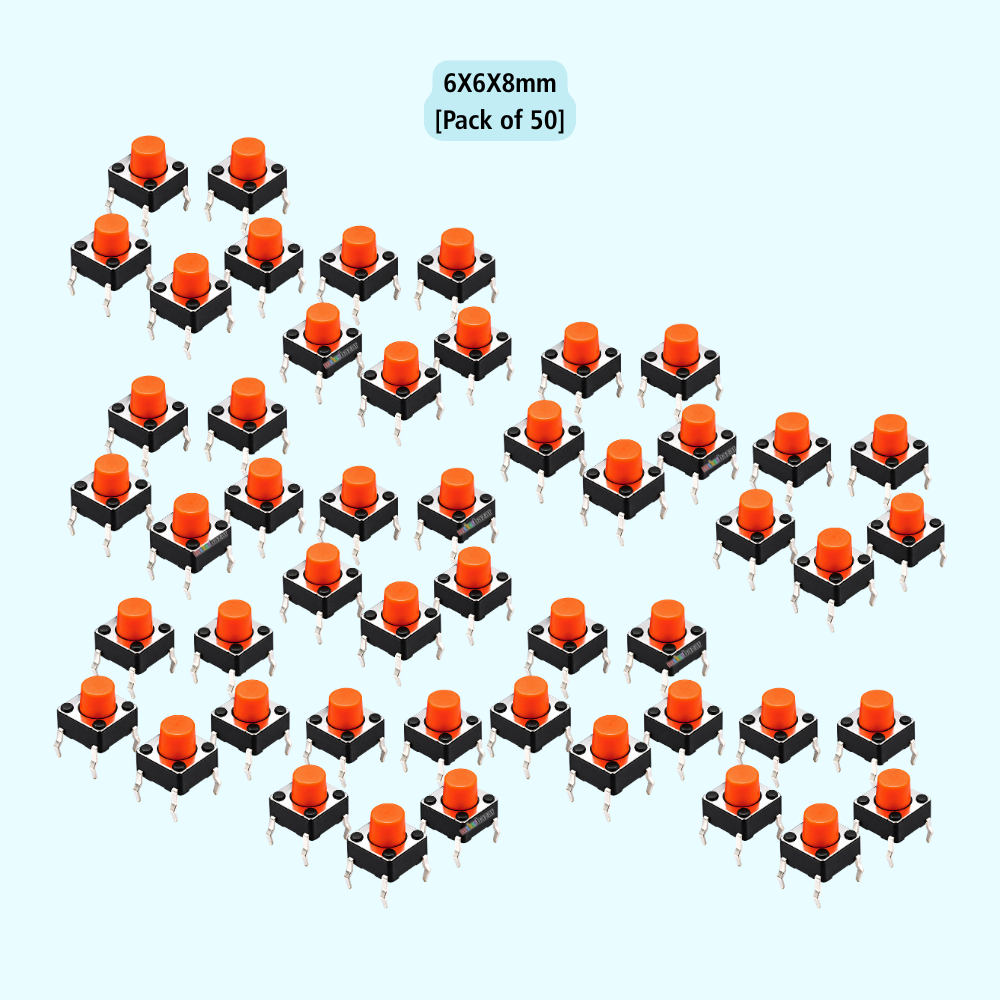

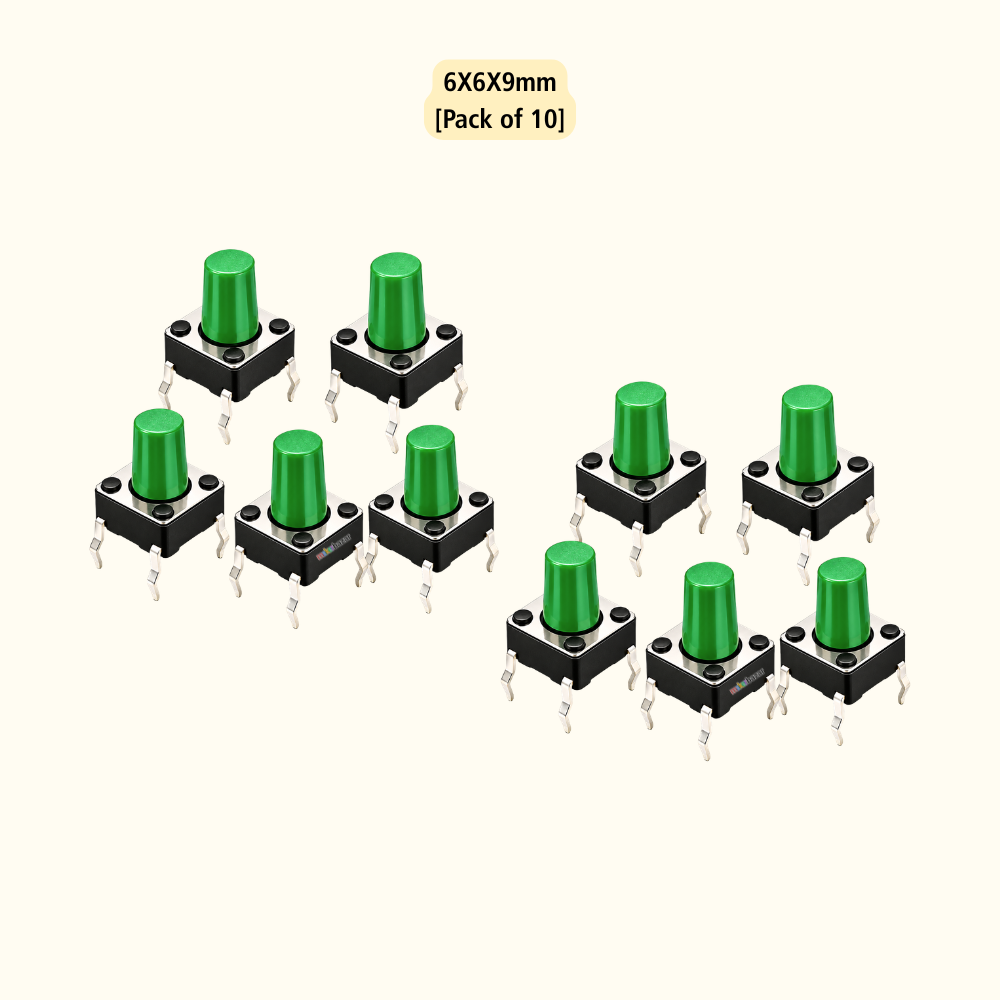

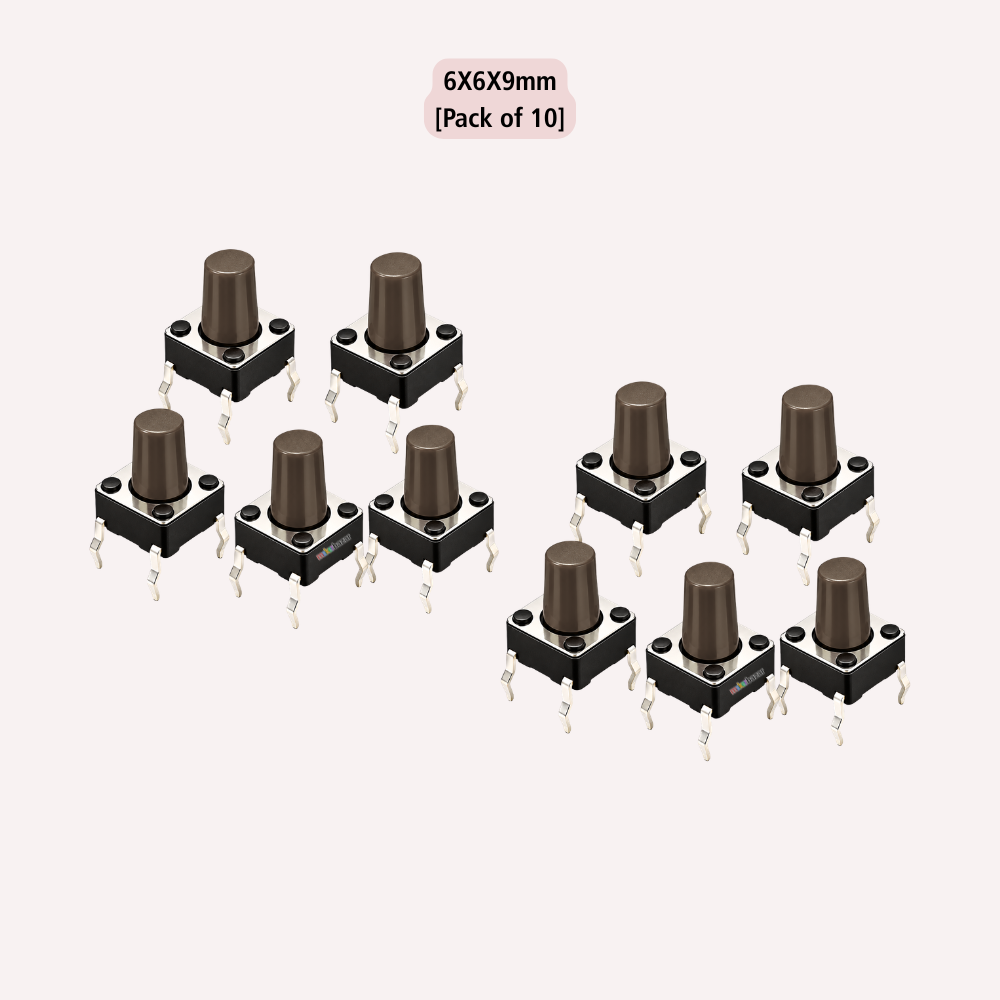

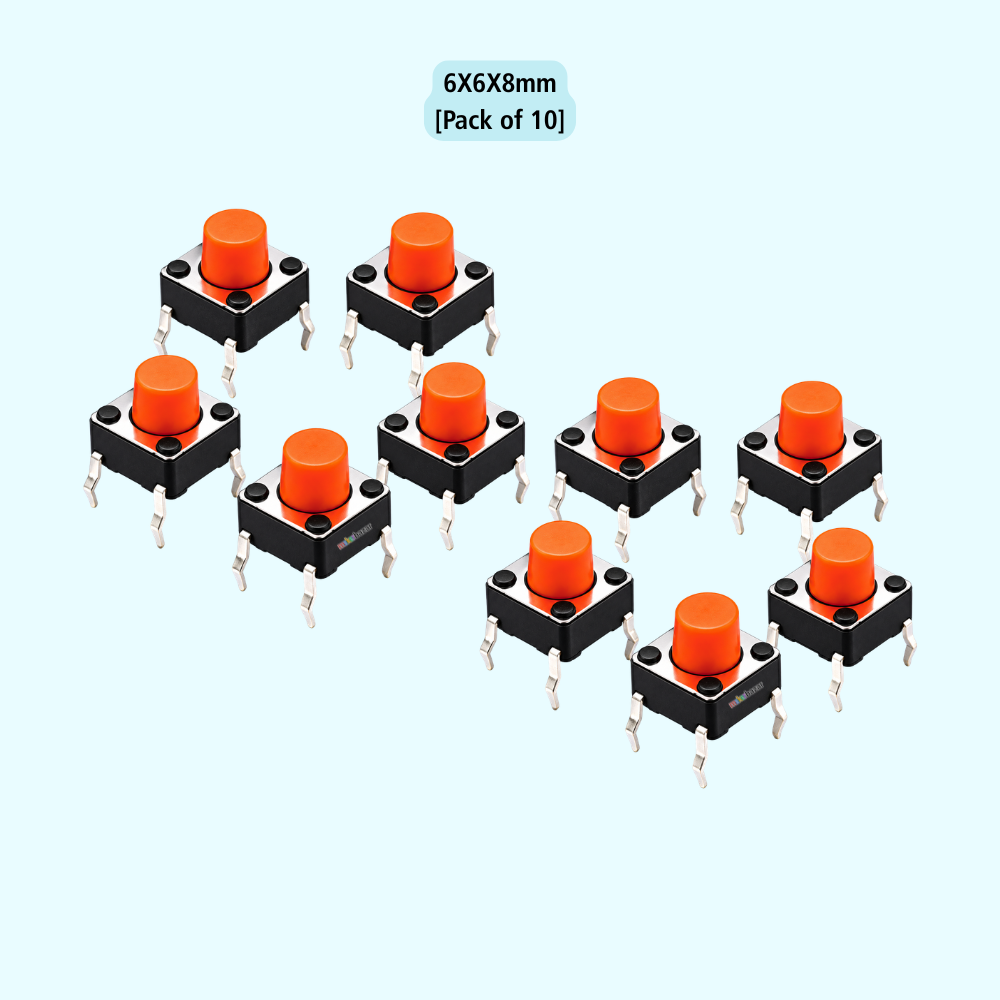

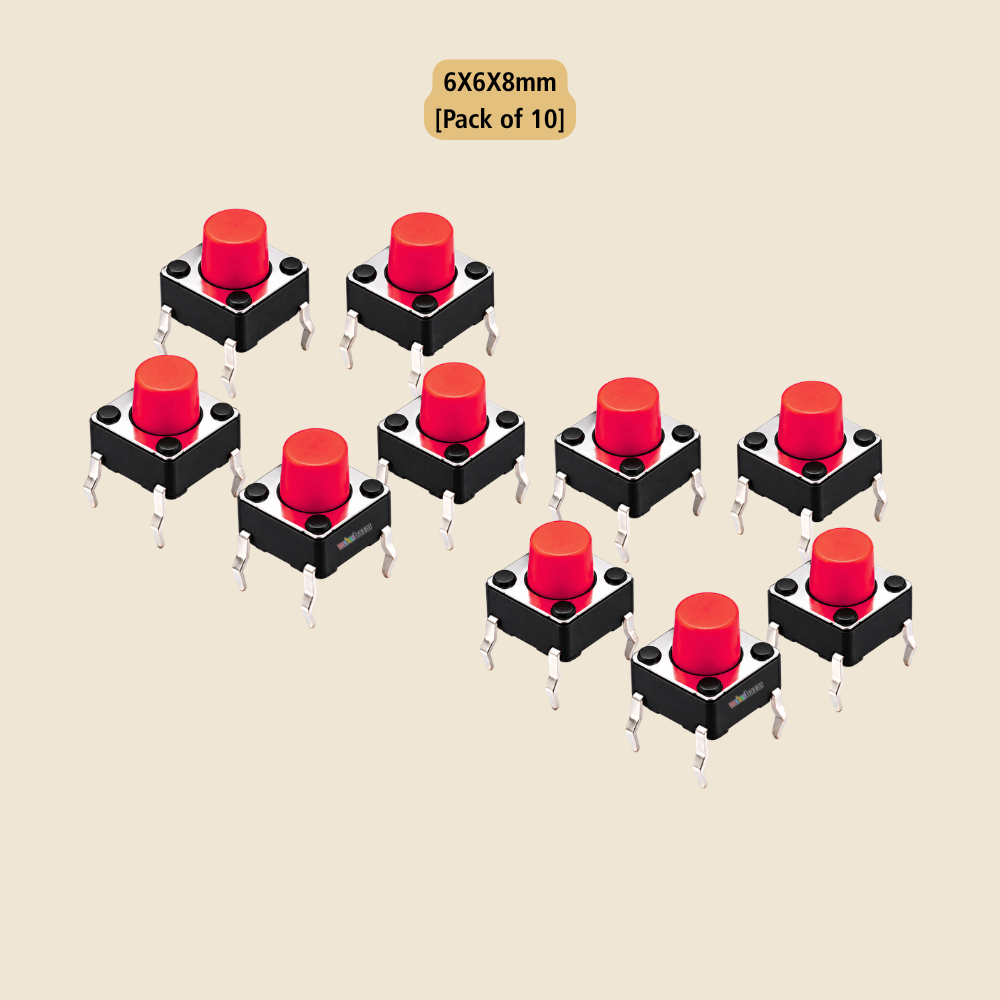

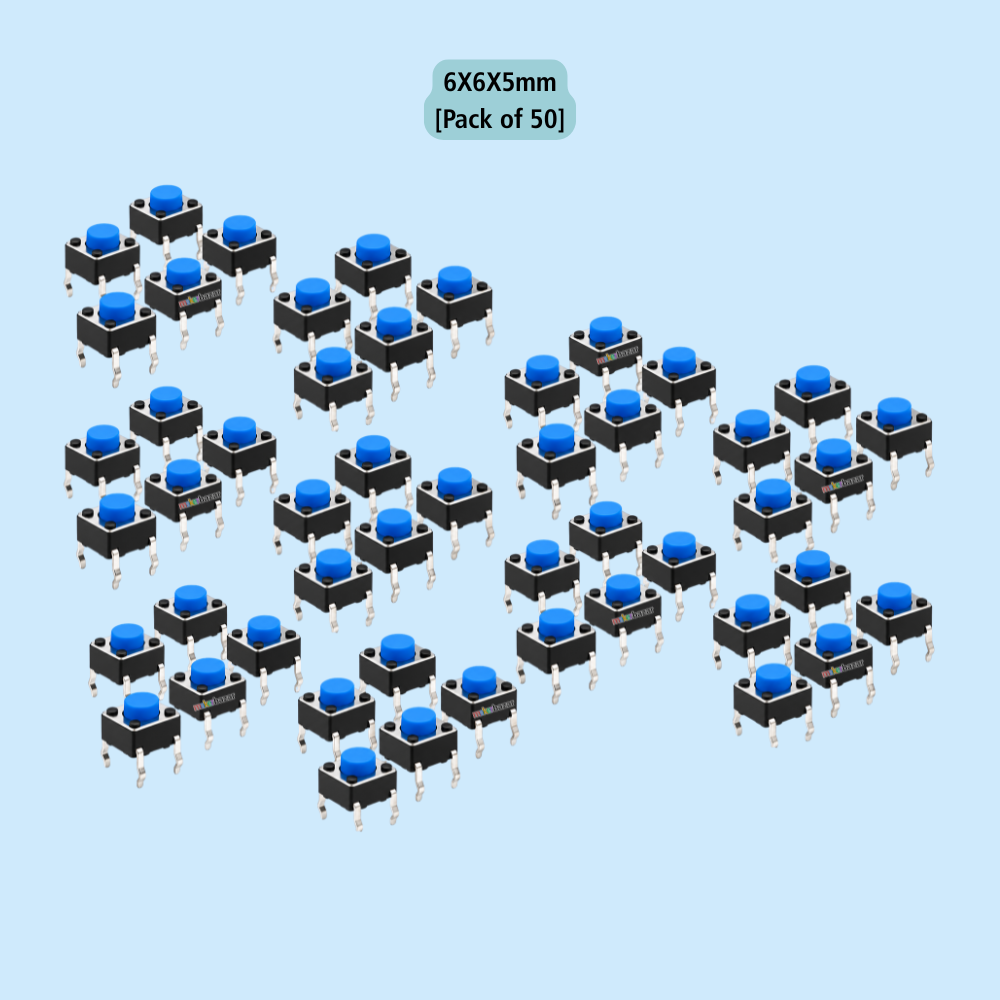

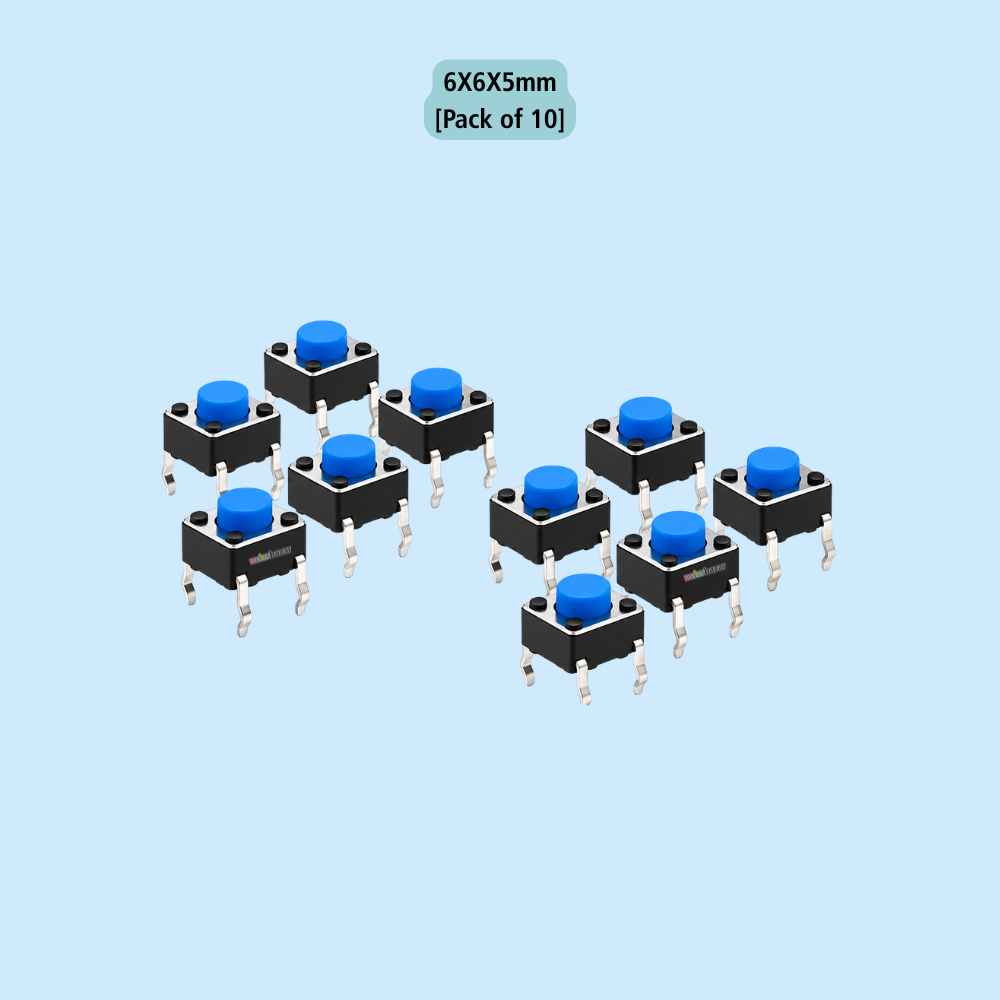

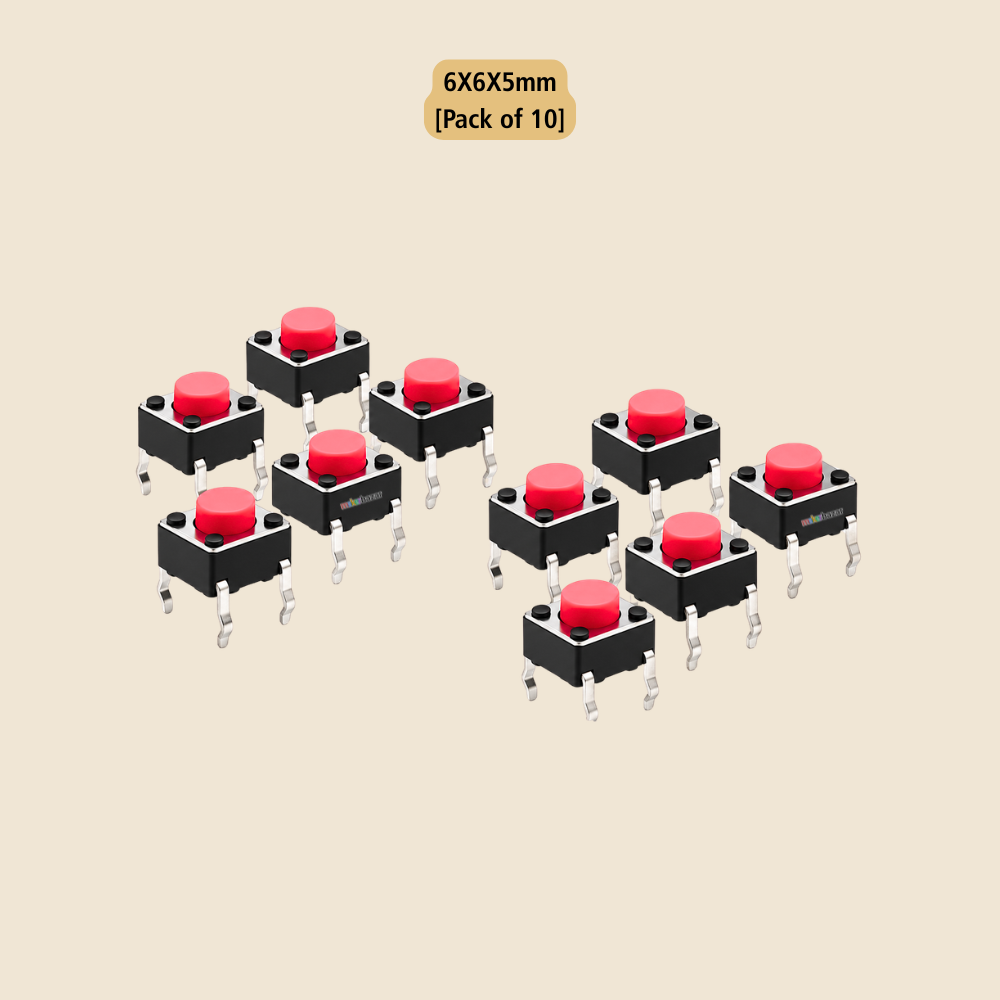

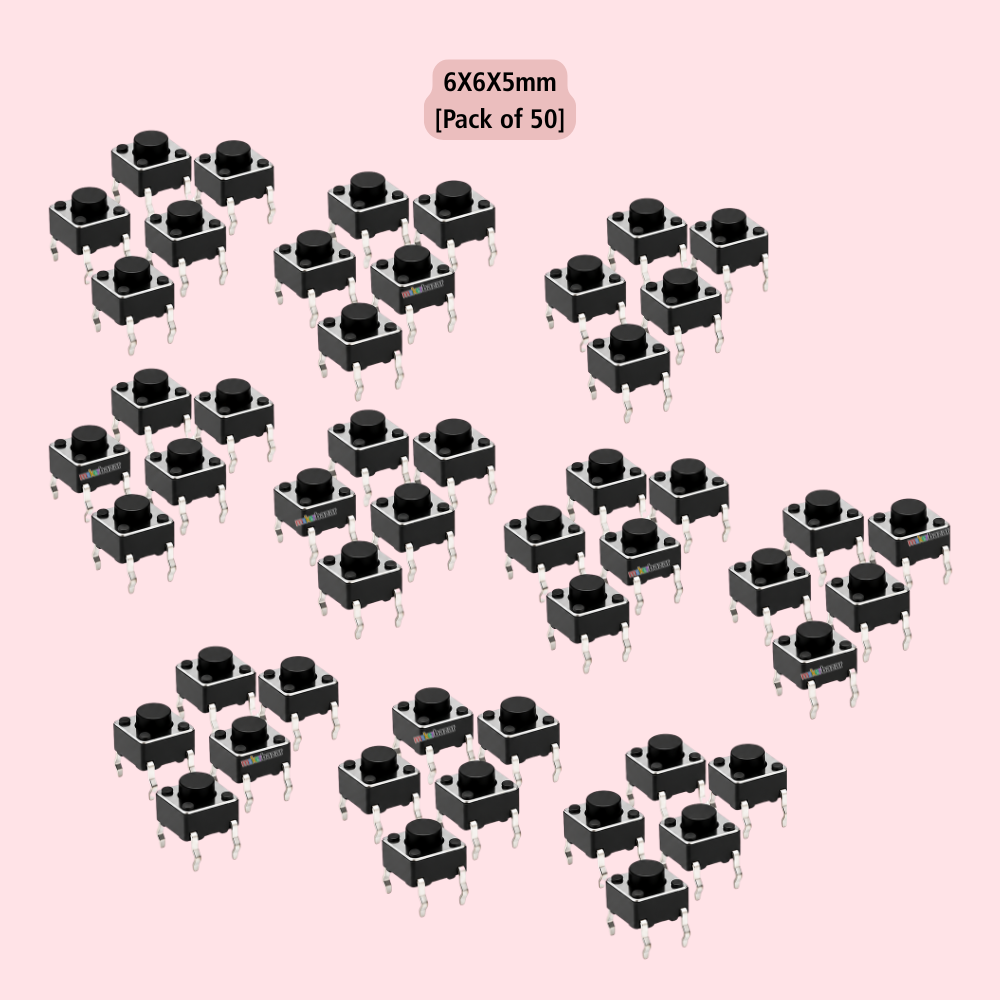

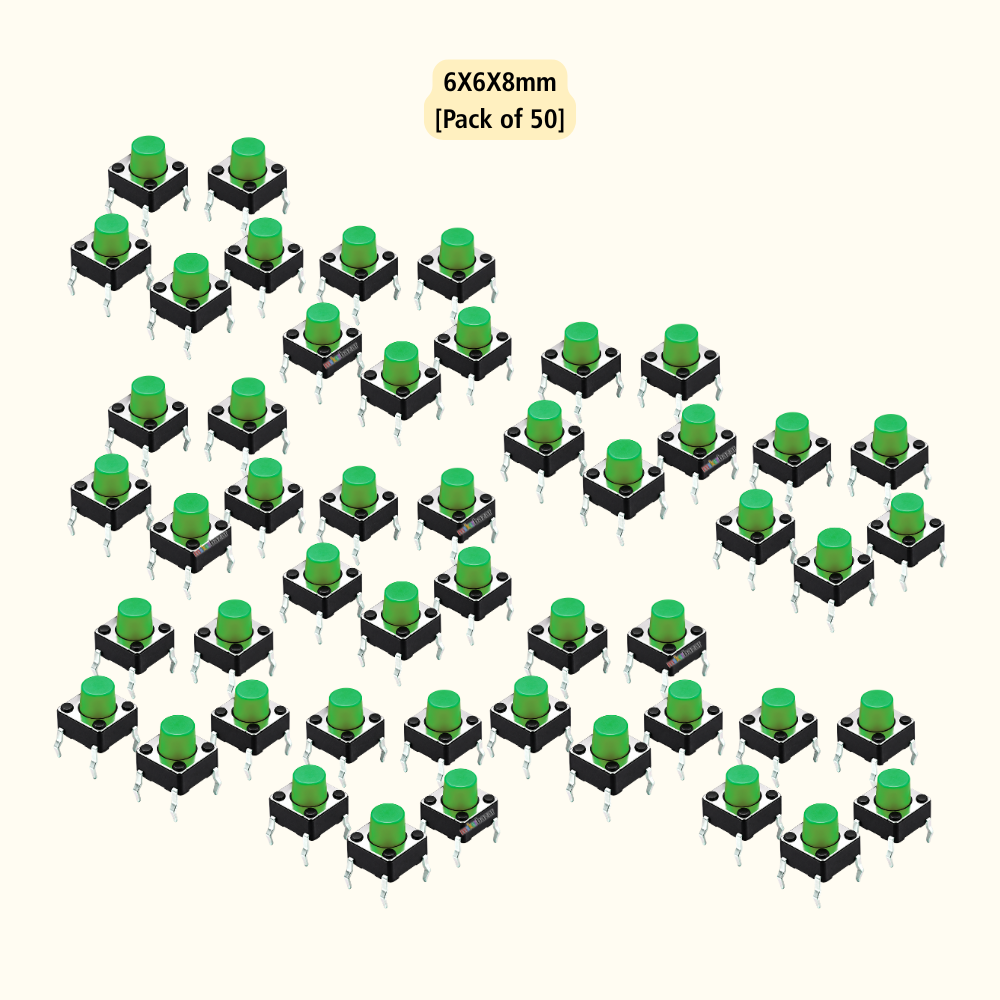

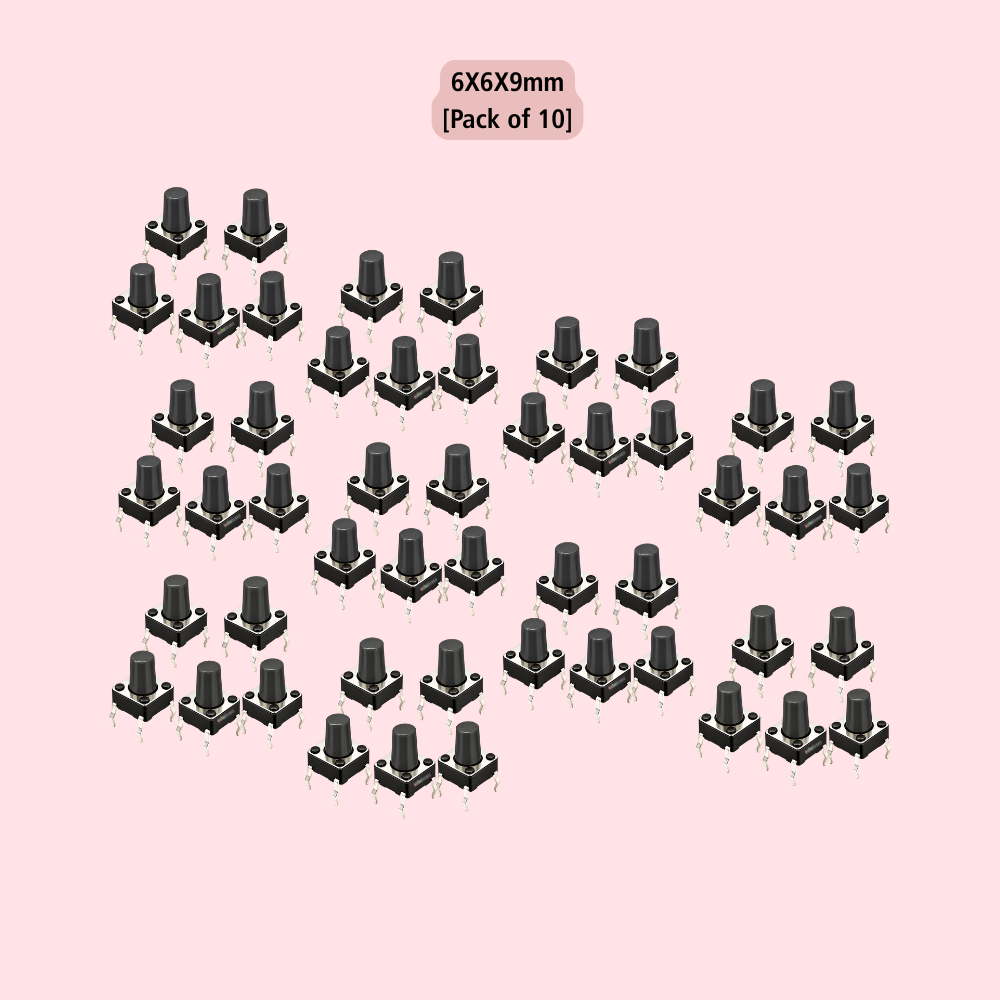

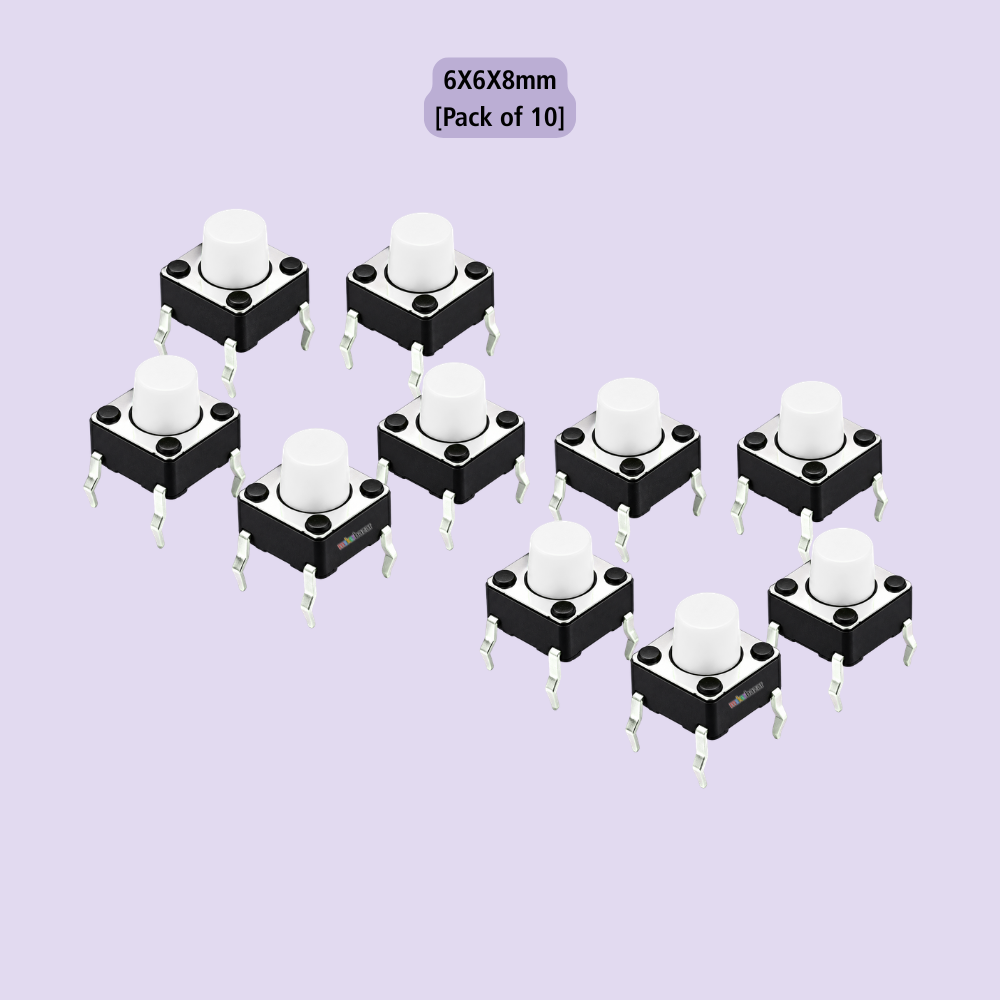

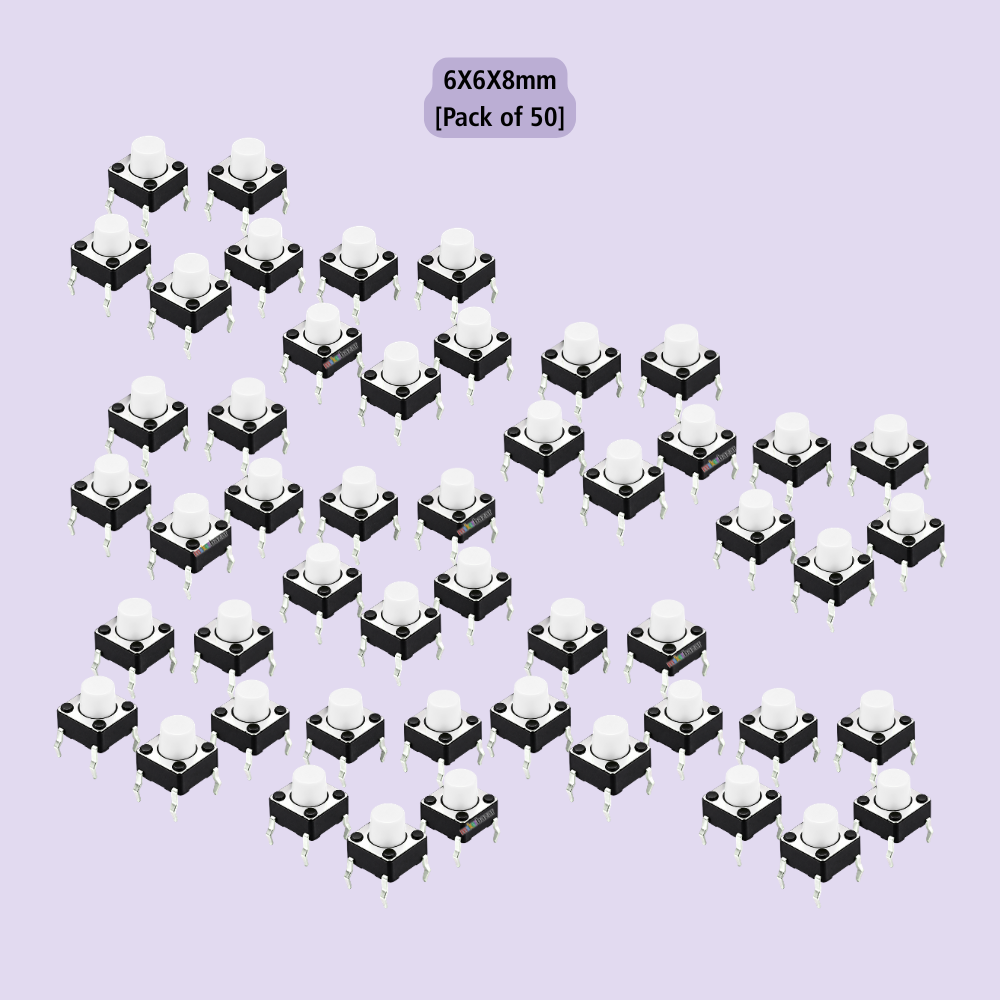

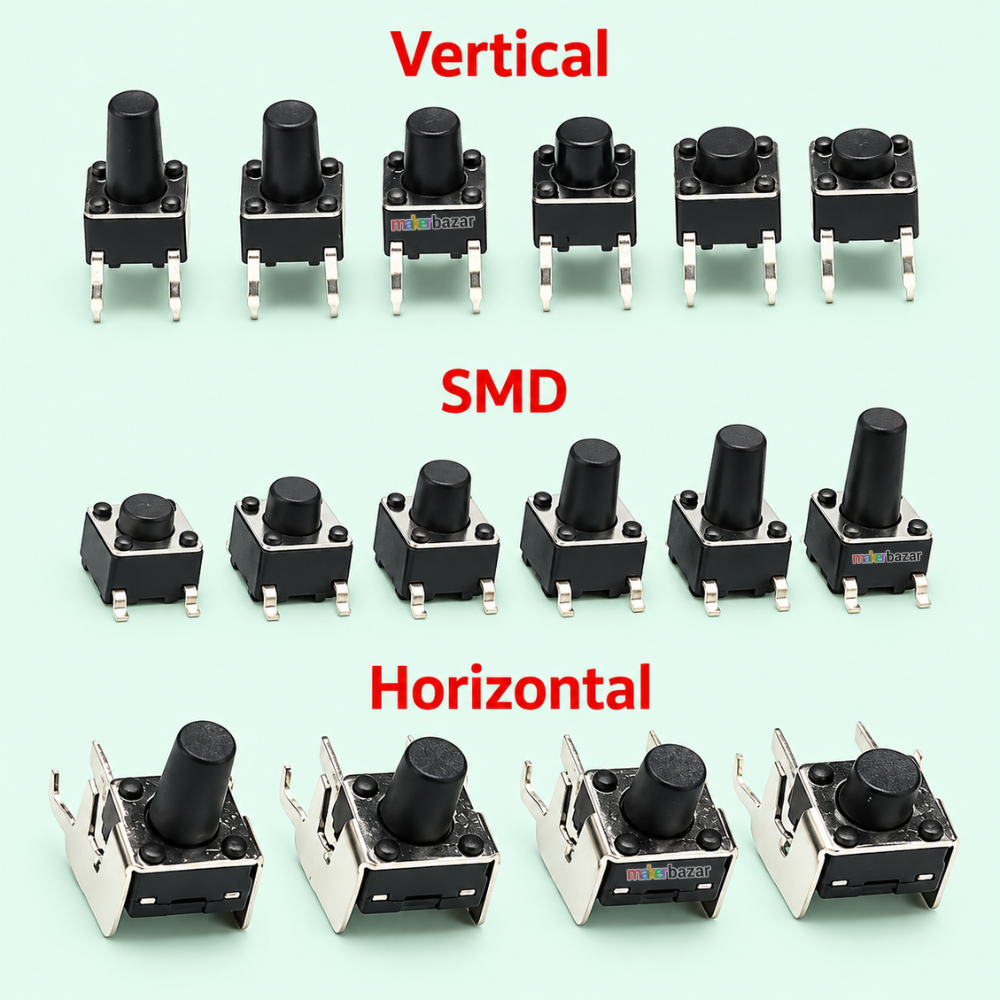

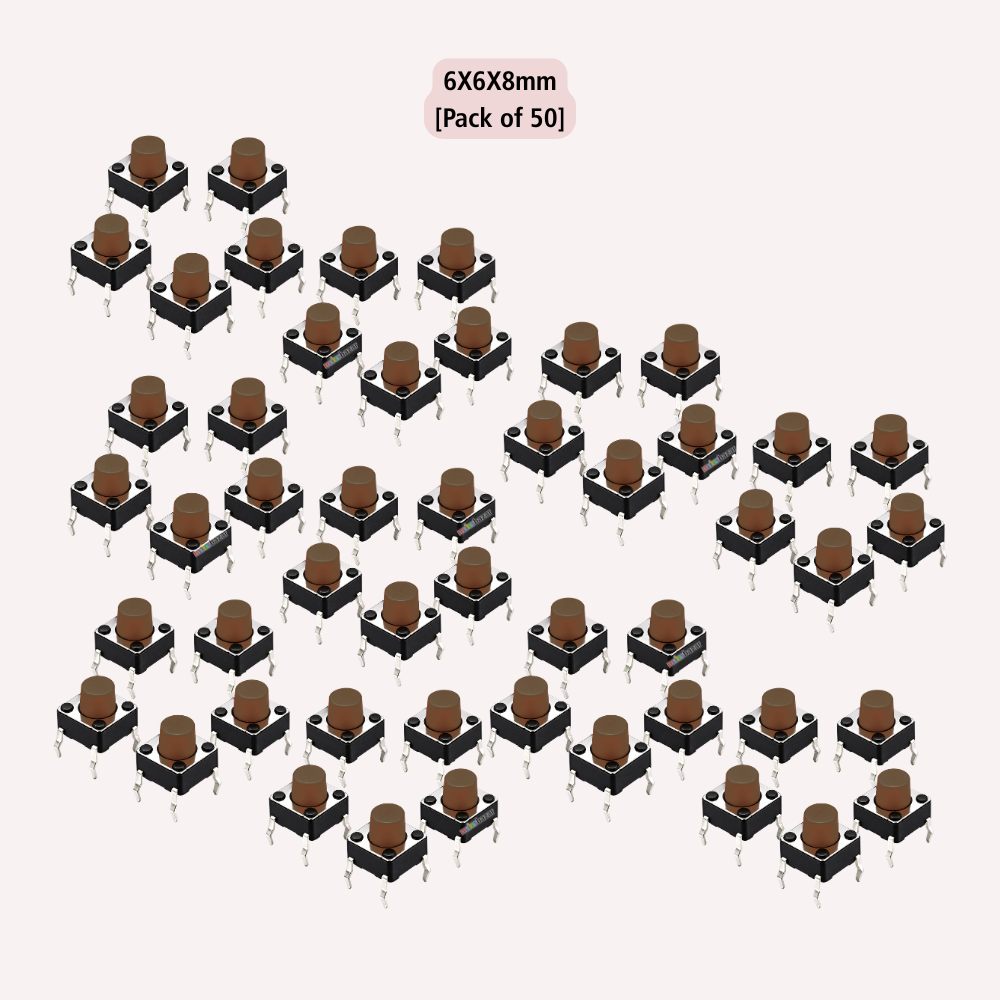

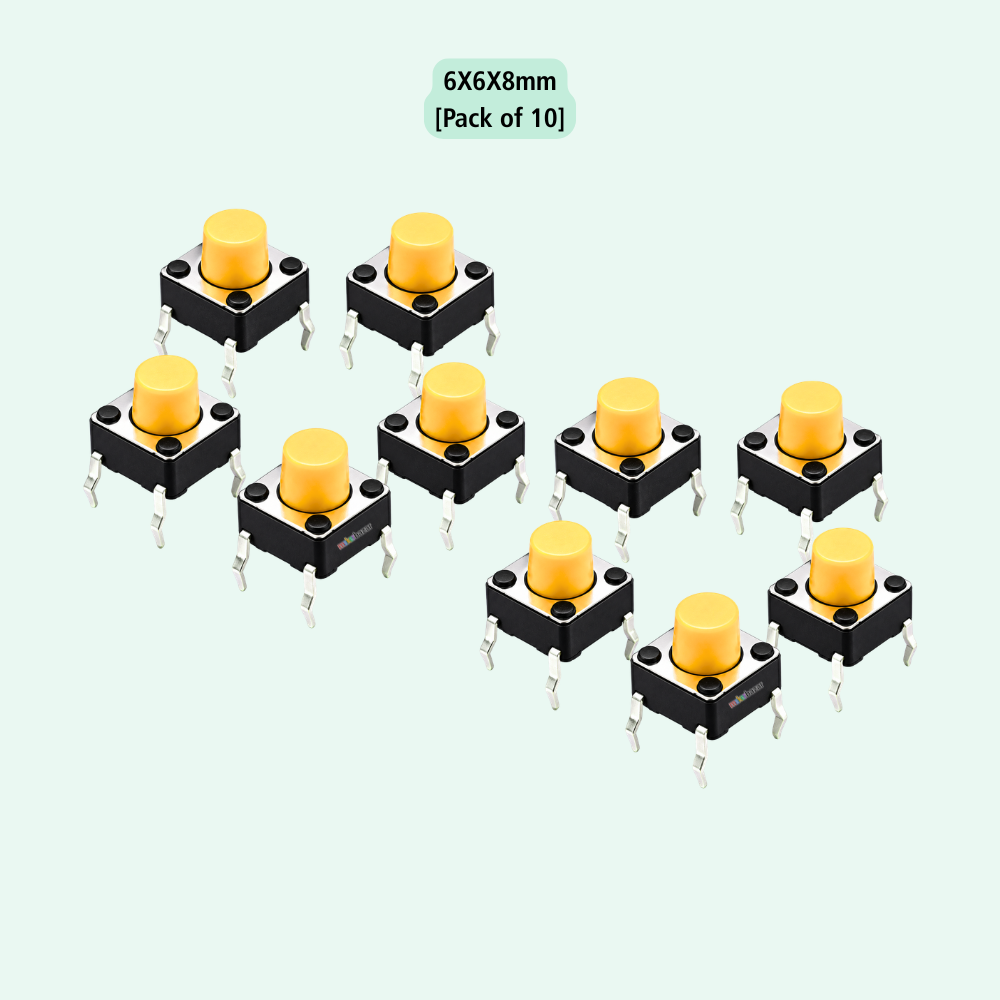

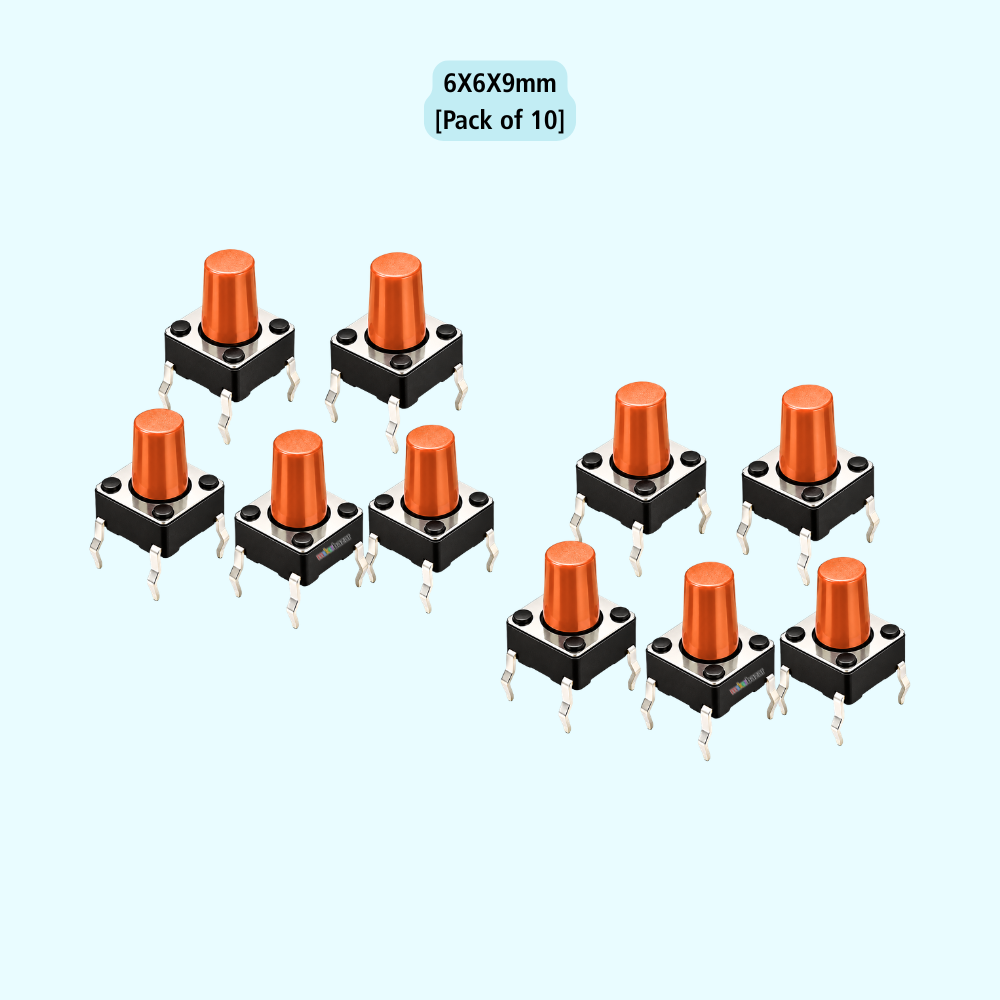

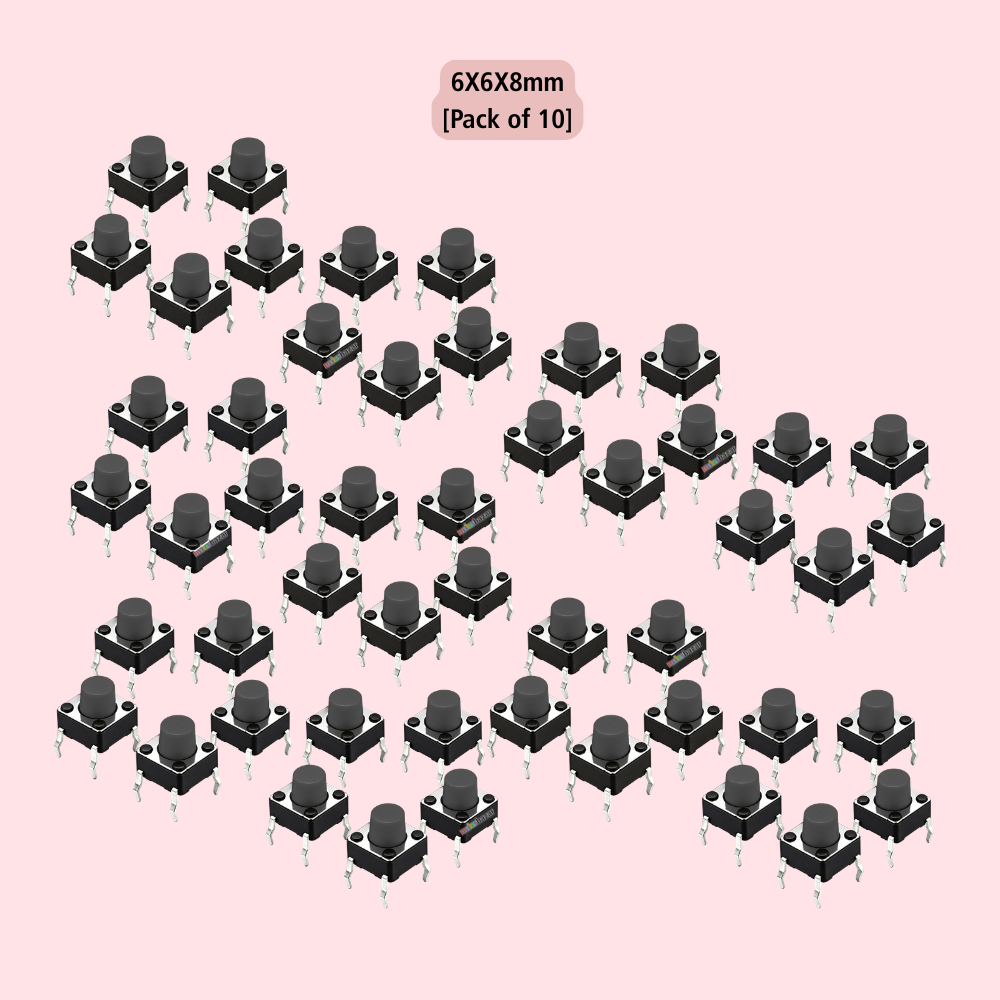

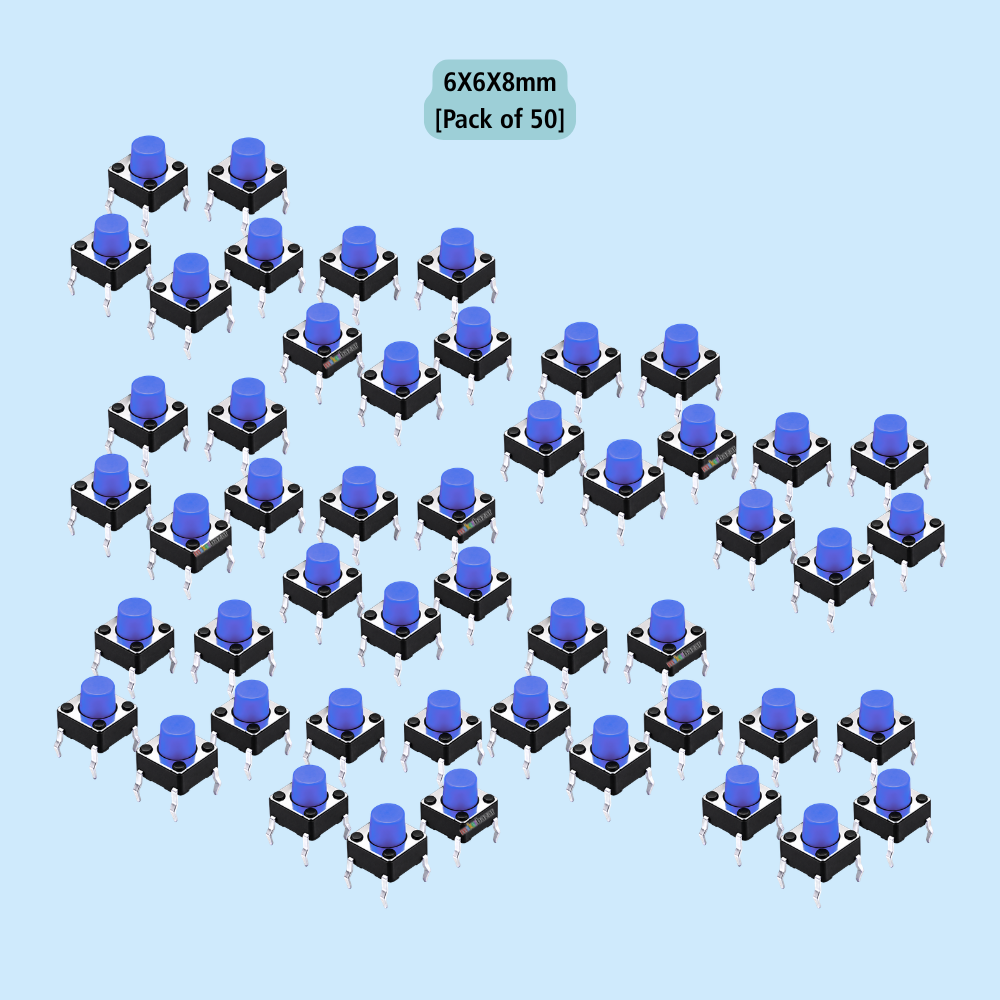

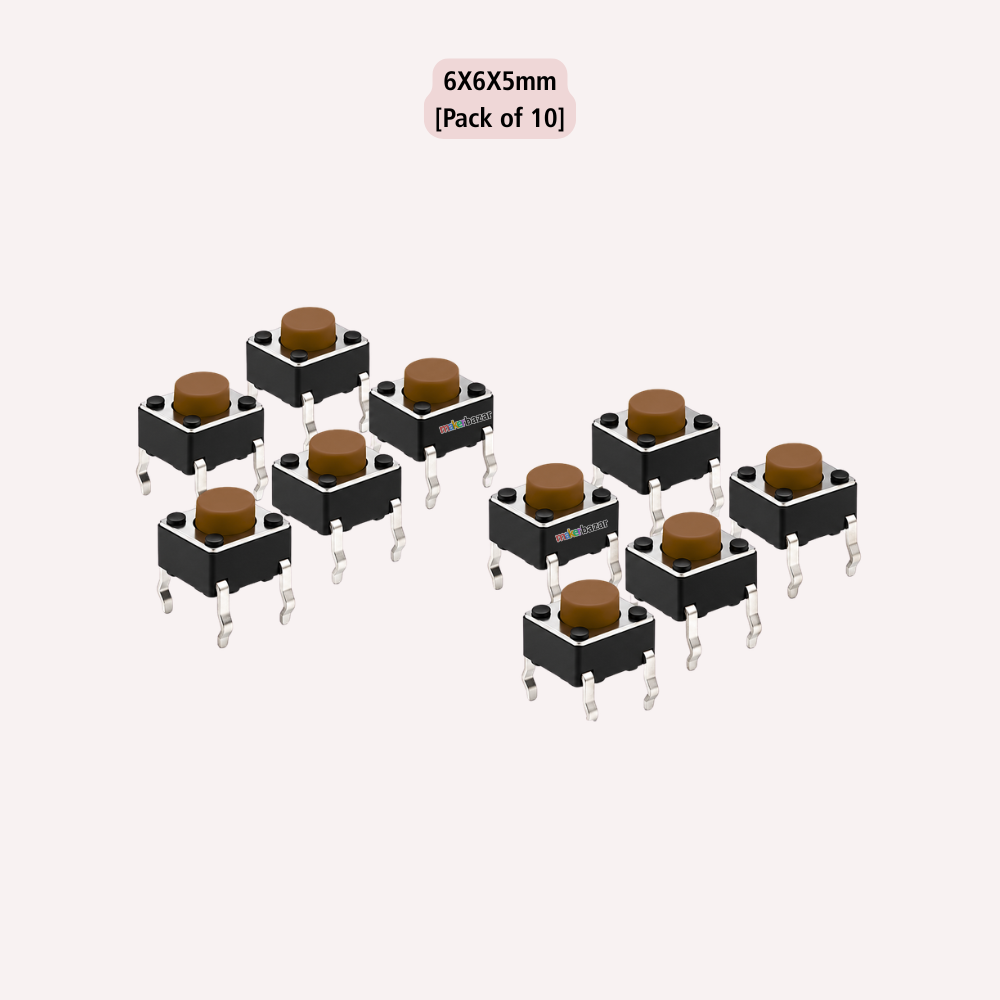

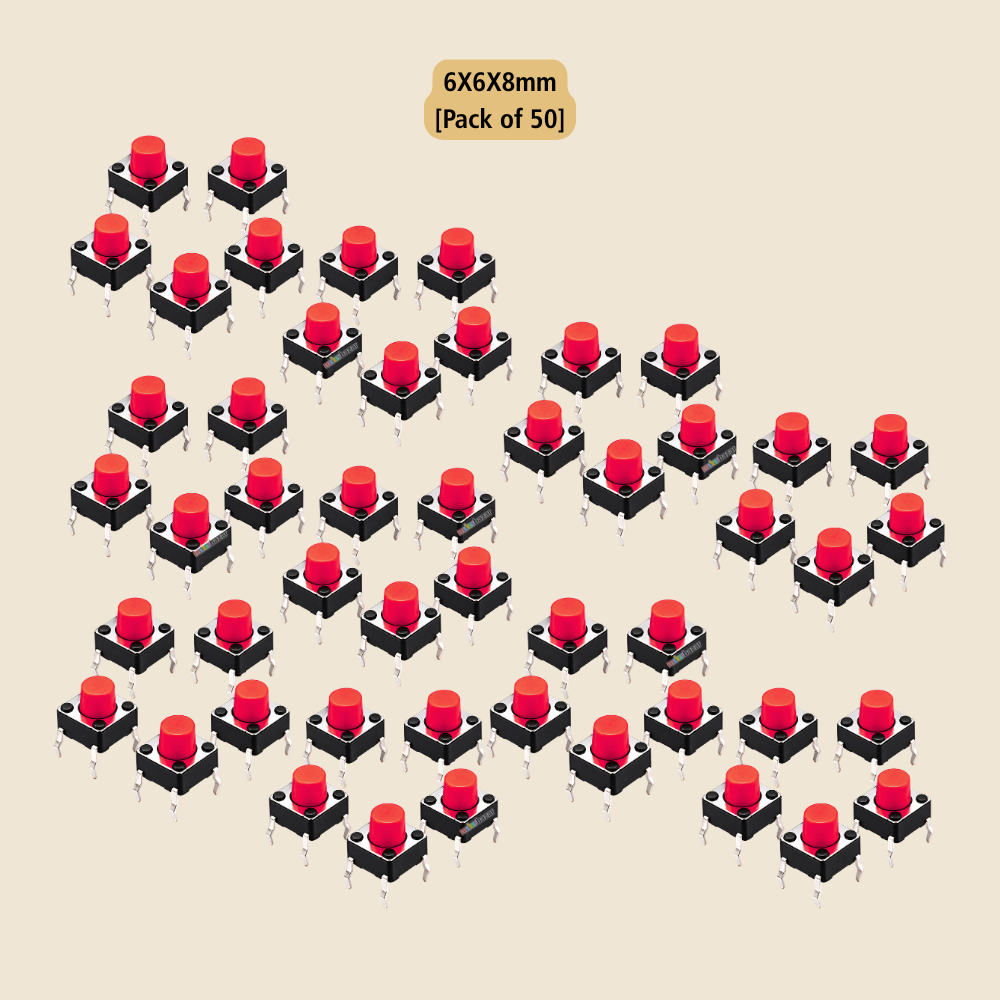

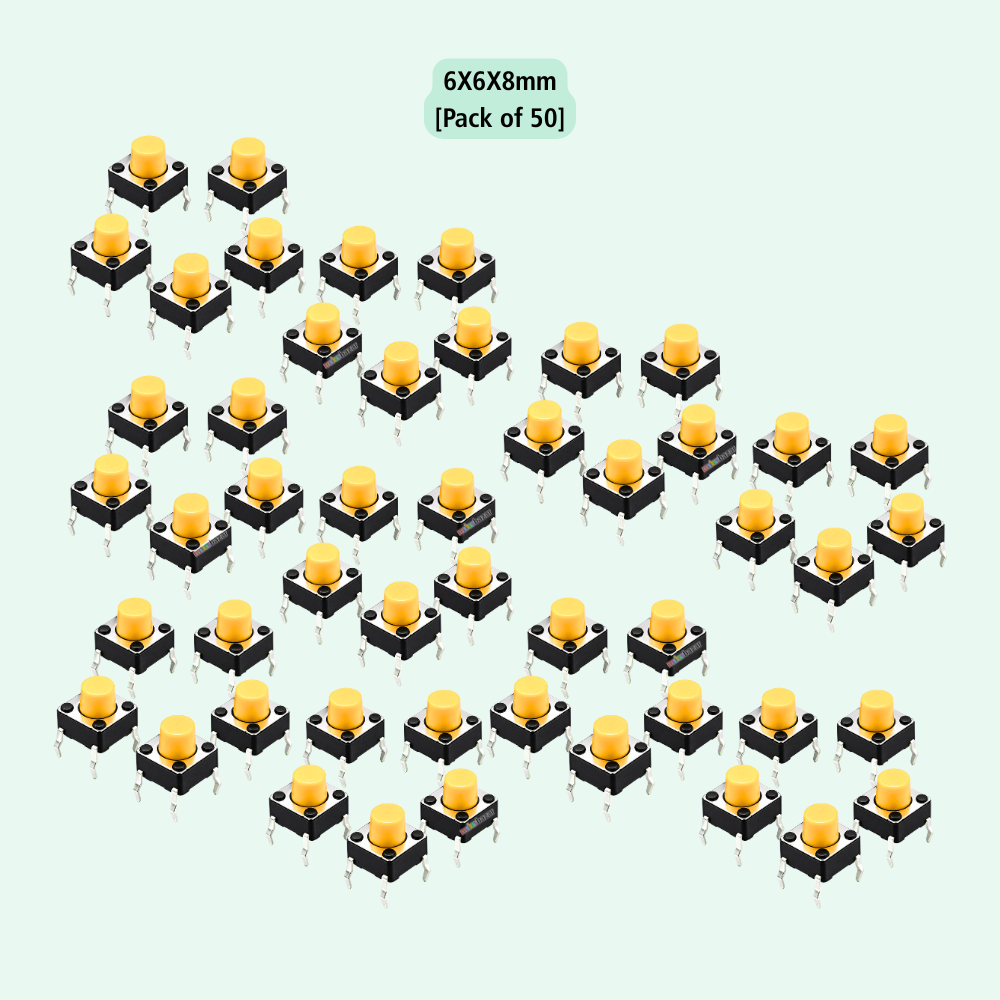

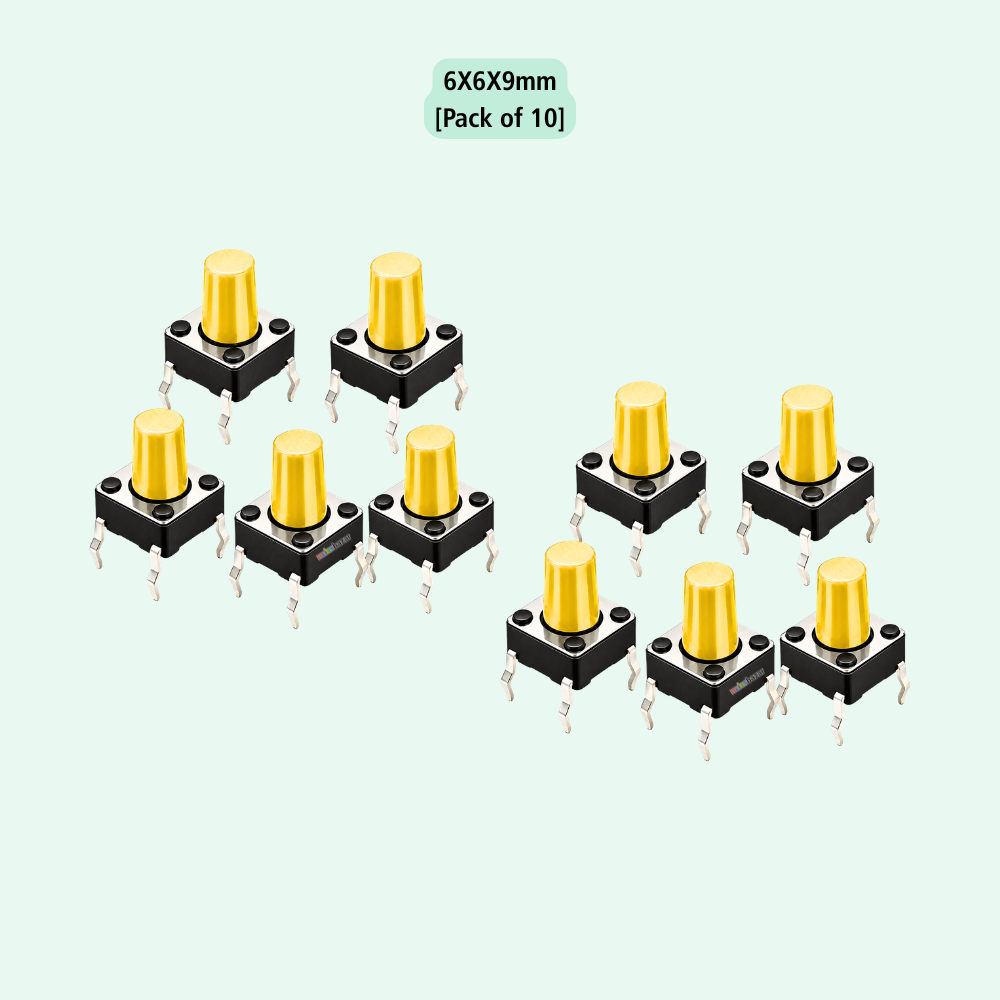

6mm Micro SPST Vertical Push Button 4pin for Breadboard
The 6x6mm DIP Mini Tactile Push Button Switch is a compact 4-leg momentary push button designed for PCB mounting and electronic prototyping. When the button is pressed, the normally open contacts temporarily close to complete the circuit, making it suitable for use as an input button or control switch.
Its small 6×6mm footprint makes it useful for space-constrained electronic designs, while the through-hole construction allows easy PCB soldering and prototyping. It can also be used with suitable solderless breadboard setups.
The switch provides tactile feedback and is suitable for DIY electronics, control interfaces, consumer electronics, testing equipment, and various embedded projects.
Key Features
- Compact 6×6mm tactile push button.
- 4-leg through-hole DIP design.
- Momentary push-button operation.
- Normally open contact configuration.
- Contacts close momentarily when pressed.
- Round button/shaft design.
- Suitable for PCB mounting.
- Can be used in electronic prototypes.
- Compact and lightweight construction.
- Designed for repeated switching applications.
- Good electrical conductivity.
- Long operating life of up to 300,000 cycles as specified.
- Suitable for various electronic and household applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Tactile Push Button Switch |
| Size | 6 × 6mm |
| Switch Type | Momentary Push Button |
| Contact Type | Normally Open (NO) |
| Number of Legs | 4 |
| Mounting Type | Through-Hole / DIP |
| Shaft Shape | Round |
| Operation | Momentary |
| Button Style | Tactile |
| Operating Life | Up to 300,000 Cycles |
| Application | PCB & Electronic Prototyping |
| Construction | Compact & Lightweight |
Applications
- Arduino projects.
- DIY electronics.
- PCB projects.
- Breadboard prototyping.
- Microcontroller input controls.
- Embedded systems.
- Consumer electronics.
- Audio/visual equipment.
- Computer peripherals.
- Testing and instrumentation.
- Household electronic appliances.
- Control panels and interface buttons.
- Electronic learning projects.
Precautions
- Ensure correct PCB orientation before soldering.
- Do not apply excessive mechanical force to the button.
- Avoid exceeding the switch's electrical rating.
- Solder using an appropriate temperature and soldering technique.
- Do not keep the button continuously pressed unless the application permits it.
- Keep the switch free from excessive dust, oil, and moisture.
- Avoid bending the terminals during installation.
- Verify circuit continuity before connecting the switch to a powered circuit.
