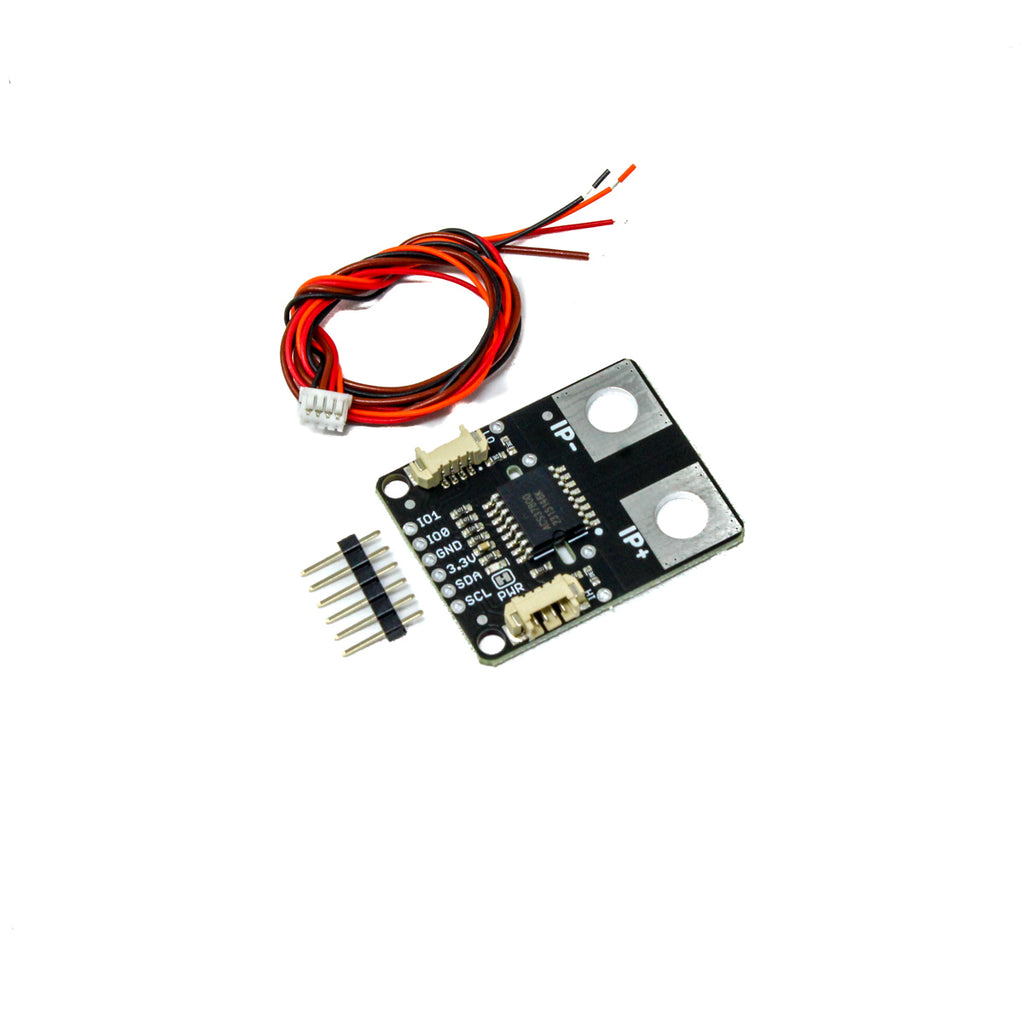

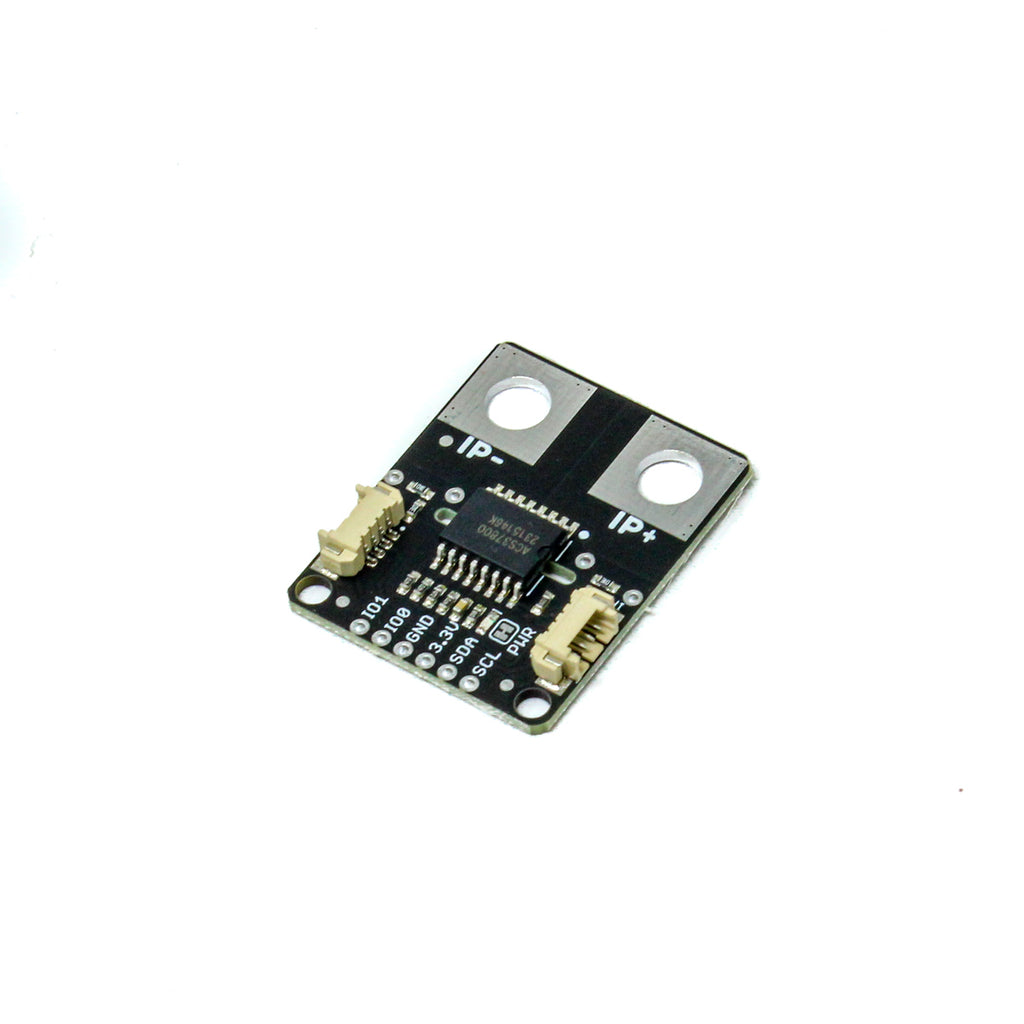

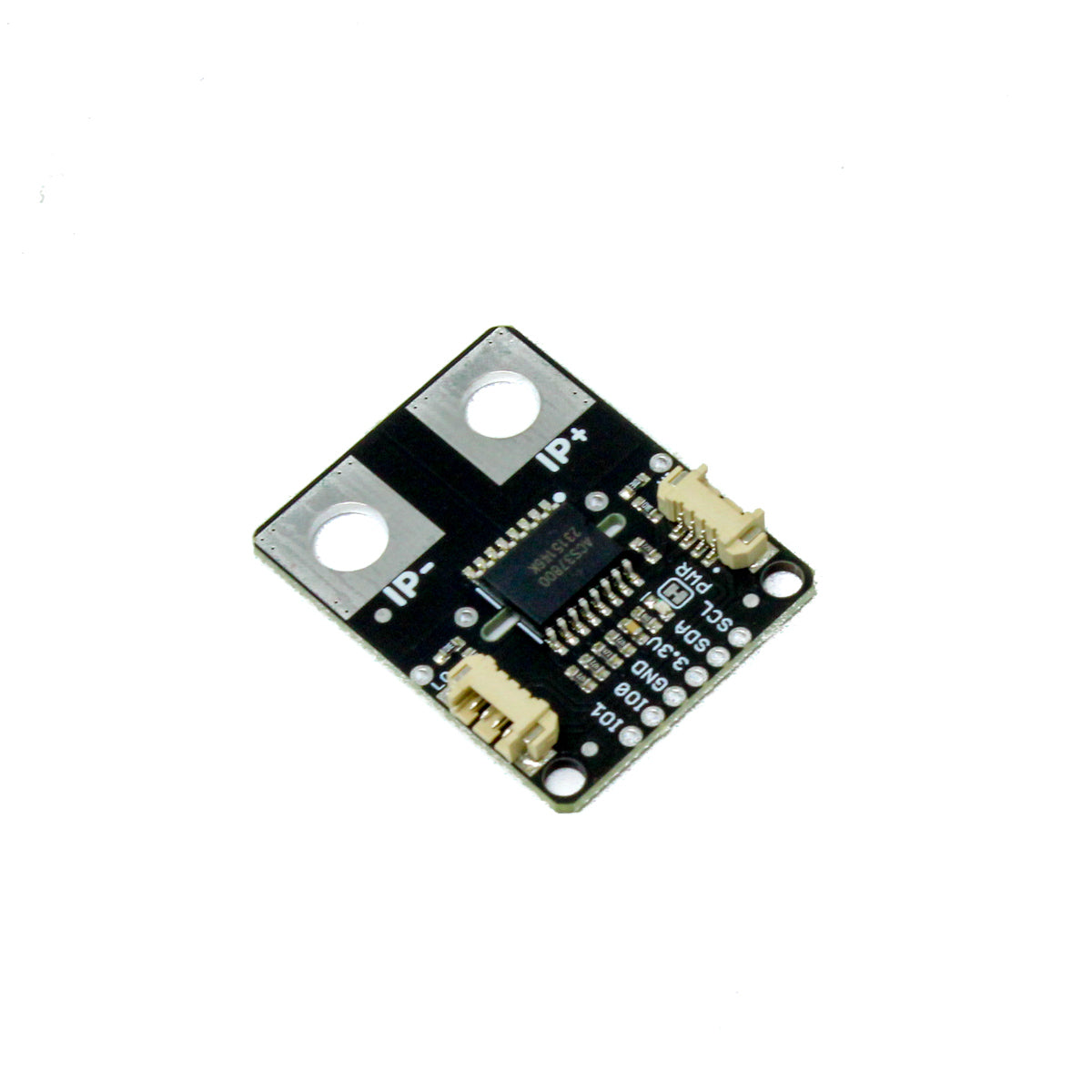

SmartElex ACS37800 Power Meter – High-Accuracy DC Voltage & Current Sensor (Up to 60VDC / ±30A)
The SmartElex Power Meter featuring the Allegro ACS37800 IC is a robust, high-accuracy sensor designed for monitoring power in DC systems up to 60VDC and ±30A current. Ideal for applications like 3D printer power monitoring, UAV battery systems, solar panel monitoring, and battery charging, this sensor offers reinforced galvanic isolation using Hall-effect technology—eliminating the need for bulky or power-wasting components like shunt resistors or transformers.
The sensor communicates via I2C (default address: 0x60) and supports fast fault detection, voltage/current zero-crossing detection, and configurable safety thresholds. With a bandwidth of 1 kHz, RMS voltage noise of ±0.3mV, and RMS current noise of ±0.1A, it's suited for medium-to-high current DC applications, not low-current sensing.
Key Specifications:
-
Current Sensing Range: ±30A
-
Voltage Range: Up to 60VDC (SELV only)
-
Bandwidth: 1 kHz
-
RMS Noise (Voltage): ±0.3mV
-
RMS Noise (Current): ±0.1A
-
Output Error (Voltage): ±1% (-40°C to 125°C)
-
Output Error (Current): ±2% (25°C to 125°C), ±2.7% (-40°C to 25°C)
-
Isolation Voltage: 517 VRMS
-
Resistance: 0.85 mΩ (for minimal power loss)
-
Interface: I2C, address 0x60
-
PCB Dimensions: 30.48mm x 38.1mm
-
Mounting: Two 6mm holes for high-current terminals
-
Shipping Weight: 5g
-
Not suitable for AC systems or low-current applications (<1A)
