USB ISP Programmer Version 2.0

SKU: 19440398
No reviews

Price:
Sale price₹ 385.00
( ₹ 326.27 without 18% GST.)

Tax included Shipping calculated at checkout

Description

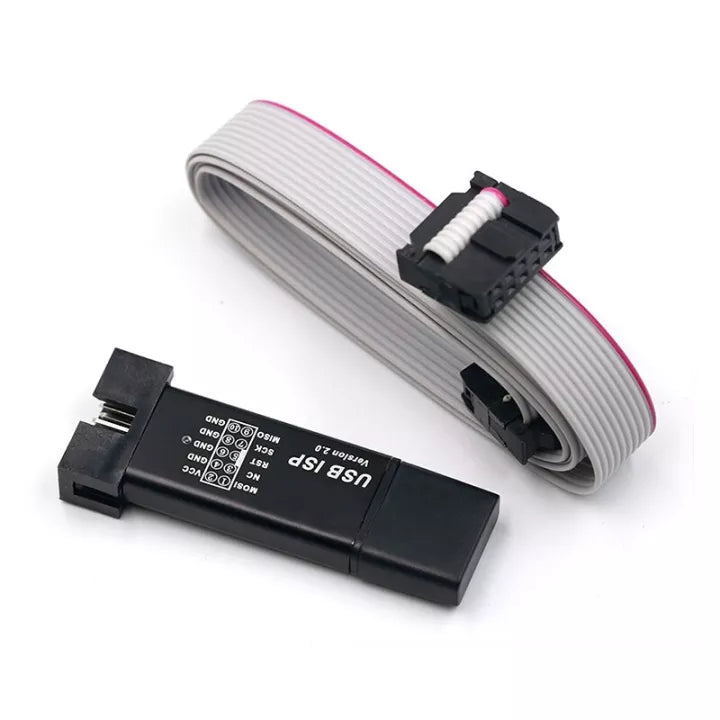

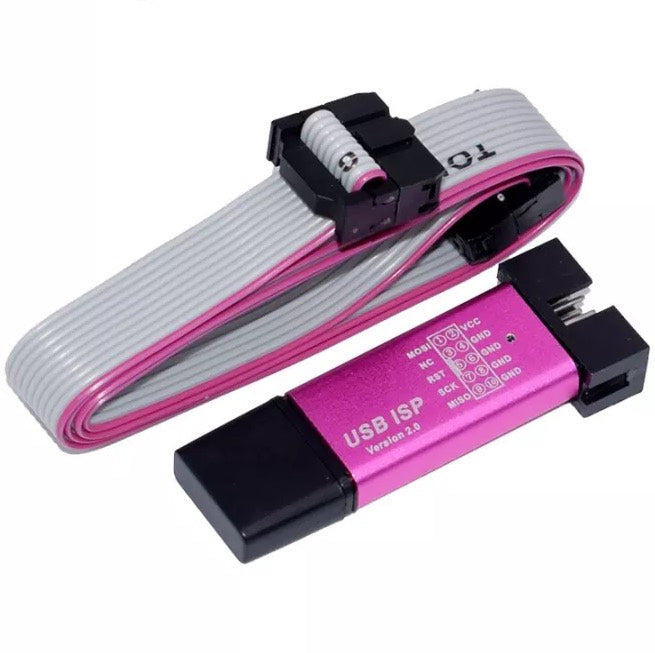

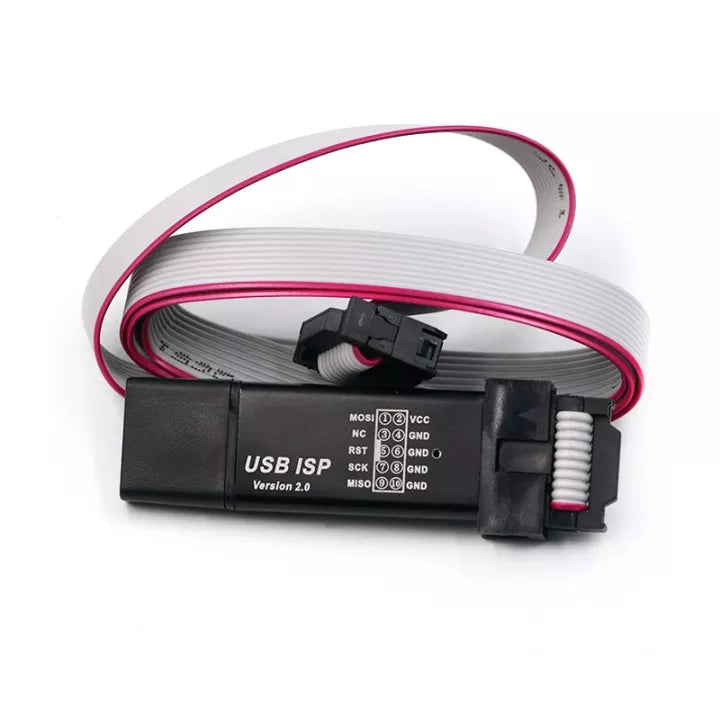

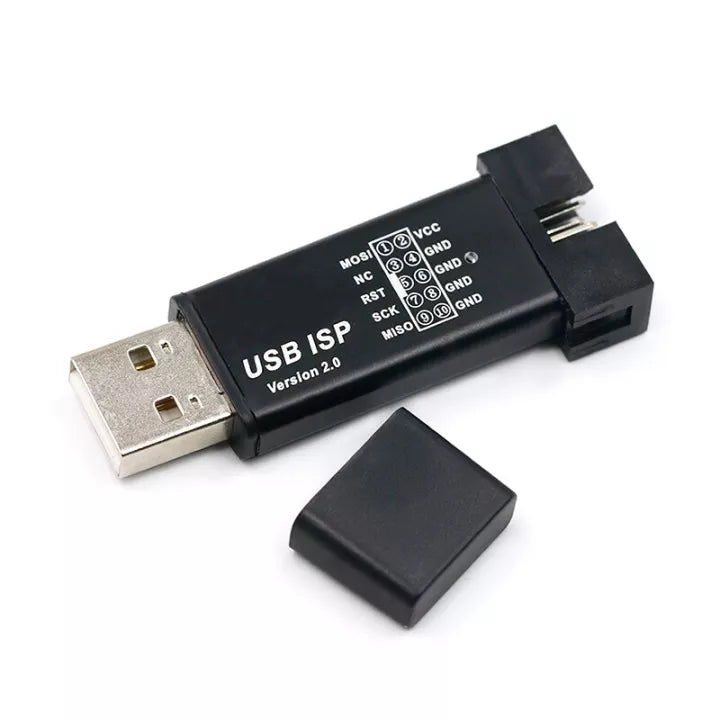

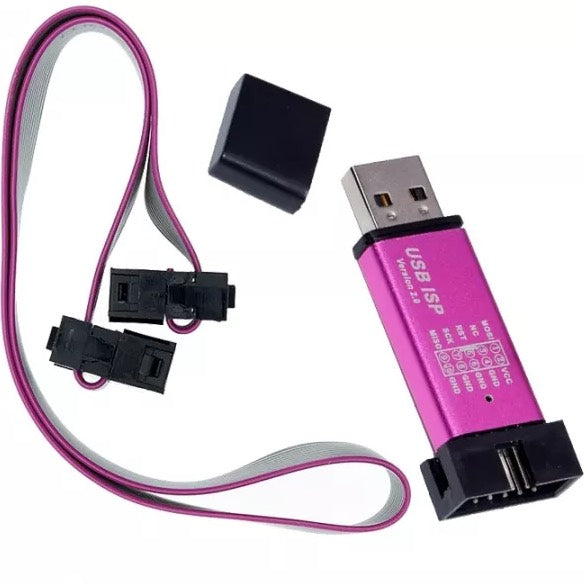

USB ISP Programmer Version 2.0

A USBasp in-circuit serial programming adapter is used to install bootloaders and software on common AVR microcontrollers. This module has an SCK option that allows it to work with controller boards that have a clock speed of less than 1.5MHz.
USBasp programmer with a 10-pin ISP connection provides the interface to the microcontroller at a programming speed of 5KB/sec.

It consists of an ATMega8 and a few passive components. The programmer employs a firmware-only USB driver and does not require a specific USB controller, making it a low-cost USB programmer.
The programmer is USB-powered and may be used on laptops. Windows Vista and Windows 7 are both supported by the software. Programming is fast and does not require external power.

Devices Supported
ATmega8 ATmega48 ATmega88 ATmega168 ATmega328
ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16
ATmega161 ATmega162 ATmega163 ATmega164 ATmega169
ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329
ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649
ATmega6490 ATmega8515 ATmega8535
Tiny Series
ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26
ATtiny45 ATtiny85 ATtiny2313
Classic Series
AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414
AT90S4433 AT90S4434 AT90S8515
AT90S8535
CAN Series
AT90CAN128
PWM Series
AT90PWM2 AT90PWM3

SPECIFICATIONS
Product Type USB ISP Programmer
Number of Pins 10
Programming Speed 5Kb/s
Supported Platforms Linux, Windows, Mac OSX
Dimension 56.6x20.2x8.6mm

Package Includes:

1 x USB ISP Programmer Version 2.0

1 x programing cable.
