Description
STM32F407 STMicroelectronics High-performance MCU foundation line| Arm Cortex-M4 core with DSP and FPU Processor| ART Accelerator| Ethernet | FSMC

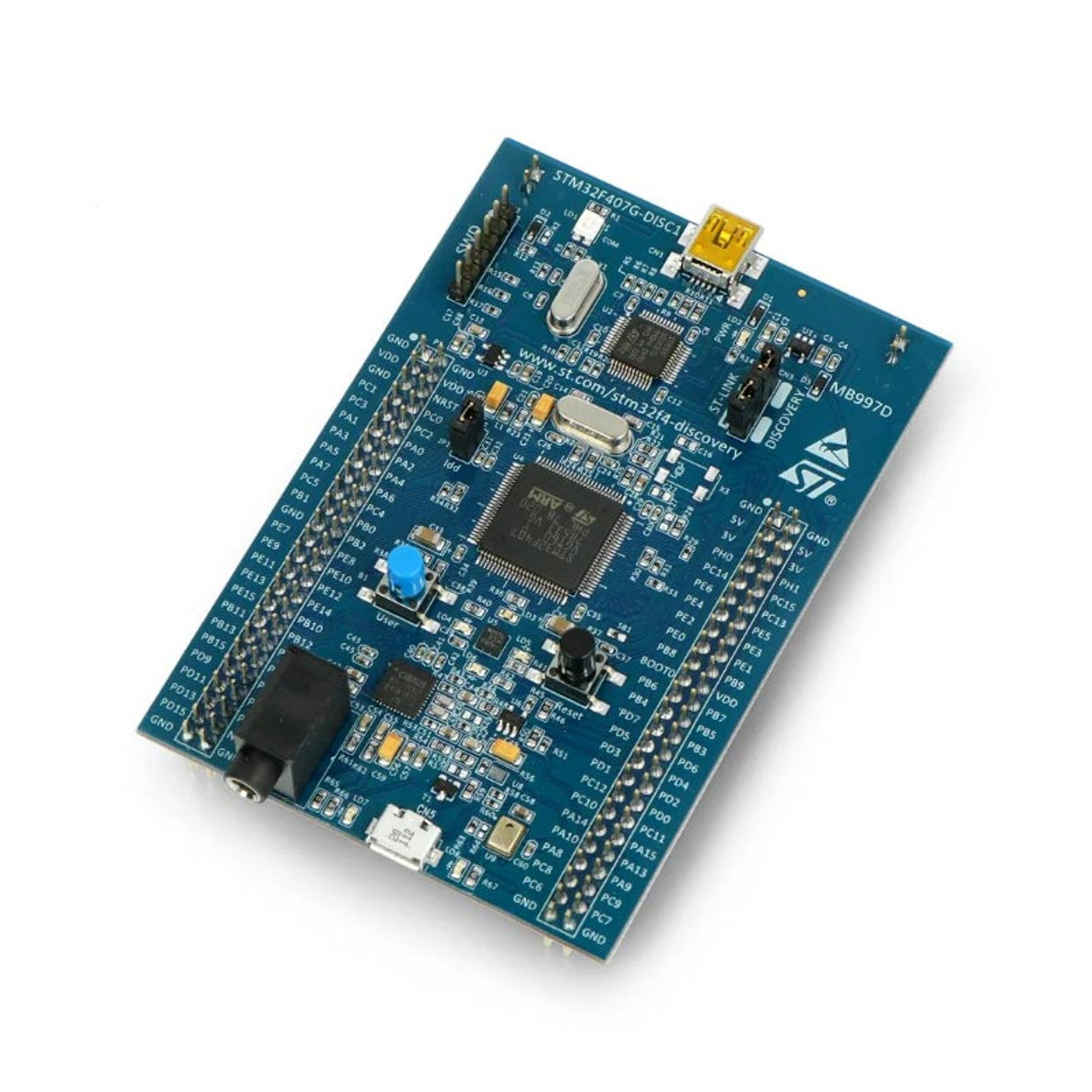

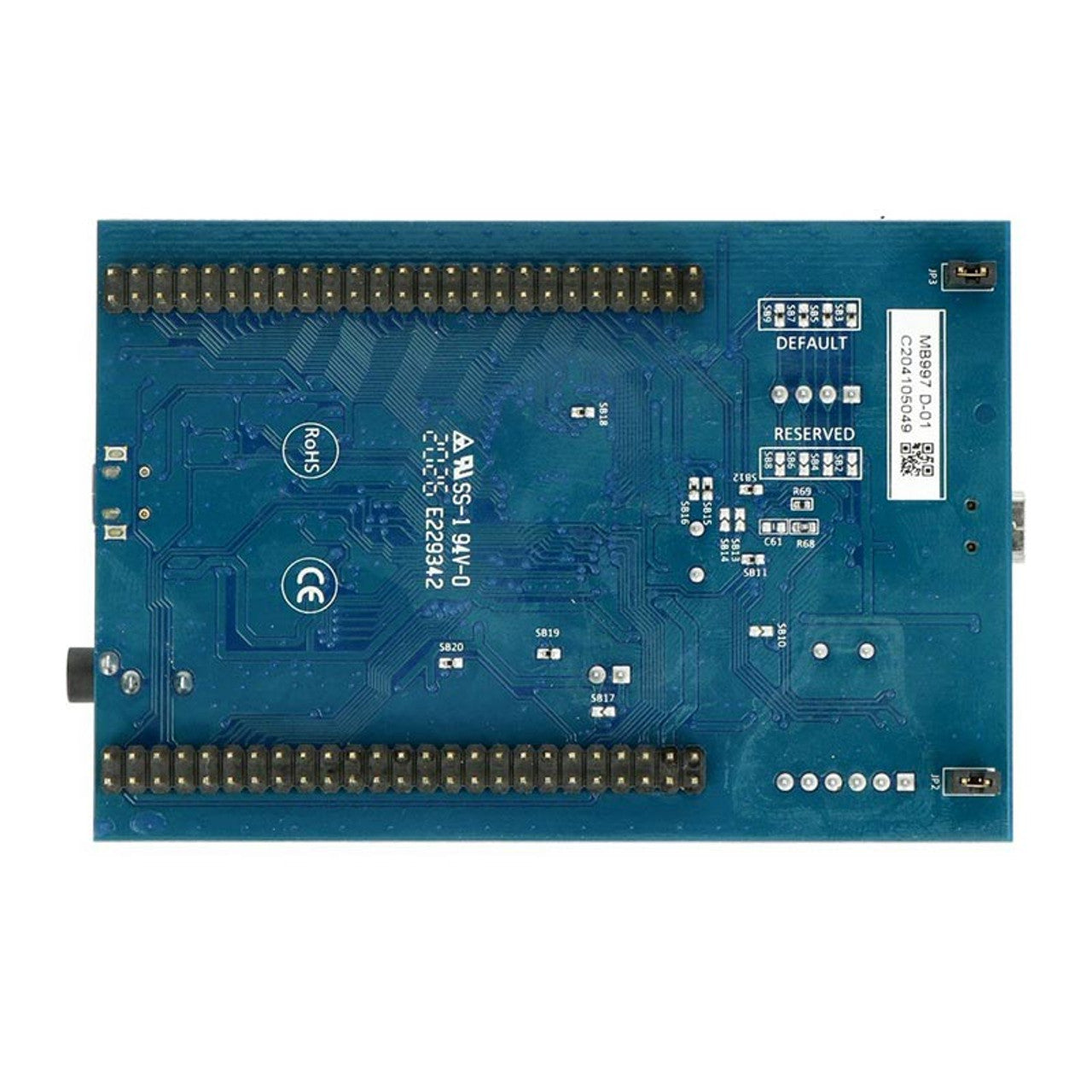

The STM32F407G-DISC1 is a robust development board tailored for electronics enthusiasts. Featuring a high-performance STM32F407 microcontroller, this board is perfect for exploring applications in robotics, industrial automation, and IoT.
Equipped with an ST-LINK/V2-A embedded debug tool, a digital accelerometer, a digital microphone, and an audio DAC with a class D speaker driver, the kit provides a wealth of features. Its USB OTG Micro-AB connector, push-buttons, and LEDs enhance usability, allowing users to fully leverage the STM32F407's capabilities.
The board includes extension header connectors for easy integration of specialized add-on boards, expanding functionality. At its core, the STM32F407VGT6 features a 32-bit Arm Cortex-M4 with FPU, 1 Mbyte of Flash memory, and 192 Kbytes of RAM in an LQFP100 package. It also offers a stereo headphone output jack and a 2.54 mm pitch extension header for convenient connections.
With multiple power supply options—ST-LINK, USB VBUS, or external sources—the STM32F4DISCOVERY kit is versatile and user-friendly. It comes with comprehensive free software, including examples from the STM32CubeF4 MCU Package and STSW-STM32068 for legacy libraries.
To streamline development, the board features an onboard ST-LINK/V2-A debugger/programmer with USB re-enumeration, compatible with IDEs like IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE.
The STM32F4DISCOVERY kit is an essential tool for those looking to unlock the full potential of the STM32F407 microcontroller, especially for audio applications.
Features:
- STM32F407VGT6 microcontroller with 32-bit ARM Cortex-M4, FPU, 1 Mbyte Flash, and 192 Kbyte RAM in LQFP100 package
- On-board ST-LINK/V2-A debugger/programmer
- USB ST-LINK with re-enumeration for debug, virtual COM, and mass storage
- Power supply options via USB or external 5 V source, plus 3 V and 5 V for applications
- LIS302DL or LIS3DSH 3-axis accelerometer
- MP45DT02 digital microphone
- CS43L22 audio DAC with class D speaker driver
- Eight LEDs for various indicators
- USB OTG FS with micro-AB connector
- Extension header for LQFP100 I/Os for prototyping
- Comprehensive free software, including STM32CubeF4 examples and STSW-STM32068 libraries
