Toshiba: ER3V JZSP-BA01 3.6V PLC Cell Non-Rechargeable Lithium Battery with Plug

SKU: 14099273
No reviews

Sale price₹ 539.00
( ₹ 456.78 without 18% GST.)

Tax included Shipping calculated at checkout

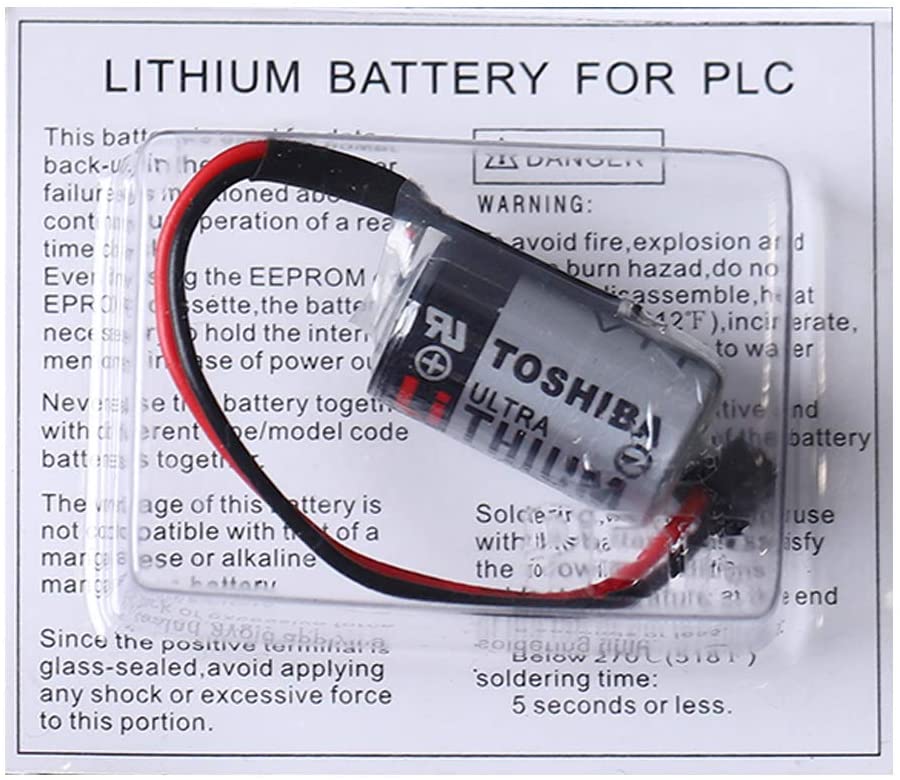

Toshiba Ultra Lithium ER3V/3.6V with black plug CNC Battery

Replacement Battery for: 146705-1, 1467051, 704004, ER3V/3.6V, JZSP-BA01-1, JZSP-BA011, JZSPBA01, JZSPBA011, R88A-BAT02W

This is a Toshiba Ultra Lithium ER3V 3.6V Lithium battery that maintains Programmable Controller PLC Memory backup from PLC Automation equipment such as CNC Machine-tools or any industrial equipment with Mitsubishi PLC batteries using this type of 3.6V battery.

Application range: Real-time clock, PLC backup memory power supply, automotive electronics, various instruments, meters, equipment, and so on.


  • This battery is used for data backup in the event of a power failure as mentioned above, and continuous operation of a real-time clock.
  • Even if using the EEPROM or EPROM cassette the battery is necessary to hold the internal memory in case of a power outage.
  • Never use this battery together with different type/model code batteries together.
  • The voltage of this battery is not compatible with that of manganese or alkaline manganese battery.
  • Since the positive terminal is glass-sealed, avoid applying any shock or excessive force to this portion


  • To avoid fire, explosion, and severe burn hazard, do not recharge, disassemble, heat above 100°C(212°F), incinerate, or expose contents to water
  • Never short the positive and negative terminals of the battery
  • Soldering, when made for use with this battery, must satisfy the following conditions:
    • solder temperature at the end of the tab or pin terminal: Below 270°C(518°F)
    • Soldering time: 5 Seconds or less.
