Description

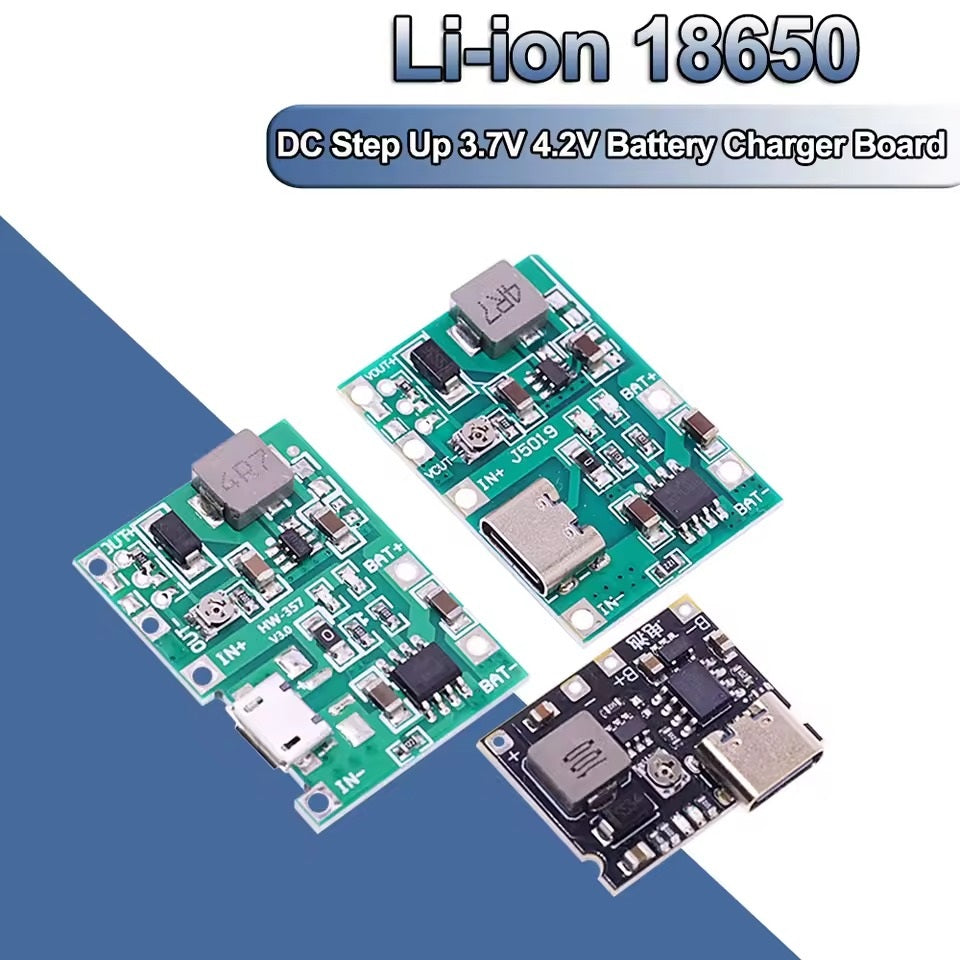

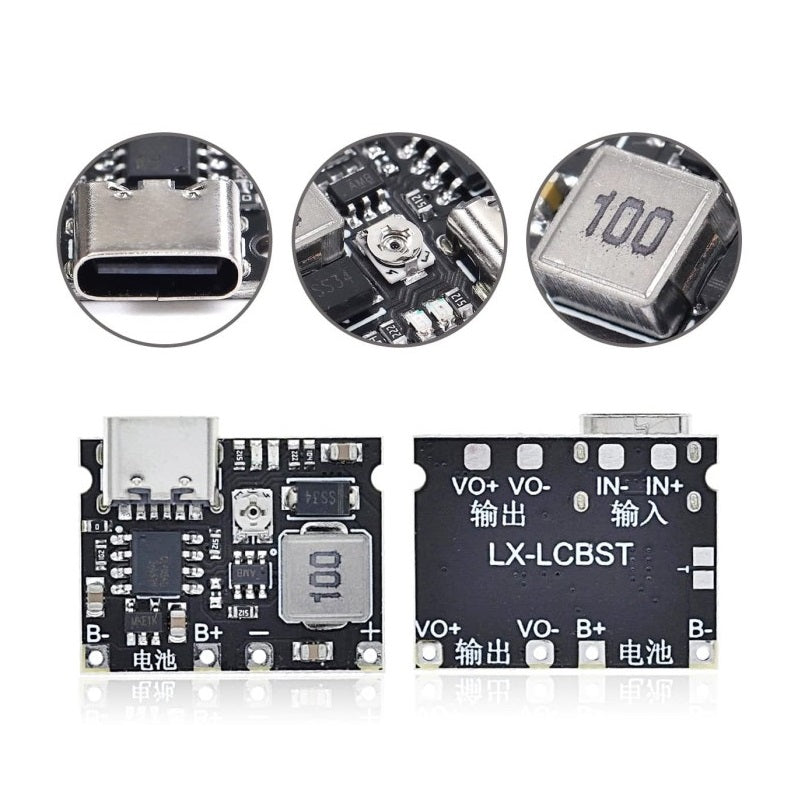

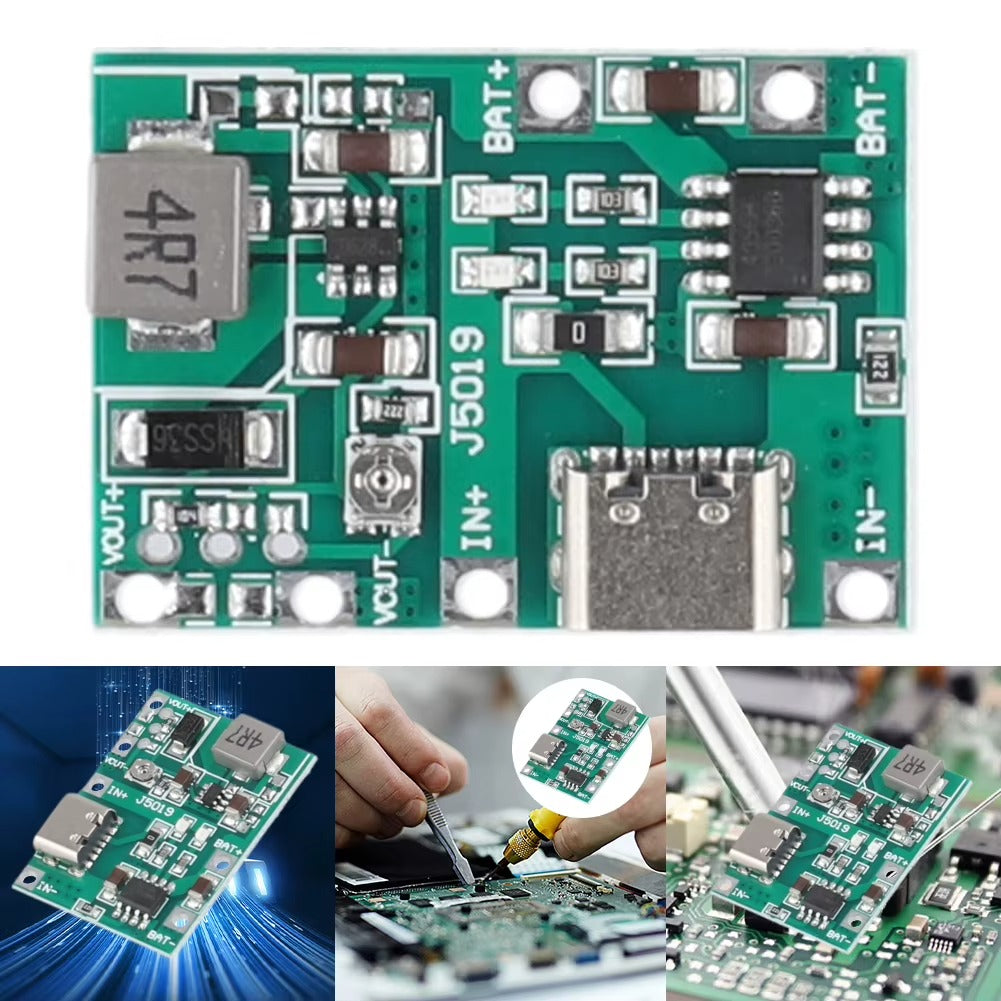

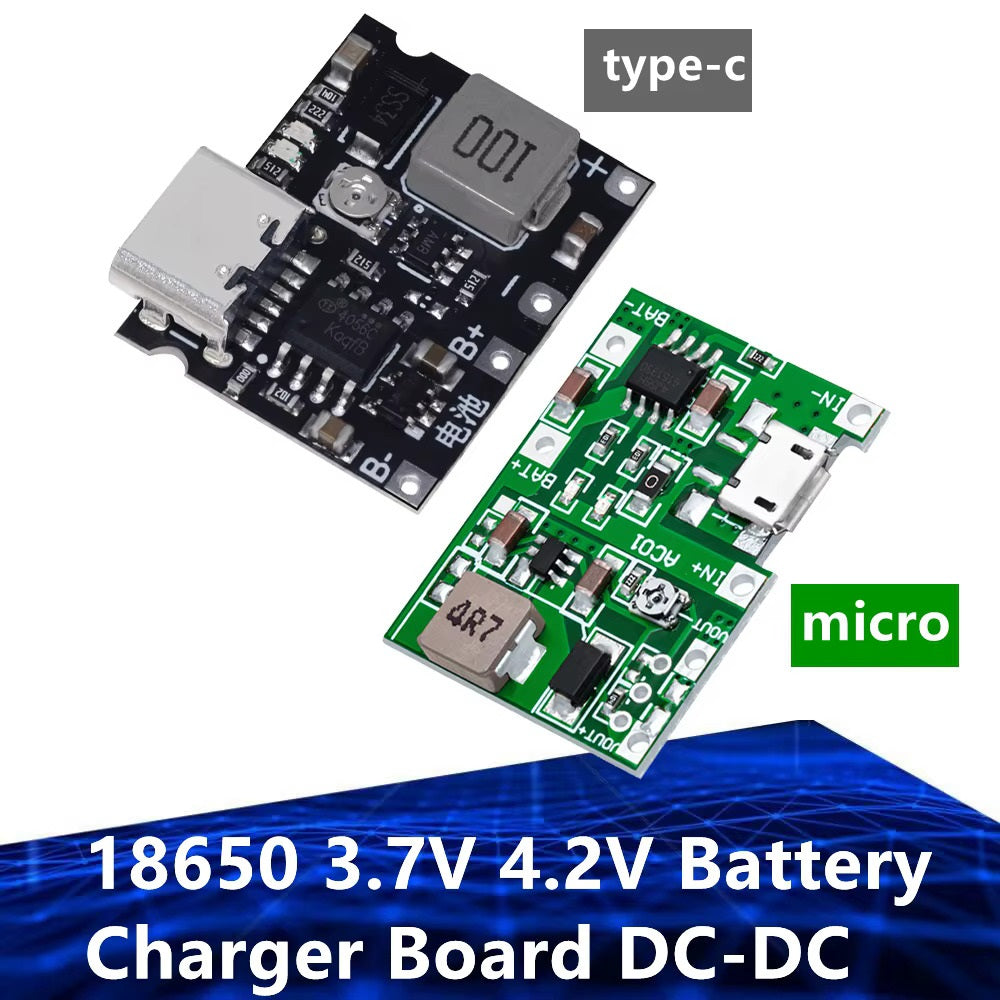

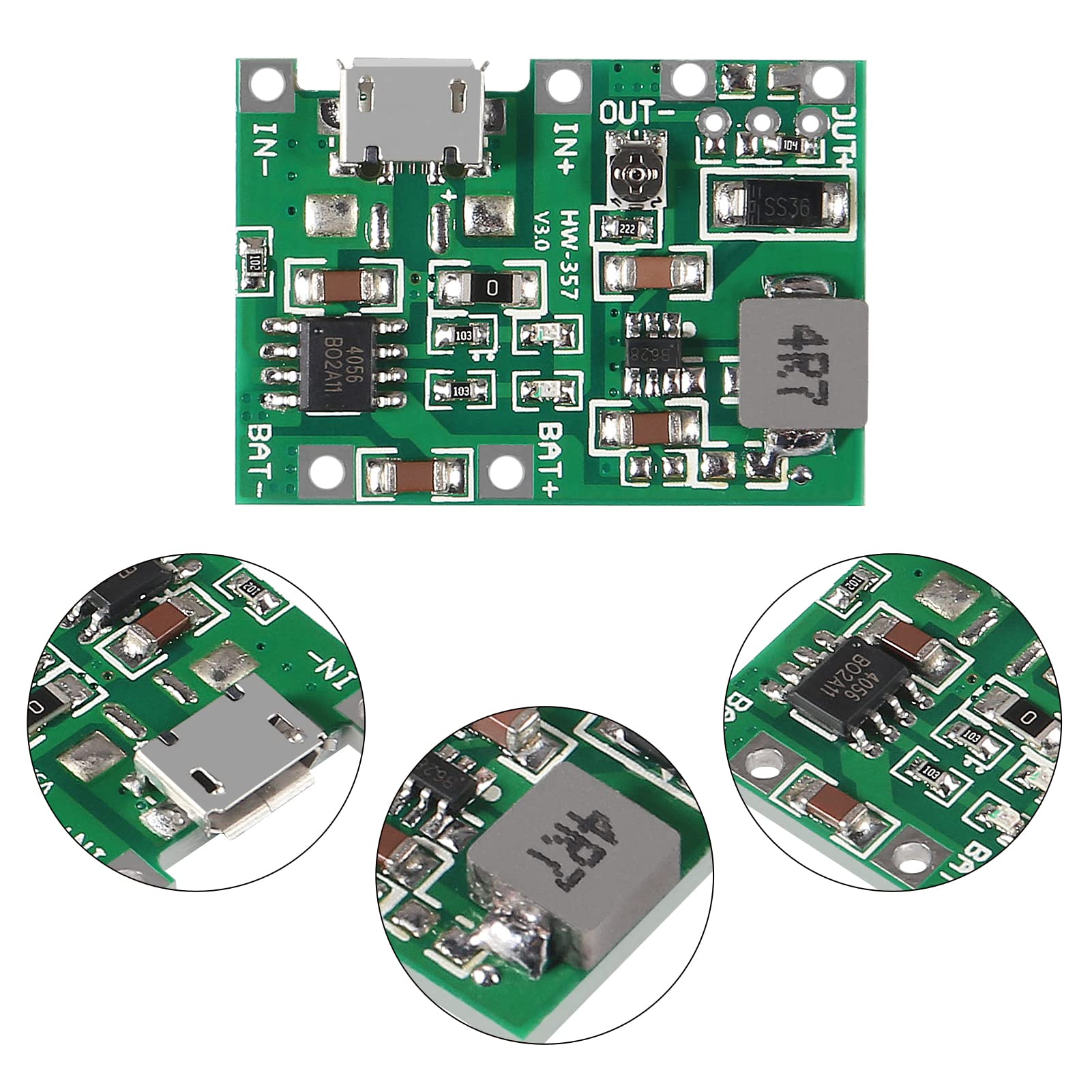

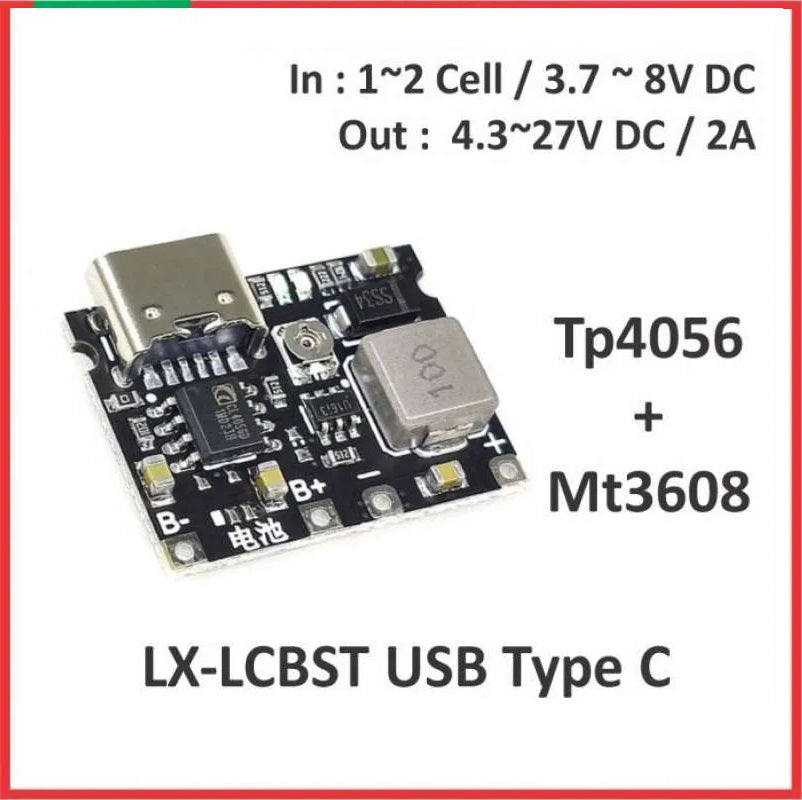

18650 Lithium-Battery Board DC-DC Step Up Boost Module TP 4056
This module is a small single cell lithium battery charging module that also includes a 1A step-up (boost) converter for powering a large range of applications. The module will charge most types of a single cell (3.7) LiPo batteries from either 4 to 7.5V power supply input, or from a standard 5V USB port/adapter. A battery charge and standby LED are also included for visual indication.
Besides battery charging capabilities this module also includes an adjustable boost converter which is capable of stepping up the attached battery voltage from 4.5 to 24V with a maximum supply current of 1A.
Features:
High-quality integrated circuits.
Exquisite detail and long service life.
Module TP4056 DIY kit parts. Can be used for multimeter, converted to lithium-battery charging.
Specification:
- Product code: HCMODU0131
- Input Voltage (USB): 5V
- Input Voltage (IN): 4 - 7.5V
- Battery type: LiPo 3.7
- Default charging current: 1000mA
- Output voltage (VOUT): 4.5 - 24V
- Max output current (VOUT): 1A
- Dimensions: 33mm x 24mm
- Charging voltage: 4.2V DC
- Charging current: max. 1A
- Discharging current: max. 2A
- Package size: 45 * 45 * 20mm / 1.77 * 1.77 * 0.79in
- Package weight: 11g / 0.39ounces
Note: This module is not suitable for running a DC motor, as the module is not able to handle the high current requirement of a DC motor but it can run a small DC Toy motor, whose current requirement is less than 100milli amp.
