Description

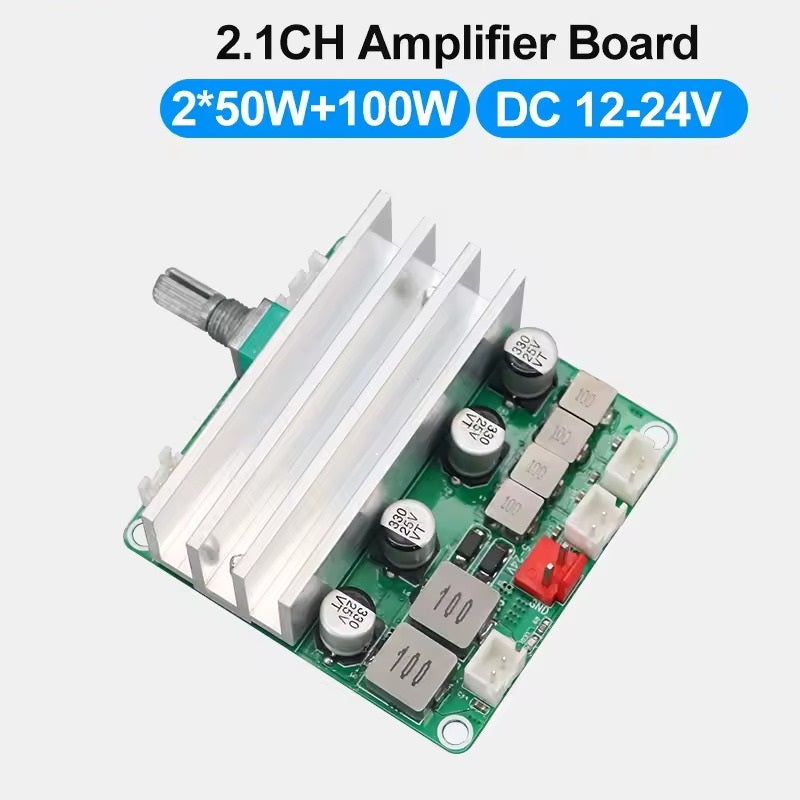

TPA3116 Chip Dual+Pure Bass Channel Audio Receiver Power Amplifier Module 2X50Watt + 100Watt Audio Power Amp Board with Volume Adjustment
Take your DIY speaker system to the next level with this high-power 2.1-channel amplifier module, built on the robust TPA3116D2 Class-D amplifier ICs. With 2 × 50W stereo outputs and a powerful 100W subwoofer channel, this board is ideal for high-performance multimedia speaker systems, home audio setups, or custom Bluetooth boombox builds.
Whether you’re a hobbyist or audio project builder, this compact yet powerful module delivers rich, distortion-free sound.
🔊 Key Features:
-
TPA3116D2 High-Efficiency Class D Amplifier
-
True 2.1-Channel Output:
-
2 × 50W for Left & Right
-
1 × 100W for Subwoofer
-
-
Independent Control Knobs for bass, treble, and volume
-
Wide Voltage Input: Operates on 12V to 24V DC
-
High Signal-to-Noise Ratio and low Total Harmonic Distortion
-
Overheat & Short-Circuit Protection
-
Compact and Easy to Integrate into DIY enclosures

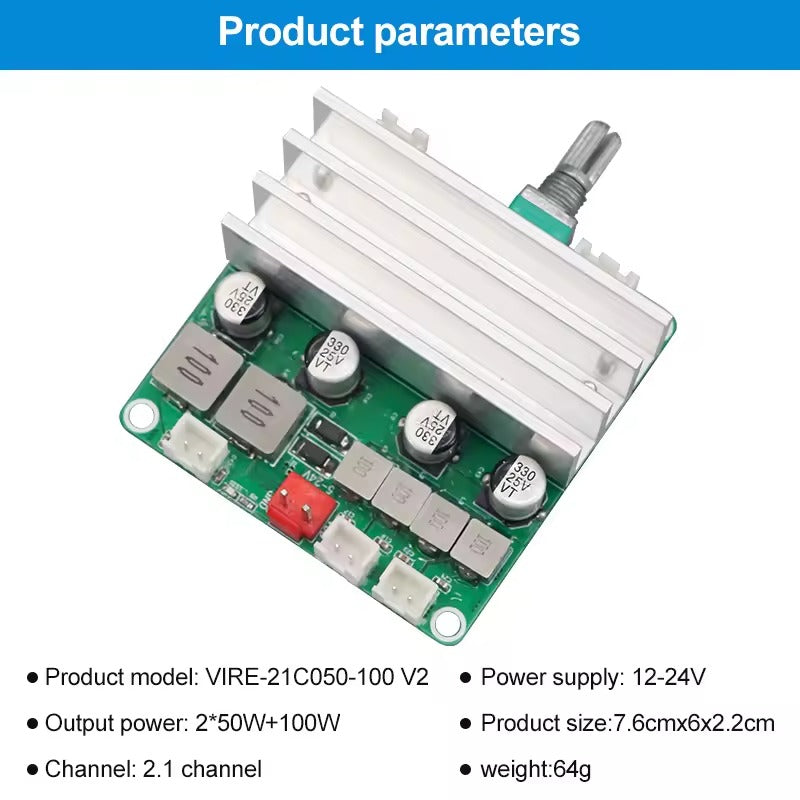

⚙️ Specifications:
-
Amplifier IC: 2 × TPA3116D2
-
Power Output:
-
2 × 50W (Stereo)
-
1 × 100W (Subwoofer)
-
-
Voltage Range: 12V–24V DC
-
Speaker Impedance: 4–8Ω
-
Audio Input: AUX 3.5mm jack
-
Board Dimensions: Approx. 85mm × 60mm
🎯 Applications:
-
DIY 2.1 Home Audio Systems
-
High-Power Portable Bluetooth Speakers
-
Subwoofer Amplifier Projects
-
Audio Upgrade for TVs, PCs, and Gaming Consoles
-
Raspberry Pi / Arduino-based sound systems
