[Type 1] Type-C USB 5V 2A Step-Up Boost Converter with USB Charger

Save ₹ 21.00
SKU: 36929623
No reviews

Sale price₹ 79.00 Regular price₹ 100.00
( ₹ 66.95 without 18% GST.)

Tax included Shipping calculated at checkout


Step Up Boost Converter with USB Type C for 5V 2A Charging Power Bank Module

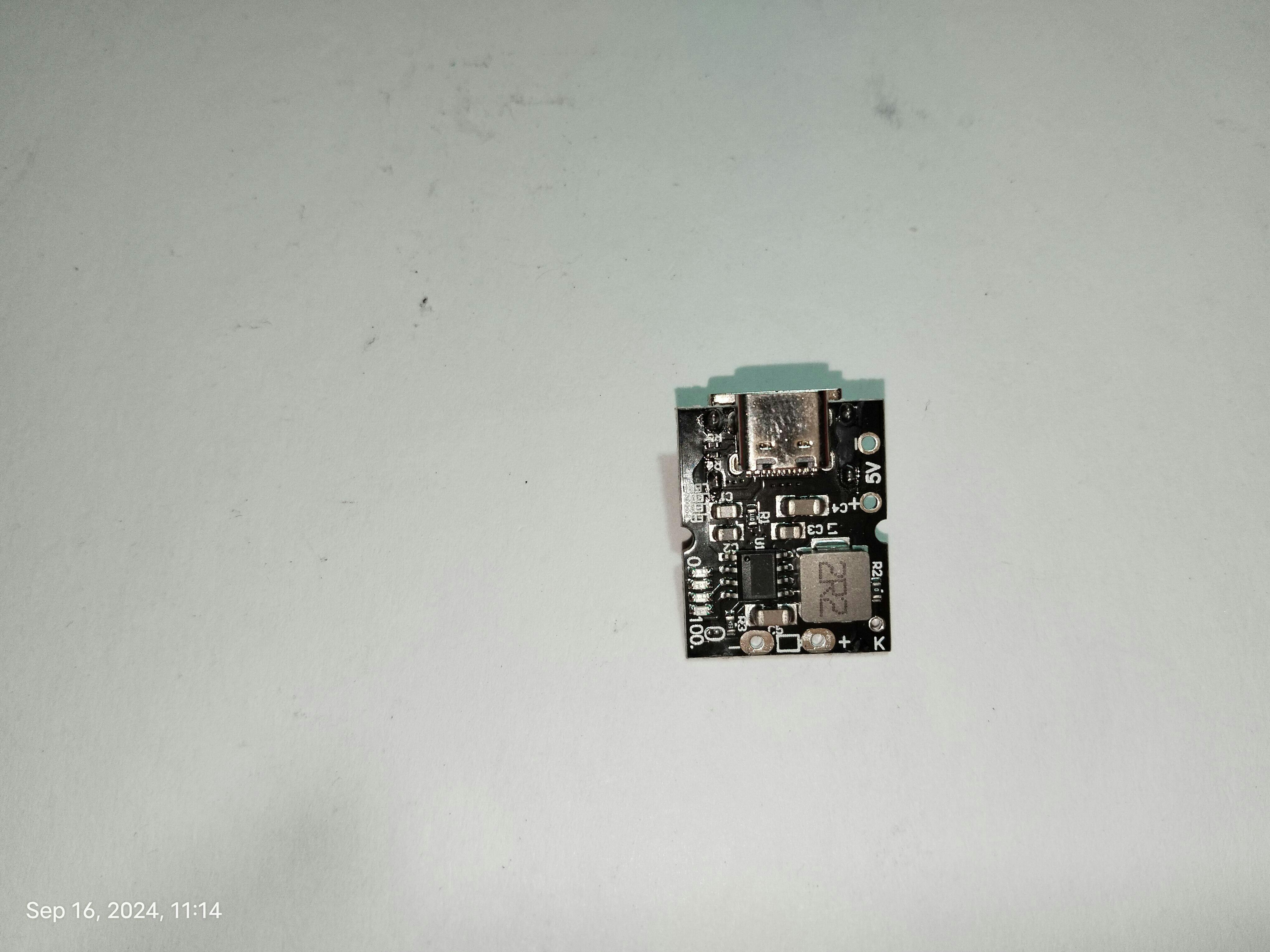

This is a Type-C USB 5V 2A Step-Up Boost Converter with a USB Charger. Great Step-up Module with 5V input, and output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions.

  1. When the load current is less than 50mA continuously, the output will be turned off.
  2. It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.
  3. When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.
  4. When the battery voltage drops below 4.1V, the charging cycle starts again.
  5. When the battery voltage is lower than 2.8V, the battery will be precharged with a current of 180mA.
  6. The USB-a base welding position is provided on the back of the product, which can be installed manually.
  7. It supports discharging while charging.

Features and Specifications:

  1. Input voltage range: 5 to 5.5V
  2. Charging cut-off voltage: (4.2V/4.35V) ±0.5%:
  3. Charging current: 2.4A±5%
  4. Boost output voltage: 5V5.15V (wire loss compensation)
  5. Boost output voltage ripple: 100mV
  6. Boost output current: 2A
  7. Boost conversion efficiency: 92.5% (3.6V input, 5V2A Output)
  8. Battery end quiescent current: 30uA
  9. Material: Metal and Plastic

Note:- Support 4.20/4.30/4.35/4.40V Lithium-ion batteries such as 18650/18700. It's not compatible with 32650/32700 lithium-ion batteries.
