Description
433Mhz Multifunction Wireless Remote Switch Dimmer Module for DC Motors & LEDs – Adjustable Speed
433MHz Digital Remote Control Kit is a compact, reliable, and easy-to-use wireless solution for controlling a variety of electronic applications remotely. This kit includes a 3-button digital remote controller and a highly sensitive RF receiver module with wire antenna. It is perfect for projects involving wireless motor control, lighting systems, garage doors, curtain motors, and general DIY electronics.
The system operates on a stable 433MHz RF frequency and offers a range of up to 100–200 meters (in open space). The receiver module is designed for low power consumption and supports momentary or toggle output modes based on wiring configuration. Two wire antenna variants are available—7.5mm and 14.5mm—for range flexibility.
Key Features:
-
433MHz RF Digital Remote Control System
-

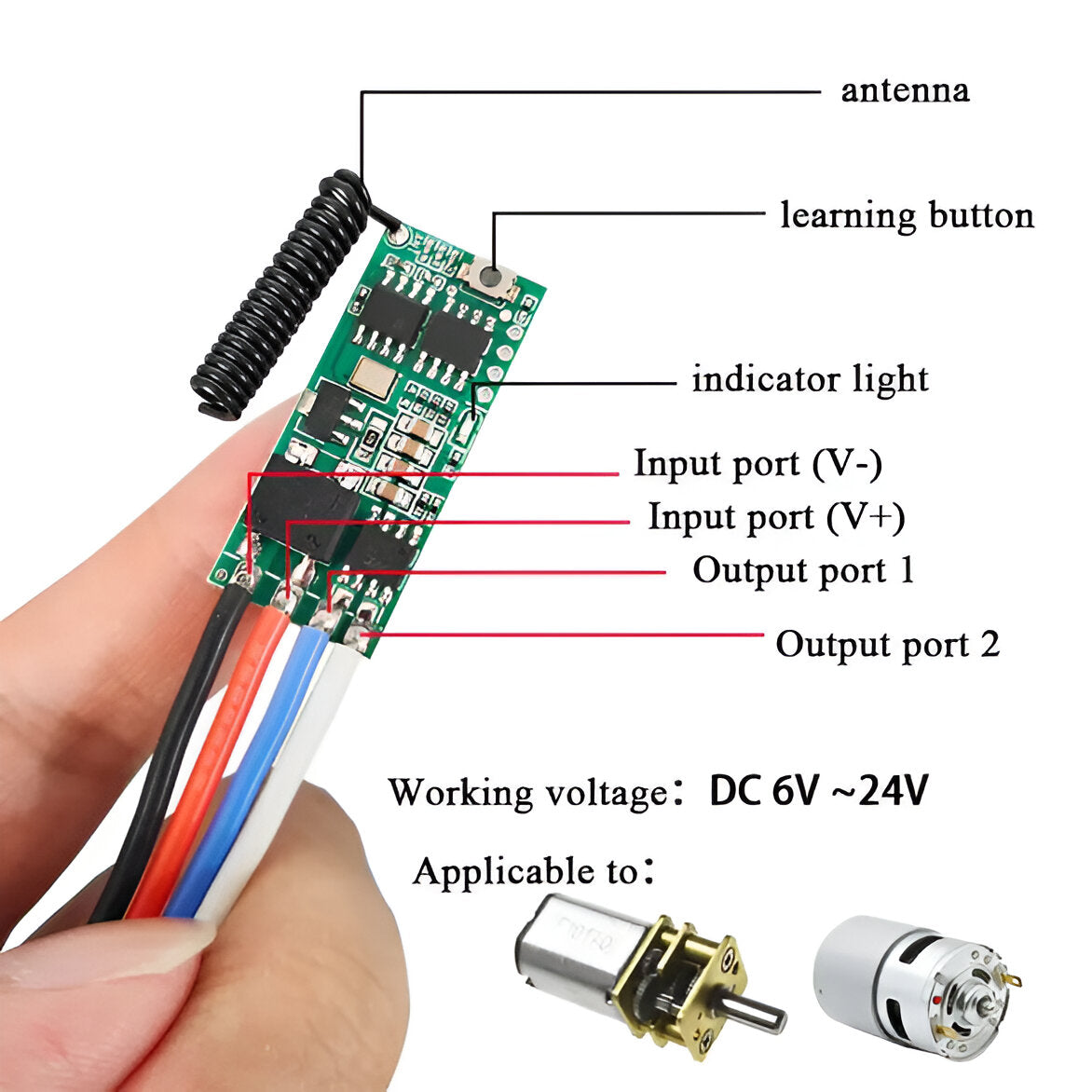

Compact receiver module with integrated antenna
-
Long-range wireless transmission (up to 200 meters open space)
-
Supports momentary or toggle output
-
Ideal for motors, LEDs, fans, home automation, and access control systems
Specifications:
| Specification | Details |
|---|---|
| Frequency | 433 MHz |
| Control Distance | 50 – 200 meters (depending on variant & conditions) |
| Receiver Voltage | DC 3.6V – 12V |
| Output Mode | Momentary / Toggle (configurable) |
| Remote Type | 3-key digital remote |
| Applications | DIY Electronics, Motor Control, Home Automation, Security Systems |
