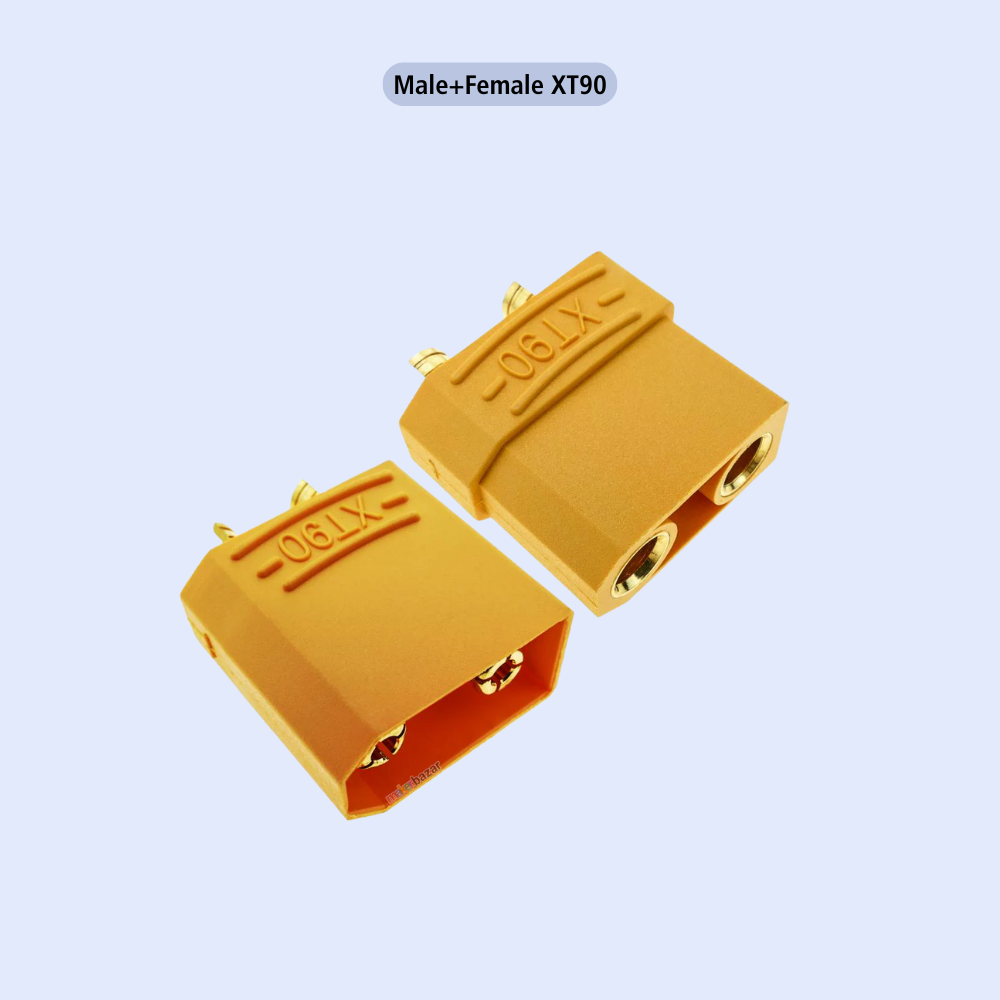

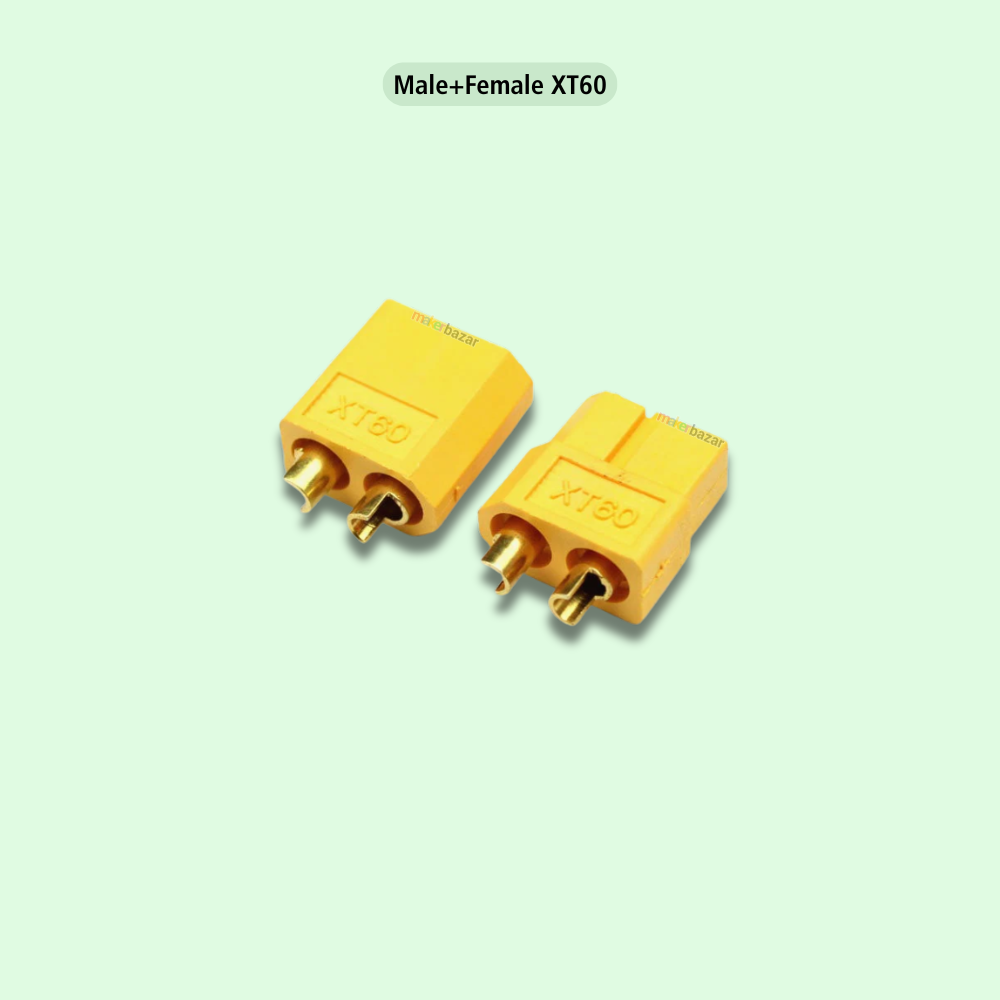

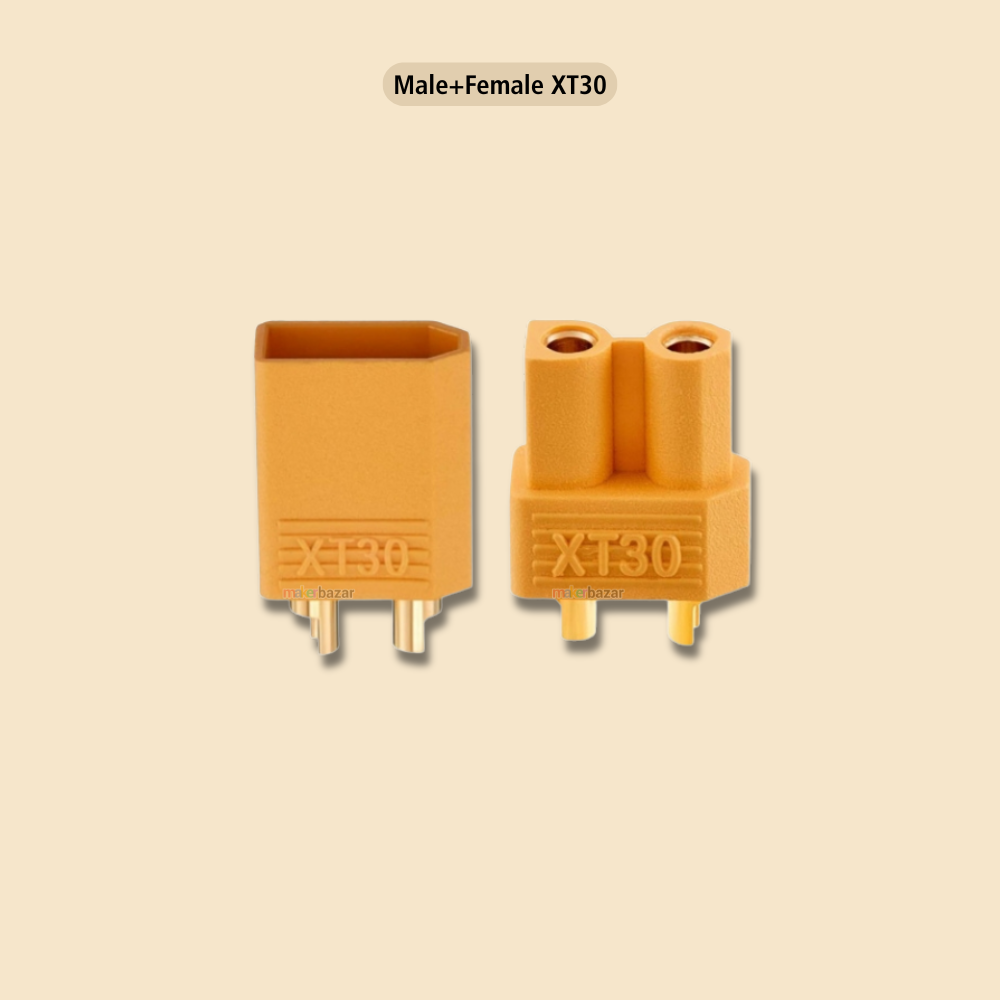

XT-Series LiPo Battery Connectors and Adapters – XT30, XT60, XT90, XT120 & More
The XT-Series LiPo Battery Connectors and Adapters are designed to provide secure, high-current power connections for RC models, drones, e-bikes, robotics, and DIY electronics. Made from high-temperature nylon and featuring gold-plated bullet terminals, these connectors ensure low resistance, maximum conductivity, and safe, reliable power delivery even under heavy loads.

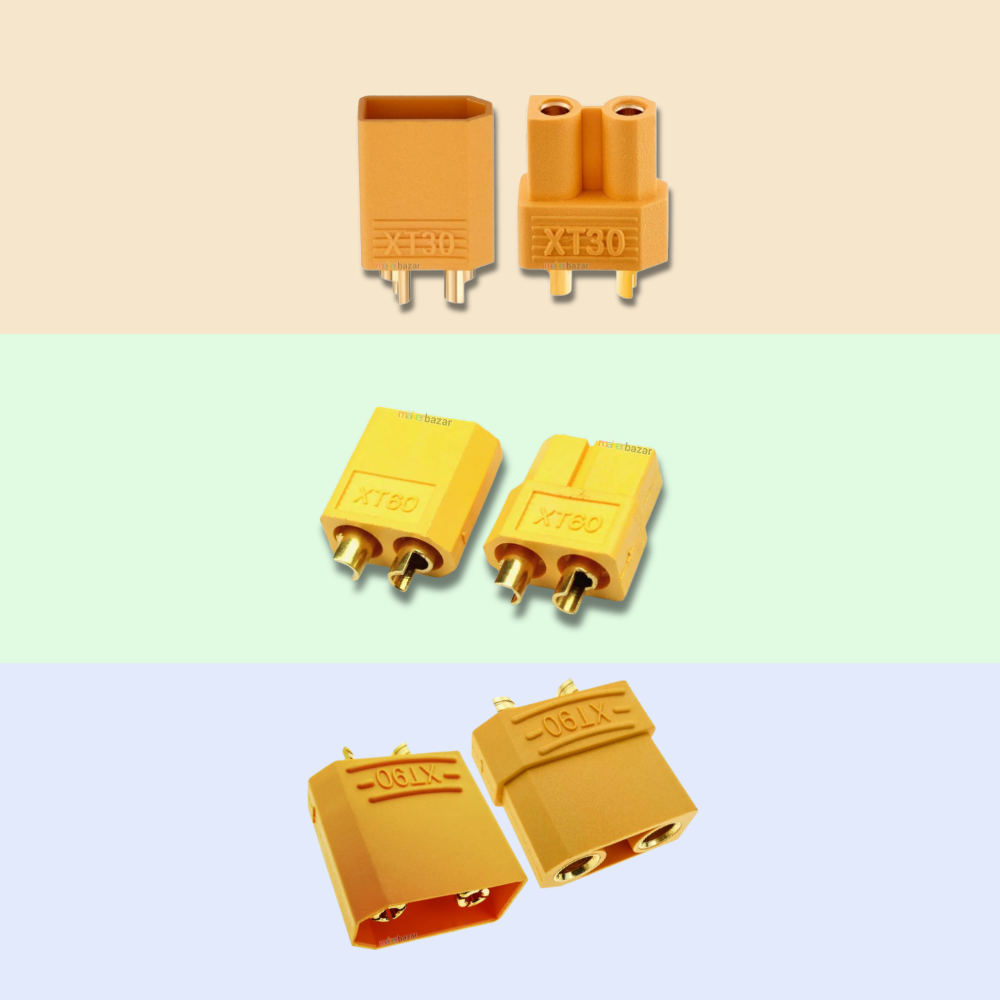

Available in multiple types — XT30, XT60, XT90, XT120, and others — the XT connector series covers a wide range of current and voltage applications. Whether you’re upgrading your RC vehicle, building a drone, or wiring a power distribution board, these connectors deliver professional performance with a tight, vibration-resistant fit.
Features
-
Wide Compatibility: Supports XT30, XT60, XT90, XT120, and more connector variants.
-
High Current Capacity: Designed for continuous high-current applications (up to 120A).
-
Low Resistance: Gold-plated connectors ensure efficient current transfer and minimal power loss.
-
Durable Construction: Heat-resistant nylon housing prevents deformation and ensures a secure fit.
-
Anti-Reverse Polarity: Unique shape prevents incorrect connections.
-
Easy Solder Terminals: Simplifies wire installation for hobbyists and professionals.
-
Secure Fit: Snug design prevents accidental disconnections during operation.
Technical Specifications
| Parameter | XT30 | XT60 | XT90 | XT120 |
|---|---|---|---|---|
| Rated Current | 30A | 60A | 90A | 120A |
| Voltage Rating | Up to 500V DC | Up to 500V DC | Up to 500V DC | Up to 600V DC |
| Connector Material | Nylon (High Temp) | Nylon (High Temp) | Nylon (High Temp) | Nylon (High Temp) |
| Contact Material | Gold-Plated Brass | Gold-Plated Brass | Gold-Plated Brass | Gold-Plated Brass |
| Wire Compatibility | 18–16 AWG | 14–12 AWG | 10–8 AWG | 8–6 AWG |
| Temperature Range | -20°C to +120°C | -20°C to +120°C | -20°C to +120°C | -20°C to +120°C |
| Gender Options | Male / Female | Male / Female | Male / Female | Male / Female |
Applications
-
LiPo battery connections for drones, RC cars, and helicopters
-
DIY electronics and robotics projects
-
Power distribution boards and ESCs
-
E-bike and electric scooter power systems
-
Solar energy systems and custom power solutions
