Description

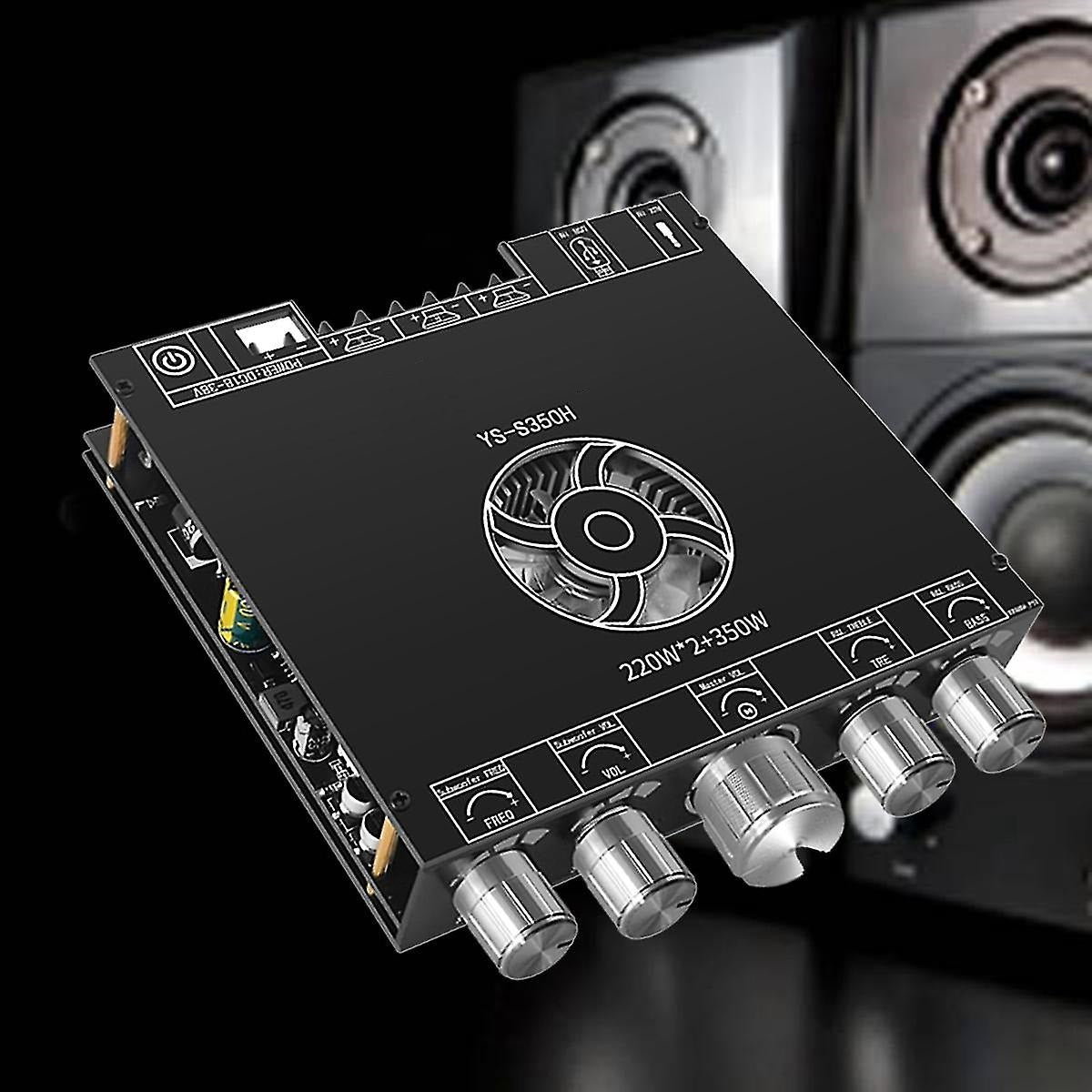

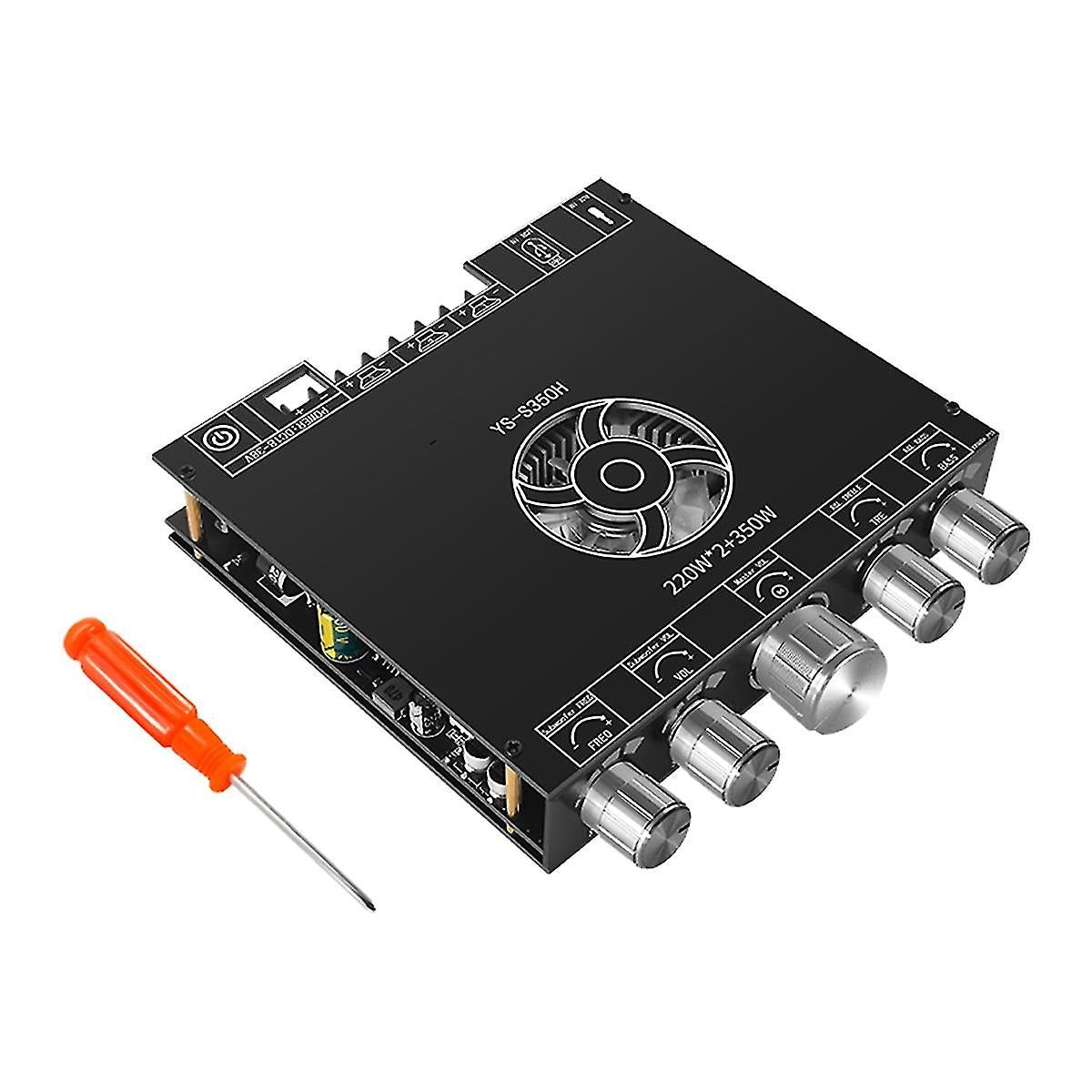

YS S350H High-Power Subwoofer 2.1 Channel Bluetooth Amplifier Board 220Wx2+350W Super 7498E Audio Amplifier Board
- Excellent quality: high quality material, safe and durable.
- Stable performance: with better noise performance, excellent output drive capability and relatively high small signal bandwidth, large power supply voltage range.
- High fidelity: When used as an audio amplifier, the tone is warm and the fidelity is high.
- Wide range of uses: suitable for high quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers.
- It has the characteristics of small size, high efficiency, high power and small heat.
Specifications:
- Product name: 2.1 channel bluetooth audio amplifier board
- Product Model: YS-S350H
- Bluetooth version: 5.1
- Frequency range: 20Hz-20KHz
- Signal to noise ratio: 92dB
- Power supply: above DC18-38V/10A
- Audio channel: 2.1 channel
- Audio output: left and right channels + subwoofer

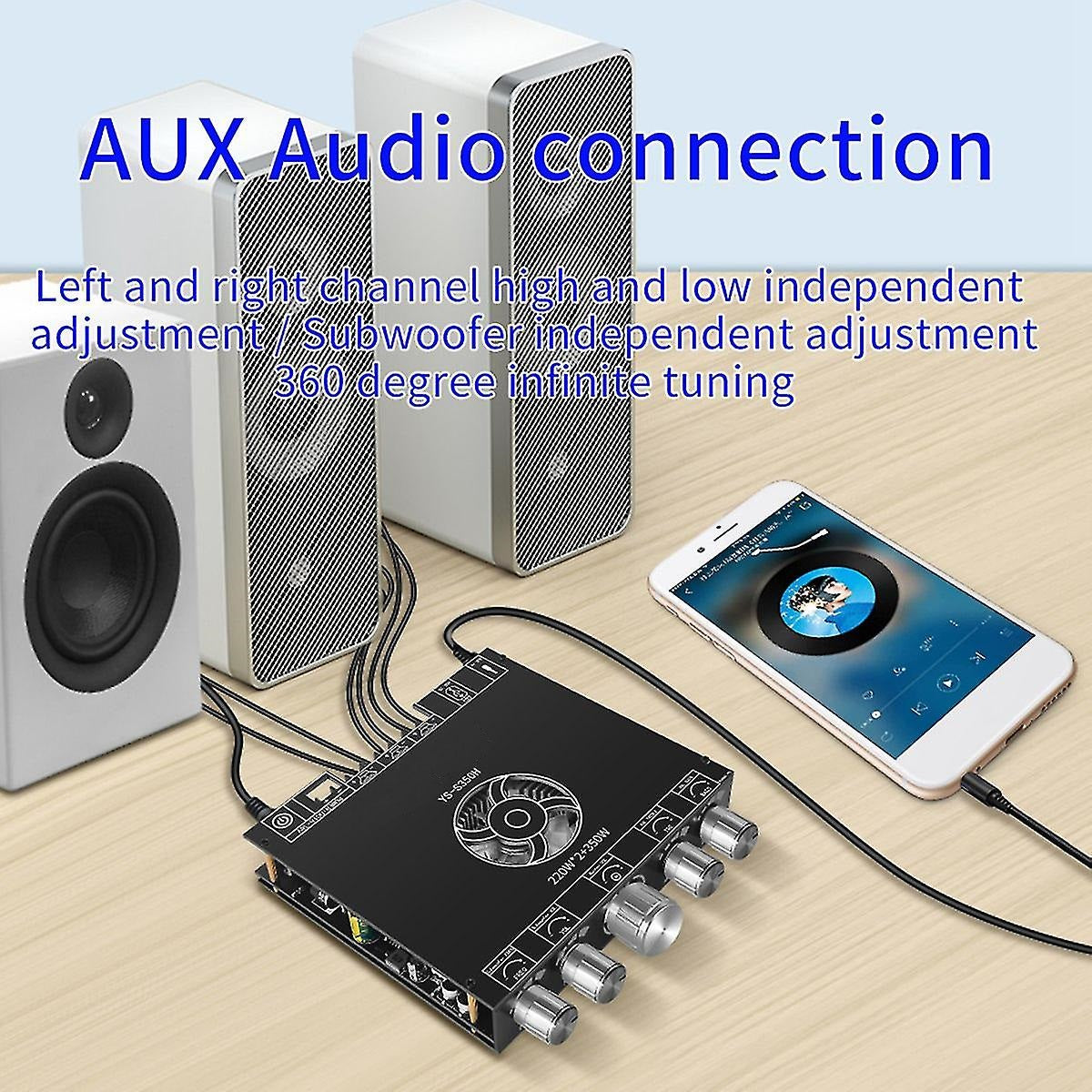

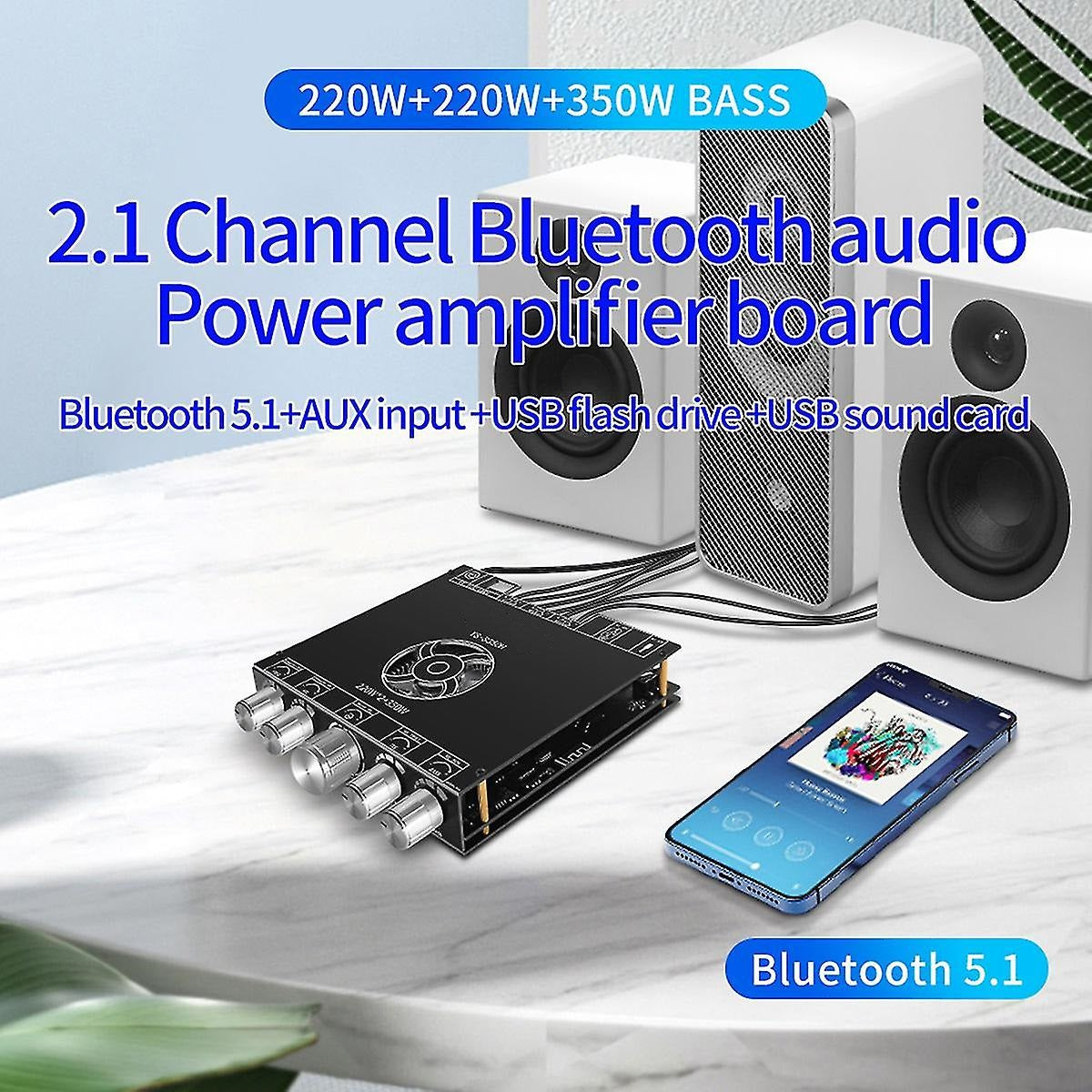

- Audio input: Bluetooth+AUX+U disk+USB sound card
- Output power: 220W*2(left and right channels)+350W(subwoofer)
- Left and right channel maximum output power: 220W/3Ω2--36VDC ; 175W/42--36VDC ; 100W/8Ω2--36VDC
- Subwoofer maximum output power: 355W/2Ω--36VDC ; 250W/3Ω--36VDC ; 195W/4Ω--36VDC
- Subwoofer (subwoofer) Adapter speaker: 20W-200W /2Ω-8Ω
- Volume adjustment: high-end encoder knob adjustment, smooth feel
- Protection mechanism: overvoltage, undervoltage, overheating, clipping, short circuit, etc.
- Unique function: support YS Audio-APP control
-
Type: Bluetooth Audio Power Amplifier Board Module
- Type: Power Amplifier Board
- Type: Audio Power Amplifier
- Type: Digital Power Amplifier Board
- Type: Audio module
- color: Black
