Description
GSM 3G Antenna

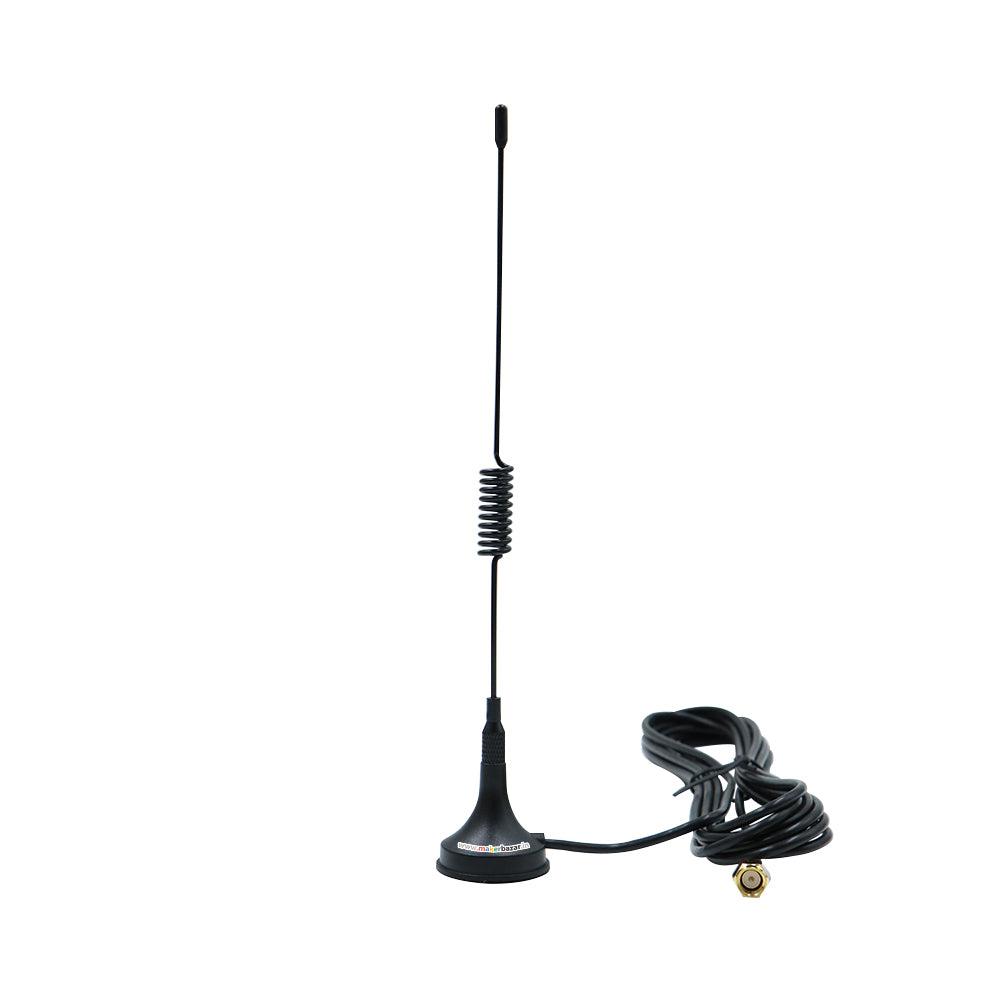

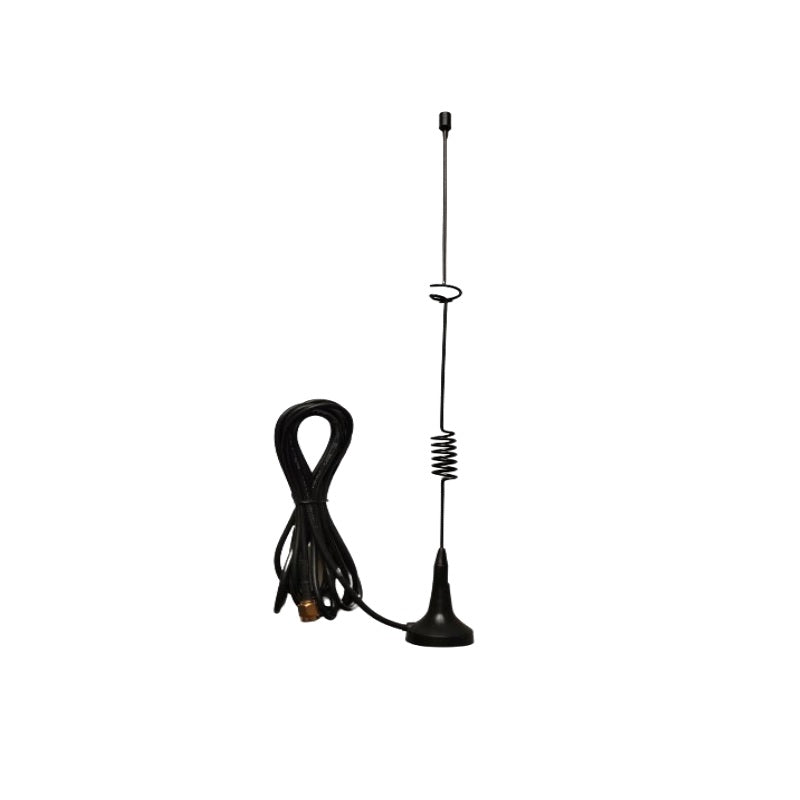

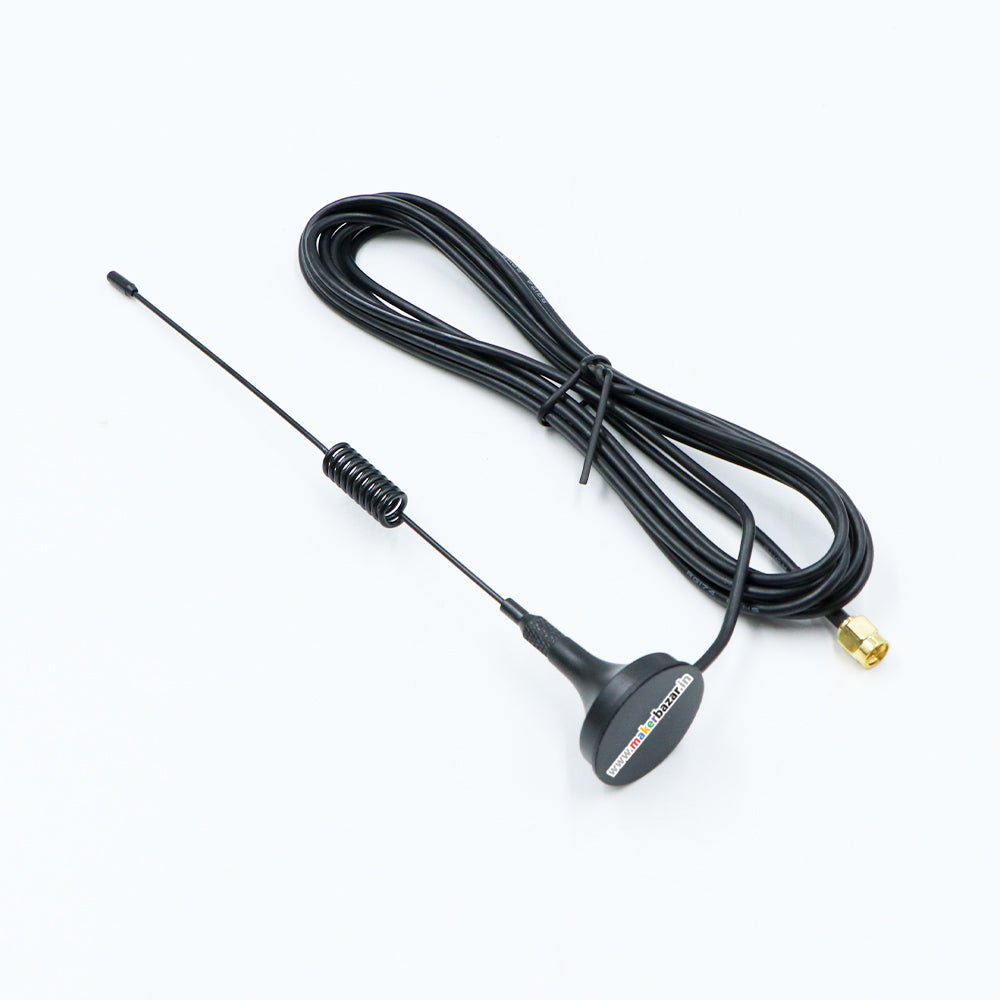

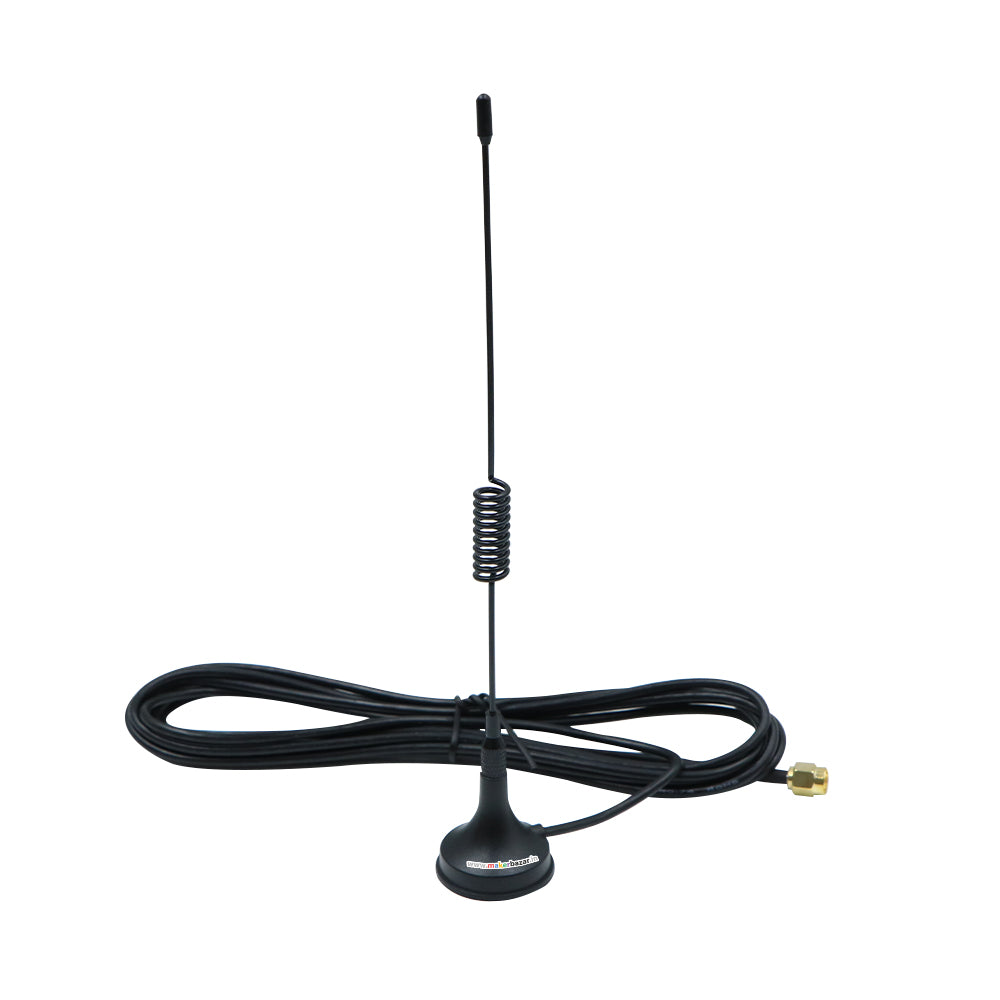

This is a Magnetic Dual-Band Mount Antenna having a frequency of 824 – 960 MHz & 1710 – 2170 MHz and a gain of 4/6 dBi. This antenna is supported by GSM FCT and other GSM Modules/Modems. The biggest advantage to dual-band antennas is their ability to provide a strong, stable wireless connection is often difficult to reach locations. For this reason, they are often used in devices such as cellular or dual-band wireless access points.
Application: GSM, 3G
Features:
- Compact Size
- Low Cost
- SMA Male
- Any cable length (suggested <5m)
Specifications:
| Frequency (MHz) |
824 – 960 MHz & 1710 – 2170 MHz |
| Gain |
4 / 6 dBi |
| Impedance (Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Linear |
| Power Handling (W) |
10 |
| HPBW |
H: 3600 ; V: 300 / 400 |
| Cable |
RG174 |
| Connector |
SMA Male Plug |
| Operational Temperature |
-30° to 60° C |
| Humidity |
5 – 75% |
| Housing |
Carbon Steel Powder Coated |
| Dimension (mm) |
280 x φ27 |
| Weight |
100g |
| Cable Length (Meter) |
3 |
Package Includes:
1 x 824 – 960 MHz And 1710 – 2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna
