Description

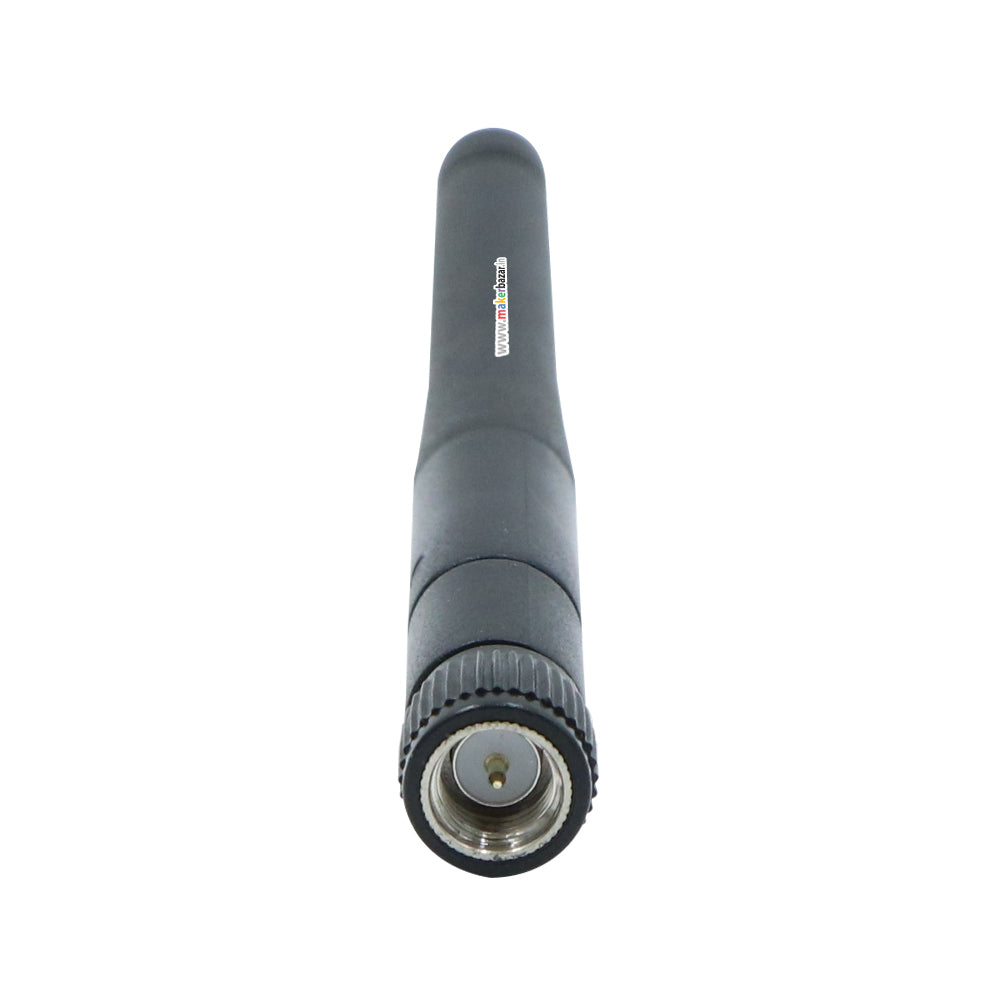

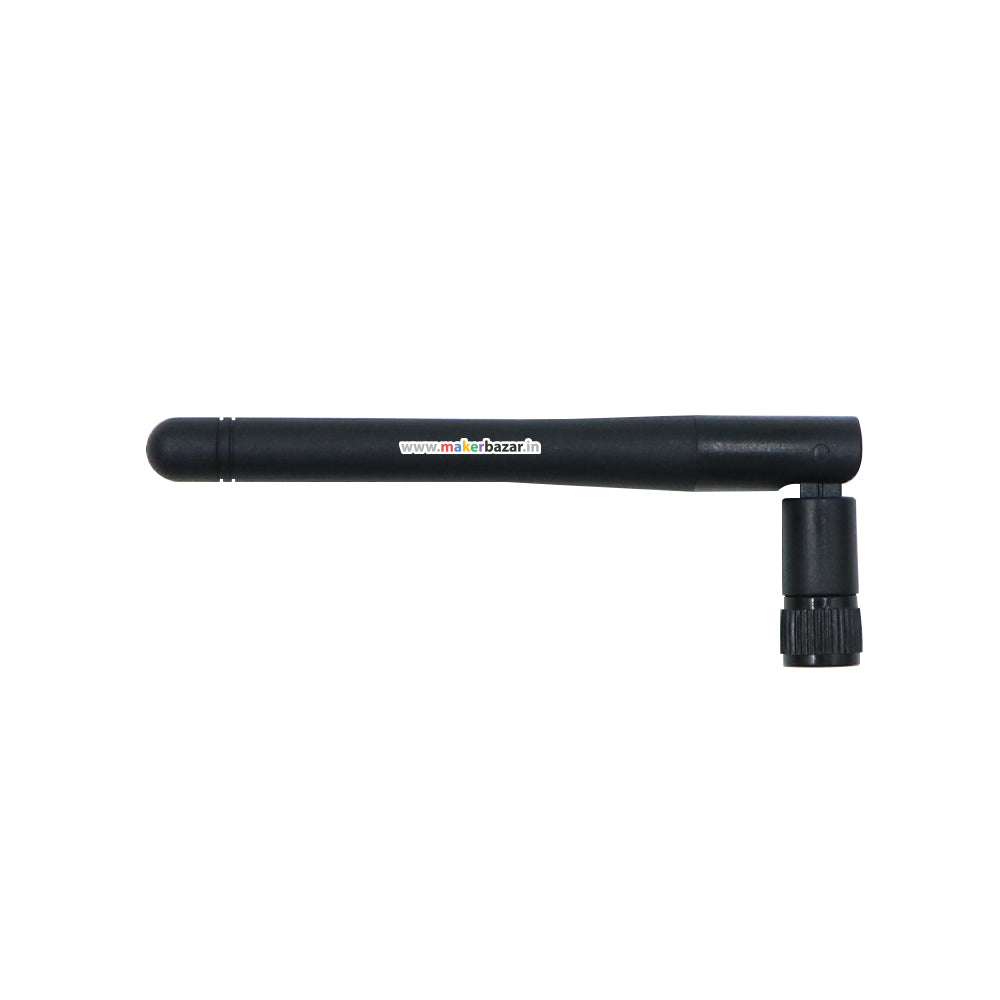

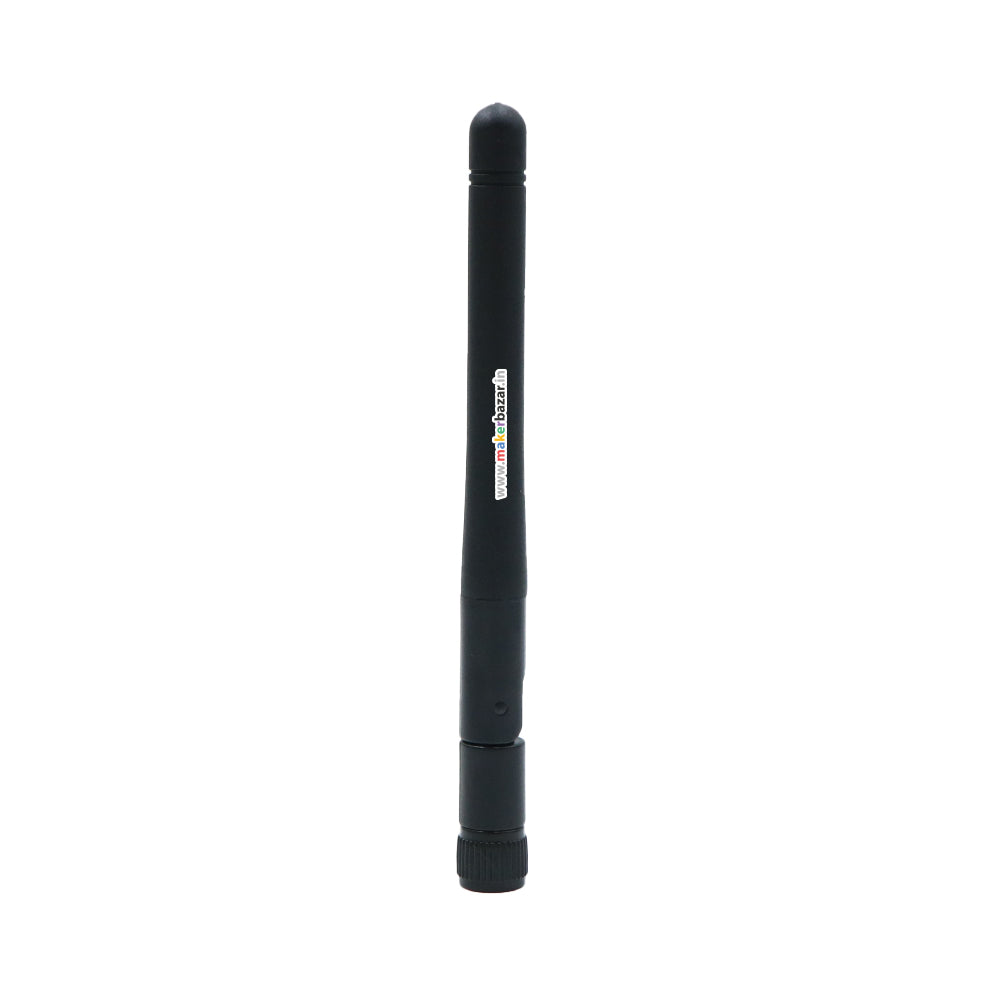

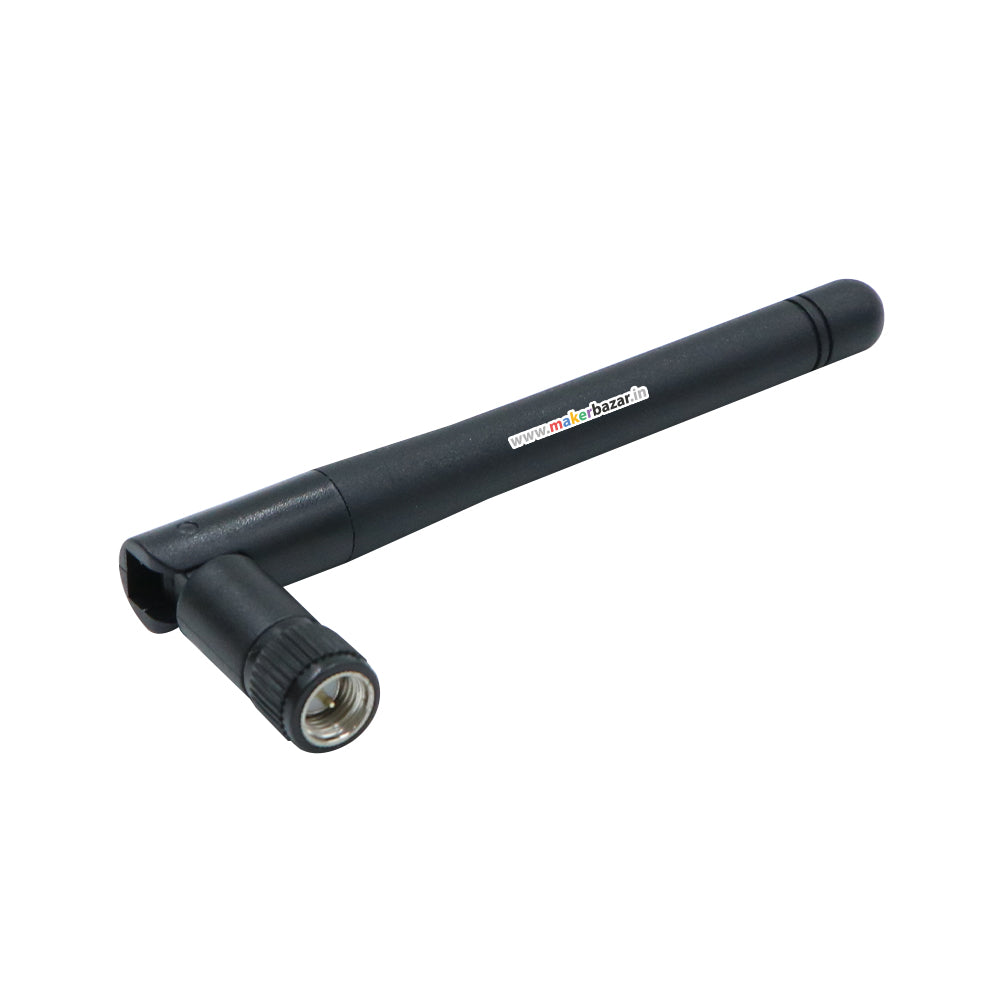

2400 - 2483 MHz / 3dBi Gain Rubber Duck Antenna
This is Rubber Duck Antenna with Right Angle foldable Connector having a frequency of 2400-2483 MHz and 3dBi Gain.
Application: WiFi, Bluetooth/ Zigbee,5G , ISM
Features:
- Compact Size
- Low Cost
Specifications:
| Frequency (MHz) |
2400 – 2483 MHz & 5125 – 5875 MHz |
| Gain |
3 dBi |
| Impedance(Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Vertical |
| Power Handling (W) |
10 |
| HPBW |
H: 3600 ; V: 300 / 400 |
| Connector |
RP-SMA Plug |
| Operational Temperature |
-30° to 60° C |
| Humidity |
5 – 75% |
| Housing |
Plastic / Black |
| Dimension (mm) |
110 x φ10 mm |
| Weight(g) |
50 |
Package Includes:
1 x 2400-2483 MHz/3dBi Gain Rubber Duck Antenna
