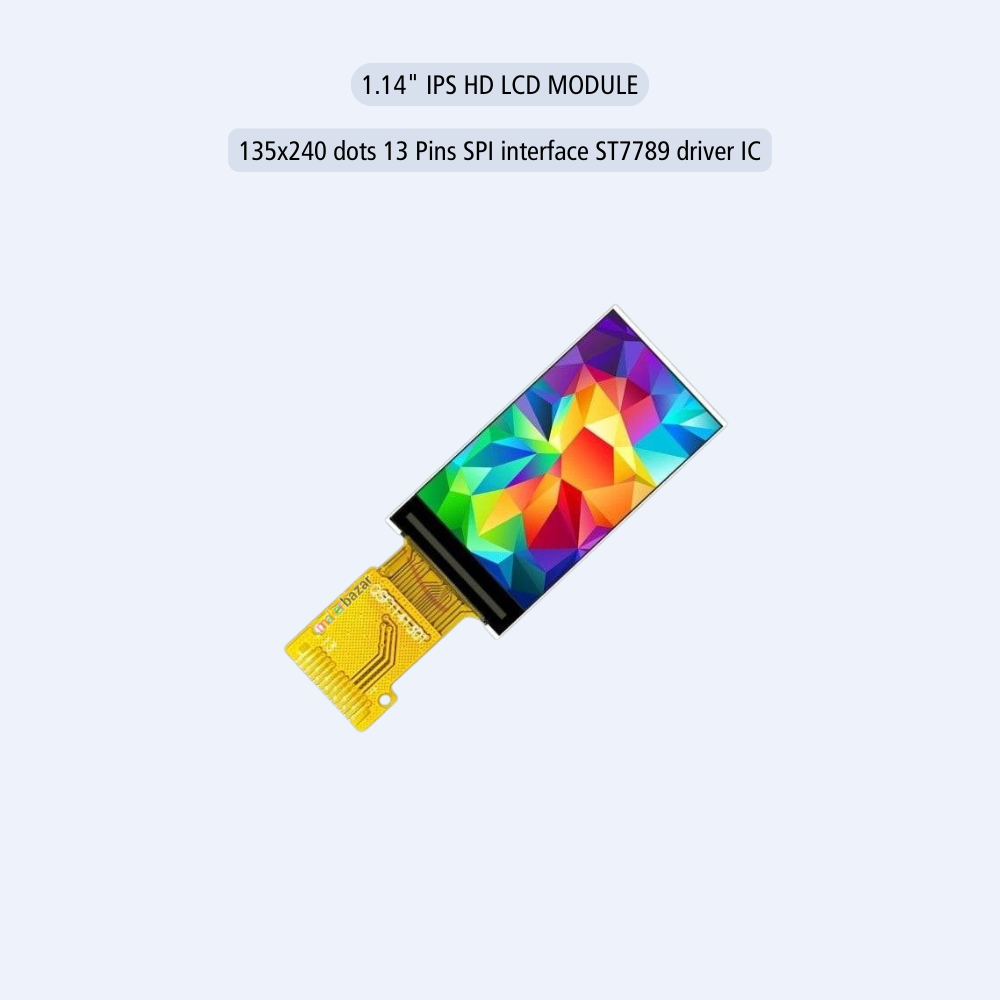

1.14″ Small Size IPS TFT LCD Display Module – 135×240 Resolution
The 1.14-inch TFT LCD Display Module (Model: N114-2413THBIG01-H13) is a compact, high-quality display solution designed for modern embedded and portable devices. Featuring a 135×240 RGB pixel resolution and an IPS wide viewing angle panel, this display delivers sharp visuals, vibrant colors, and consistent brightness from almost any angle.
Powered by the ST7789V3 driver IC, the module supports SPI / MCU interfaces, making it highly compatible with popular microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi. With a brightness of 400 cd/m², low power consumption, and a slim profile, it is ideal for space-constrained applications that demand premium visual performance.
This display module operates on 2.4V–3.3V, supports 65K colors, and is designed without a touch panel, ensuring simplicity and reliability. Its wide operating temperature range makes it suitable for both consumer and industrial applications.
Key Features:
-
Compact 1.14-inch TFT LCD display module
-
High resolution 135×240 RGB dots
-
IPS panel with wide 80° viewing angles
-
Built-in ST7789V3 driver IC
-
Supports SPI / MCU interface
-
Brightness up to 400 cd/m²
-
Low power operation (2.4V–3.3V)
-
Slim and lightweight design (1.8g)
-
No touch panel for simplified integration
Technical Specifications:

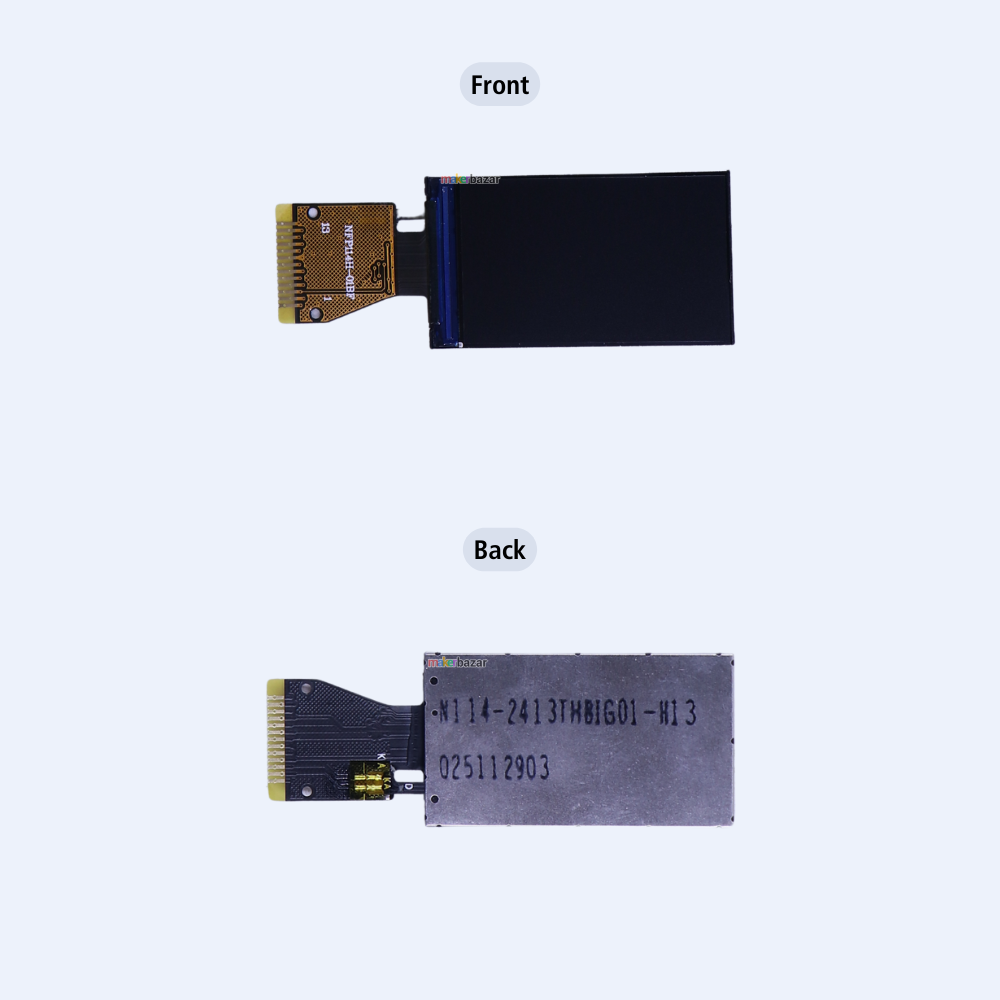

| Parameter | Details |
|---|---|
| Model Number | N114-2413THBIG01-H13 |
| Display Size | 1.14 inch |
| Resolution | 135 × 240 dots |
| Display Type | TFT LCD |
| Panel Technology | IPS |
| Viewing Direction | Free / All-angle |

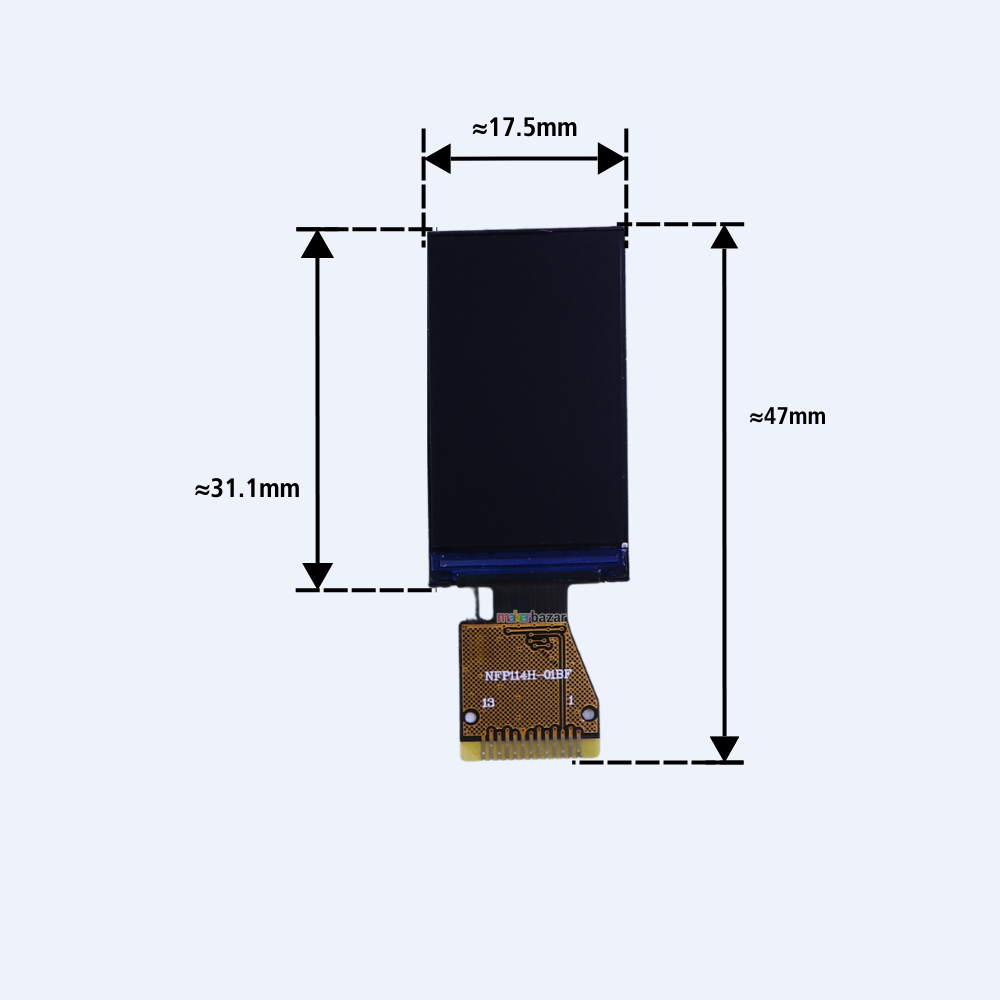

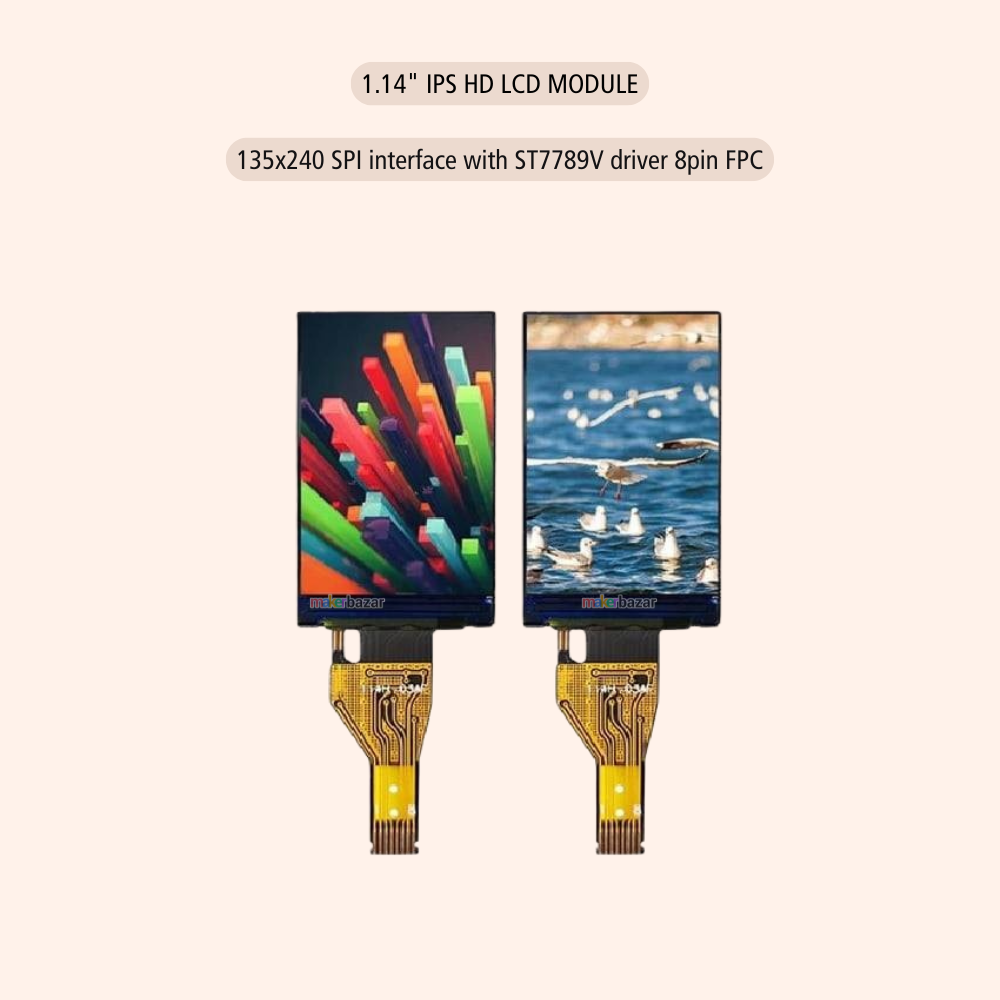

| Active Area (A.A) | 14.86 × 24.91 mm |
| Module Size | 17.6 × 31 × 1.6 mm |
| Color Arrangement | RGB Vertical Stripe |
| Number of Colors | 65K |
| Brightness | 400 cd/m² (Min) |
| Interface | SPI / MCU |
| Pin Count | 13 Pins |
| Driver IC | ST7789V3 |
| Backlight | 1-Chip White LED |
| Operating Voltage | 2.4V – 3.3V |
| Weight | 1.8 g |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Touch Panel | Not Included |
| No of Pins | Comes in 2 variants: 13-pin and 8-pin. |
Applications:
-
Wearable devices and smart watches
-
Medical instruments and portable monitors
-
Smart locks and access systems
-
IoT devices and embedded systems
-
Handheld electronics and consumer gadgets
-
Prototyping and development boards
Precautions:
-
Operate only within the recommended voltage range(2.4V – 3.3V)
-
Avoid direct mechanical stress on the display surface
-
Store in a dry, temperature-controlled environment
-
Ensure proper SPI wiring to avoid signal issues
-
Do not expose to moisture or corrosive substances
