Description

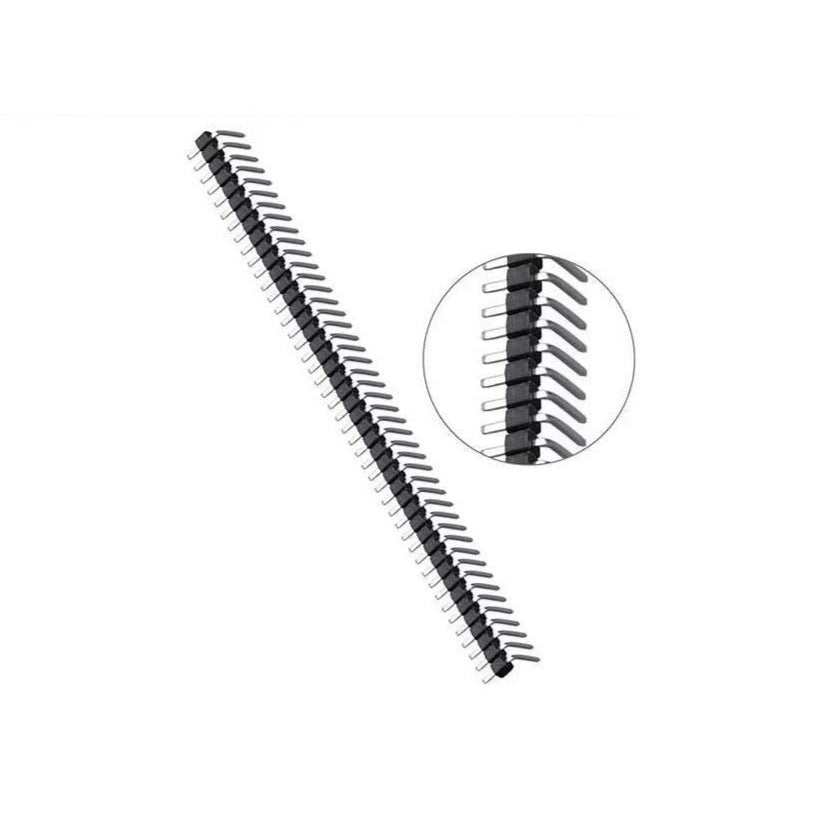

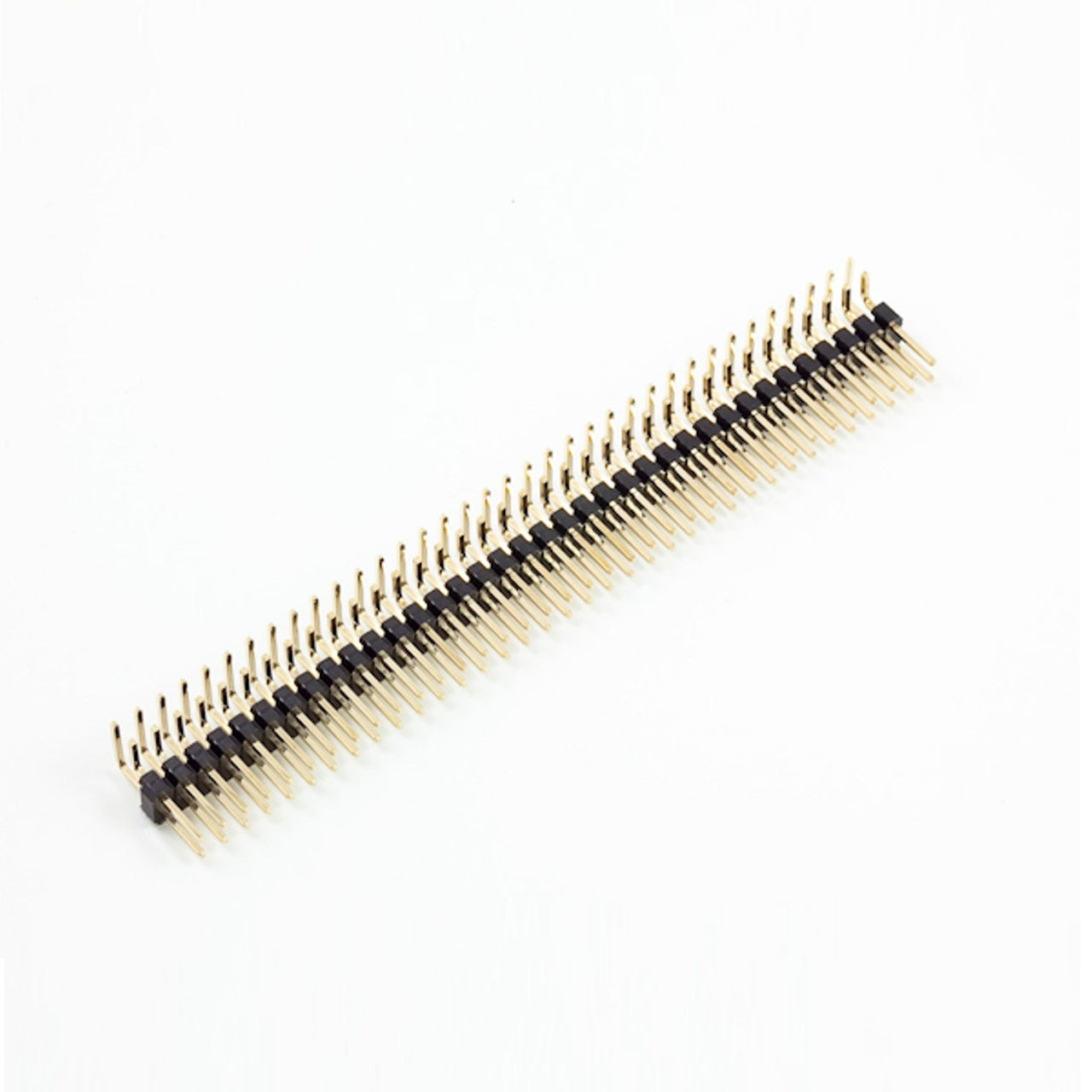

1.27mm Pitch 40-Pins Male Berg Strip Connector – PCB Pin Header
The 1.27mm 40-Pin Male Berg Strip Connector is a compact and versatile pin header connector designed for use in PCBs, embedded systems, microcontrollers, and DIY electronics projects. With a 1.27mm pitch (spacing between pins), it is ideal for high-density circuits where space is limited.
This connector can be easily cut into smaller sections as per your requirement (e.g., 2-pin, 4-pin, 10-pin), making it flexible and cost-effective. It is commonly used with Arduino boards, Raspberry Pi, and other microcontroller modules for board-to-board or wire-to-board connections.
Key Features
-
40-pin male Berg strip with 1.27mm pitch spacing
-

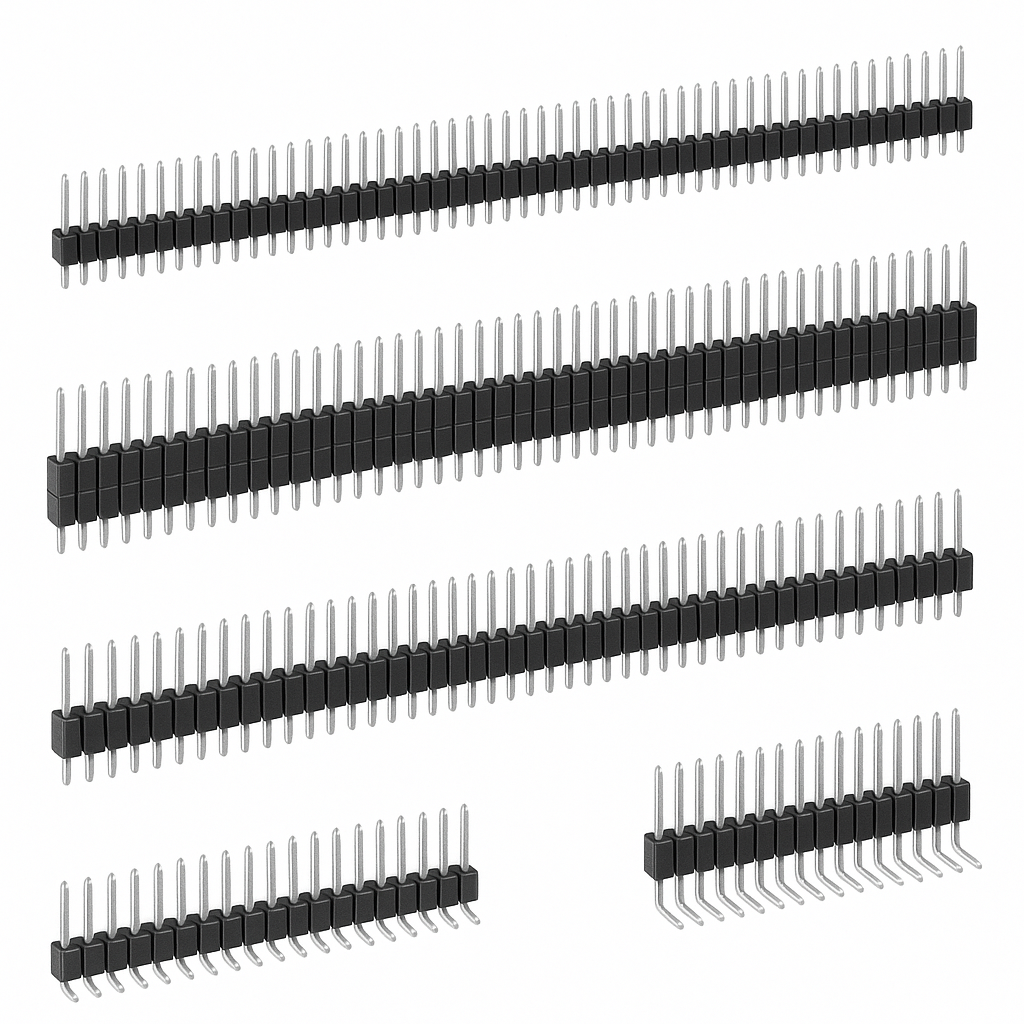

Straight/Right pin header for PCB mounting
-
Can be easily cut to required number of pins
-
Gold-plated pins for better conductivity (varies by supplier)
-
Compact design for high-density PCBs
-
Suitable for Arduino, Raspberry Pi, embedded systems, DIY electronics
-
Cost-effective and reusable
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Male Berg Strip Connector |
| Number of Pins | 40 |

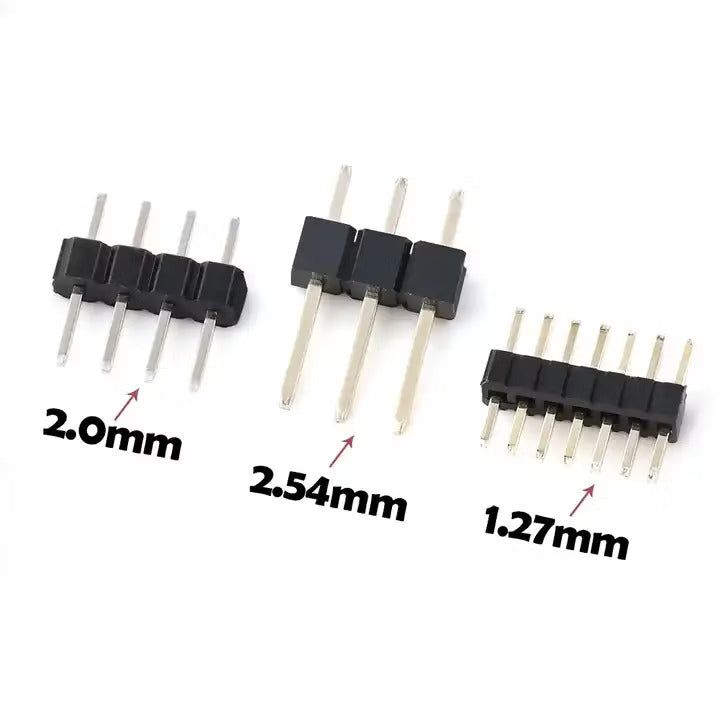

| Pitch | 1.27mm |
| Pin Material | Copper Alloy (gold/tin plated) |
| Housing Material | Thermoplastic (UL 94V-0) |
| Mounting Type | Through-hole PCB |
| Applications | Embedded boards, Arduino, Raspberry Pi, DIY Electronics, Prototyping |
