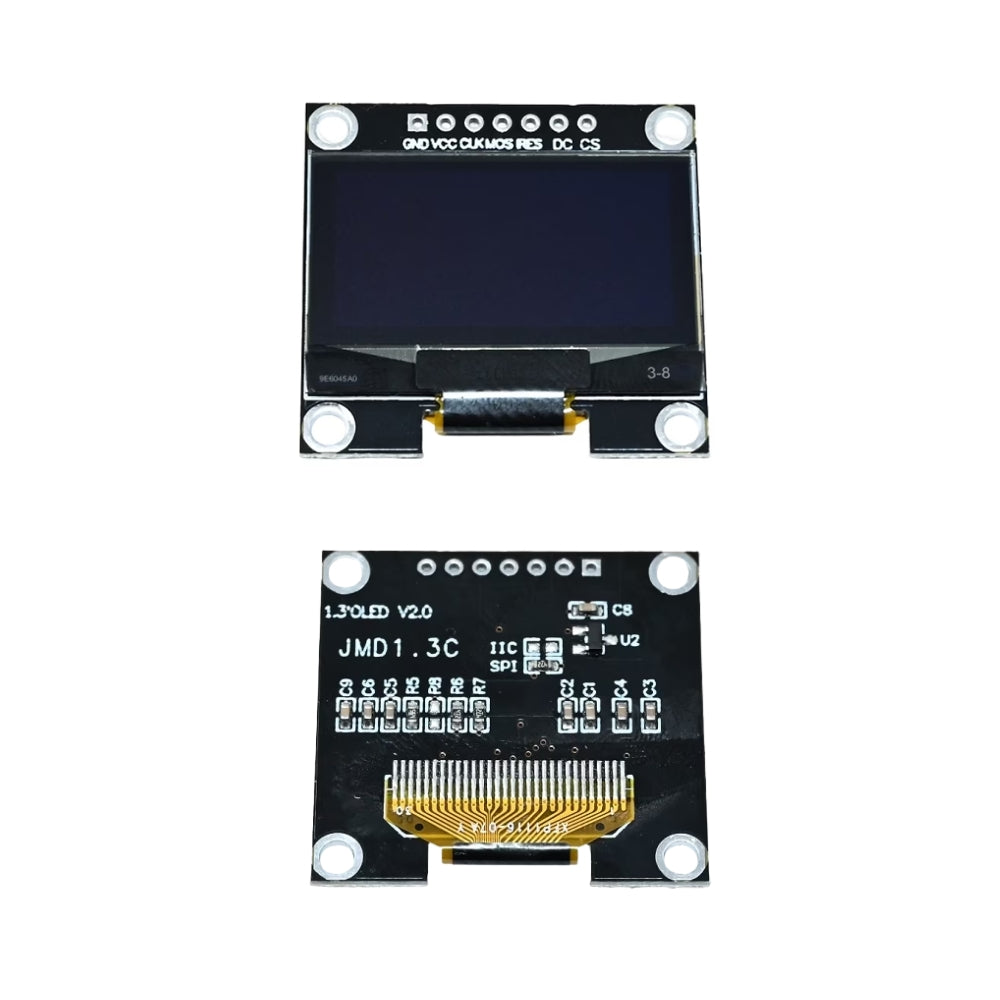

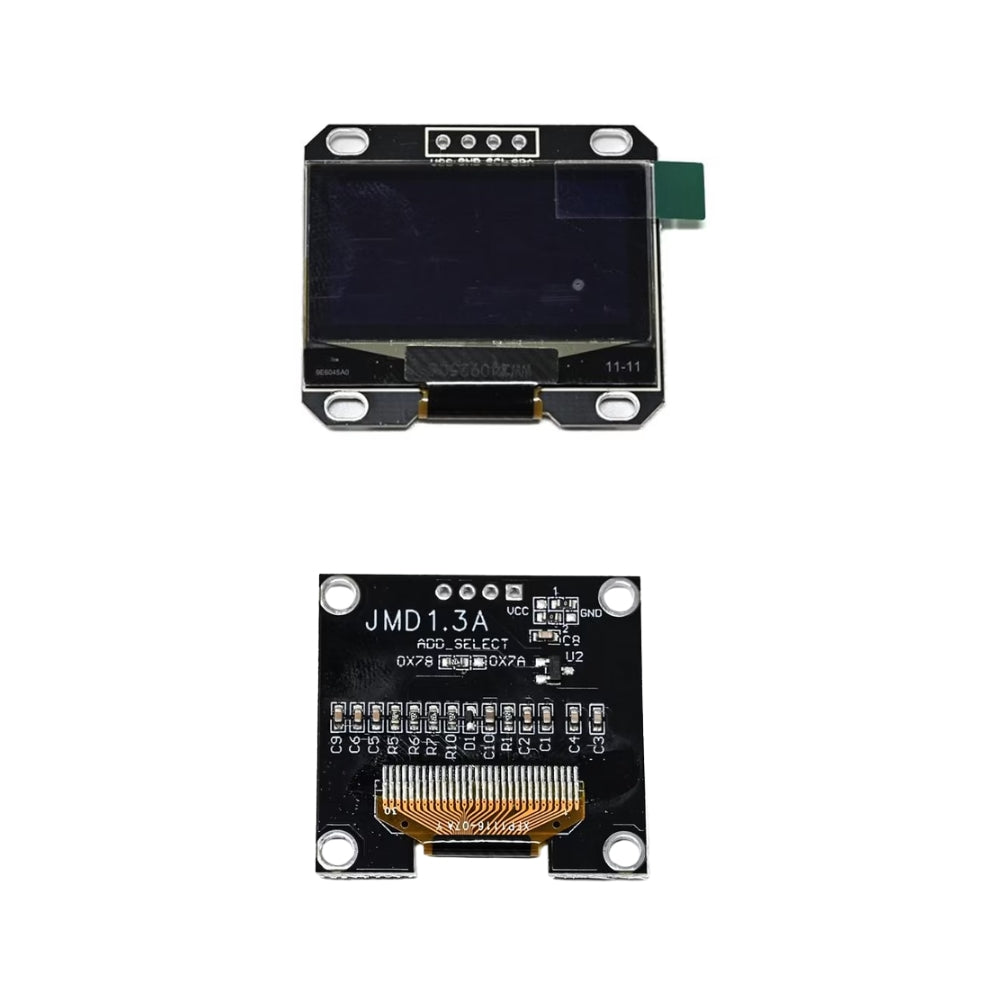

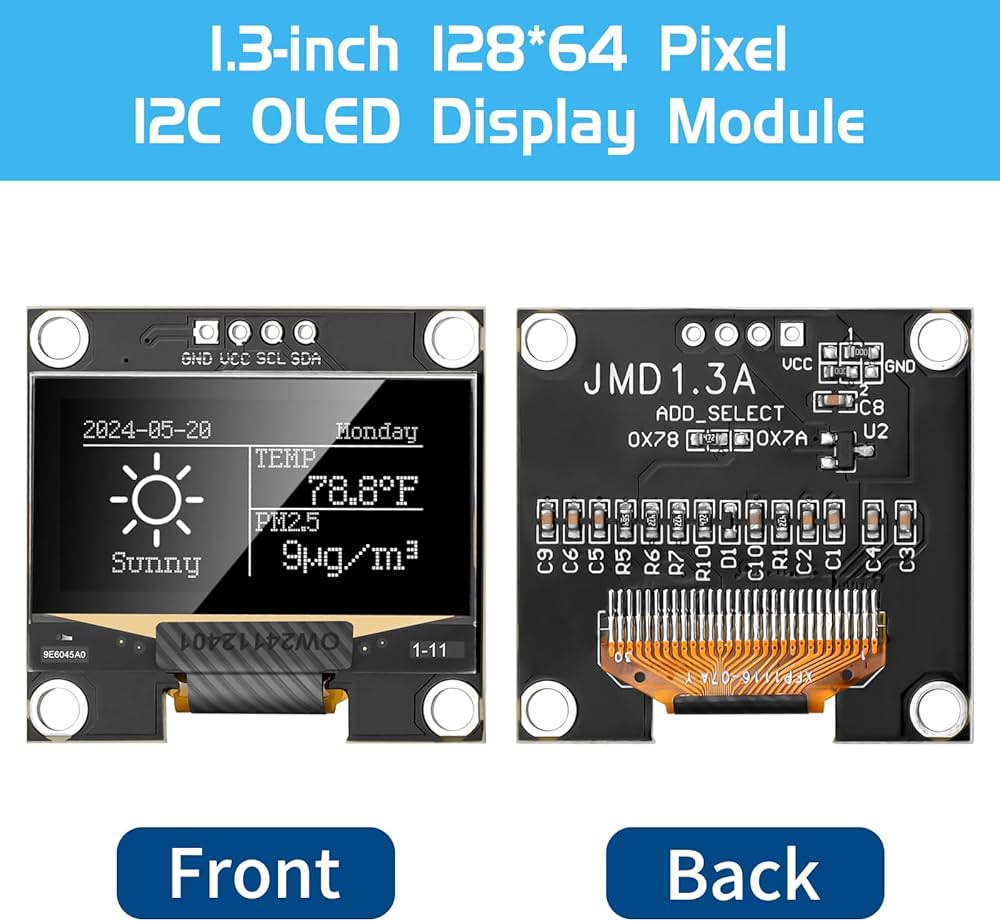

1.3 Inch OLED Display Module 128x64 I2C with SSD1106/SH1106 Controller
The 1.3 Inch OLED Display Module provides a crisp 128×64 pixel graphical display in a compact form factor. Utilizing the SH1106/SSD1106 OLED controller, the display delivers high contrast and clear visibility without requiring a backlight, resulting in lower power consumption compared to traditional LCD displays.
The module communicates through the I2C interface, requiring only SDA and SCL connections, making it ideal for embedded systems, IoT devices, sensor displays, portable instruments, and DIY electronics projects. It supports popular development platforms including Arduino, ESP32, ESP8266, STM32, and Raspberry Pi.
Key Features
- 1.3-inch OLED display
- 128 × 64 pixel resolution
- SH1106 / SSD1106 controller IC

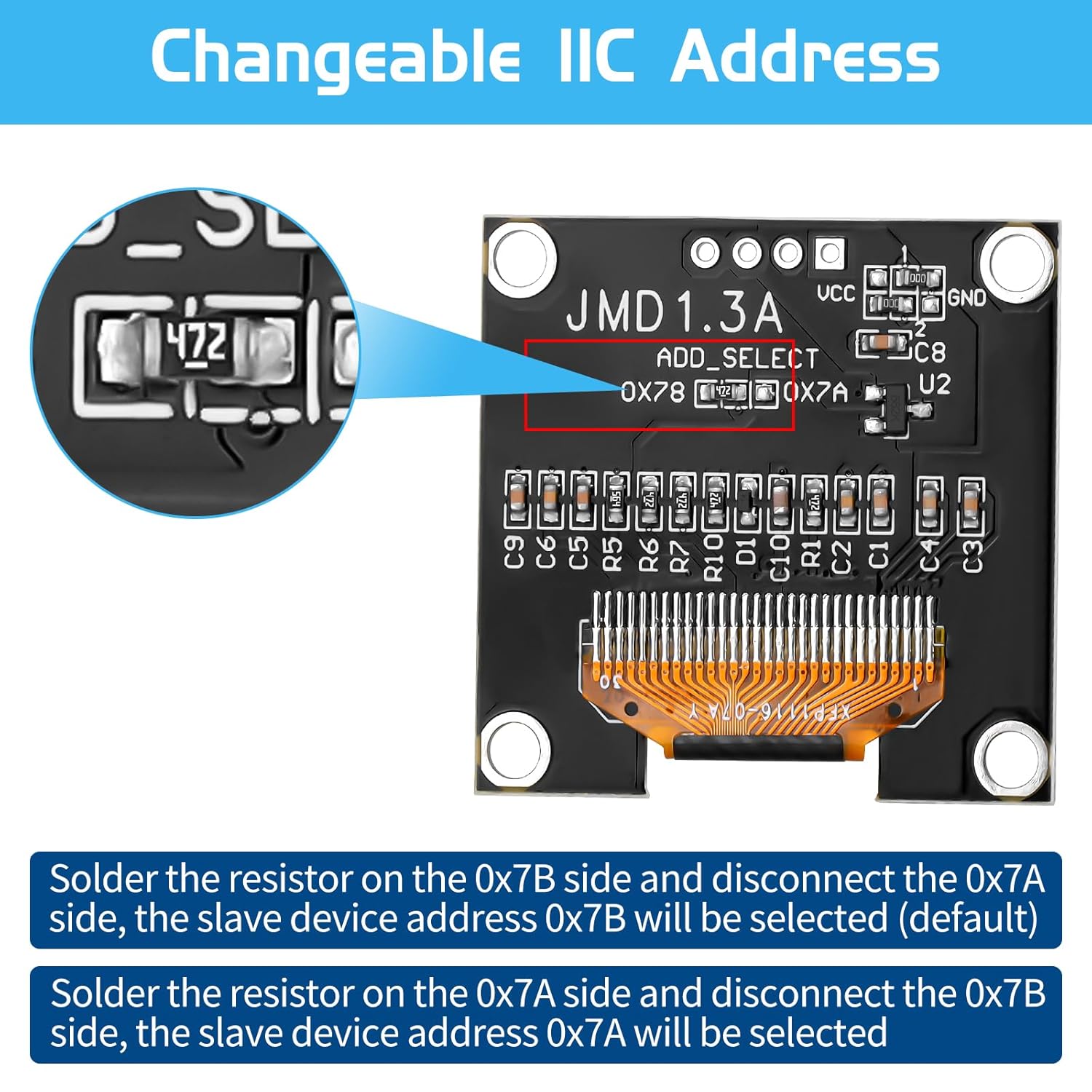

- I2C communication interface
- Wide viewing angle
- High contrast monochrome display
- No backlight required
- Low power consumption
- Fast refresh rate

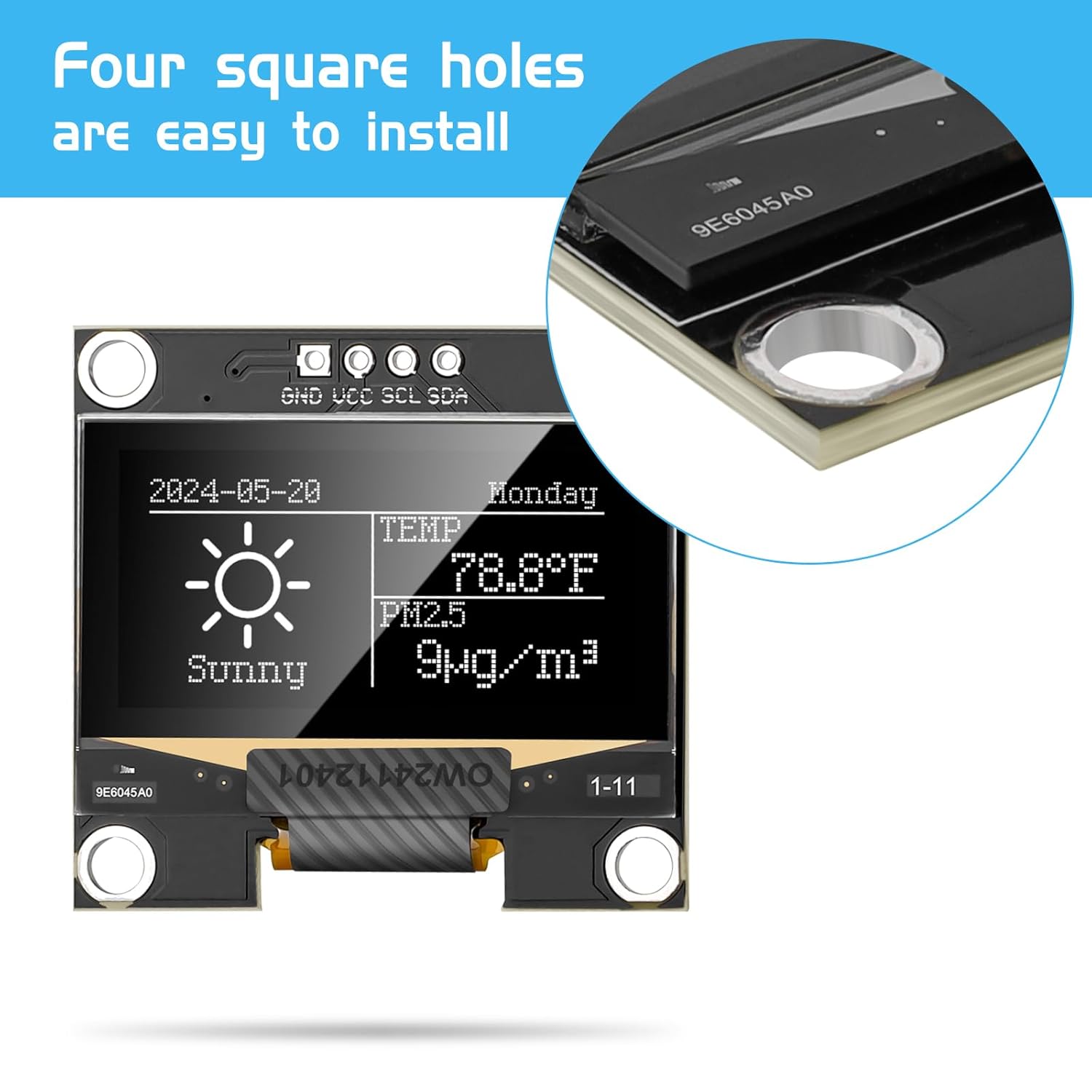

- Compact PCB design
- Compatible with Arduino, ESP32, ESP8266, STM32, and Raspberry Pi
- Suitable for text, graphics, icons, and sensor data display
Technical Specifications

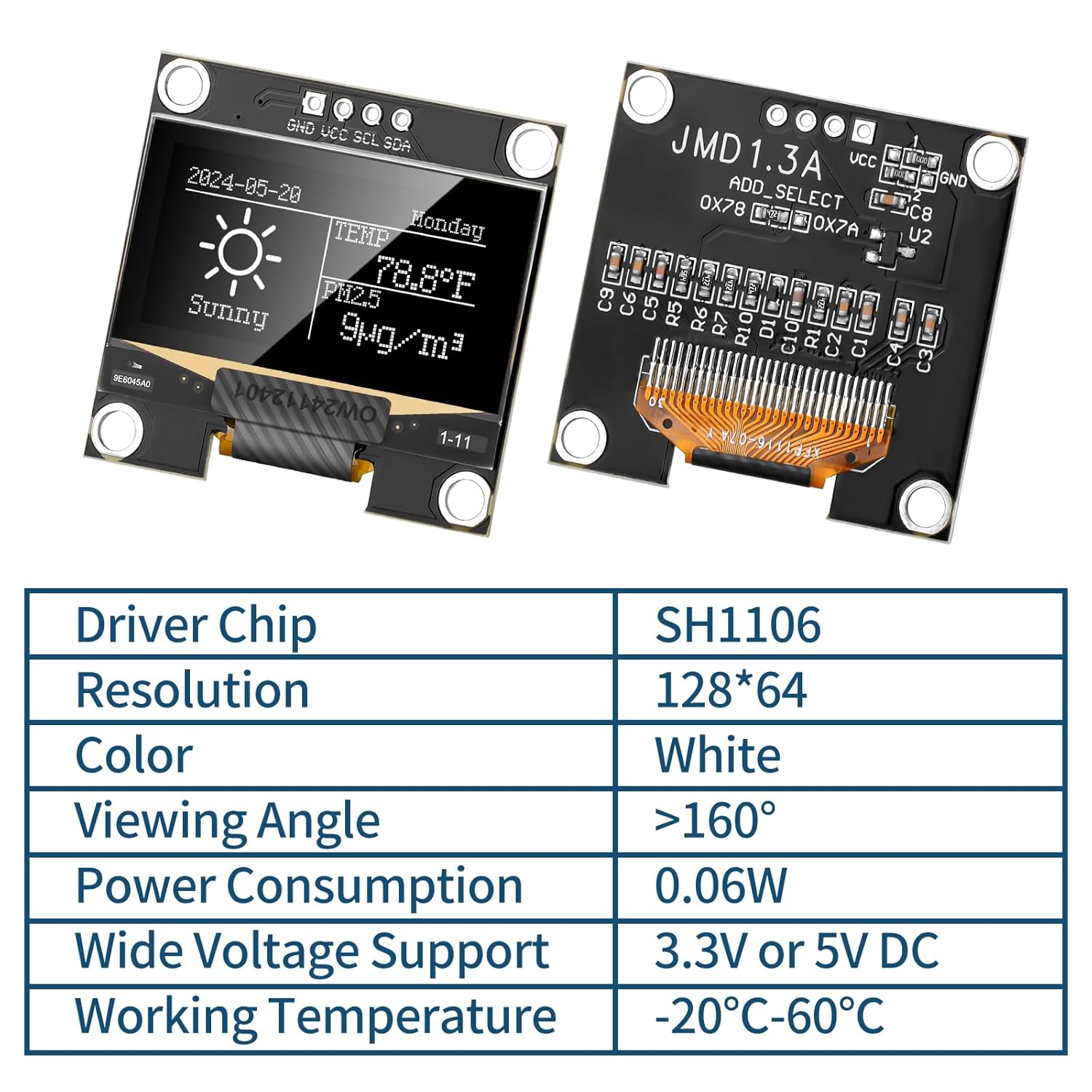

| Parameter | Specification |
|---|---|
| Display Size | 1.3 Inch |
| Controller IC | SH1106 / SSD1106 |
| Resolution | 128 × 64 Pixels |
| Display Type | OLED |
| Interface | I2C (IIC) |
| Display Color | White / Blue (Variant Dependent) |
| Operating Voltage | 3.3V – 5V DC |
| Power Consumption | Ultra-Low |
| Viewing Angle | Wide |
| PCB Dimensions | Approx. 35.4 × 33.5 mm |
| Active Display Area | Approx. 29.42 × 14.7 mm |
| Operating Temperature | -40°C to +70°C |
Specifications may vary slightly by manufacturer.

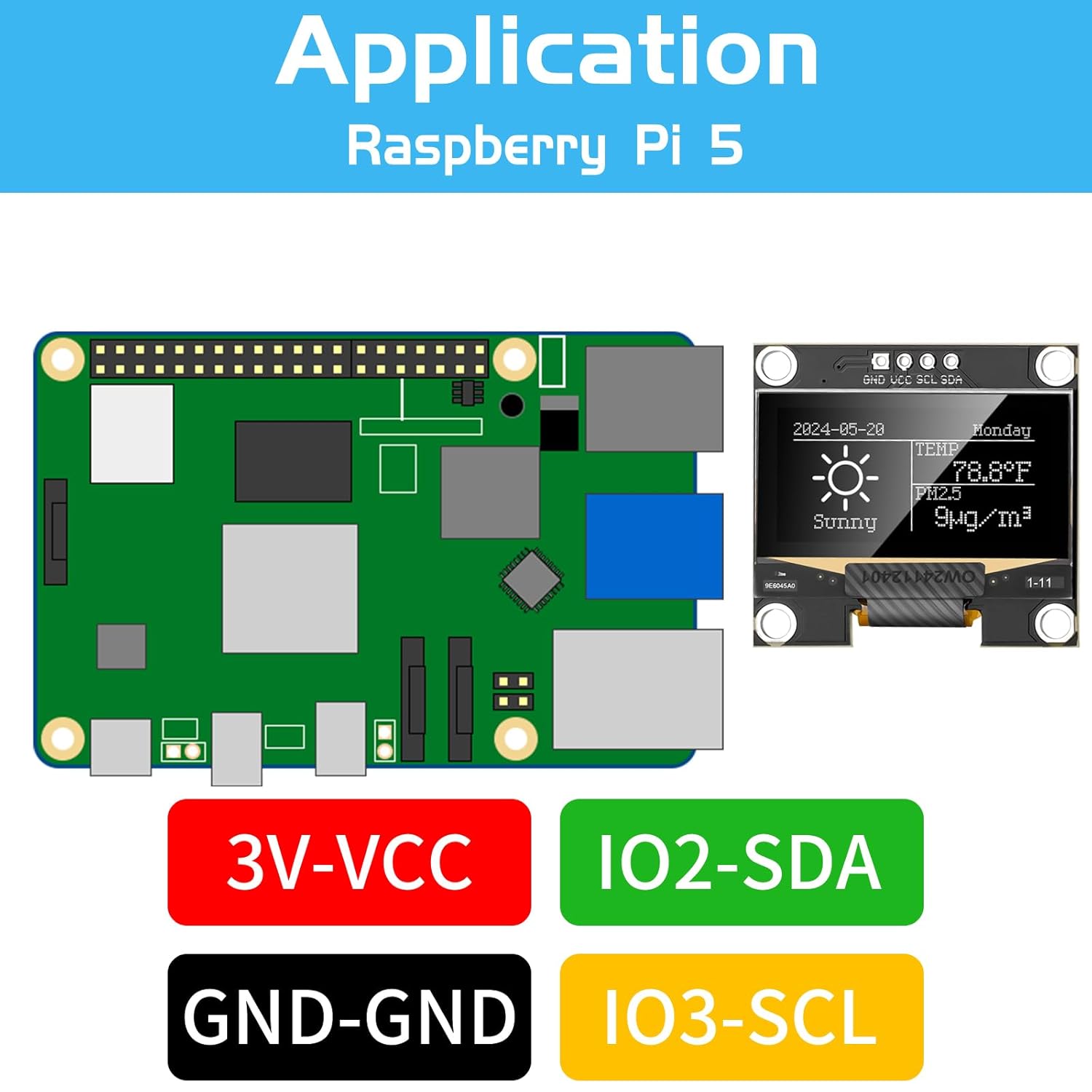

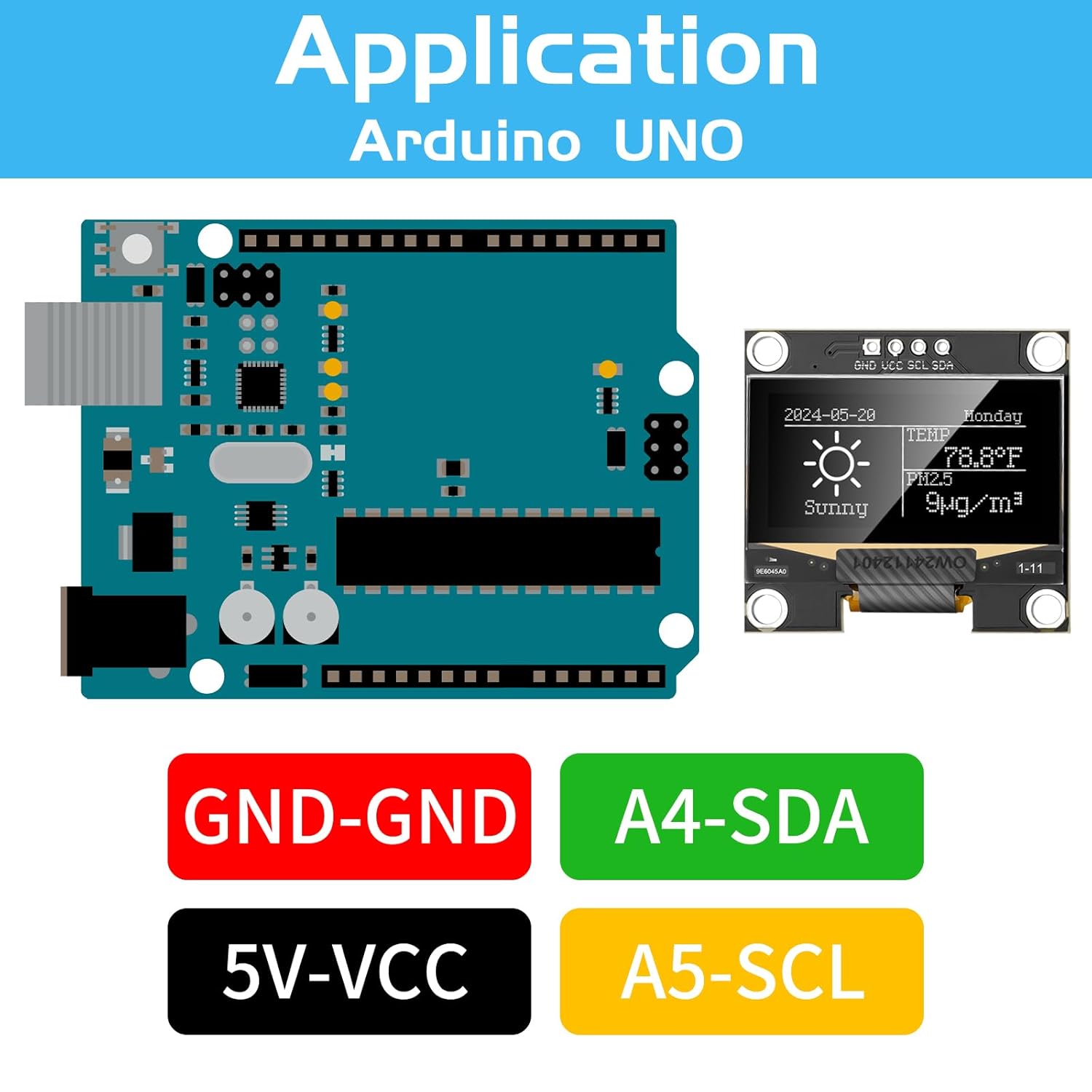

Pin Configuration
| Pin | Function |
|---|---|
| VCC | Power Supply |
| GND | Ground |
| SCL | I2C Clock |
| SDA | I2C Data |
