Description

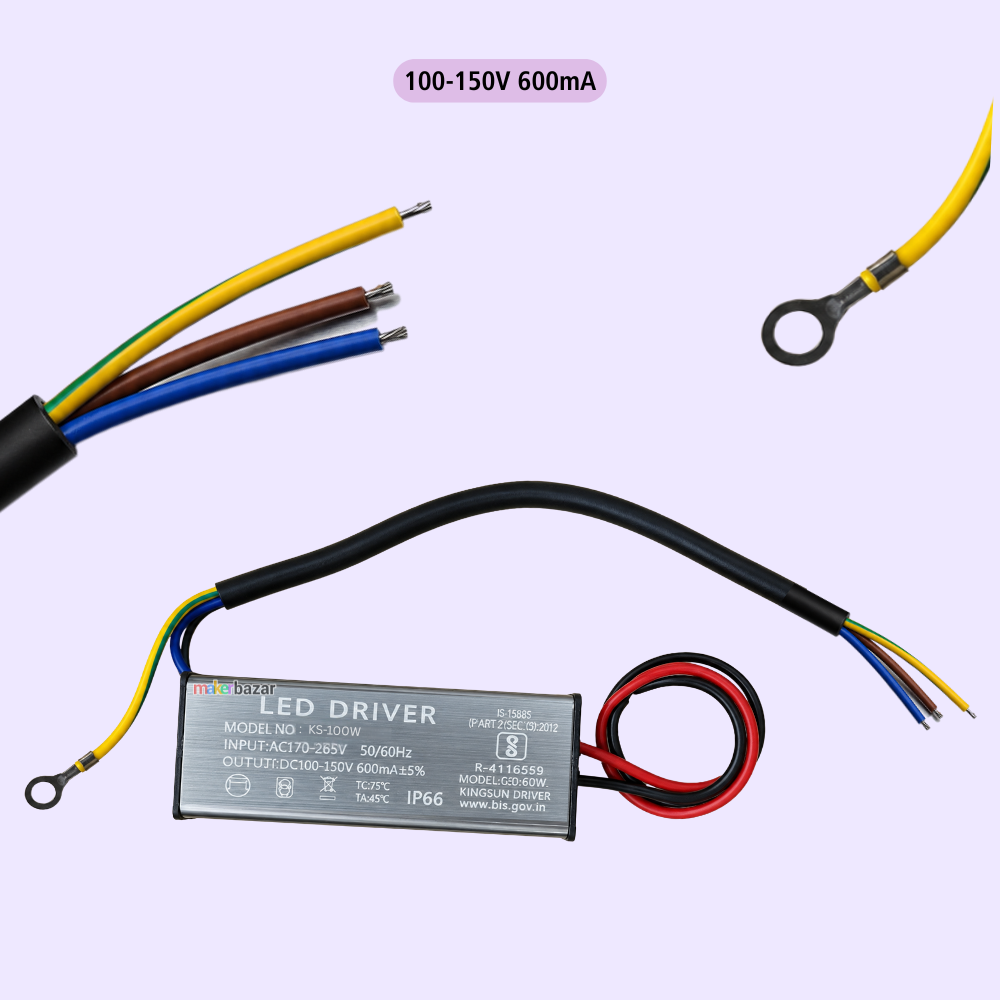

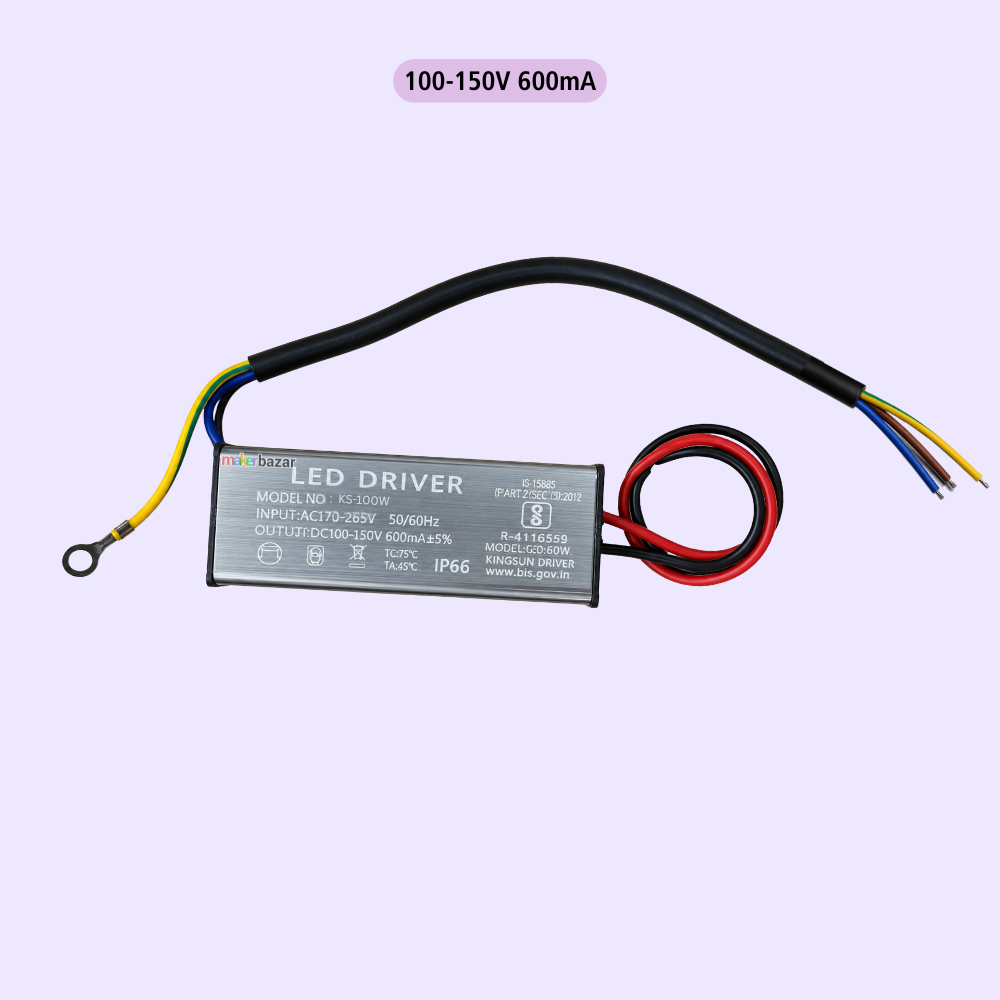

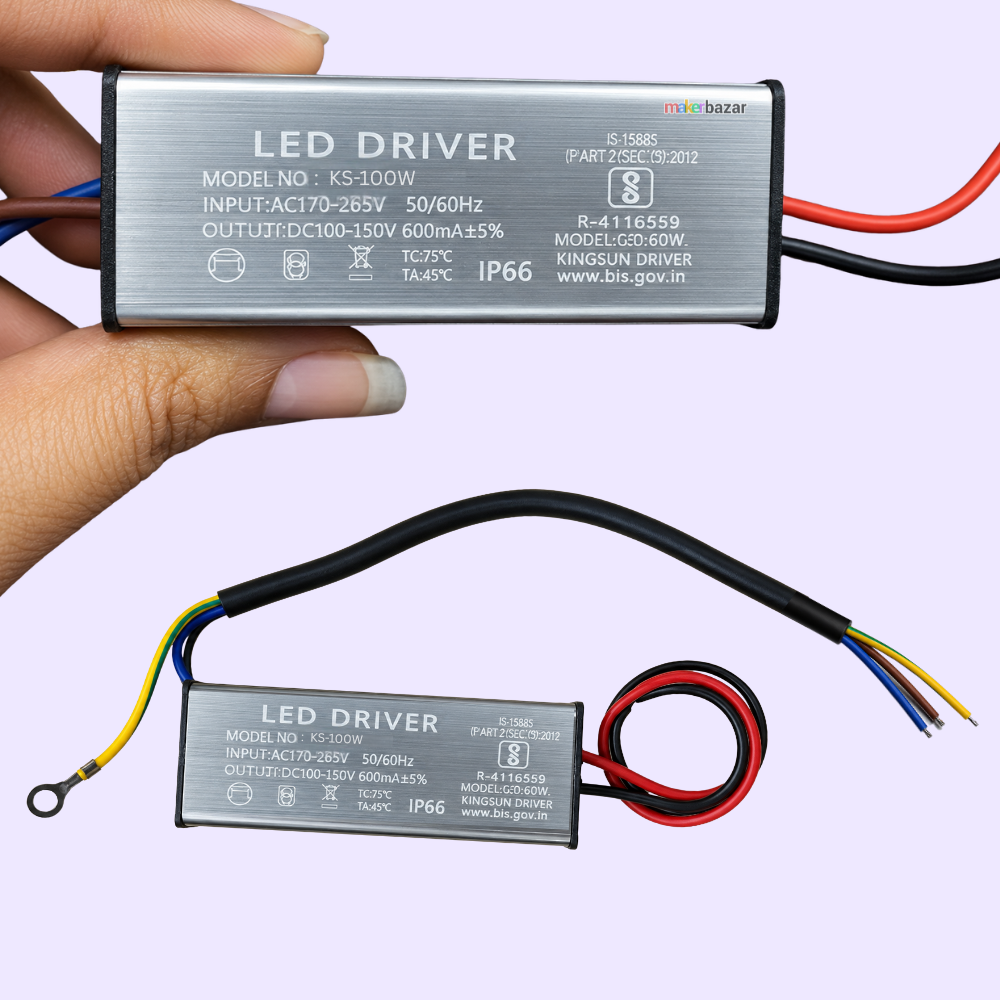

100W MCPCB LED Light Driver for High Power LED Modules
The 100W MCPCB LED Light Driver is a constant-current LED driver designed to provide stable and regulated power to compatible high-power LED modules and MCPCB lighting systems. LED Driver has an AC input range of 170–265V at 50/60Hz and provides a DC output of 100–150V at 600mA ±5%. This makes it suitable for compatible high-power LED assemblies that require a 600mA constant-current supply. The driver features a durable aluminium housing that provides a compact enclosure and assists with thermal management. Its IP66 rating makes it suitable for appropriately installed indoor and outdoor lighting applications where protection against dust and water is required. The driver is designed for applications such as MCPCB LED lights, high-power LED fixtures, floodlights, street lights, commercial lighting, and custom LED lighting systems, provided the LED load matches the driver's output requirements.
Key Features
- 100W LED Driver: Designed for compatible high-power LED lighting systems.
- 600mA Constant Current: Provides regulated current for stable LED operation.
- 100–150V DC Output: Suitable for compatible high-voltage LED modules.
- Wide AC Input: Accepts 170–265V AC, 50/60Hz.
- IP66 Rated: Designed for protection against dust and water ingress.
- Aluminium Housing: Durable metal enclosure for reliable installation and thermal management.
- High-Power Application: Suitable for MCPCB and other compatible high-power LED modules.
- Indoor & Outdoor Use: Appropriate for protected outdoor lighting installations.
- Compact Design: Easy to integrate into suitable LED fixtures.

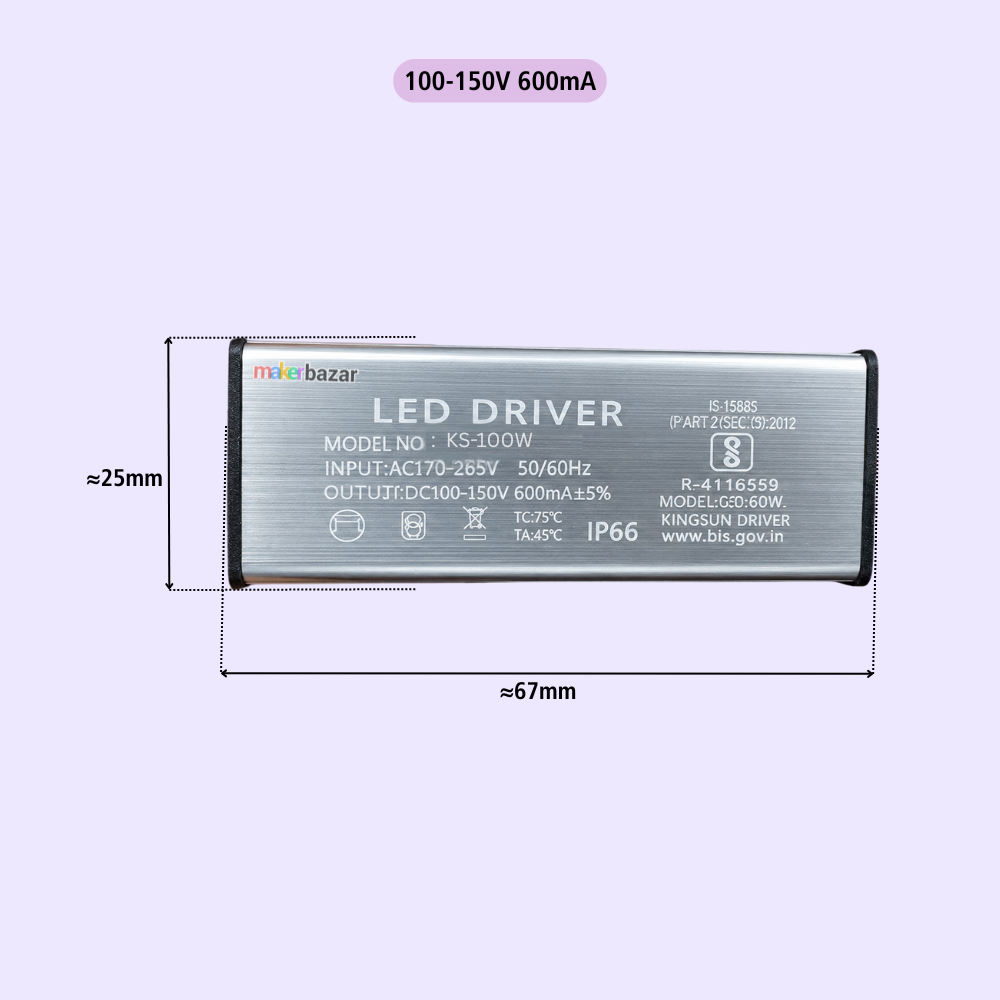

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Constant Current LED Driver |
| Model No. | KS-100W |
| Rated Power | 100W |
| Input Voltage | AC 170–265V |
| Input Frequency | 50/60Hz |
| Output Voltage | DC 100–150V |
| Output Current | 600mA ±5% |
| Driver Type | Constant Current |
| Protection Rating | IP66 |
| TA | 45°C |
| TC | 75°C |
| Standard Marking | IS-15885 (Part 2/Sec. 13):2012 |
| Certification Marking | BIS marking visible on product |
| Housing | Aluminium |
| Input Terminals | L / N |
| Output Terminals | V+ / V− |
| Application | High-Power LED Lighting |
Applications
- MCPCB LED lights
- 100W high-power LED modules
- LED floodlights
- LED street lights
- LED panel lights
- Industrial LED lighting
- Commercial lighting
- Outdoor lighting
- Architectural lighting
- High-power LED fixtures
- Custom LED lighting systems
- Warehouse lighting
- Workshop lighting
- Outdoor signage lighting
Precautions
- AC mains voltage is hazardous. Installation should be performed by a qualified electrician.
- Verify that the input supply is within 170–265V AC, 50/60Hz before connection.
- Use only with an LED load compatible with 600mA constant current and 100–150V DC.
- Do not use this driver as a conventional 100V/120V/150V fixed-voltage power supply.
- Connect the AC input according to the marked L and N terminals.
- Observe correct V+ and V− polarity on the LED output.
- Do not exceed the rated output current.
- Ensure adequate ventilation around the driver.
- Do not operate the driver if the casing, wires, or insulation are damaged.
- Disconnect mains power before installation or wiring changes.
- Although the driver is marked IP66, ensure cable connections and installation points are properly protected.
- Do not immerse the driver in water.
- Do not short-circuit the LED output terminals.
- Match the driver to the LED module before powering the system.
