10A 250V AC SPDT ON-OFF Illuminated Round Rocker Switch for Power Control
The 10A 250V AC SPDT ON-OFF Round Rocker Switch with Light is a compact panel-mount switch designed for convenient ON/OFF power control in electronic, automotive, robotics, and DIY applications. The switch features an illuminated rocker that makes the switch status easy to identify during operation. Its ON/OFF positions are clearly marked with I and O, providing simple and intuitive control. The snap-in mounting design allows the switch to be installed into a suitable panel or enclosure without requiring additional screws or nuts. This makes it convenient for DIY projects, electrical enclosures, machines, and custom equipment. With an SPDT structure and ON-OFF switching mode, it can be used for various power-control applications, including DC motors, robotics projects, automotive equipment, water dispensers, and machines.

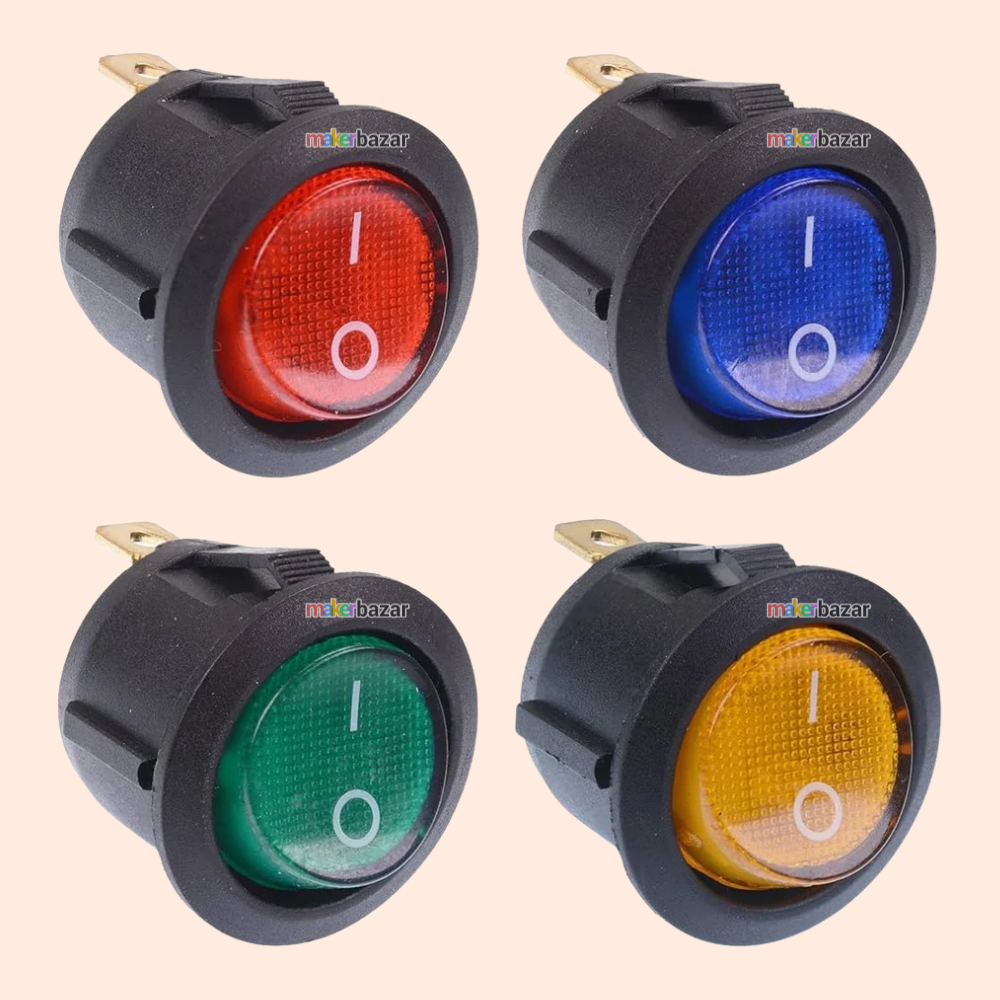

The switch is available in multiple colours, depending on available stock.
Important: The supplied rough description mentions both 6A 250V and 10A 250V. MakerBazar's existing product listing for this specific illuminated round rocker switch identifies it as 10A 250V AC SPDT ON-OFF. The product listing below therefore uses 10A 250V as the primary rating.
Key Features
- 10A 250V AC Rating: Suitable for a wide range of general-purpose power-control applications.
- SPDT Configuration: Provides flexible switching functionality.
- ON-OFF Operation: Simple two-position control.
- Built-In Light: Illuminated rocker helps indicate switch status.
- Snap-In Mounting: Easy installation without screws or nuts.
- Clear Position Marking: I and O markings make the operating state easy to identify.
- Long Switching Life: Designed for approximately 50,000–100,000 switching cycles.
- Compact Round Design: Suitable for panels, enclosures, and custom projects.
- Multiple Colours: Available in different colours depending on stock.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Illuminated Round Rocker Switch |
| Switch Model | Round Rocker / KCD Series |
| Switching Mode | ON-OFF |
| Structure | SPDT |
| Number of Terminals | 3 |
| Rated Voltage | 250V AC |
| Rated Current | 10A |
| Indicator | Built-In Light |
| Mounting Type | Snap-In / Panel Mount |
| Position Marking | I / O |
| Switching Life | Approx. 50,000–100,000 Cycles |
| Colour | Multiple Colours |
| Installation | Panel / Enclosure |
| Application | Power Control |
Applications
- DIY electronics projects
- Robotics projects
- DC motor control
- Car and motorcycle projects
- Industrial machines
- Water dispensers
- Electrical equipment
- Custom control panels
- Power-control circuits
- DIY appliances
- Automotive projects
- Marine and boat projects
- Hobby electronics
- Electrical enclosures
Precautions
- Verify the voltage and current rating before connecting the switch.
- Do not exceed the rated 10A at 250V AC capacity.
- Ensure all electrical connections are properly insulated.
- Disconnect the power supply before installation or wiring.
- Install the switch securely in a suitable panel opening.
- Do not use a damaged switch.
- Keep the switch away from excessive moisture unless installed in a suitably protected enclosure.
- For DC motor and inductive loads, use suitable protection such as a fuse, relay, diode, or suppression circuit where required.
- Ensure correct terminal identification before wiring an SPDT switch.
- Mains-voltage applications should be installed by a qualified person.
- Colour and appearance may vary according to available stock.
