Description

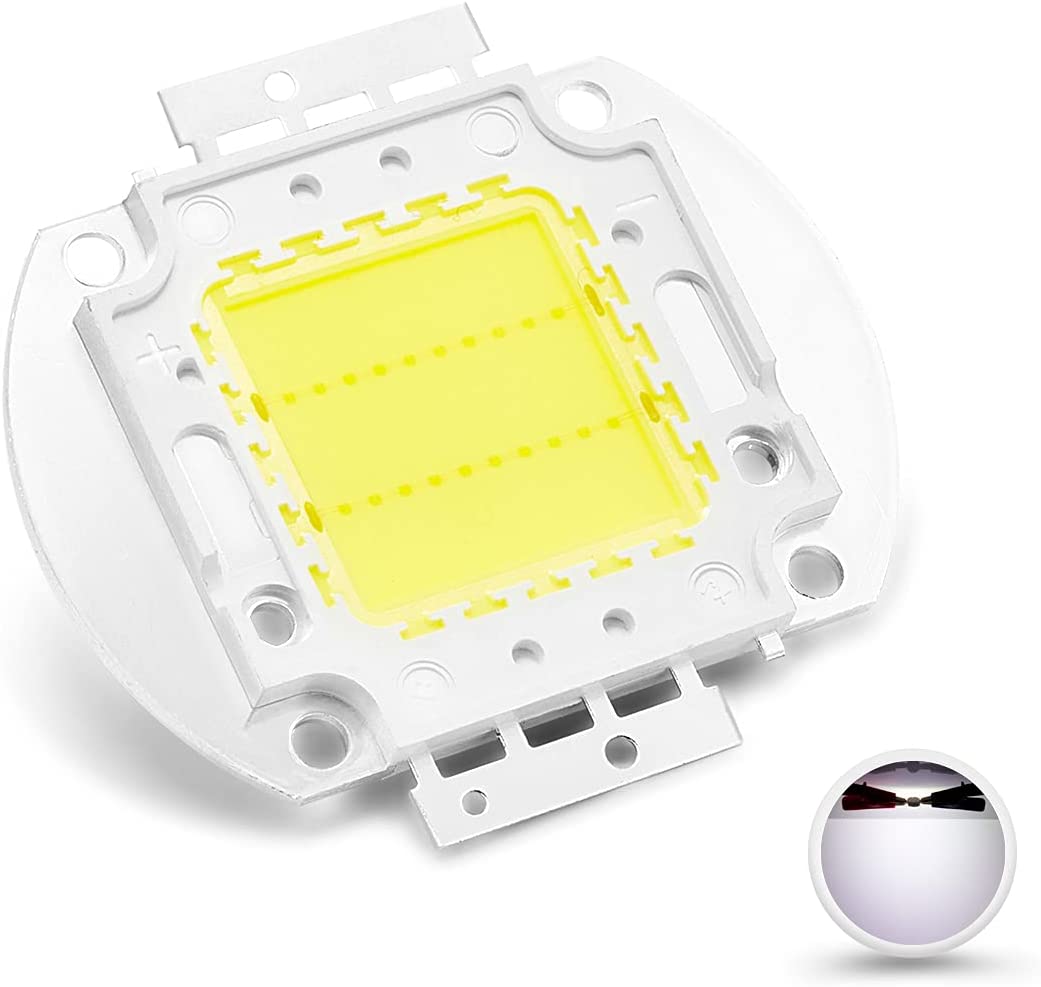

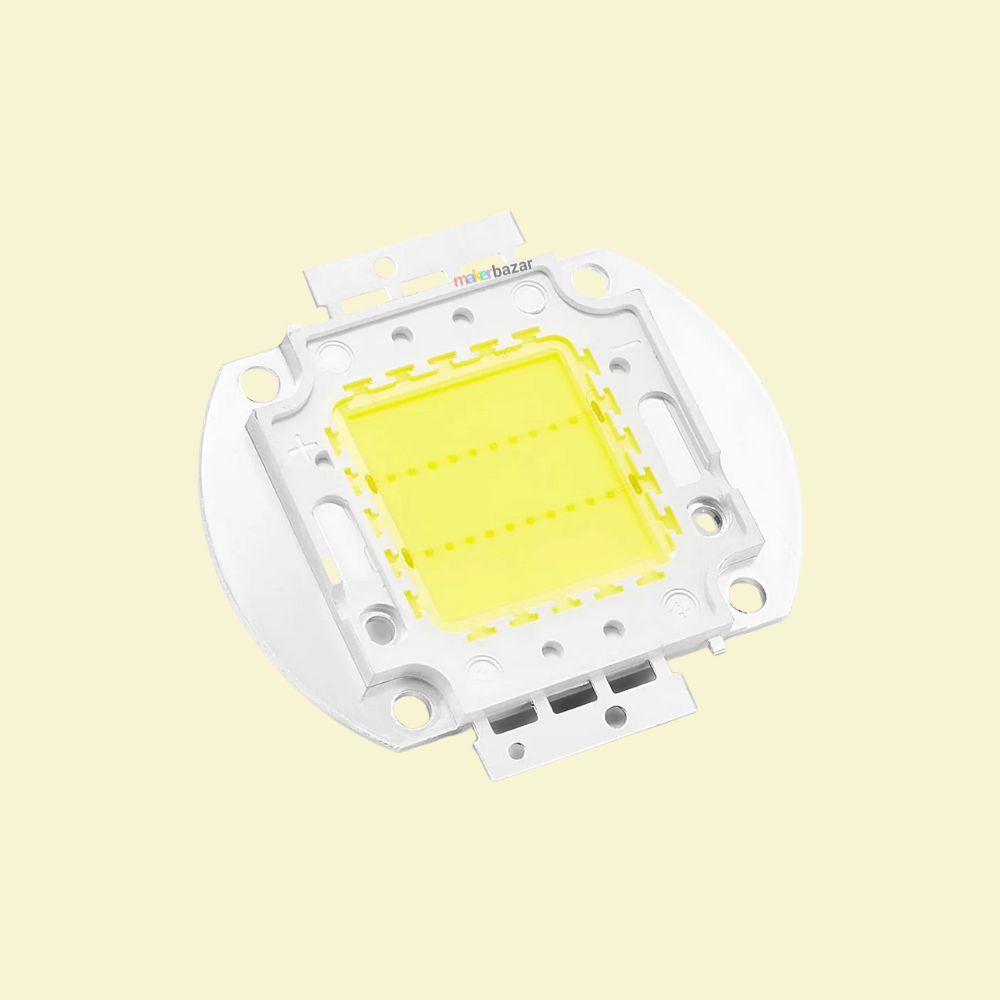

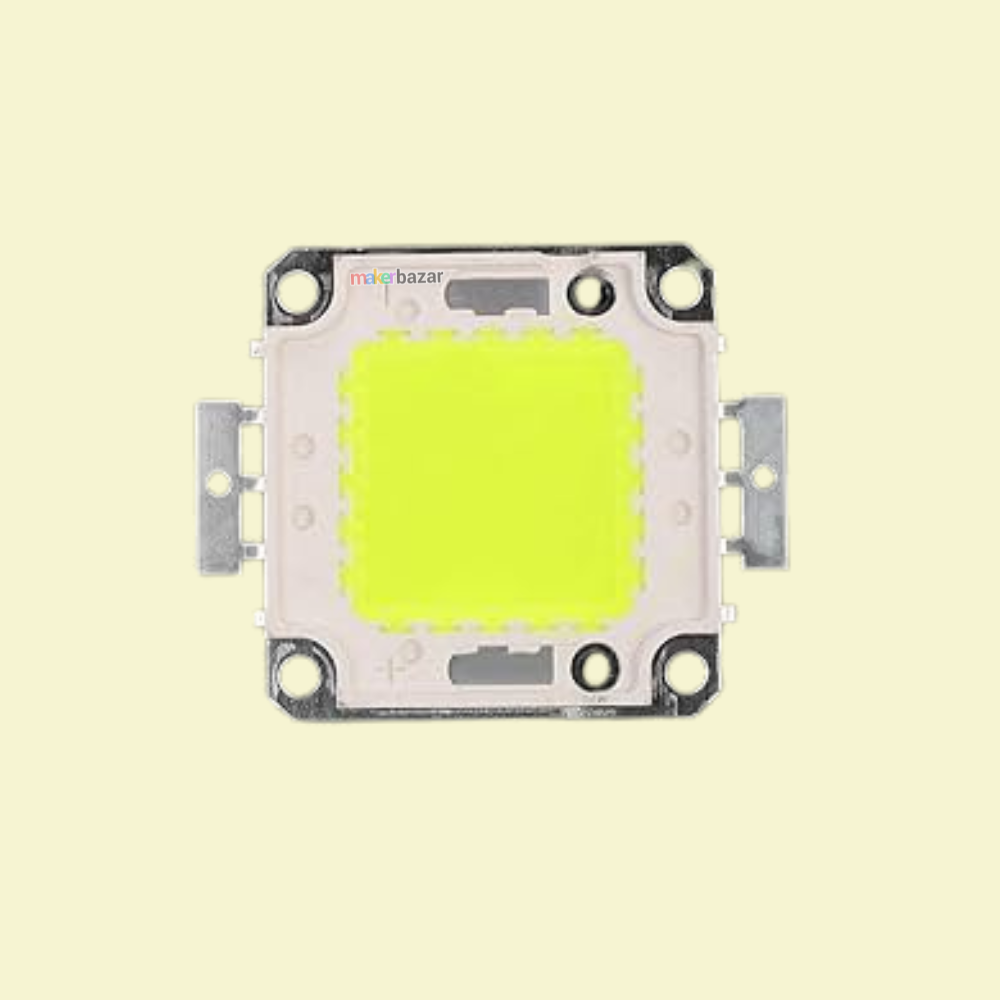

20 Watt High Power LED SMD Bead Chips Bulb Light Lamp DC 12 Volt (White)
The 12V 20W Cool White COB LED is a high-performance Chip-on-Board LED designed for DIY lighting, automotive projects, flood lights, and custom illumination systems. COB technology integrates multiple LED chips onto a single board, delivering higher brightness, better heat efficiency, and uniform light output compared to traditional LEDs.
Operating on 12V DC, this LED produces a wide beam angle, making it ideal for both indoor and outdoor applications. Its compact size and energy efficiency make it a popular choice for hobbyists, engineers, and lighting designers.
Key Features:
-
High brightness 20W COB LED with cool white output
-
Operates directly on 12V DC power
-
Wide beam angle for uniform illumination
-
Energy efficient with high lumen output
-
Compact and slim design for easy mounting
-
Ideal for DIY, automotive, and lighting projects
-
Long lifespan with stable performance
Technical Specifications:
| Specification | Details |
|---|---|
| Input Voltage | 12V DC |
| Power Rating | 20W |
| Max Operating Current | 1.6A |
| Light Color | Cool White |
| Viewing Angle | 140° – 160° |
| LED Type | COB (Chip-on-Board) |

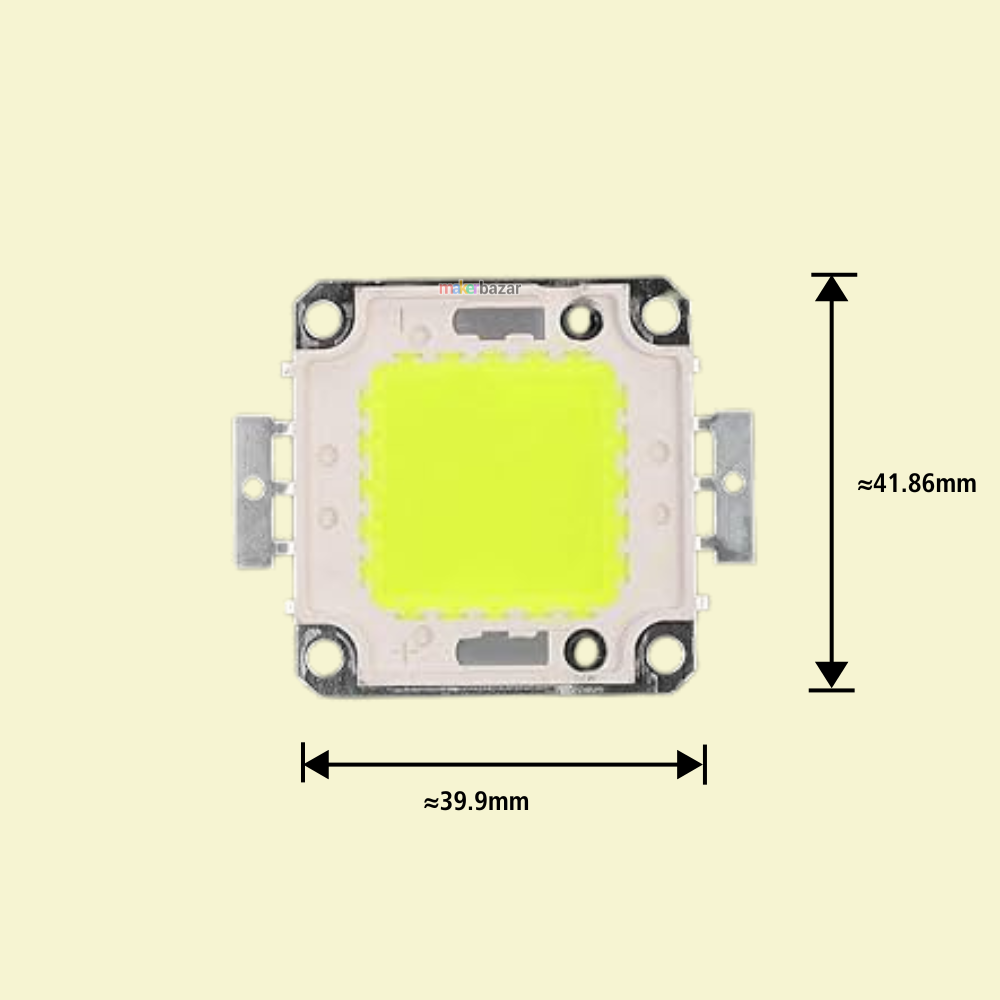

| Dimensions | 40 × 40 mm |
Applications:
-
DIY LED lighting projects
-
Automotive lights and work lamps
-
Flood lights and panel lights
-
Emergency and backup lighting
-
Custom lamps and light boxes
-
Home and industrial illumination
-
Electronics and hobby projects
Precautions:
-
Use a proper heat sink to prevent overheating
-
Do not exceed the rated voltage or current
-
Ensure correct polarity before powering
-
Avoid touching the LED surface while powered
-
Not waterproof without additional enclosure
Note: Design, Shape and Colour of the actual product may differ from the image uploaded on the website.
