Description

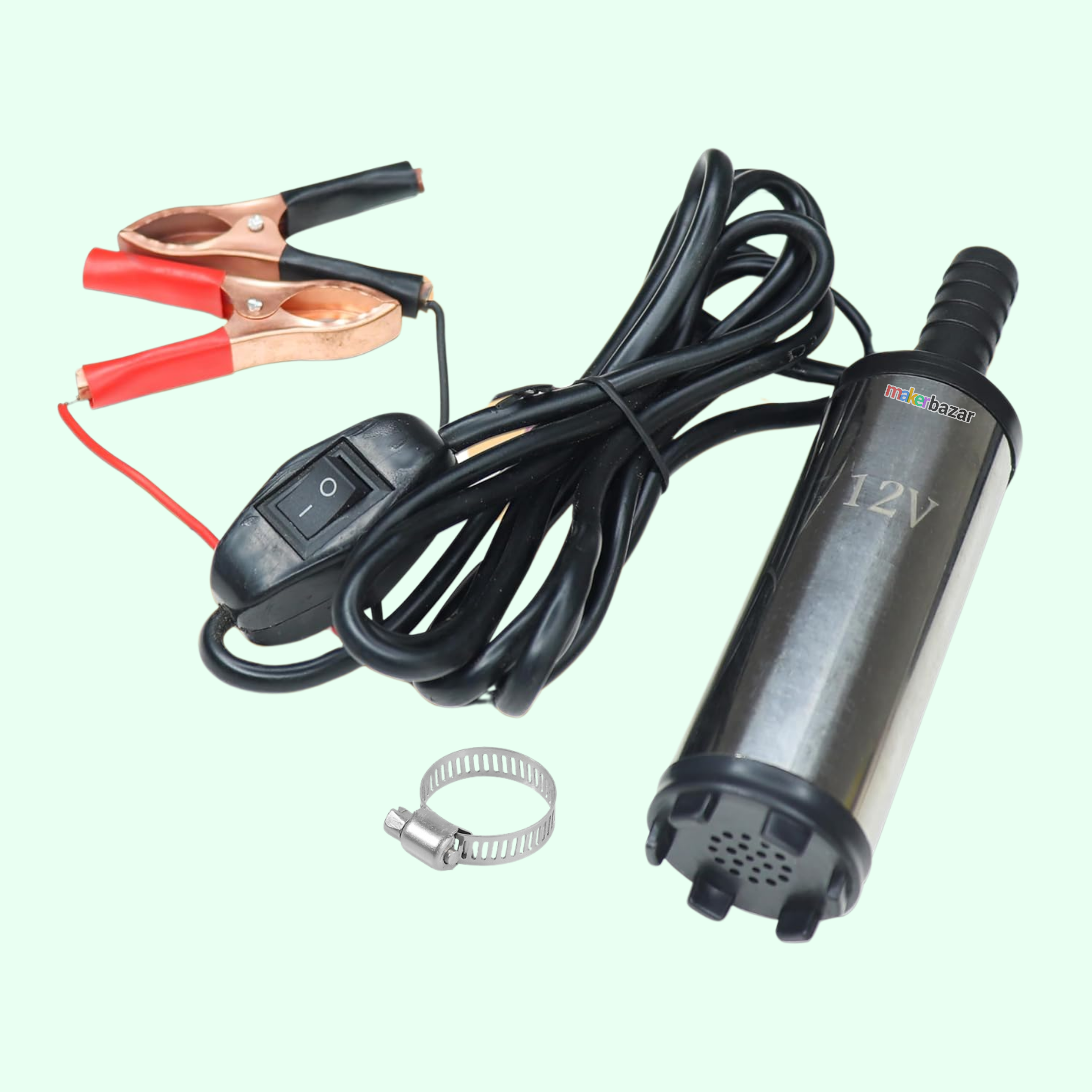

12V/24V DC Electric Submersible Diesel & Oil Transfer Pump – 12L/min with 3m Cable and Battery Clips
The 12V/24V DC Electric Submersible Fuel Transfer Pump is a compact and efficient pump designed for transferring diesel, light oil, kerosene, and other non-corrosive petroleum-based liquids. Constructed with a durable stainless steel body, this pump delivers a maximum flow rate of 12 litres per minute, making it ideal for automotive, agricultural, marine, industrial, and workshop applications.
Powered by a 12V or 24V DC motor, the pump features a fully sealed, oil-resistant design with an insulated motor for safe and reliable operation. Its 38mm diameter allows easy insertion into fuel tanks, drums, and reservoirs, while the included 2-meter power cable with battery clips ensures convenient installation and portability.
Perfect for transferring diesel between tanks, refuelling machinery, draining fuel reservoirs, and emergency fuel transfer applications.
Note: This pump is designed only for diesel, kerosene, and light oil. Do NOT use it with petrol (gasoline), alcohol, or other highly flammable liquids.

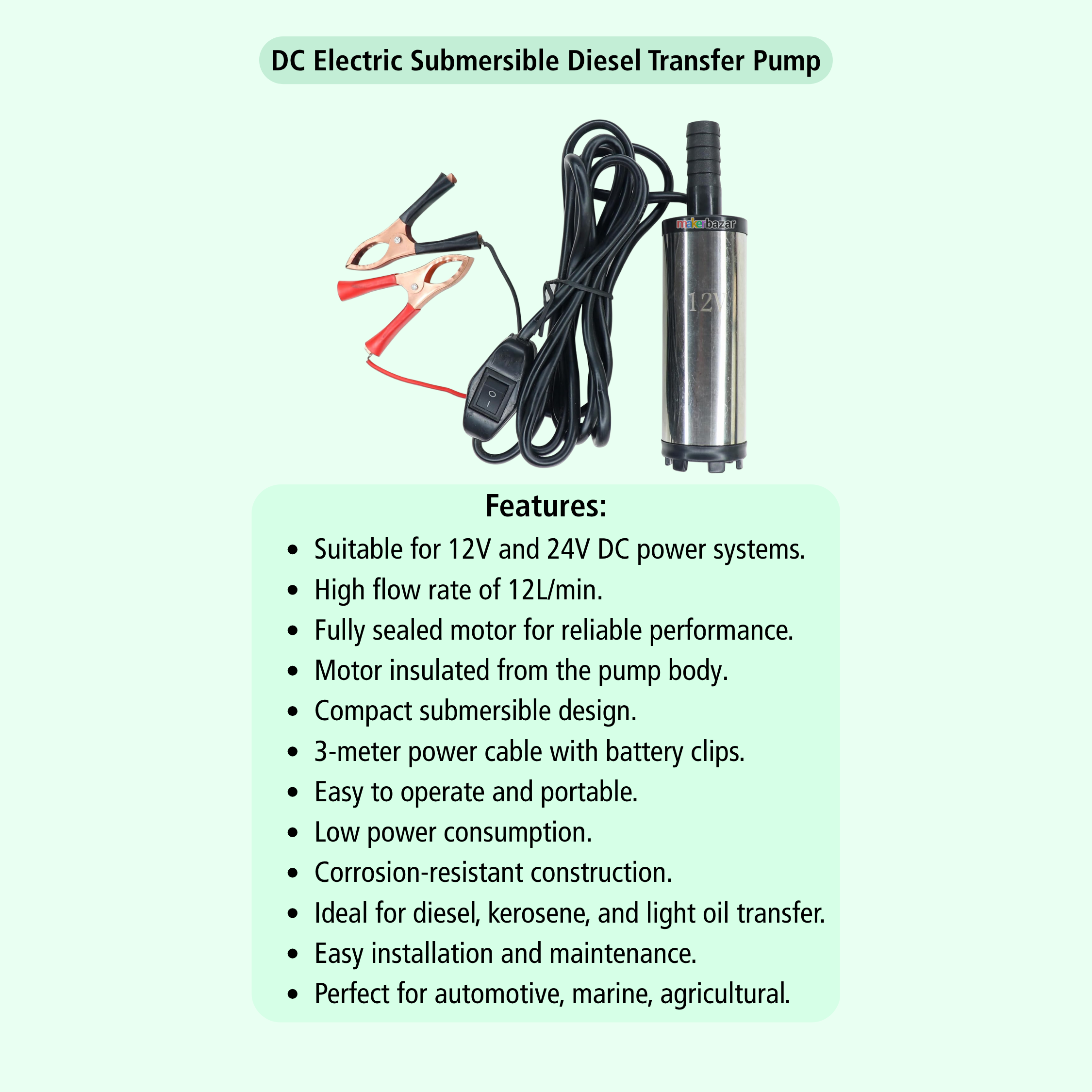

Key Features
- Suitable for 12V and 24V DC power systems.
- High flow rate of 12L/min.
- Fully sealed motor for reliable performance.
- Motor insulated from the pump body.
- Compact submersible design.
- 2-meter power cable with battery clips.
- Easy to operate and portable.
- Low power consumption.
- Corrosion-resistant construction.
- Ideal for diesel, kerosene, and light oil transfer.
- Easy installation and maintenance.
- Perfect for automotive, marine, agricultural, and industrial use.

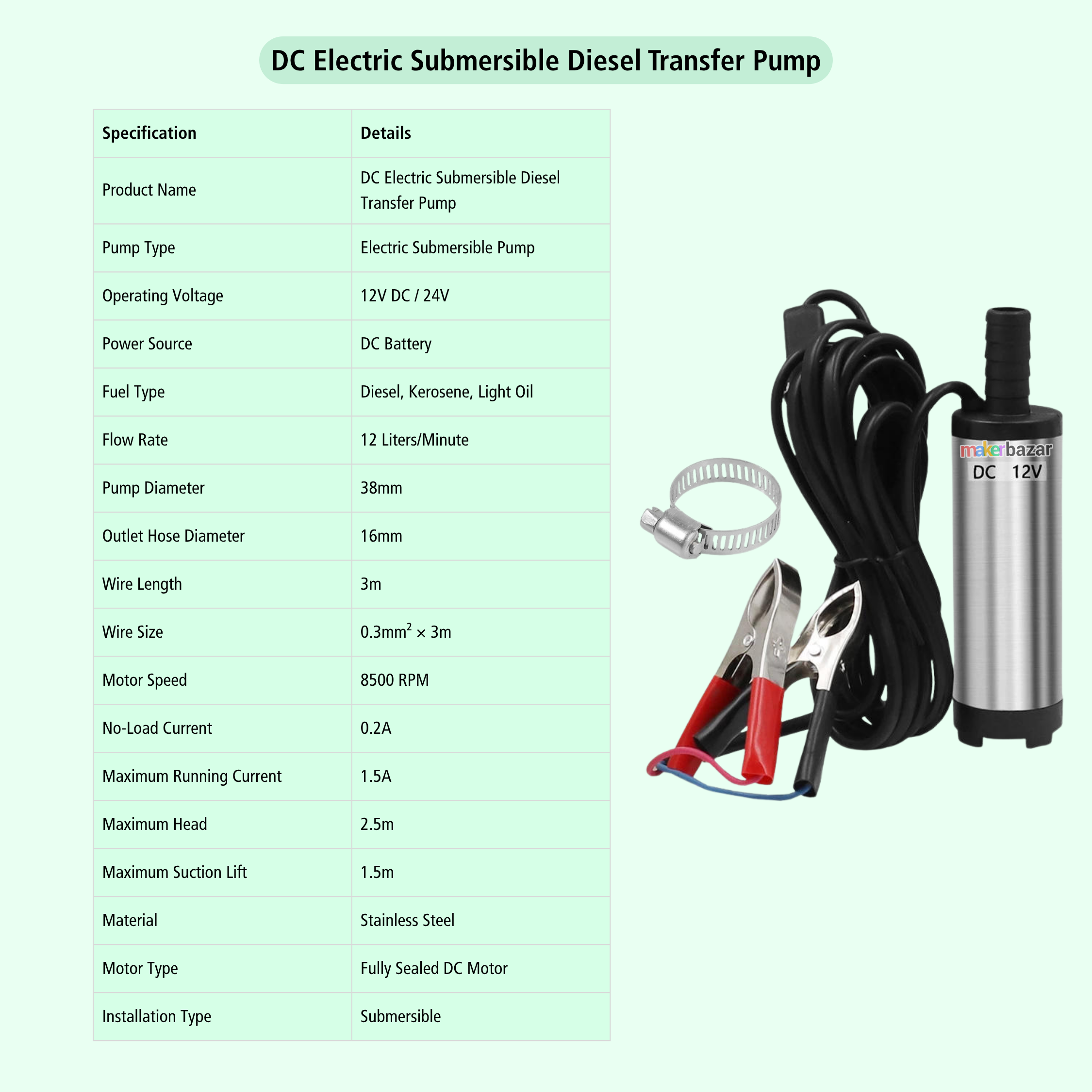

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | DC Electric Submersible Diesel Transfer Pump |
| Pump Type | Electric Submersible Pump |
| Operating Voltage | 12V DC / 24V DC (Variant Dependent) |
| Power Source | DC Battery |
| Fuel Type | Diesel, Kerosene, Light Oil |
| Flow Rate | 12 Liters/Minute |

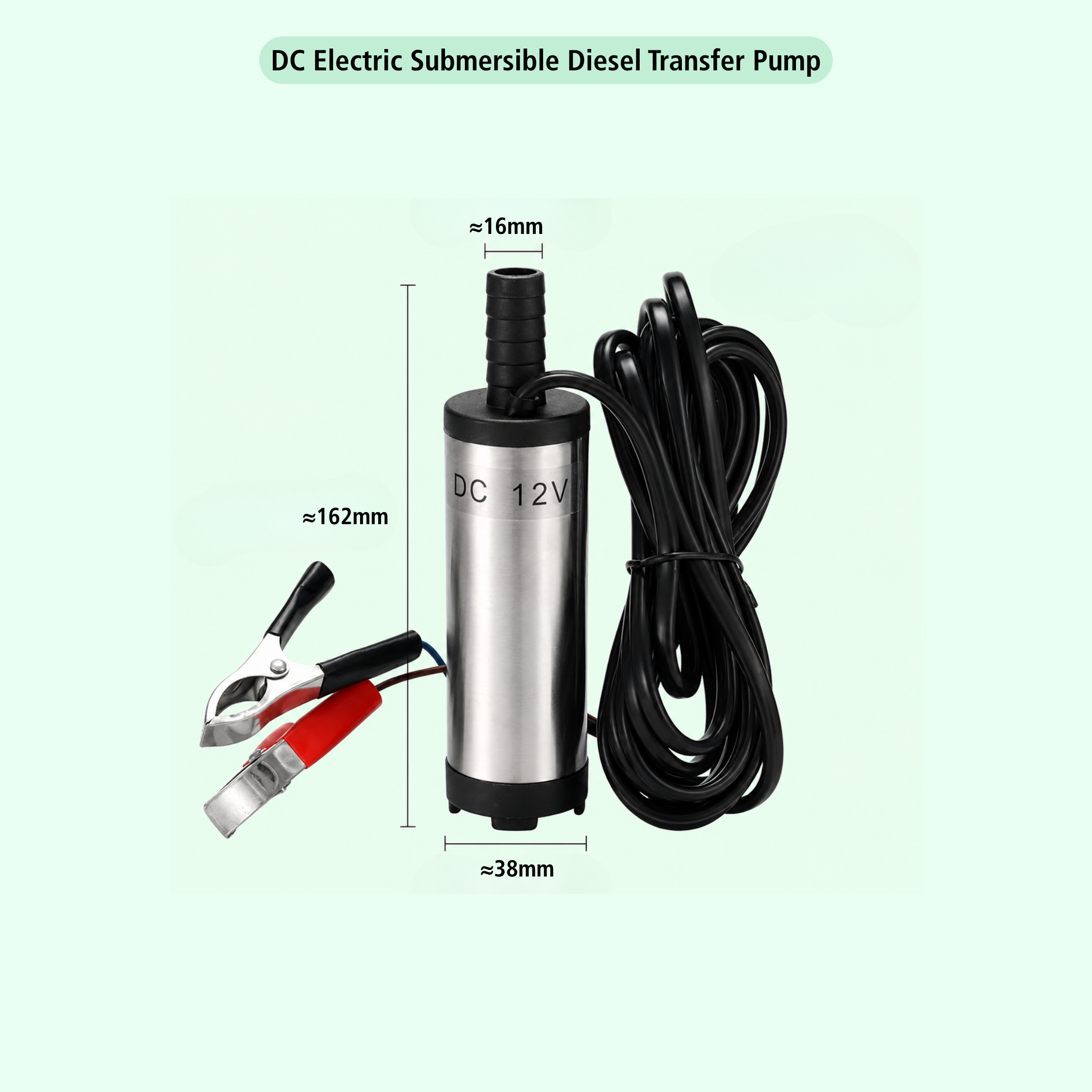

| Pump Diameter | 38mm |
| Outlet Hose Diameter | 16mm |
| Wire Length | 2 Meters |
| Wire Size | 0.3mm² × 2m |
| Motor Speed | 8500 RPM |
| Motor No-Load Current | 0.2A |
| Maximum Running Current | 1.5A |
| Maximum Suction Lift | 1.5m |
| Material | Stainless Steel |
| Motor Type | Fully Sealed |
| Installation | Submersible |

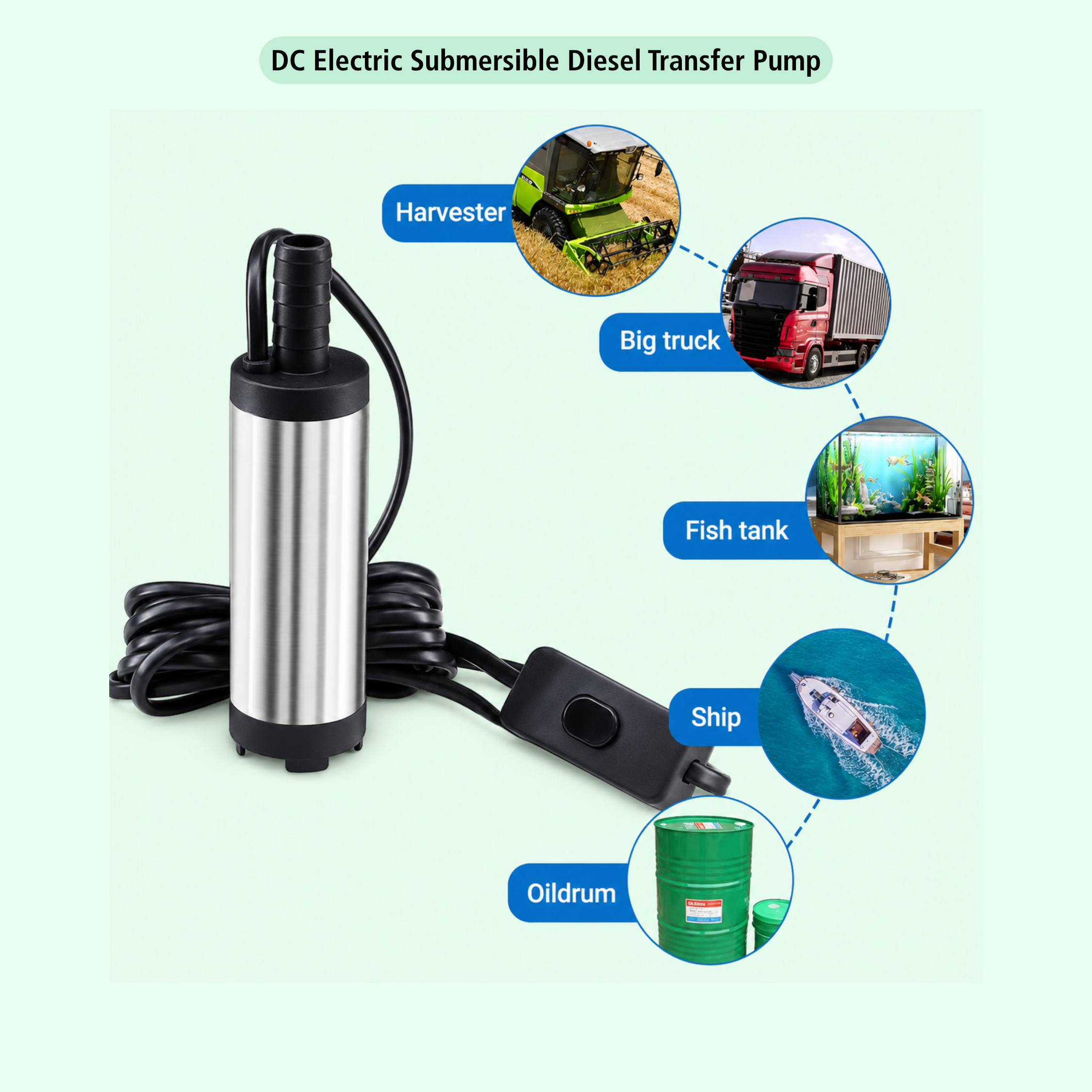

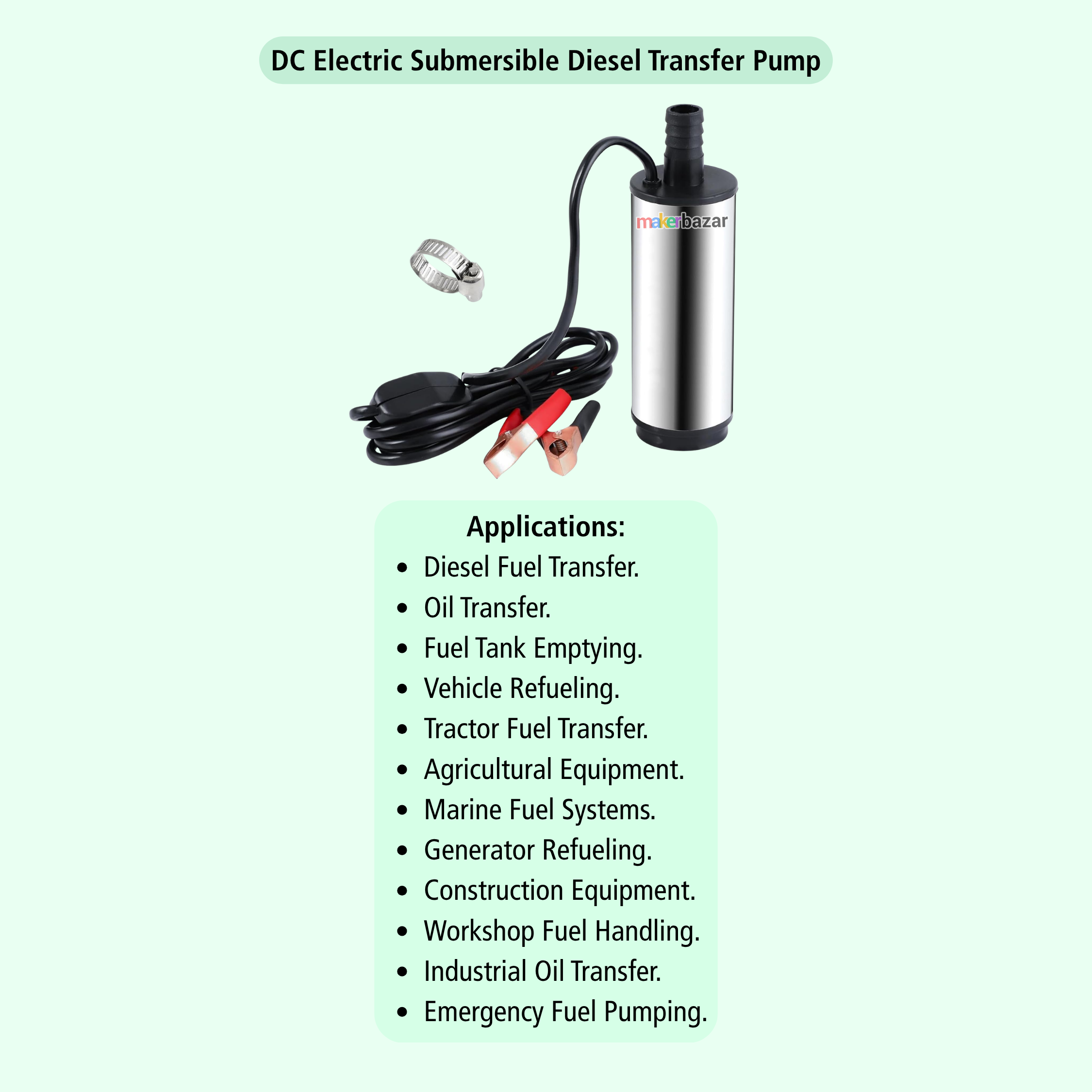

Applications
- Diesel Fuel Transfer
- Oil Transfer
- Fuel Tank Emptying
- Vehicle Refueling
- Tractor Fuel Transfer
- Agricultural Equipment
- Marine Fuel Systems
- Generator Refueling
- Construction Equipment
- Workshop Fuel Handling
- Industrial Oil Transfer
- Emergency Fuel Pumping
- Farm Machinery
- Diesel Storage Tanks
Precautions
- Use only with diesel, kerosene, and light oil.
- Do NOT use with petrol (gasoline), alcohol, or other highly flammable liquids.
- Ensure the pump is fully submerged before operation.
- Verify correct voltage (12V or 24V) before connecting.
- Observe correct battery polarity.
- Do not run the pump dry for extended periods.
- Keep the filter clean for optimal performance.
- Disconnect power before maintenance.
- Store the pump in a clean and dry place after use.
