Description

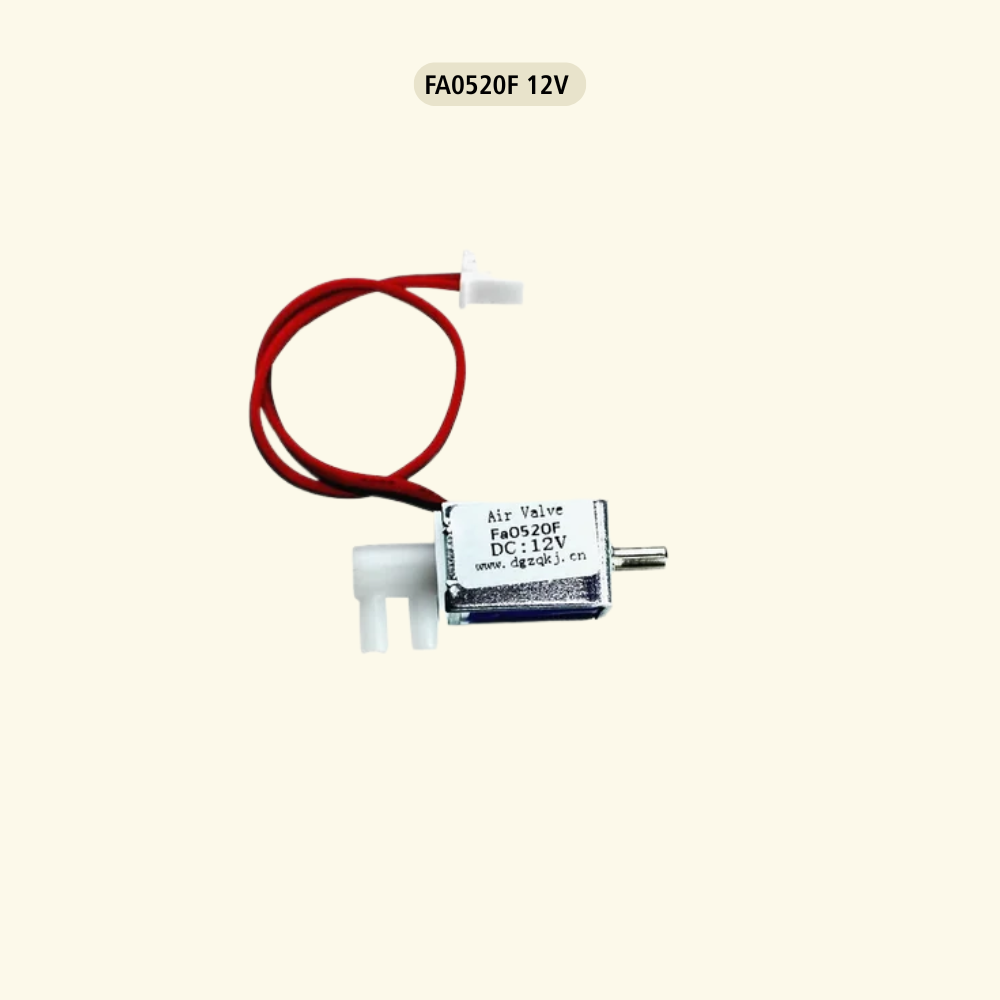

12V Mini Solenoid Valve – 2-Position 3-Way Electric Air/Gas Valve (FA0520F & FA0520E)
This 12V Electric Solenoid Mini Valve is a compact and efficient 2-position 3-way valve designed for air and gas flow control. Ideal for pneumatic projects, automated systems, gas release mechanisms, inflatable systems, and DIY air pump setups.
Available in two variants—FA0520F and FA0520E—this mini solenoid valve allows seamless switching between airflow directions using simple electrical activation. When powered, the valve changes the airflow path, enabling controlled inflation, deflation, exhaust, or vacuum operations.
Its lightweight and durable design makes it perfect for hobbyists, engineers, robotics developers, and automation projects requiring precise, reliable pneumatic control.
Key Features
-
12V DC operation for easy integration
-
2-position, 3-way design ideal for air/gas direction control
-
Miniature size suitable for compact devices and DIY builds
-
Durable construction with metal and high-quality plastic components
-
Simple wiring and fast switching response
-
Ideal for pneumatic systems, vacuum control, inflatables, and automation projects
-
Two variants available: FA0520F and FA0520E
Technical Specifications
| Specification | FA0520F | FA0520E |
|---|---|---|
| Model | FA0520F | FA0520E |
| Operating Voltage | 12V DC | 12V DC |
| Valve Type | 2-Position, 3-Way | 2-Position, 3-Way |
| Application Medium | Air / Gas | Air / Gas |
| Ports | 3-Port system | 3-Port system |
| Operation | Energized: Common to plastic port | Energized: Common to plastic port |
| De-energized: Common to metal port | De-energized: Common to metal port | |
| Body Material | Metal + Plastic | Metal + Plastic |
| Wiring | 2-Wire (Red + Black) | 2-Wire (Red + Black) |
| Flow Type | ON/OFF switching | ON/OFF switching |

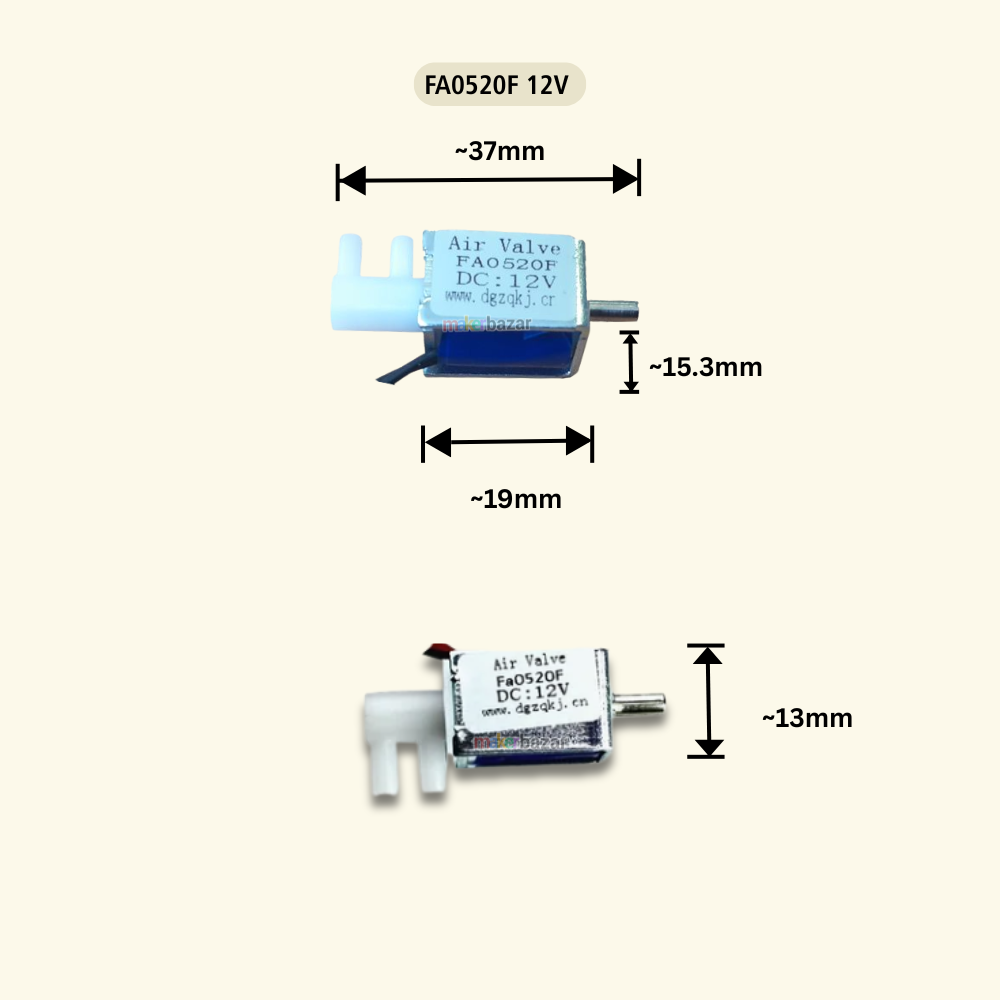

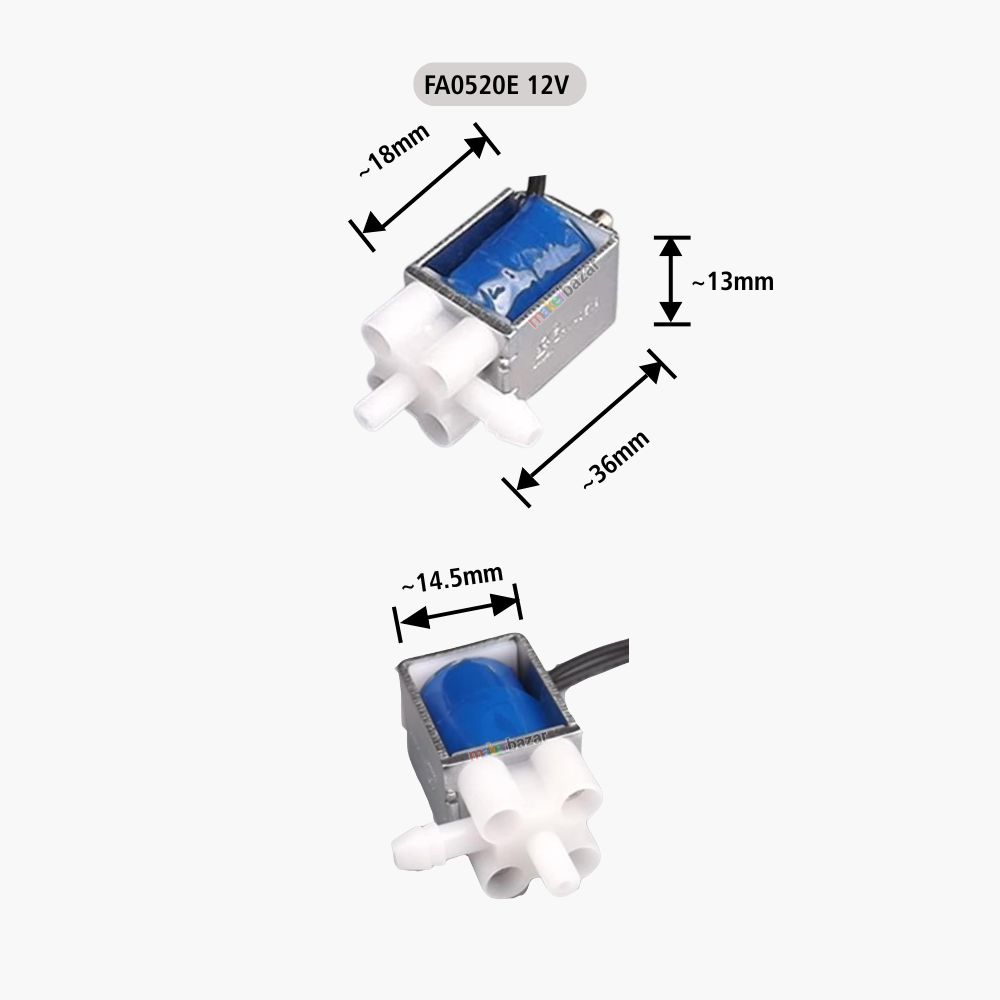

| Size | Mini compact size | Mini compact size |
Applications
-
Pneumatic automation systems
-
Air pumps & vacuum switching
-
Inflatable devices & balloon mechanisms
-
Gas/air directional control
-
Robotics & automation
-
Air release and exhaust systems
-
Laboratory and DIY engineering projects
Precautions
-
Use only with clean, dry air—avoid liquids
-
Ensure correct polarity and stable 12V DC supply
-
Avoid overheating—do not power continuously beyond rated duration
-
Install securely to avoid leakage
-
Keep away from dust, moisture, oil, or corrosive substances
-

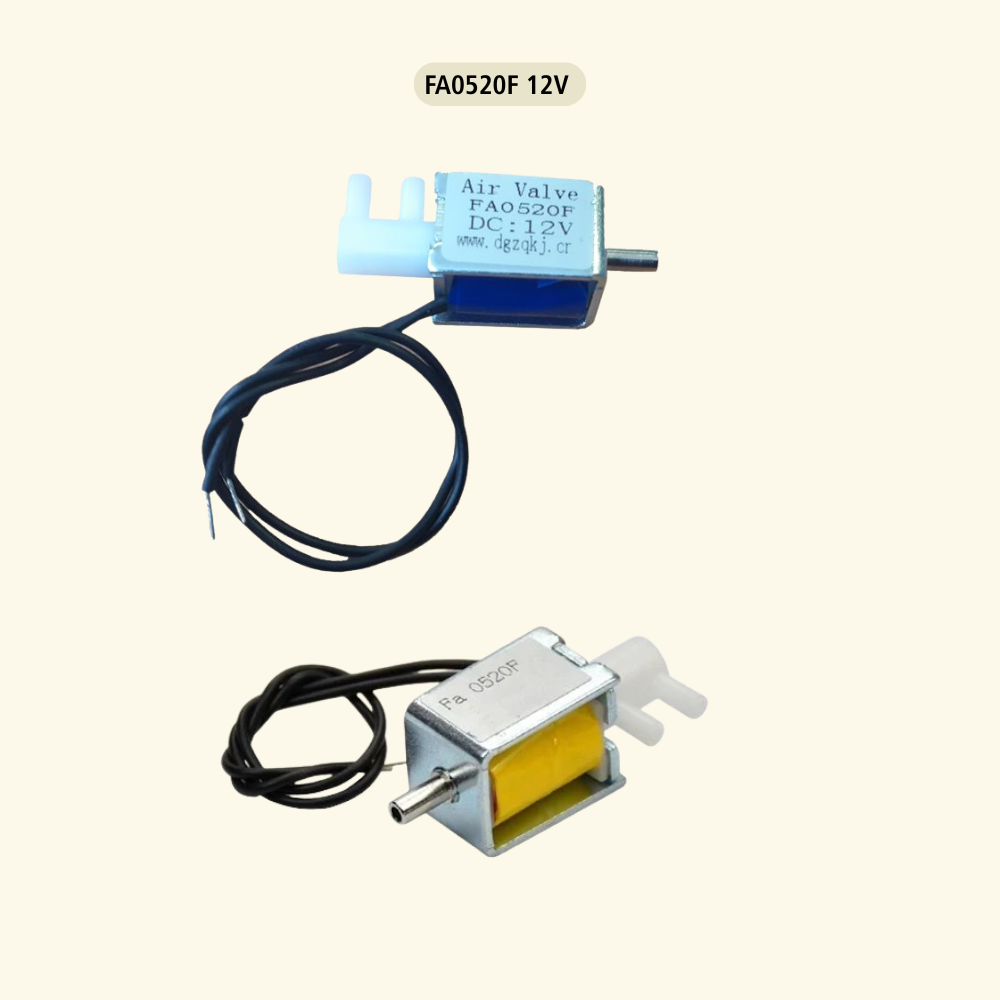

Product colour or label may vary depending on stock availabilit
How it Works:
- This valve act as closed (blocked flow) when not powered
- When you apply a 12V power supply to the input, the valve gets open and the flow-through valve get started
- Removing the supply voltage again blocks the flow
- This is a two-way valve which means it can flow in both directions

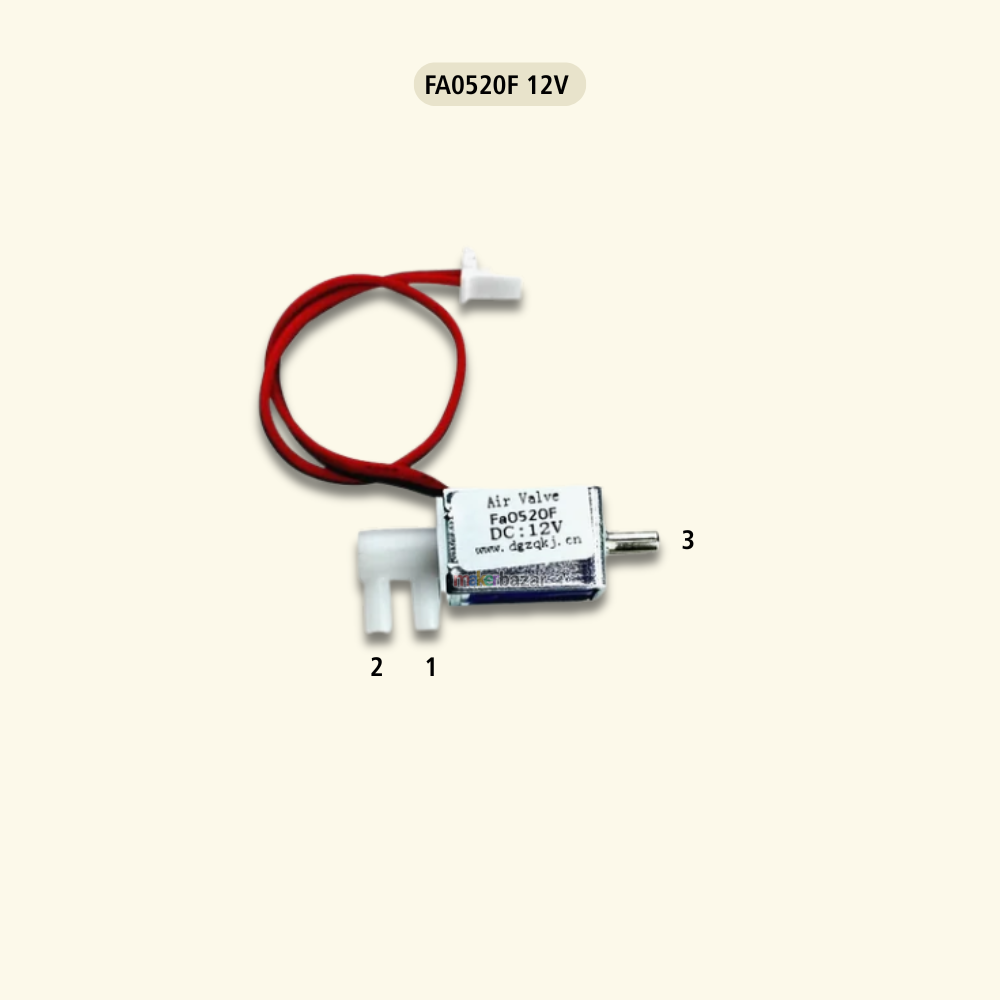

Working Modes of : FA0520F
- When power is ON, 1 and 2 are connected, and 3 is not connected to 1 or 2.
- When power is OFF, 1 and 3 are connected, and 2 is not connected to 1 or 3.

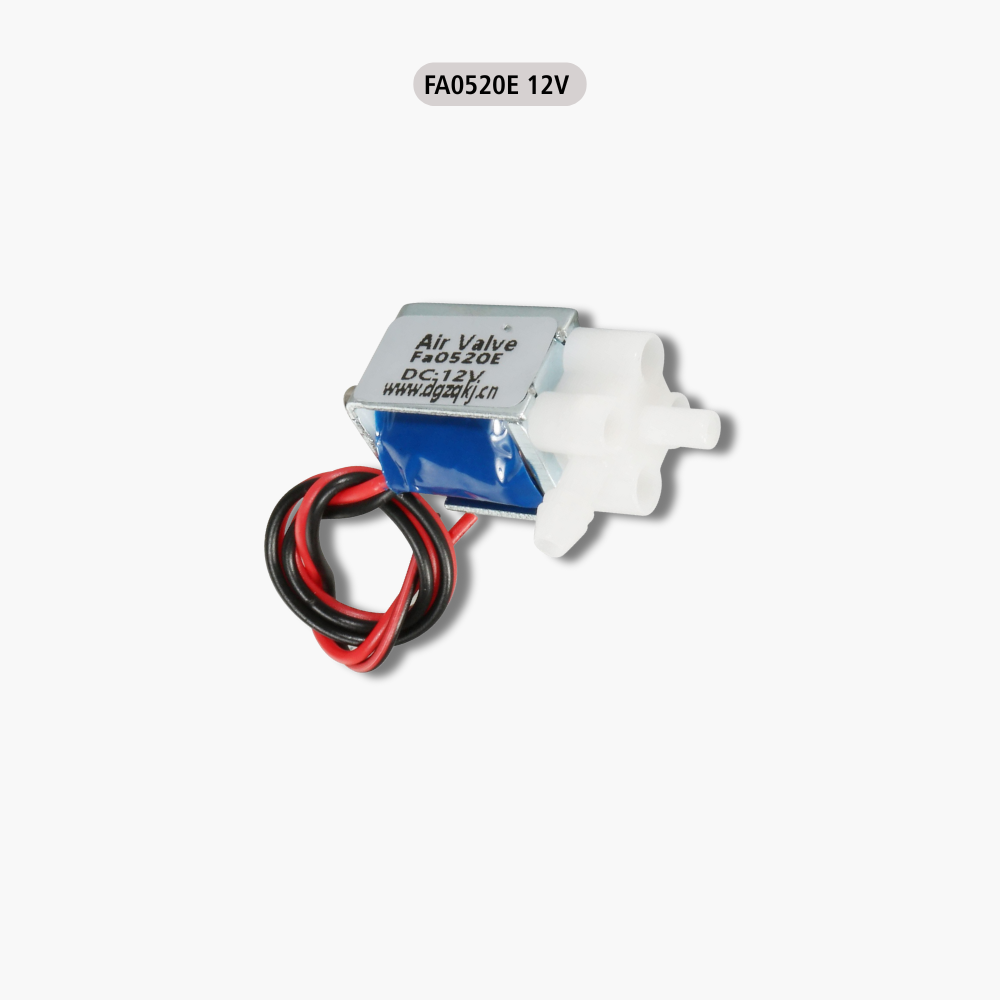

Working Modes of : FA0520E
- When power is ON, 3 and 2 are connected, and 1 is closed.
- When power is OFF, 1 and 3 are connected, and 2 is closed.
