Description

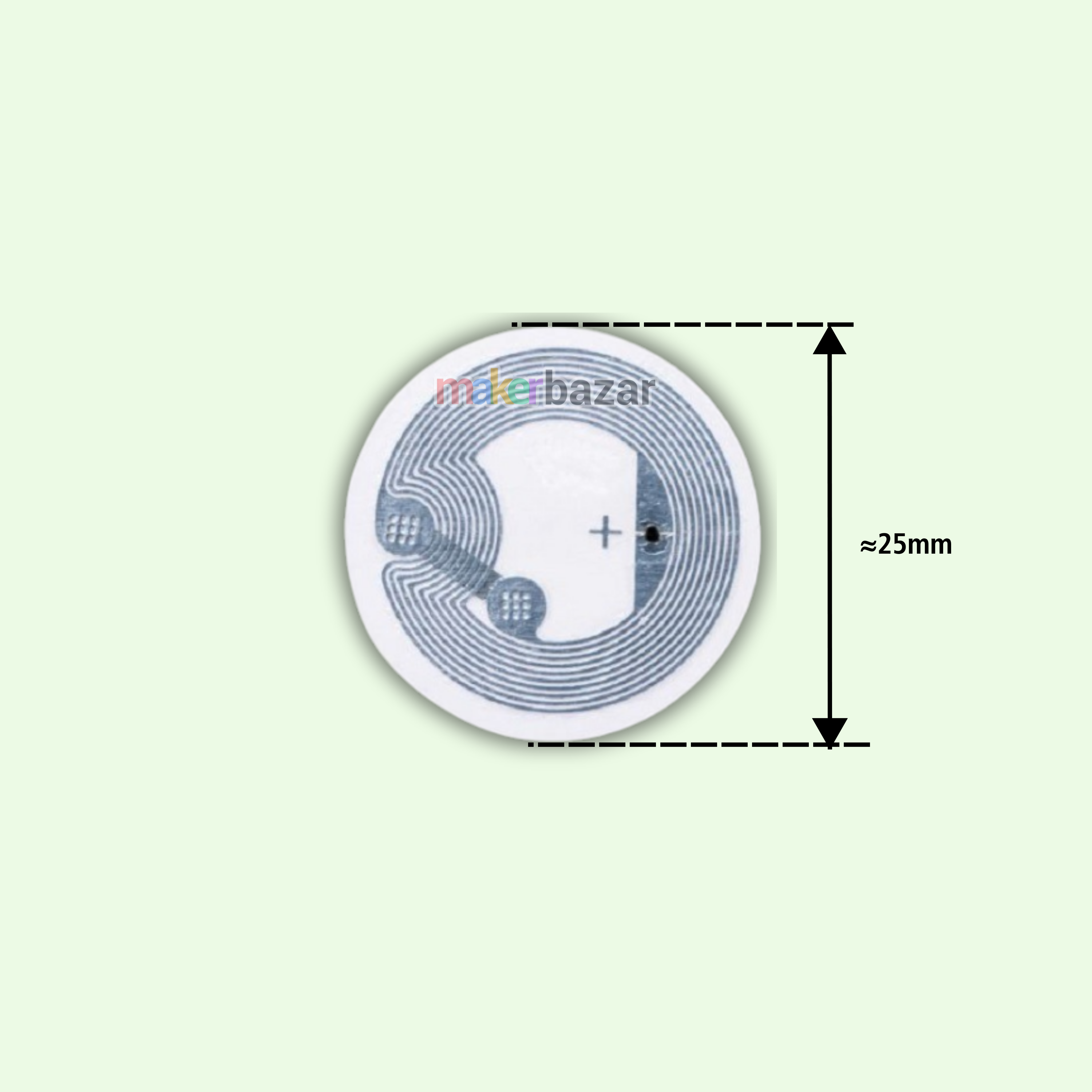

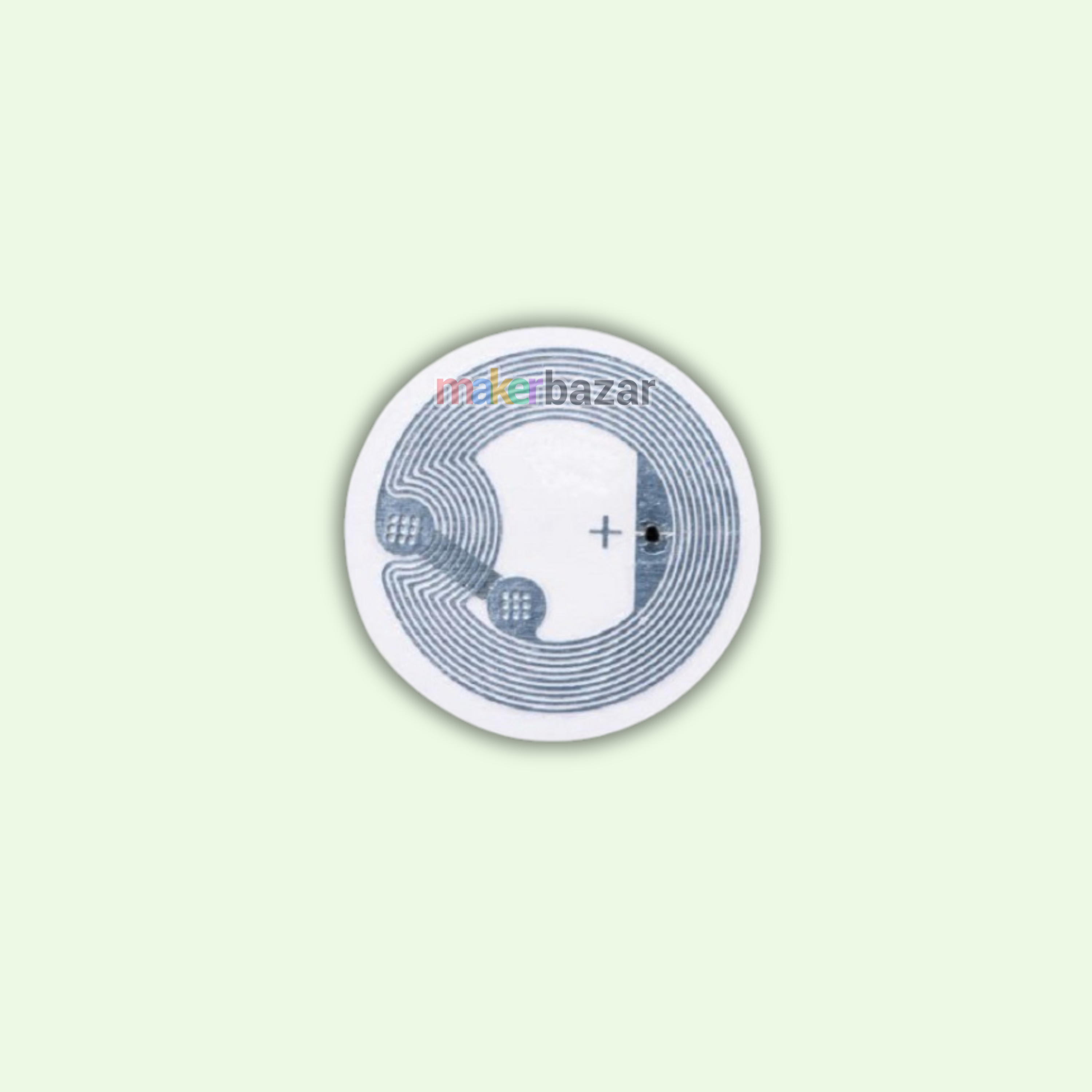

13.56 MHz NTAG213 NFC Sticker Tag 144 Byte
The 13.56 MHz NTAG213 NFC Sticker Tag is a compact, passive NFC tag designed for contactless data transfer applications. It operates at 13.56 MHz and supports up to 144 bytes of user memory, making it ideal for identification, automation, access control, and smart project use.

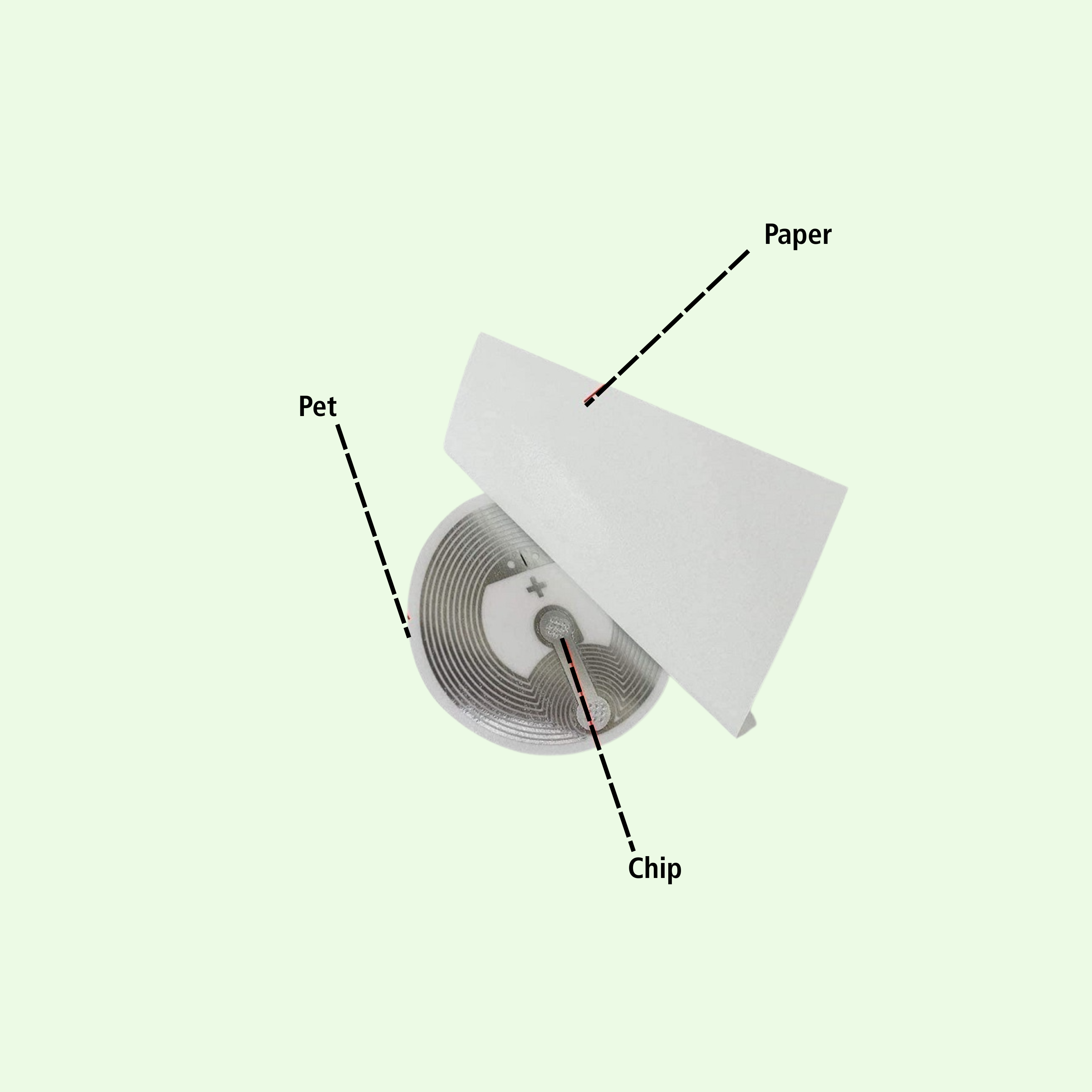

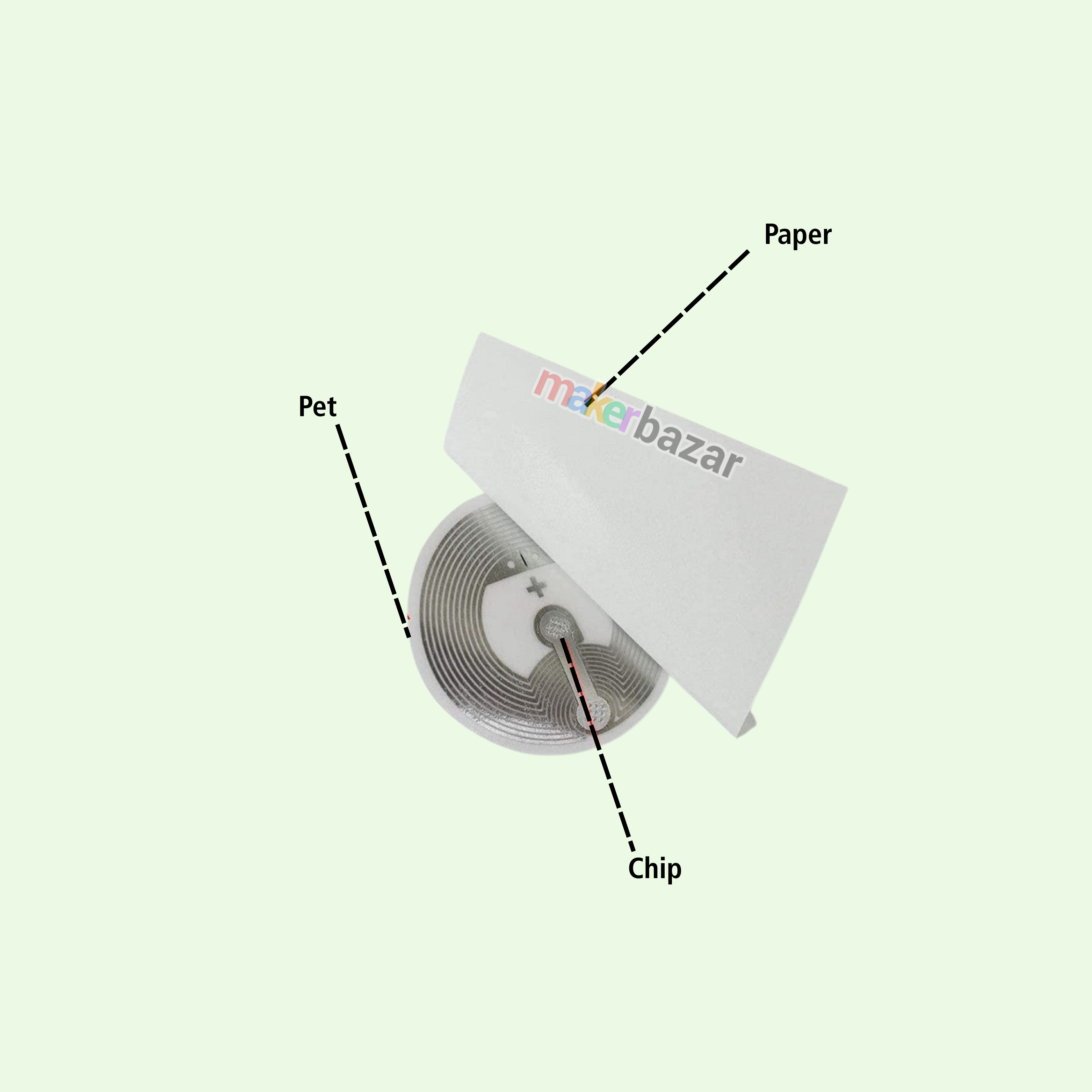

This NFC sticker contains an NTAG213 chip with an integrated antenna and does not require an internal power source. It is powered wirelessly by an NFC reader or smartphone when brought within range. The tag supports over 100,000 rewrite cycles, making it suitable for long term and repeated use.

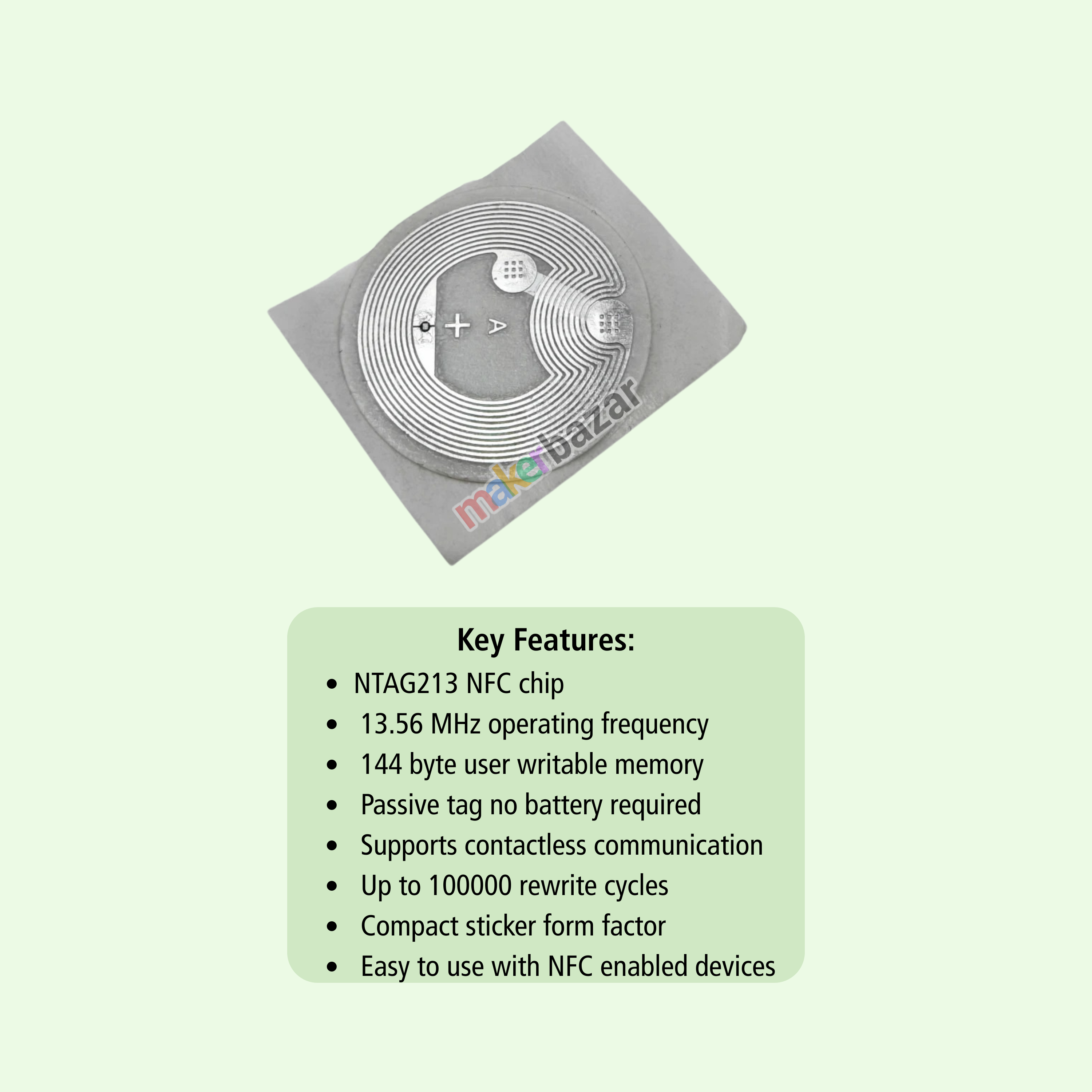

Key Features
- NTAG213 NFC chip
- 13.56 MHz operating frequency
- 144 byte user writable memory
- Passive tag no battery required
- Supports contactless communication
- Up to 100000 rewrite cycles
- Compact sticker form factor
- Easy to use with NFC enabled devices

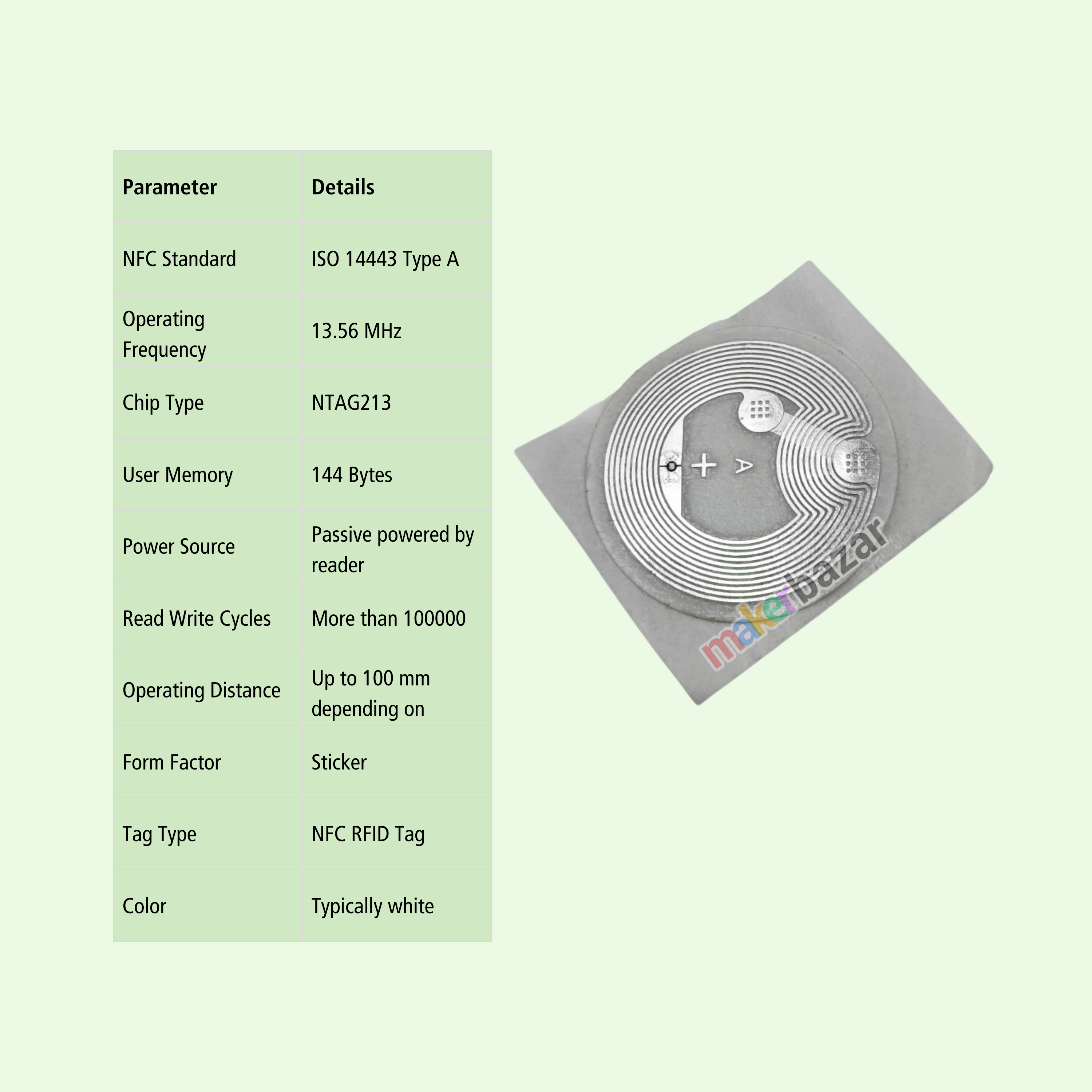

Technical Specifications
| Parameter | Details |
|---|---|
| NFC Standard | ISO 14443 Type A |
| Operating Frequency | 13.56 MHz |
| Chip Type | NTAG213 |
| User Memory | 144 Bytes |
| Power Source | Passive powered by reader |
| Read Write Cycles | More than 100000 |
| Operating Distance | Up to 100 mm depending on reader |
| Form Factor | Sticker |
| Tag Type | NFC RFID Tag |
| Color | Typically white |

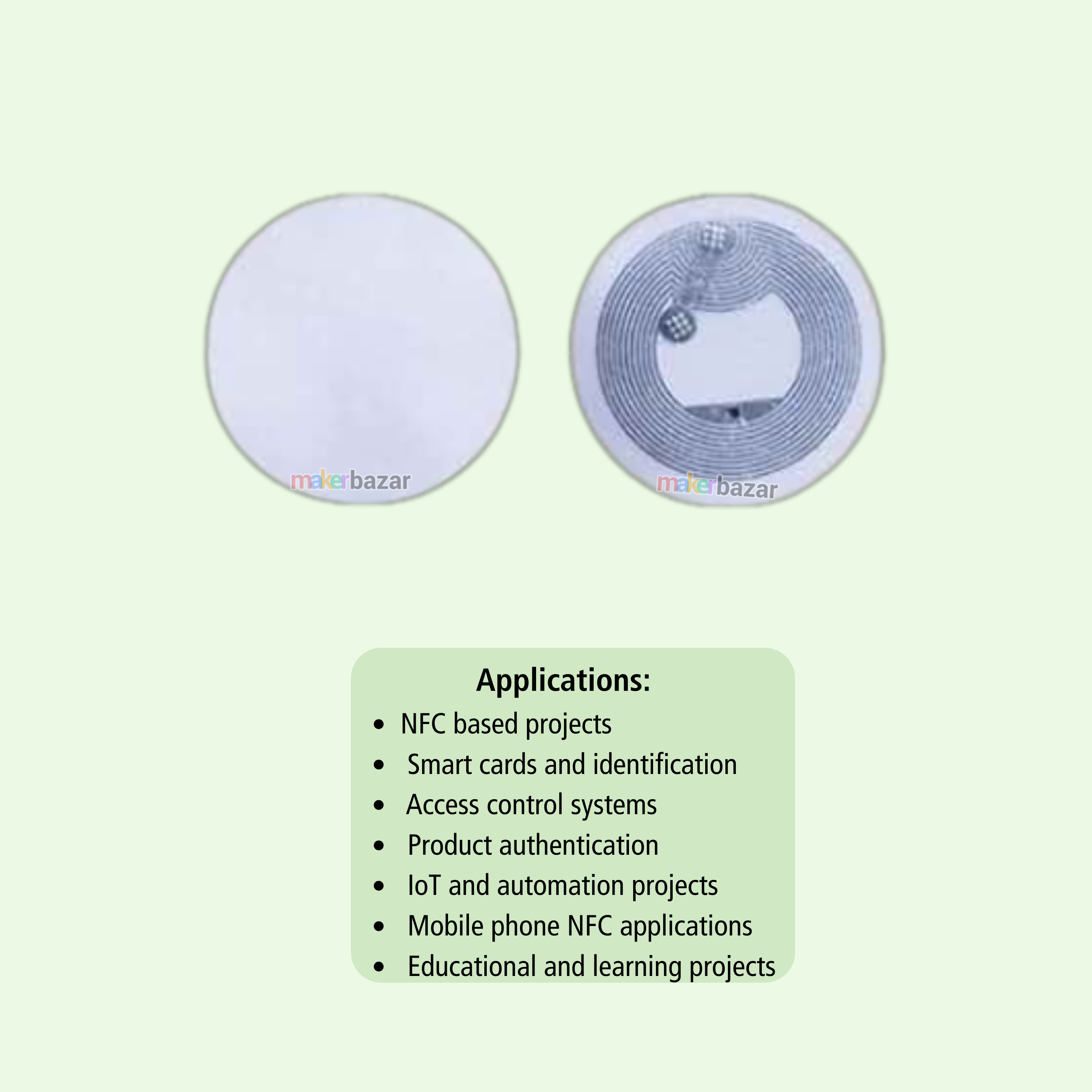

Applications
NFC based projects
Smart cards and identification
Access control systems
Product authentication
IoT and automation projects
Mobile phone NFC applications
Educational and learning projects
Precautions
Avoid bending or damaging the antenna area
Do not expose to high temperatures
Ensure compatibility with NFC readers
Keep away from strong electromagnetic interference
Stick on clean flat surfaces for best performance
