Description

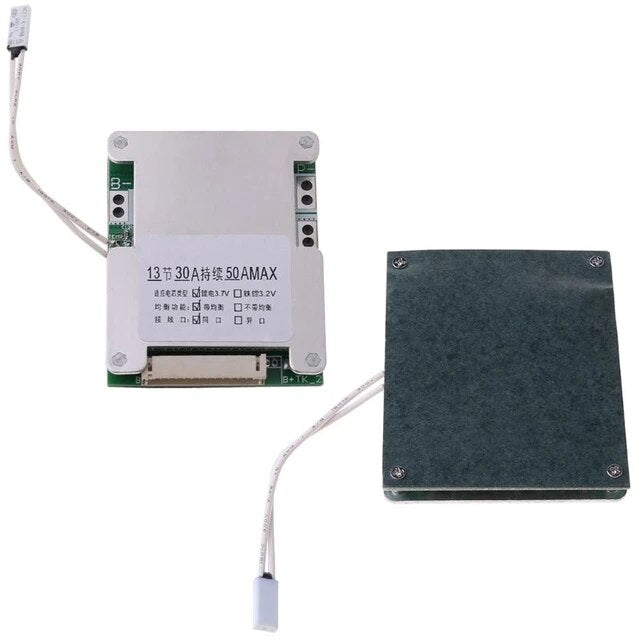

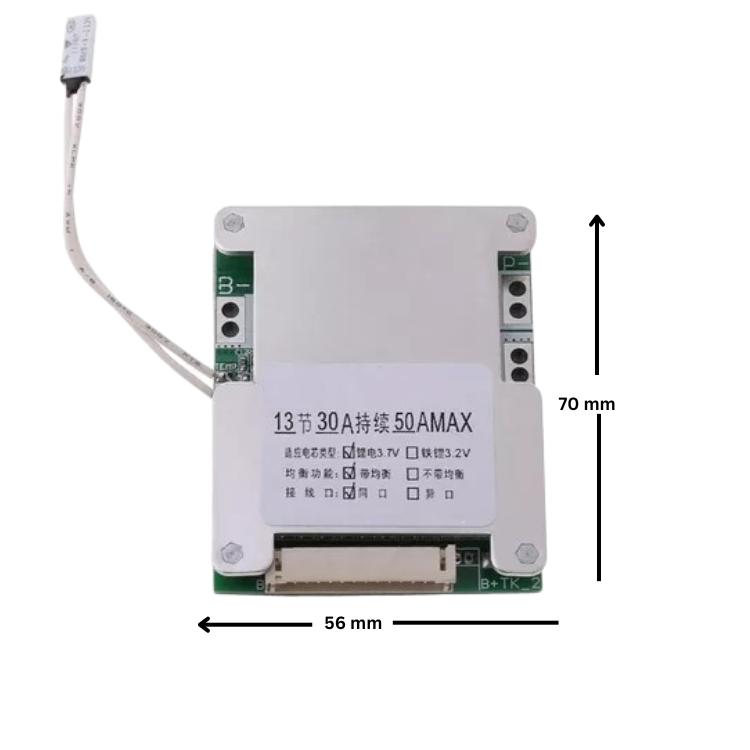

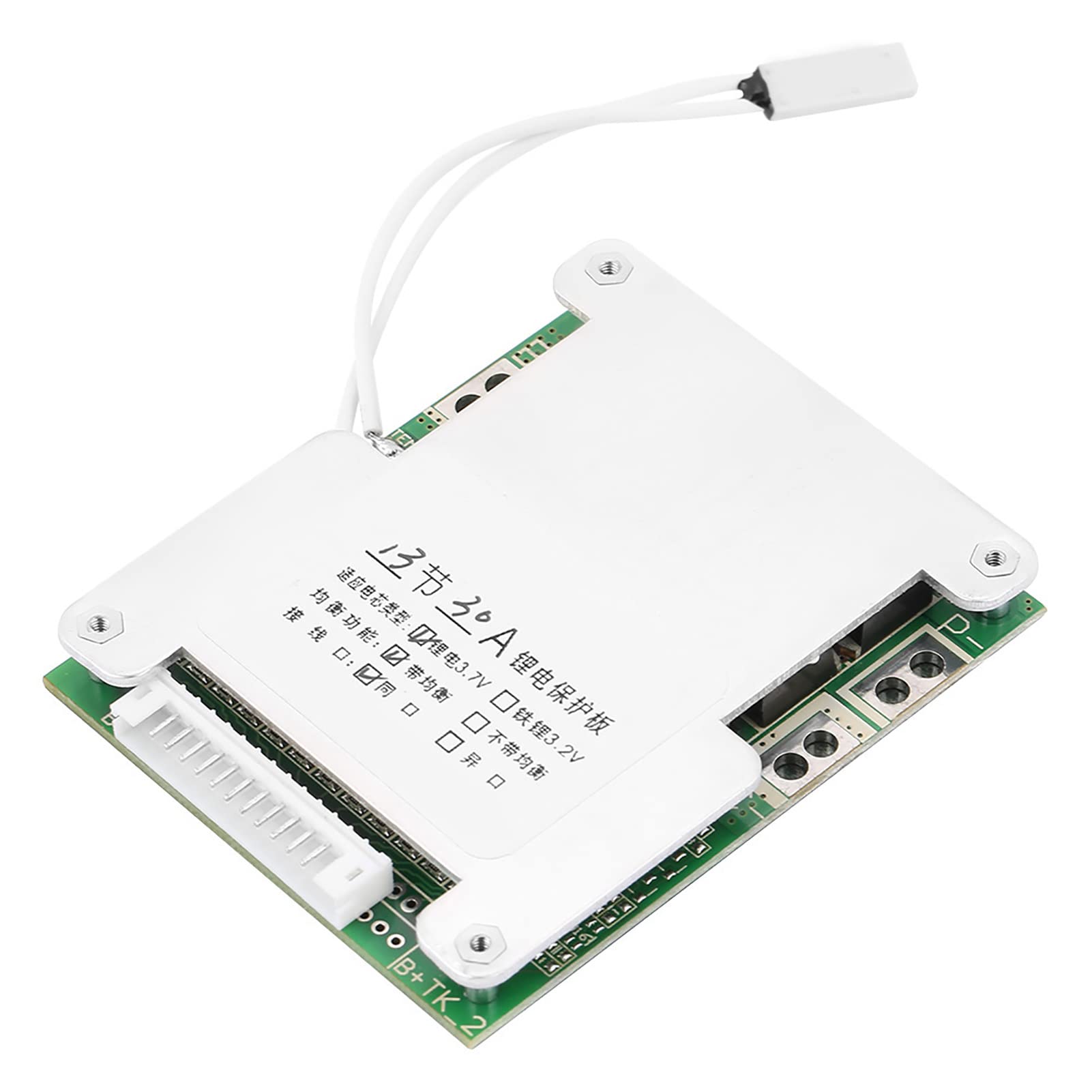

18650 Battery Charging PCB Board With Balance Function
A Protection Board is used for Overcharge protection, over-discharge protection function, short circuit protection function and over-current protection function
Features:
- Input Charging Voltage:54.6 V
- Number of cells in series: 13S
- Input Charging Current: 30A
- Output Discharging Current: 30A
- Use: 48V lithium battery
Package Includes:

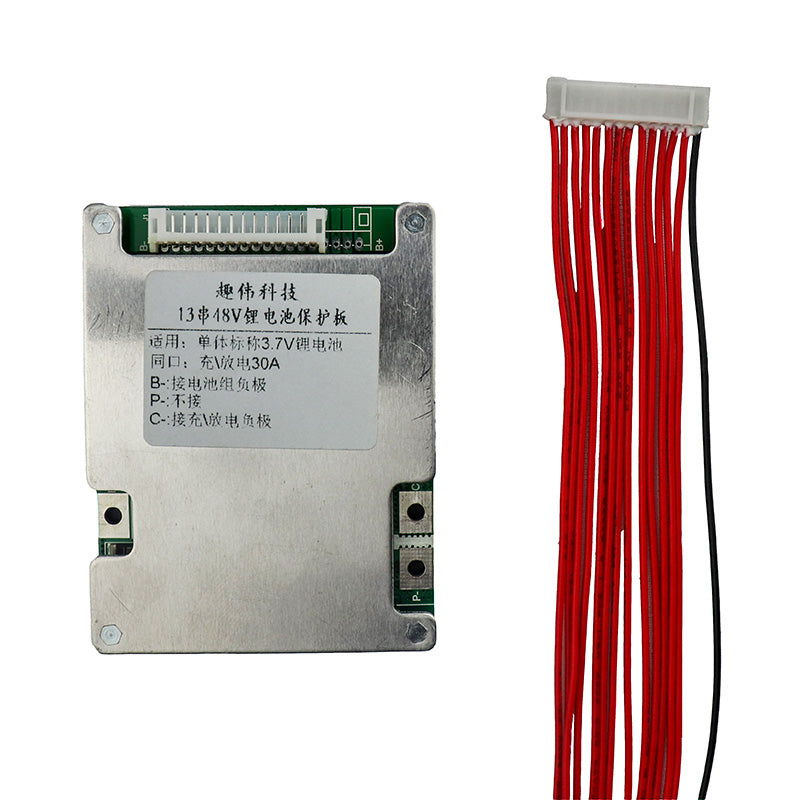

1 x 13S 48V 30A Li-ion Battery Protection Board
1 X Cabel Wire
Specifications:
| Supply voltage |
48v |
| Model Number |
13S 30A (48V) |
| Number of cells in series |
13S |
| Input Charging Current(A) |
30 |
| Use |
48V lithium battery |
| Cell Type |
3.7V Cell |
| Storage Temperature |
-40°C +125°C |
| Power Voltage(V) |
48 |
