Description

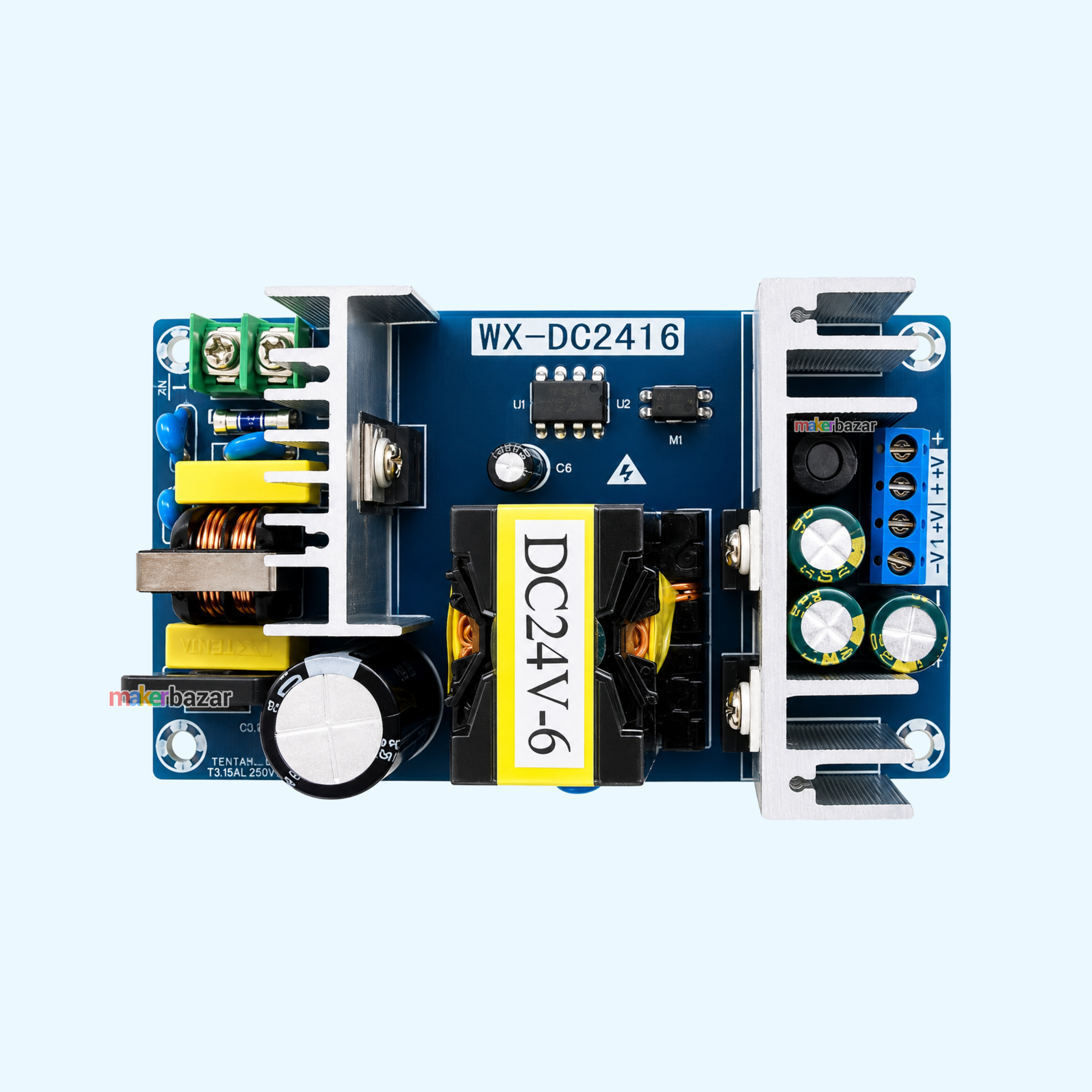

24V AC-DC Switching Power Supply Module for Industrial, Automation & DIY Applications
The 24V AC-DC Switching Power Supply Module is a high-efficiency open-frame power supply designed to convert 100V-240V AC mains input into a stable regulated 24V DC output. Built using high-quality switching power supply technology, this module provides reliable DC power for industrial automation, LED lighting, CCTV systems, robotics, CNC machines, 3D printers, embedded electronics, and various DIY applications.
Designed for continuous operation, the module features an efficient switching topology, low ripple output, excellent voltage regulation, and built-in safety protections. The open-frame PCB design allows easy installation inside electrical enclosures, industrial control panels, and custom electronic systems.
This product is available in multiple current and power variants while maintaining the same 24V DC output voltage. Choose the appropriate variant according to your application's current and power requirements.
High-power variants may include larger heatsinks or enhanced cooling components for improved thermal performance.
Please select the correct current and wattage variant before placing your order.

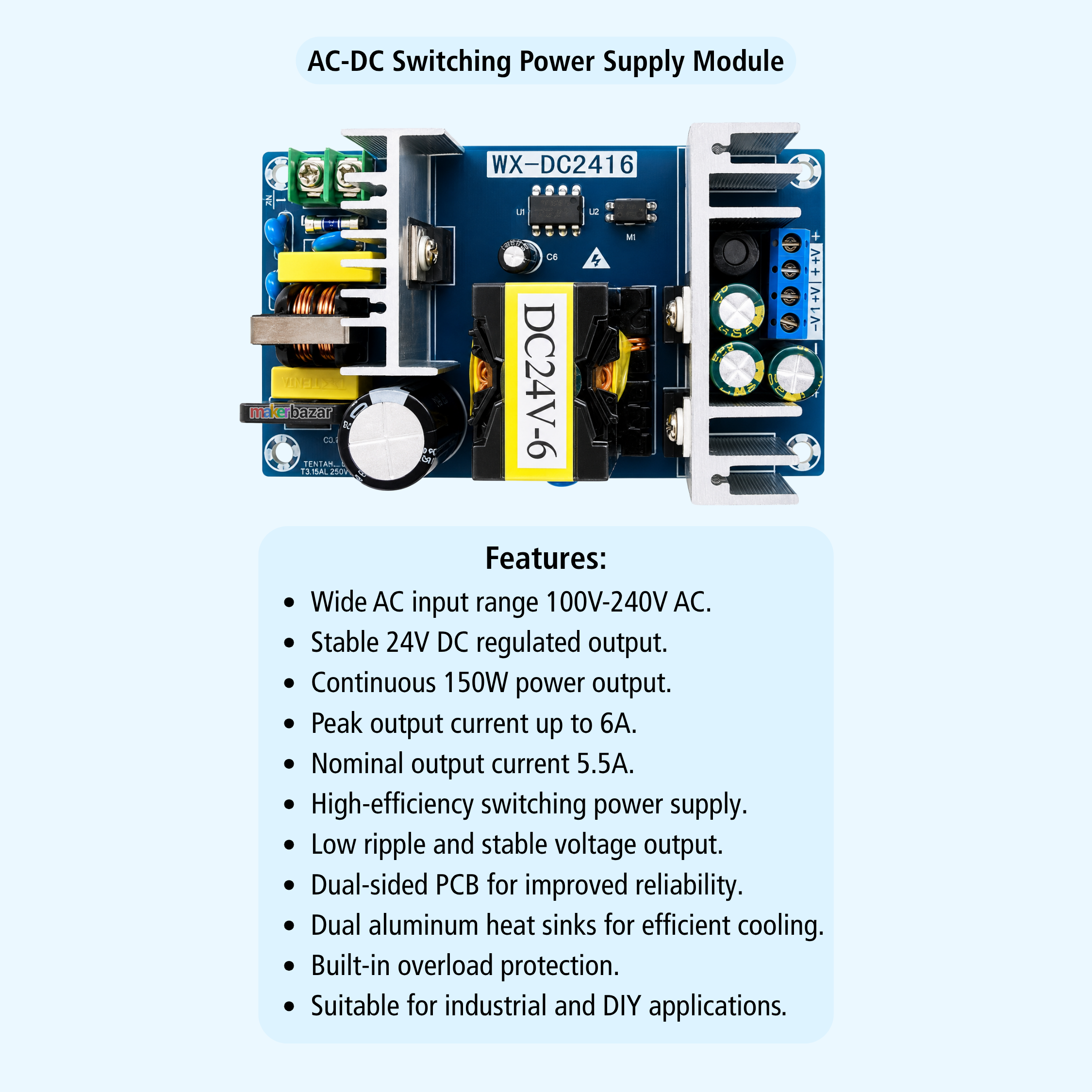

Key Features
- Wide universal AC input (100V–240V AC)
- Stable regulated 24V DC output
- Multiple current & power variants available
- High-efficiency switching power supply
- Low ripple and low noise output
- Excellent voltage regulation
- Built-in overload protection
- Over-current protection
- Short-circuit protection
- High-quality industrial-grade components
- Open-frame PCB design
- Compact and lightweight construction
- Easy wiring and installation
- Suitable for continuous operation
- Ideal for industrial and DIY applications

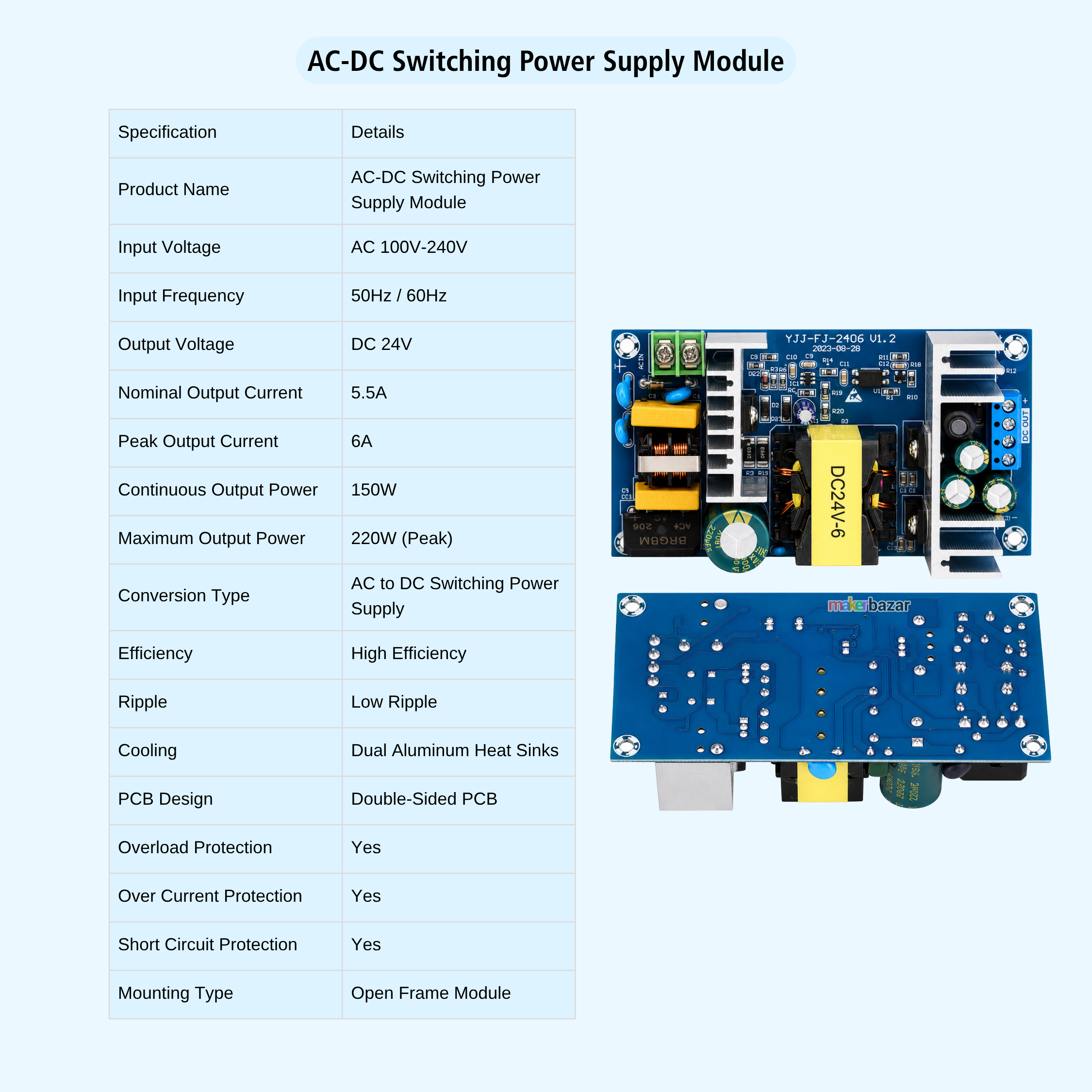

Technical Specifications
| Specification | Details |
|---|---|
| Product Type | AC-DC Switching Power Supply Module |
| Input Voltage | AC 100V–240V |
| Input Frequency | 50/60Hz |
| Output Voltage | 24V DC (Regulated) |
| Output Current | Depends on selected variant |
| Continuous Output Power | Depends on selected variant |
| Peak Output Power | Variant Dependent |
| Power Conversion | AC to DC Switching |
| Output Regulation | Regulated |
| Efficiency | High Efficiency |
| Ripple & Noise | Low Ripple Output |
| Cooling | Passive / Heatsink (Variant Dependent) |
| PCB Design | Industrial Open Frame PCB |
| Overload Protection | Yes |
| Overcurrent Protection | Yes |
| Short Circuit Protection | Yes |
| Mounting Type | Open Frame |
| Installation | Screw Terminal / Wire Connection |
Package Includes
- 1 × 24V AC-DC Switching Power Supply Module (Selected Variant)

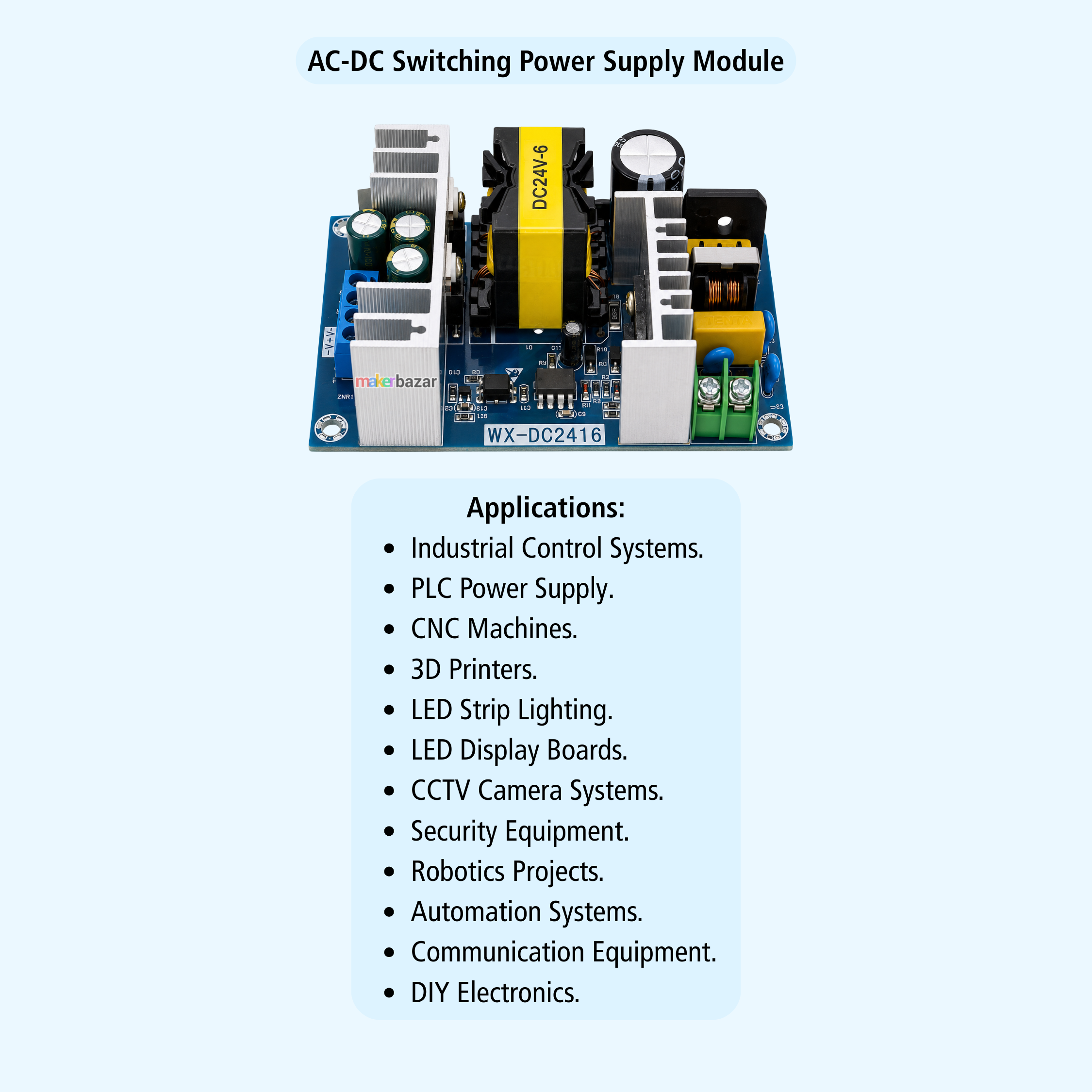

Applications
- Industrial Automation
- PLC Control Systems
- CNC Machines
- 3D Printers
- LED Strip Lighting
- LED Signage
- CCTV Camera Systems
- Security Equipment
- Robotics
- Smart Home Systems
- Communication Equipment
- Embedded Electronics
- DIY Electronics Projects
- Battery Charging Systems
- Laboratory Equipment
- Industrial Control Panels
Precautions
- Operates directly from AC mains voltage; handle with caution.
- Disconnect AC input before installation or maintenance.
- Verify input and output wiring before powering the module.
- Install inside a properly ventilated enclosure.
- Do not exceed the rated current of the selected variant.
- Keep away from moisture, dust, and corrosive environments.
- Ensure adequate cooling for high-power variants.
- Installation should be performed by qualified personnel or users familiar with electrical safety.
