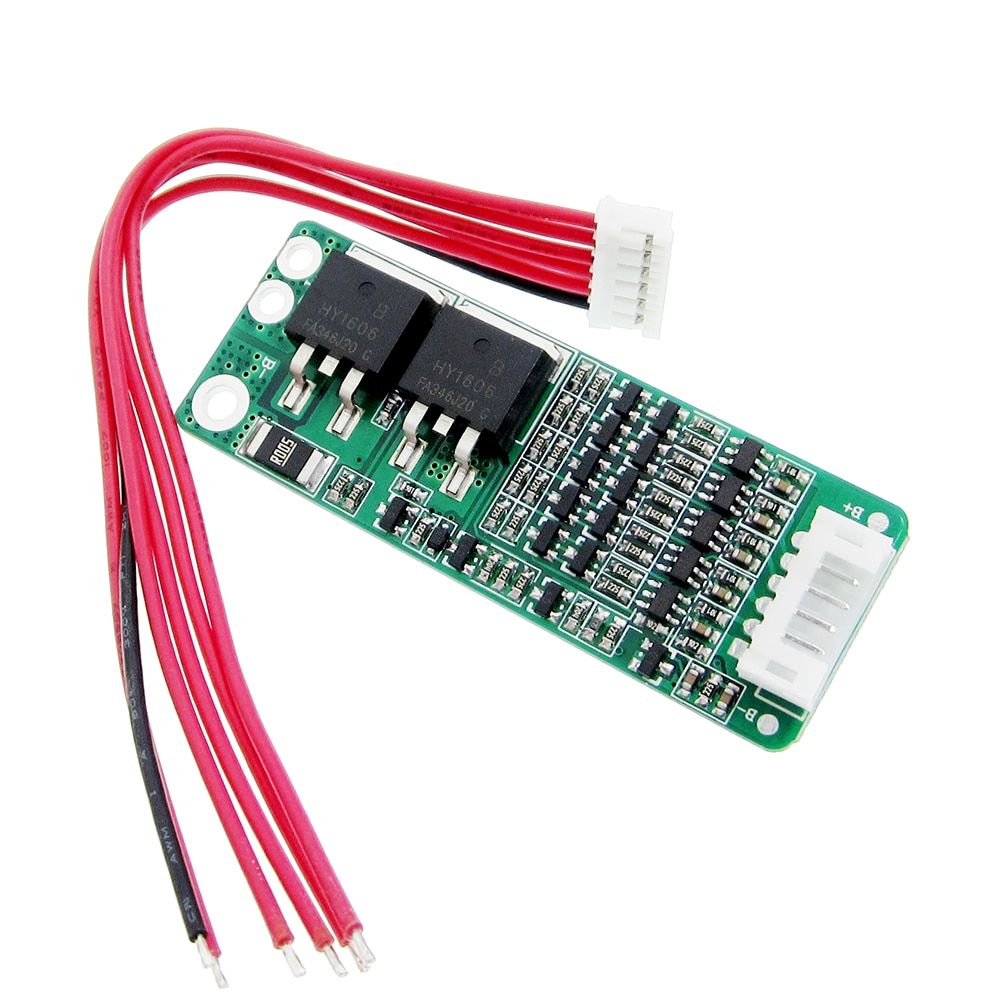

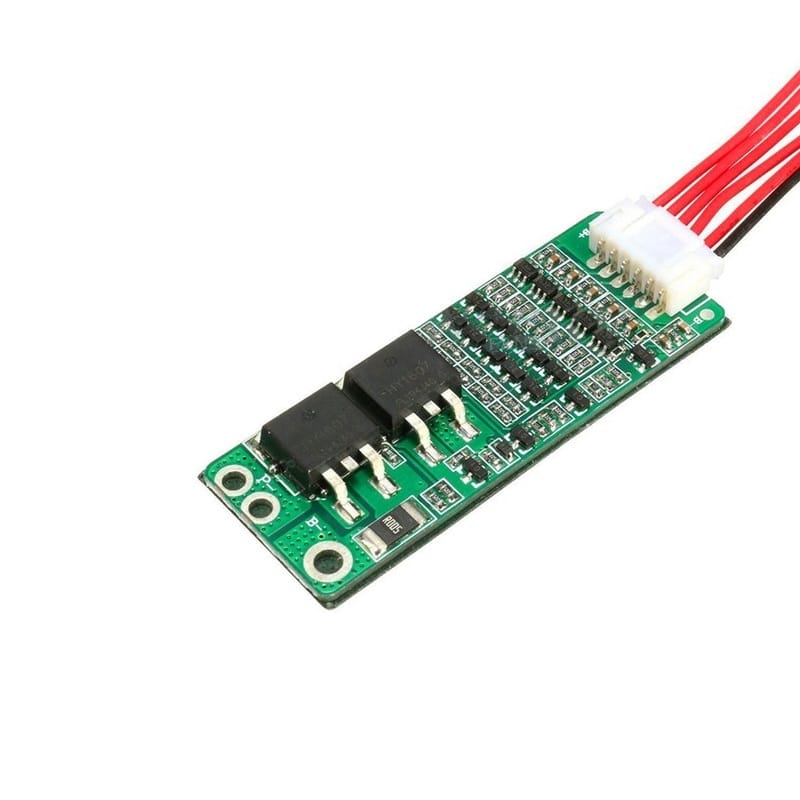

18v 21v 5S 15A 18650 Lithium Battery Protection Board

Save ₹ 55.00
SKU: 48897180
No reviews

Price:
Sale price₹ 245.00 Regular price₹ 300.00
( ₹ 207.63 without 18% GST.)

Tax included Shipping calculated at checkout

Description

5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery

This is  5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery. It ensures the security of the battery pack.

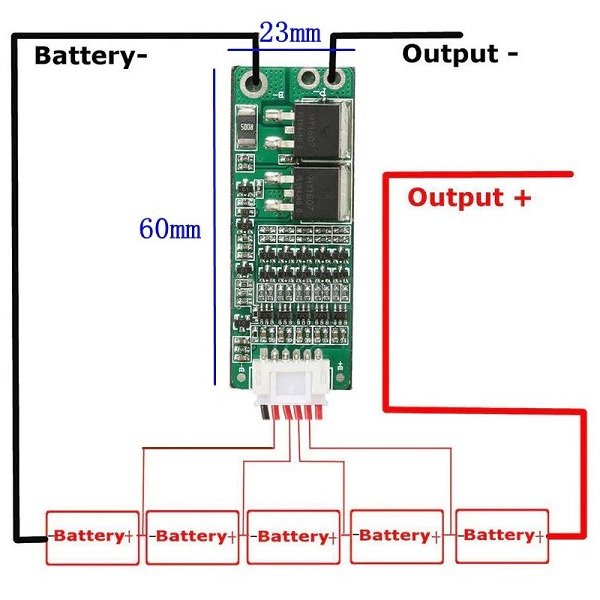

Connection Diagram of 5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery

Connection Diagram of 5S 15A 18650 Li-ion Lithium Battery BMS Charger Protection Board for 18V 21V Battery


Features :

  1. Single section power consumption since: 30 μA
  2. Power consumption between single section: 3 μA
  3. Single section over charging sensing voltage: 4.18- / 4.22V
  4. Over-charging recovery voltage: 4.05-4.15V
  5. Overcharge detection delay: 0.5 / 1.0 / 2.0S
  6. Single section discharge detection voltage: 2.75-2.85V
  7. Over discharge recovery voltage: 2.90-3.20V
  8. Discharge detection delay: 0.5-2.0S
