Description

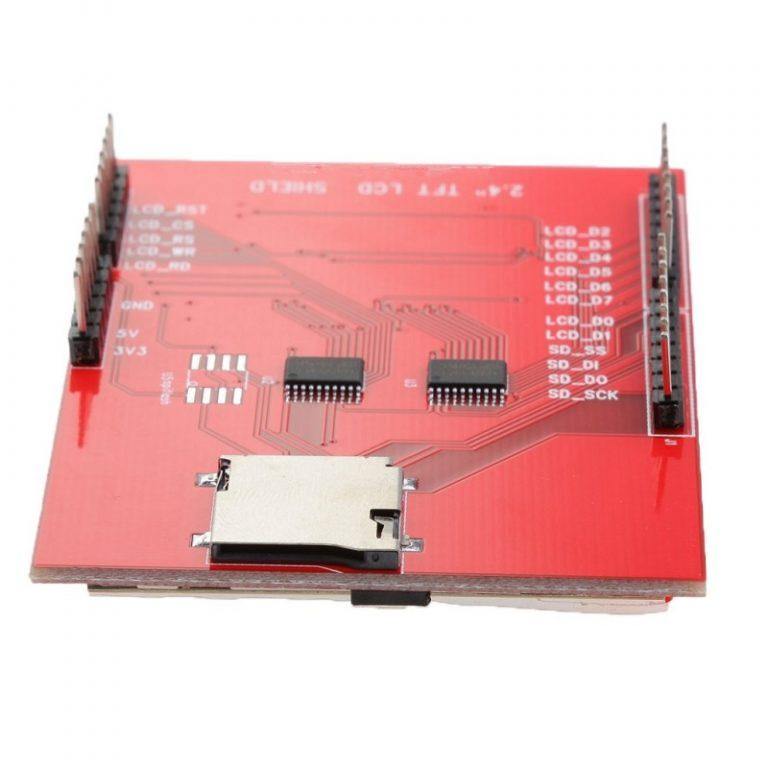

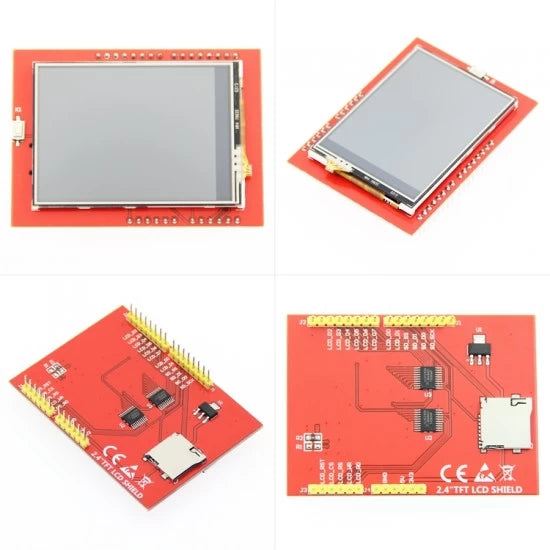

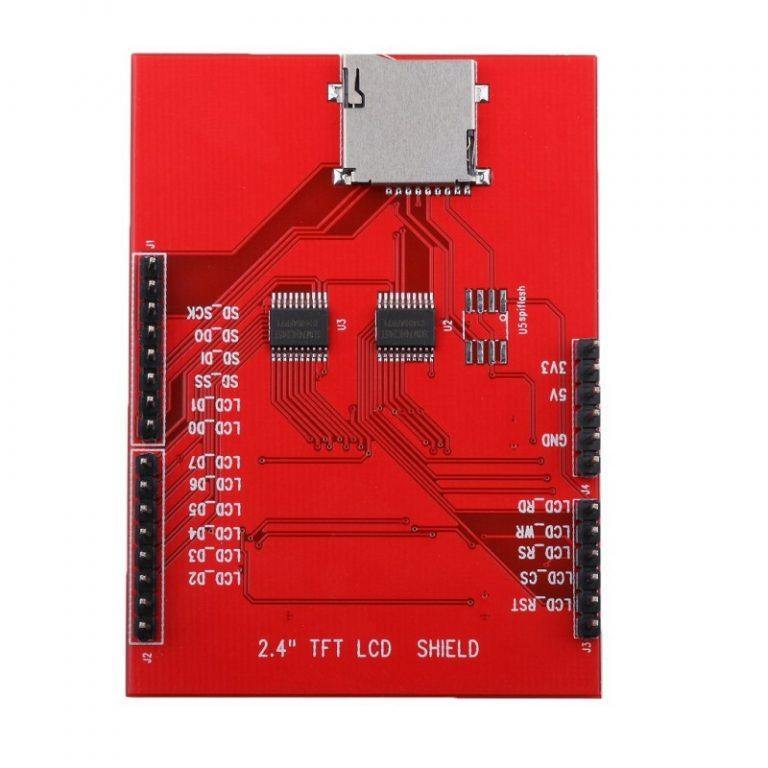

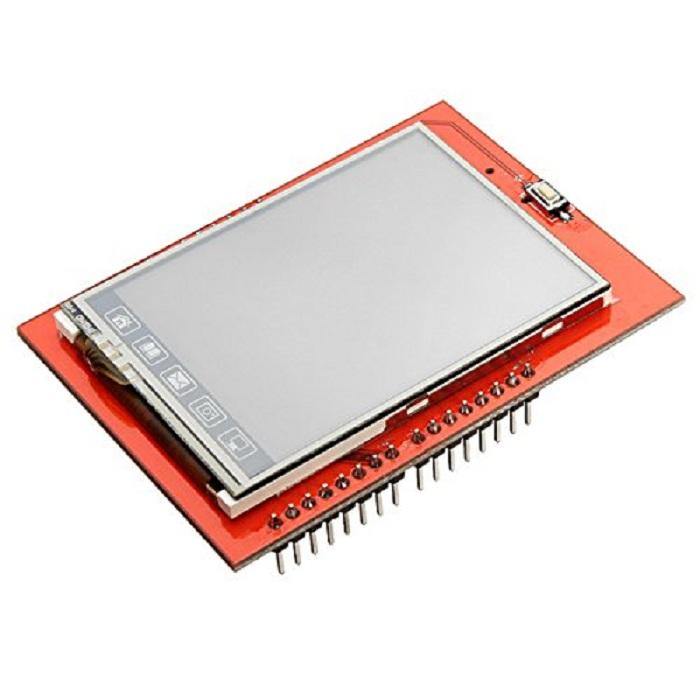

2.4in TFT Display for UNO board compatible with Arduino
2.4 Inch Touch Screen TFT Display Shield adds a touch-up to your Arduino project with a beautiful large touchscreen display shield with a built-in micro SD card connection. This TFT display is big (2.4 diagonal) bright and colorful! 240320 pixels with individual pixel control. It has way more resolution than a black and white 12864 display.
Features:
- 2.4 diagonal Touch LCD TFT display
- 240320 resolution, 18-bit (262,000) color
- 8-bit digital interface, plus 4 control lines
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
- Works with any Arduino Uno and mega compatible boards
